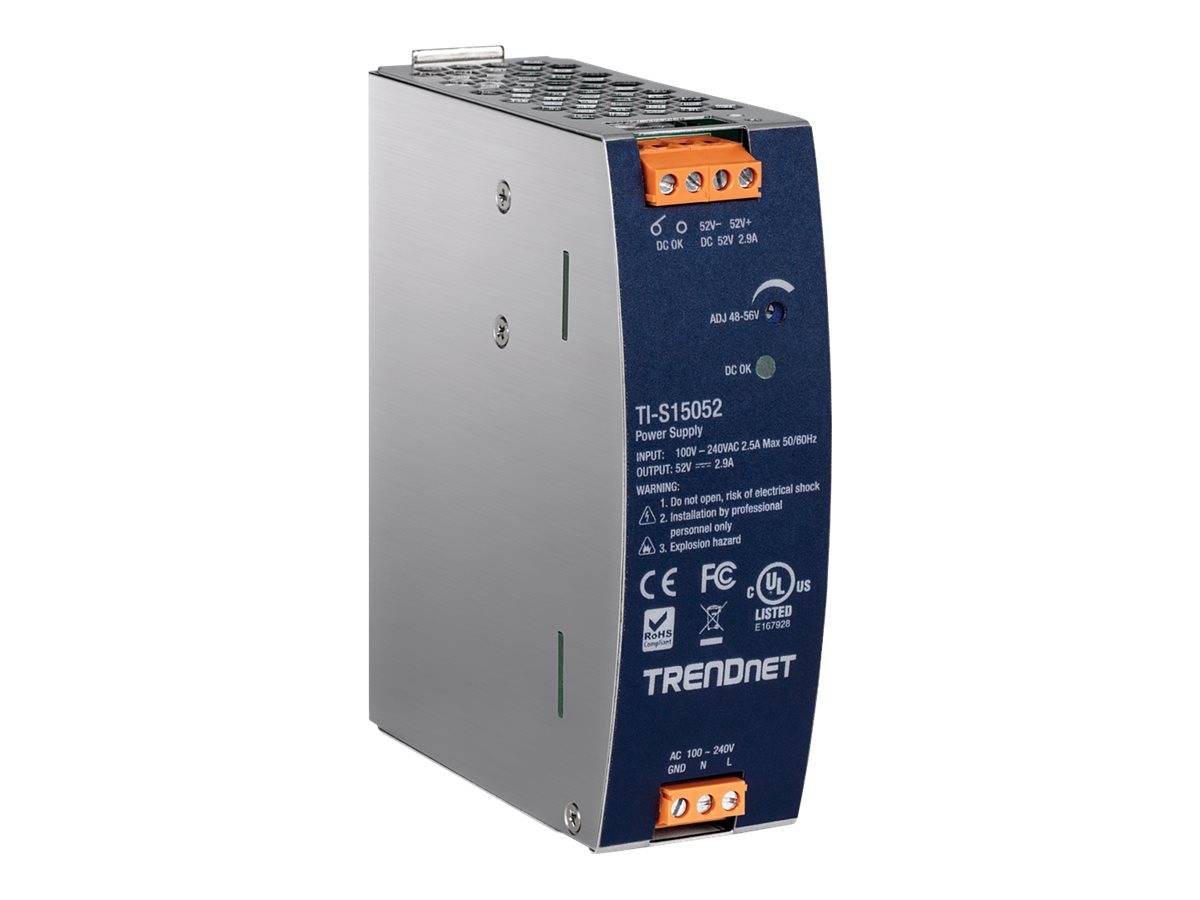

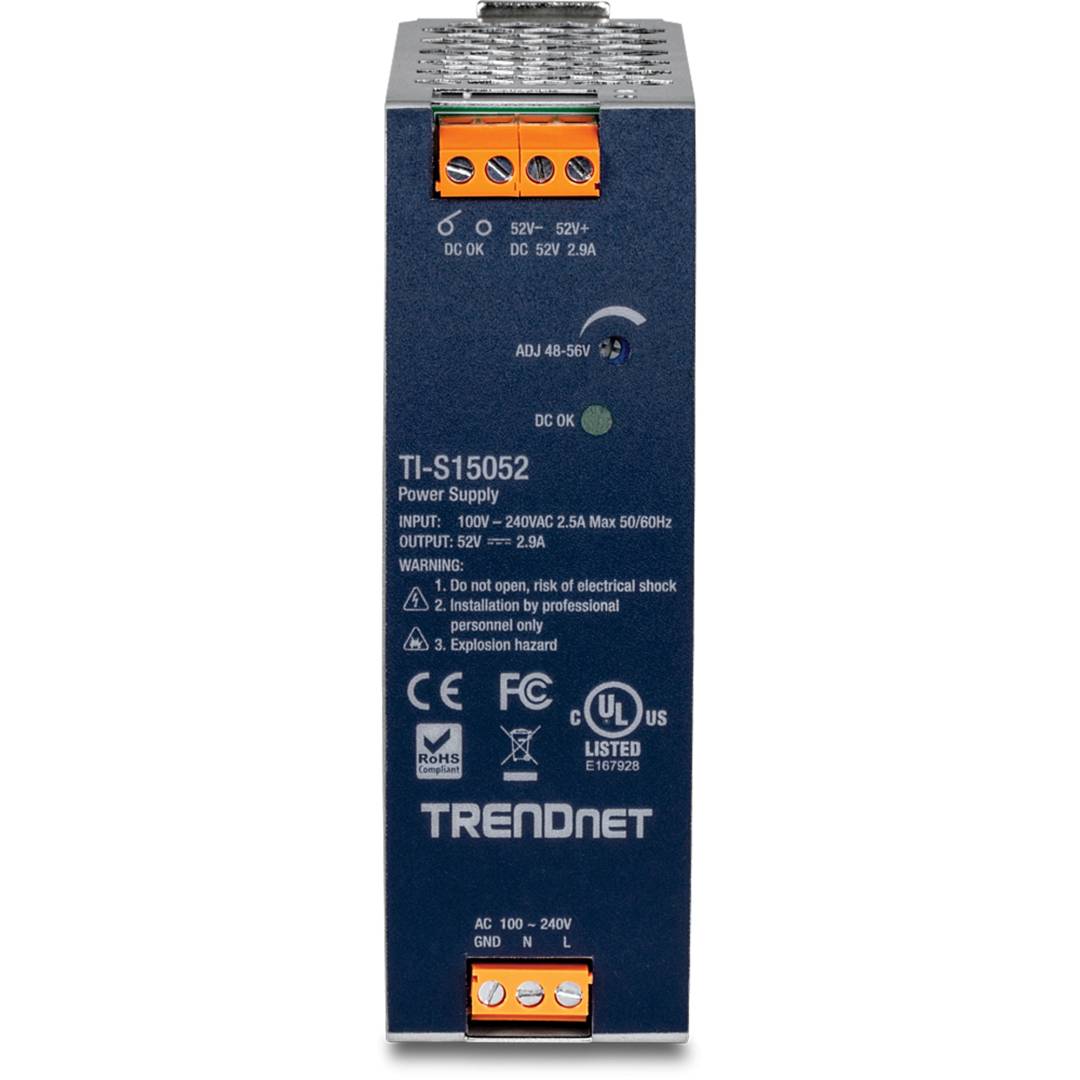

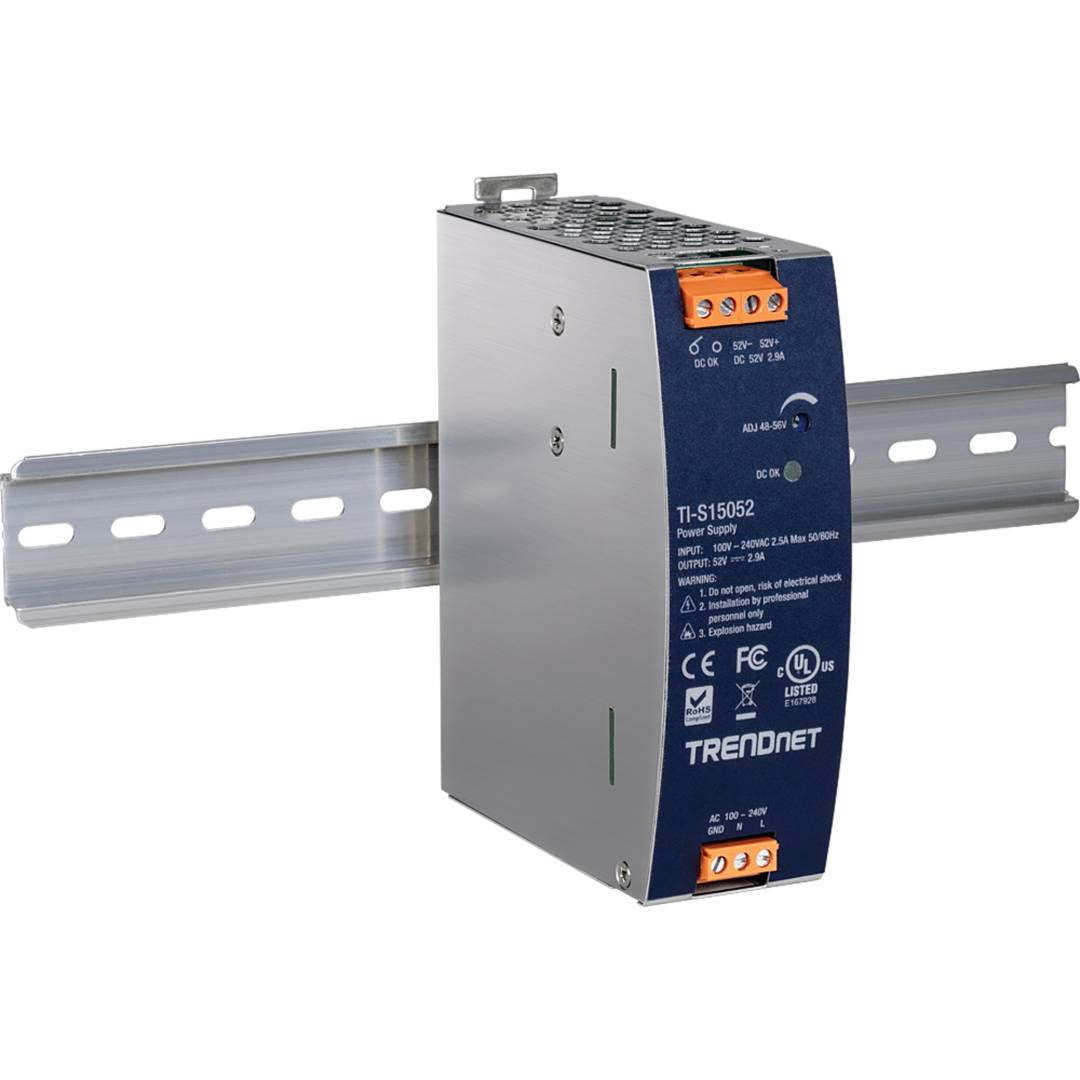

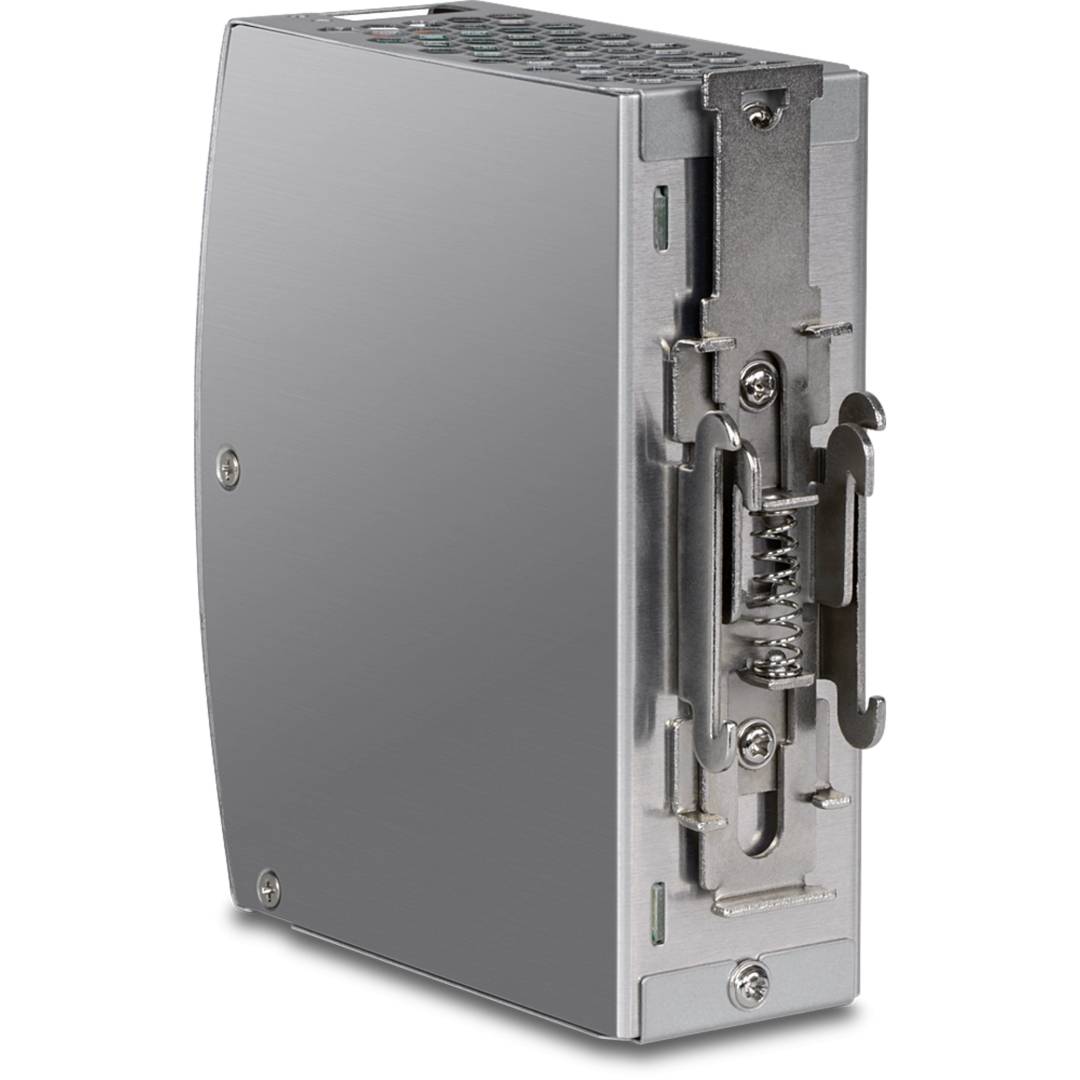

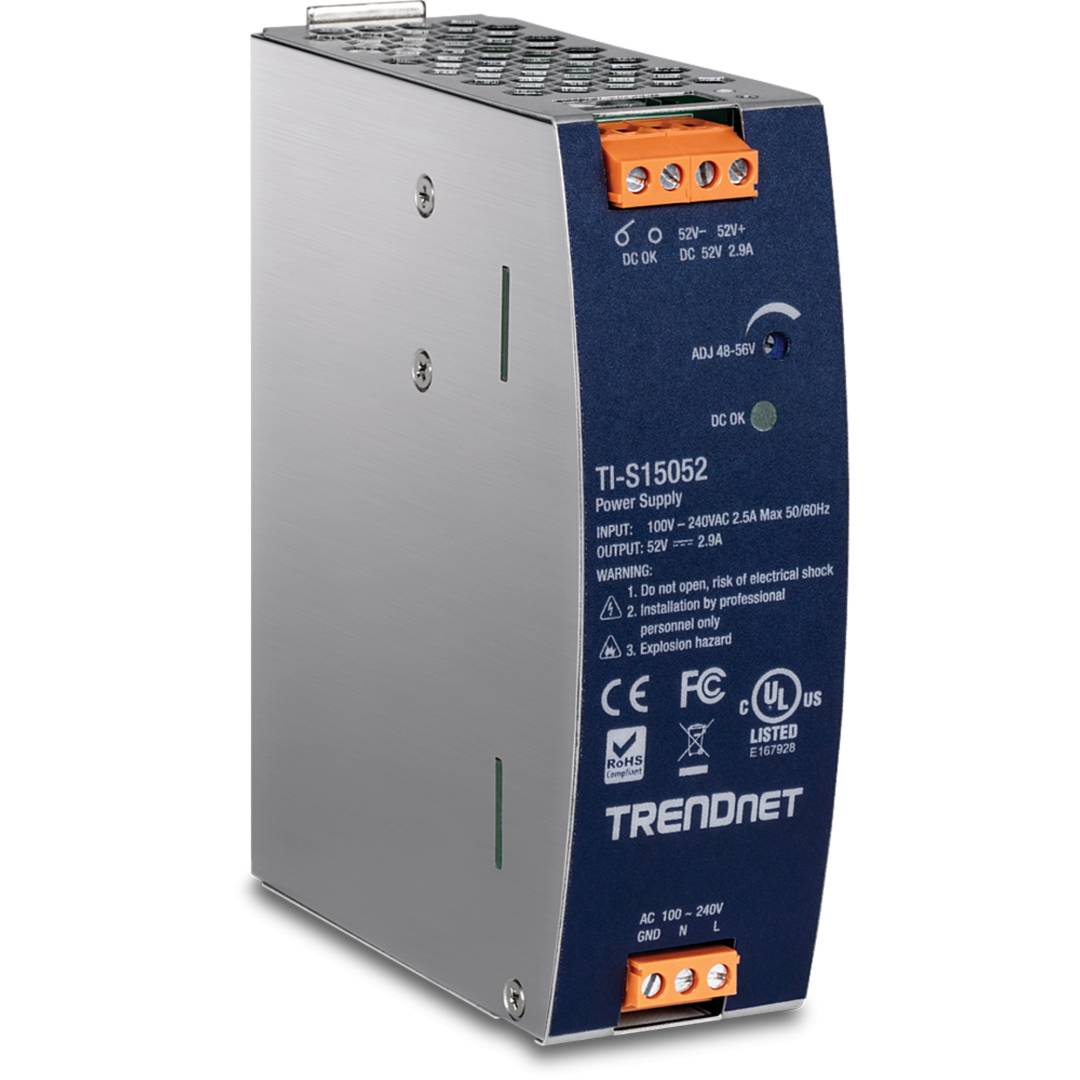

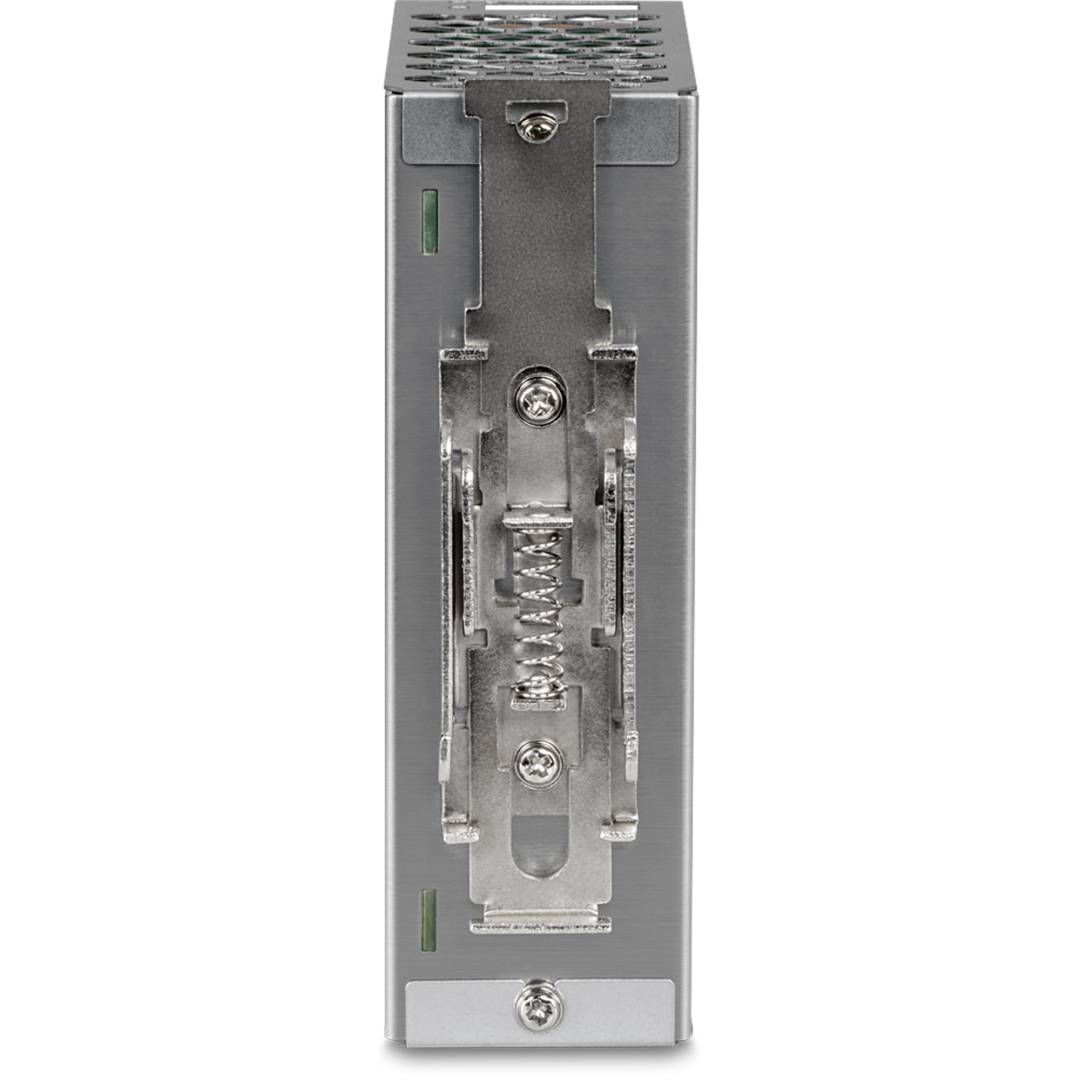

TRENDnet / Power supply (DIN rail mountable) / AC 100-240 V / 150 Watt / active PFC | TI-S15052
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - DIN rail mountable |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Output Voltage | DC 48 - 56 V |
| Max Electric Current | 2.89 A |
| Power Capacity | 150 Watt |
| Efficiency | 93% |
| Power Factor (PF) | 0.96 |
| Miscellaneous | Miscellaneous |
| MTBF | 200,000 hours |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, overload protection, short-circuit protection, LED indicator |
| Compliant Standards | CB, FCC, UL 508, IEC 62368, UL 62368 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4 cm |
| Depth | 12.52 cm |
| Height | 10.2 cm |
| Weight | 542 g |
Features - Trendnet - TI-S15052
More Details
Product Code
04:450111
EAN Code
0710931162424
Manufacturer
Trendnet
