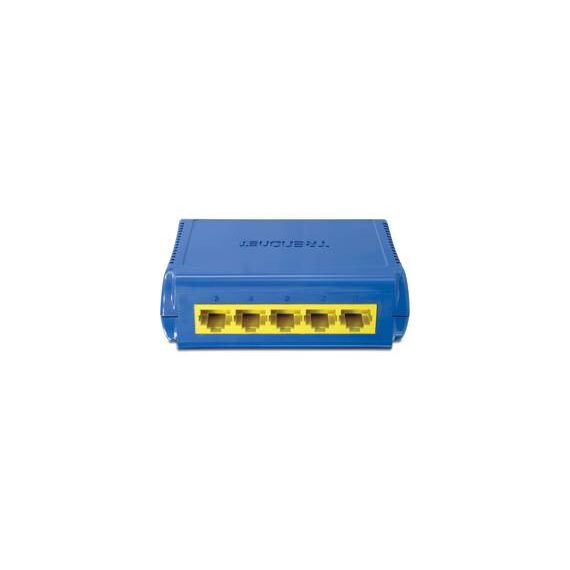

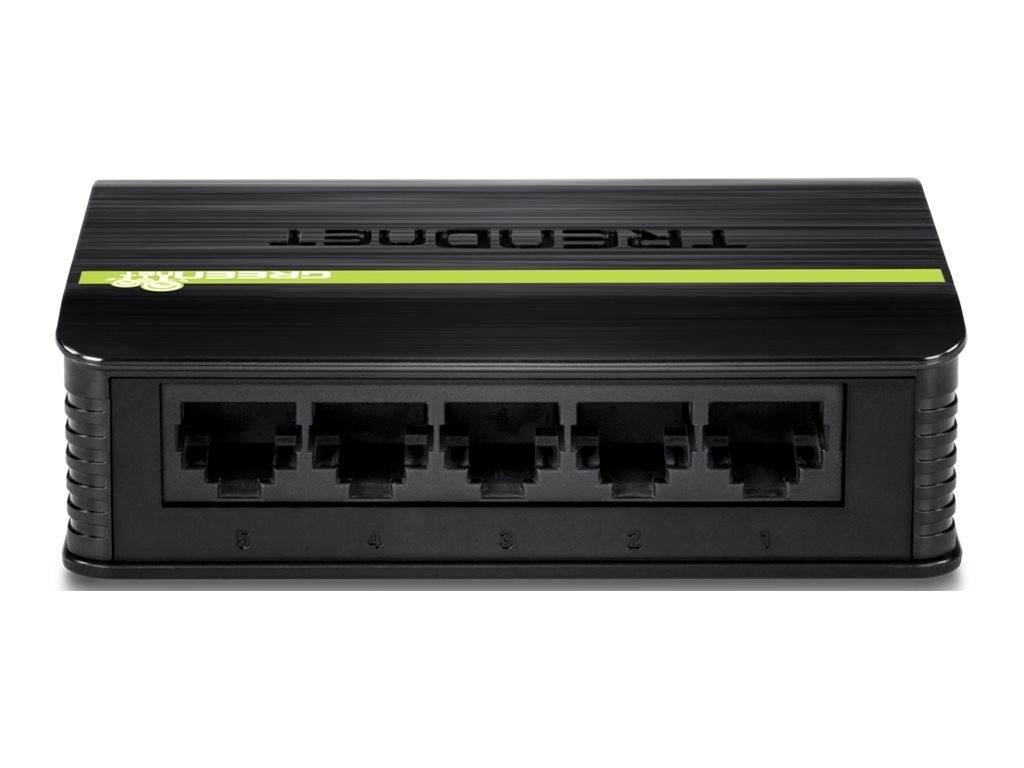

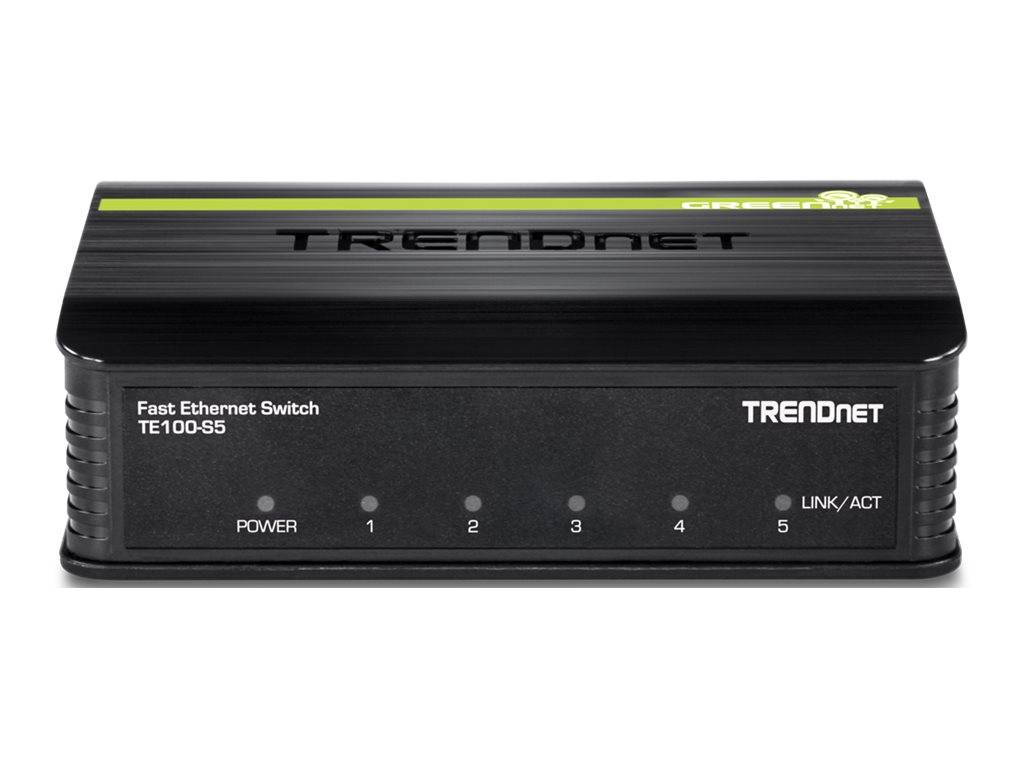

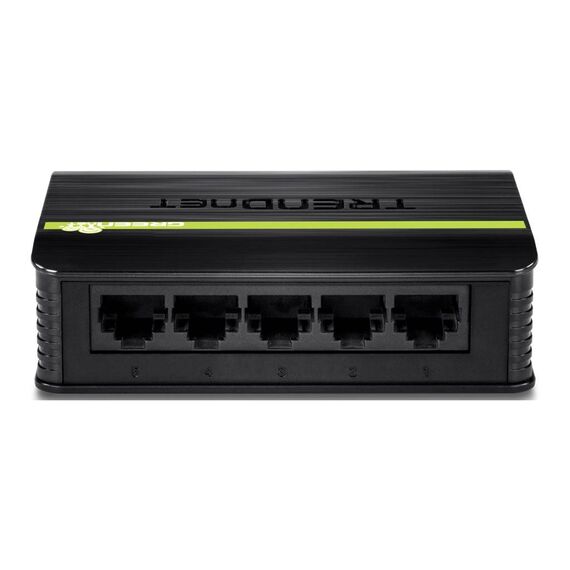

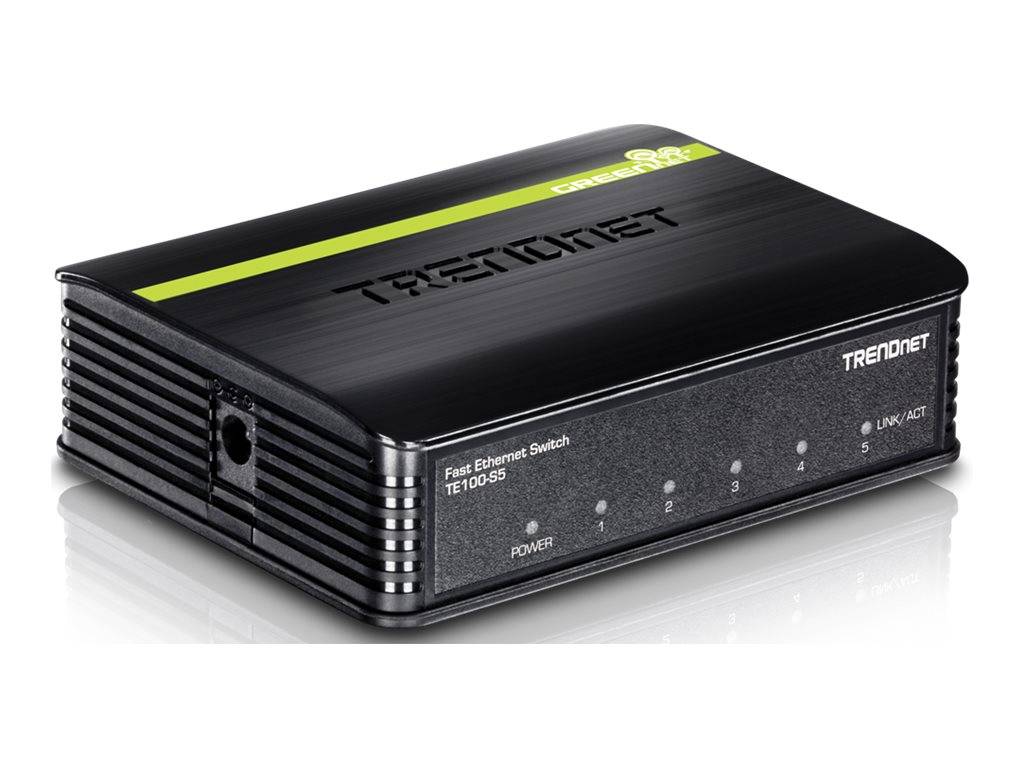

TRENDnet TE100 S5 / Switch / 5 x 10/100 / desktop | TE100-S5
Please sign in so that we can notify you about a reply
Special Features
- 5 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
- Compliant with IEEE 802.3 / IEEE 802.3u standards
- IEEE 802.3x flow control support
- Provide 1K MAC address entries
- Store-and-forward switching method
- Non-blocking architecture
- Diagnostic LEDs
- Plug and Play
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Fast Ethernet |
| Ports | 5 x 10/100 |
| MAC Address Table Size | 1K entries |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Power, 100M device connected, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 100Base-TX RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 2.8 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10 cm |
| Depth | 7.8 cm |
| Height | 3.1 cm |
| Weight | 128 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% |
Features - Trendnet - TE100-S5
General
5-Port
More Details
Product Code
04:190280
EAN Code
0710931204179
Manufacturer
Trendnet
