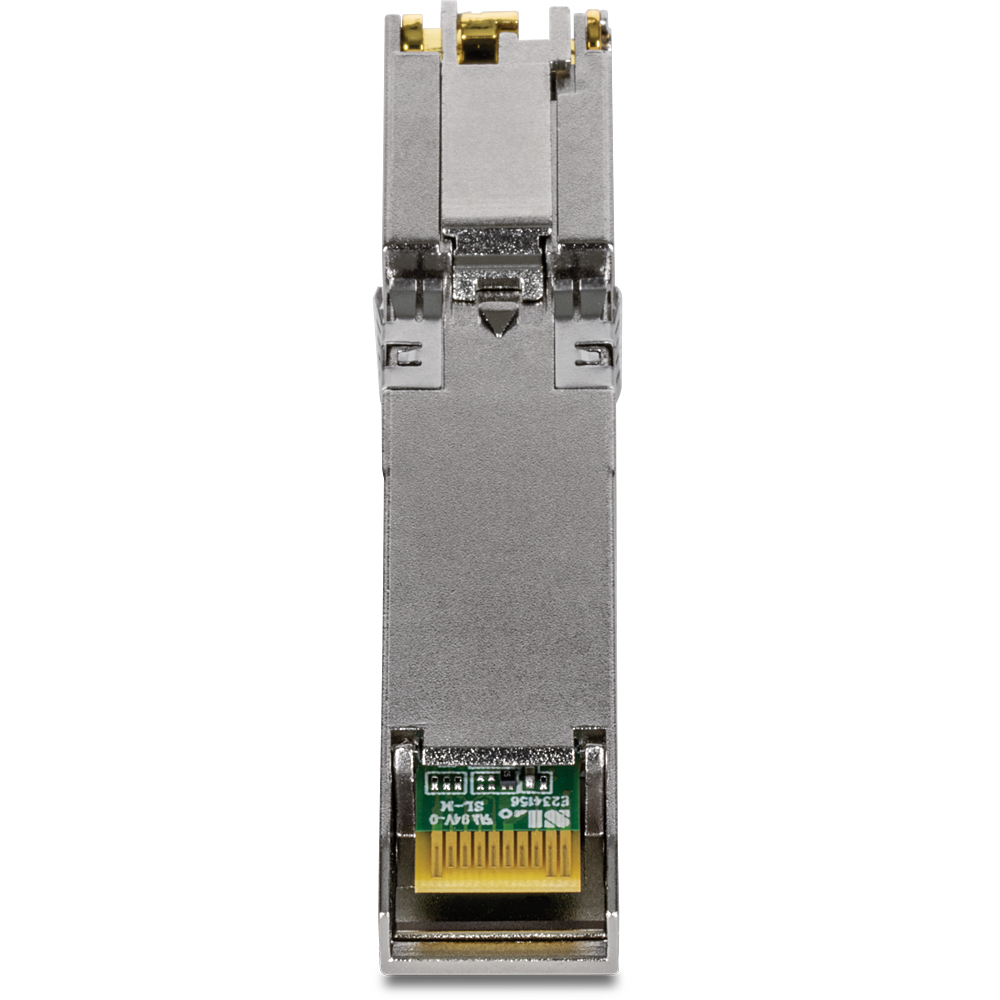

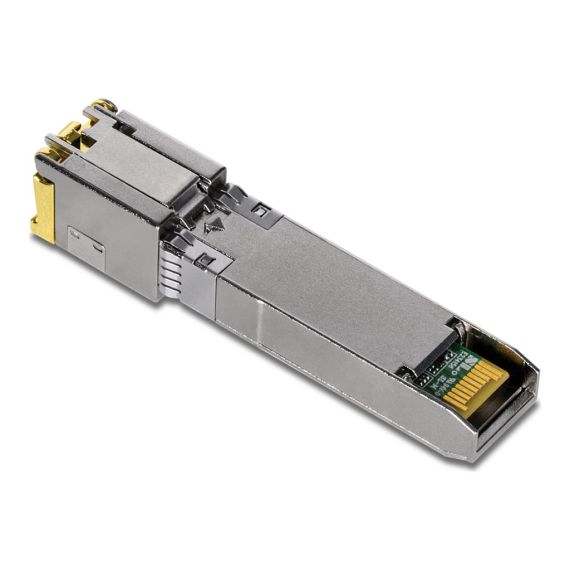

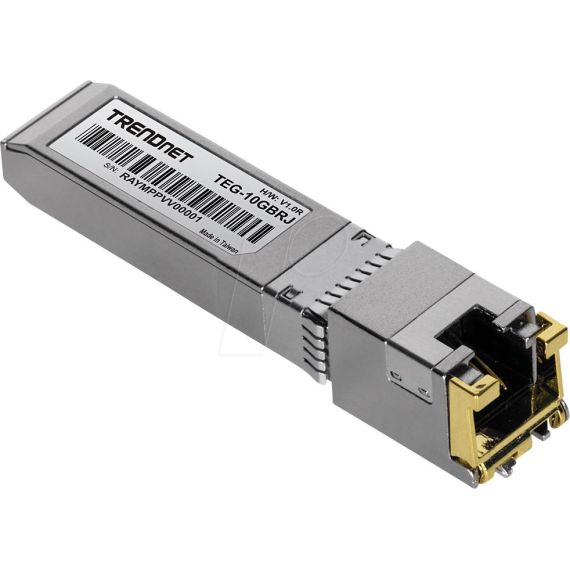

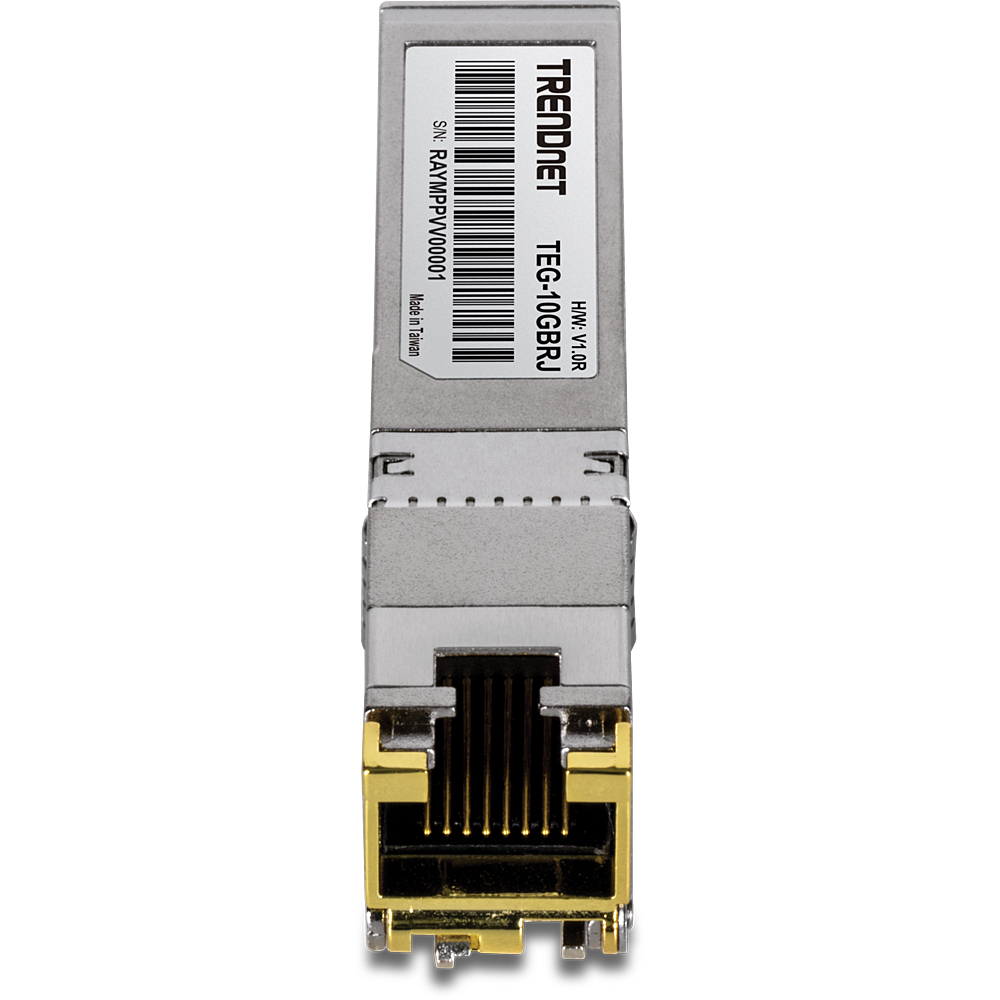

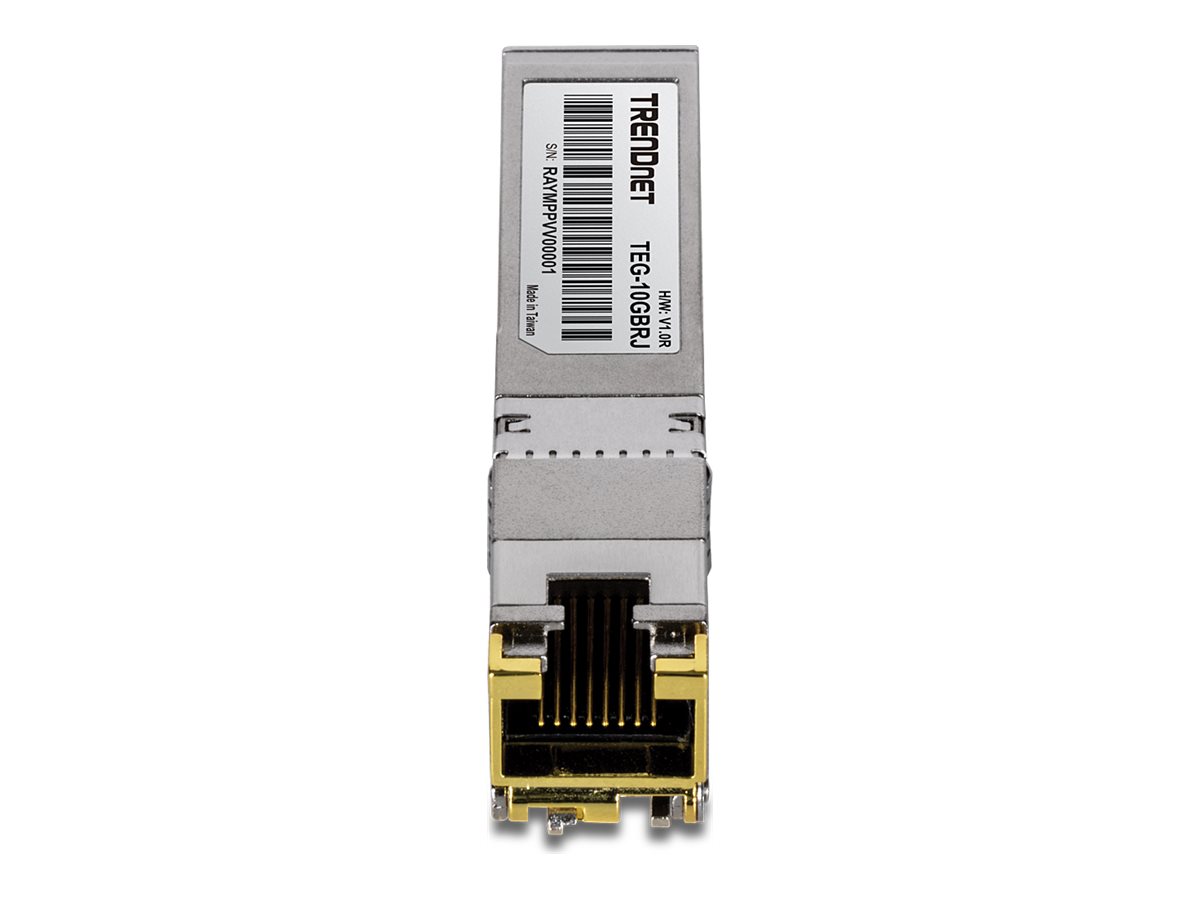

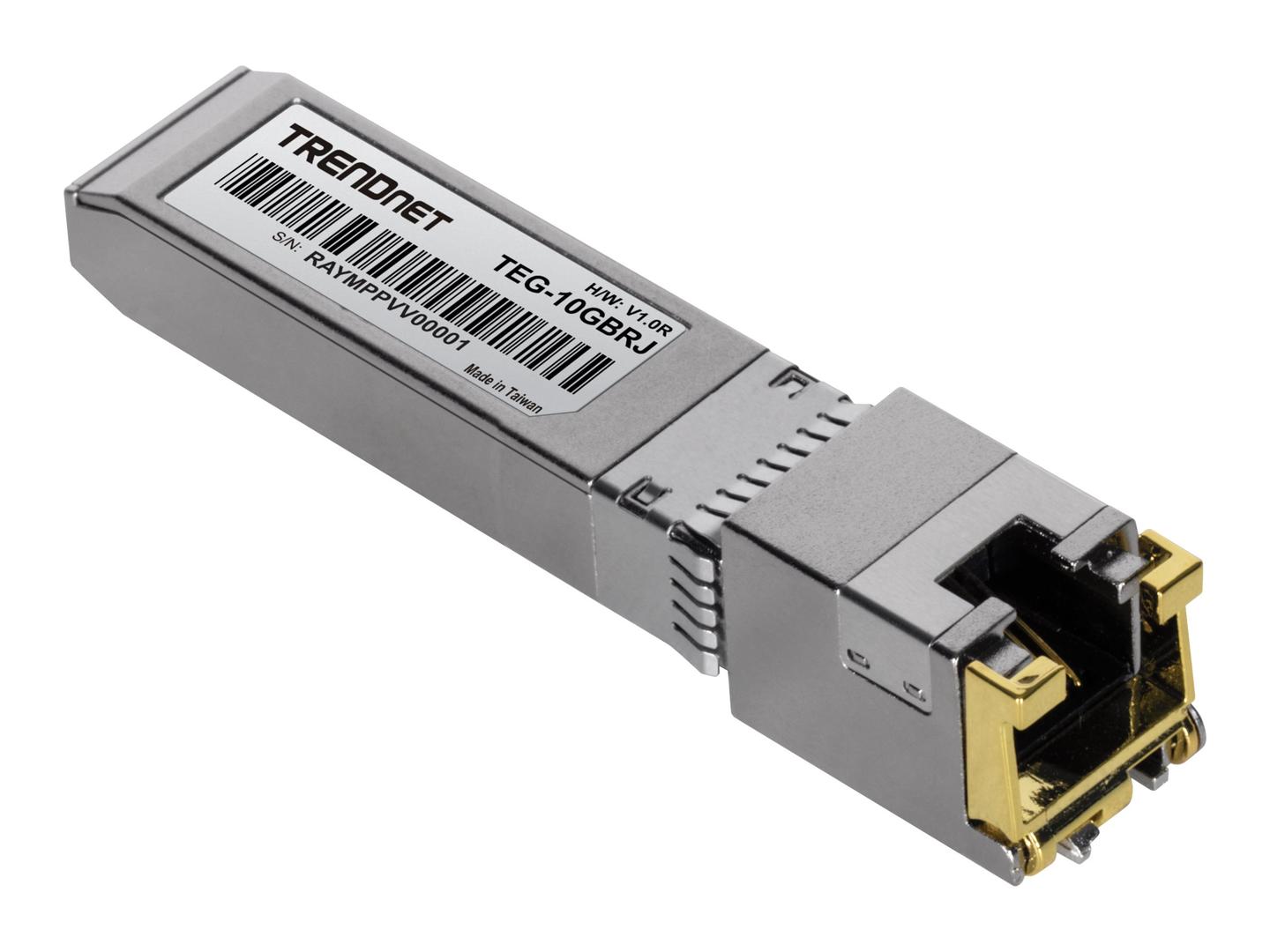

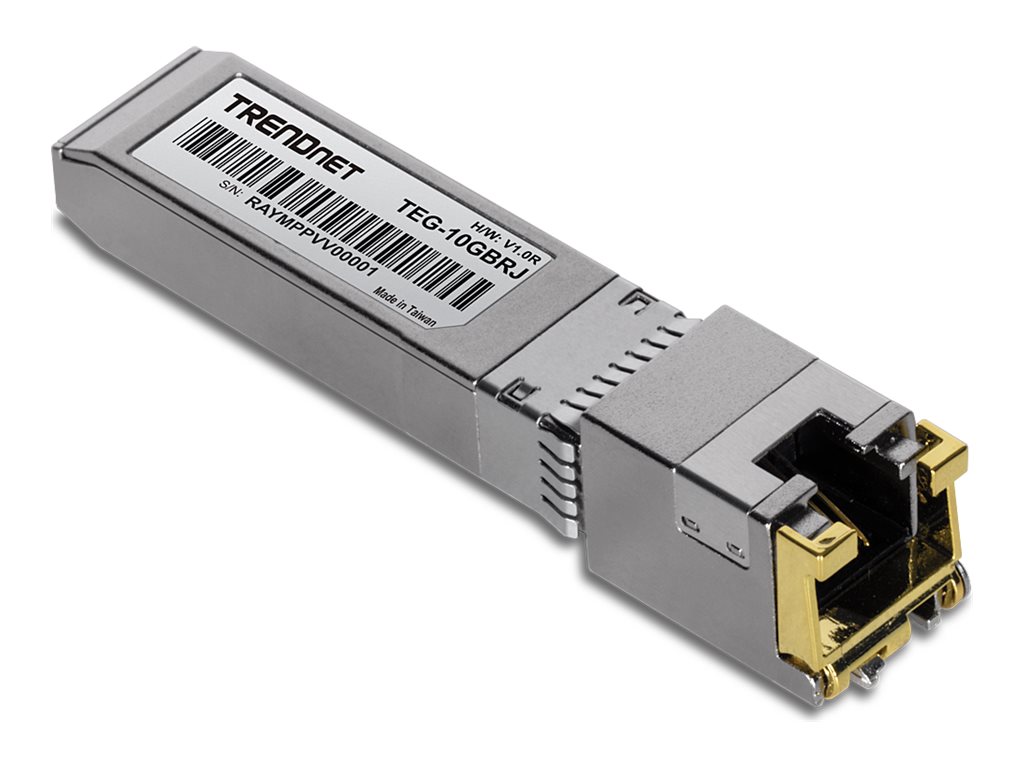

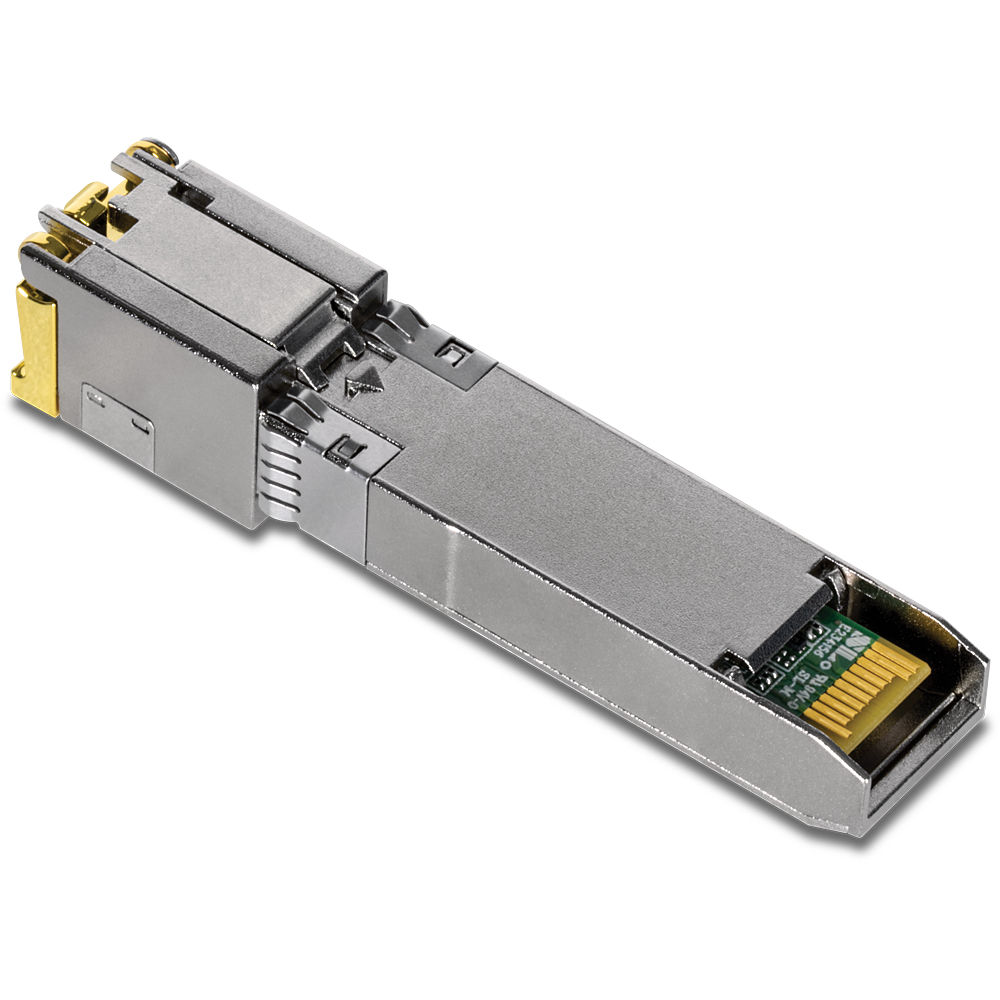

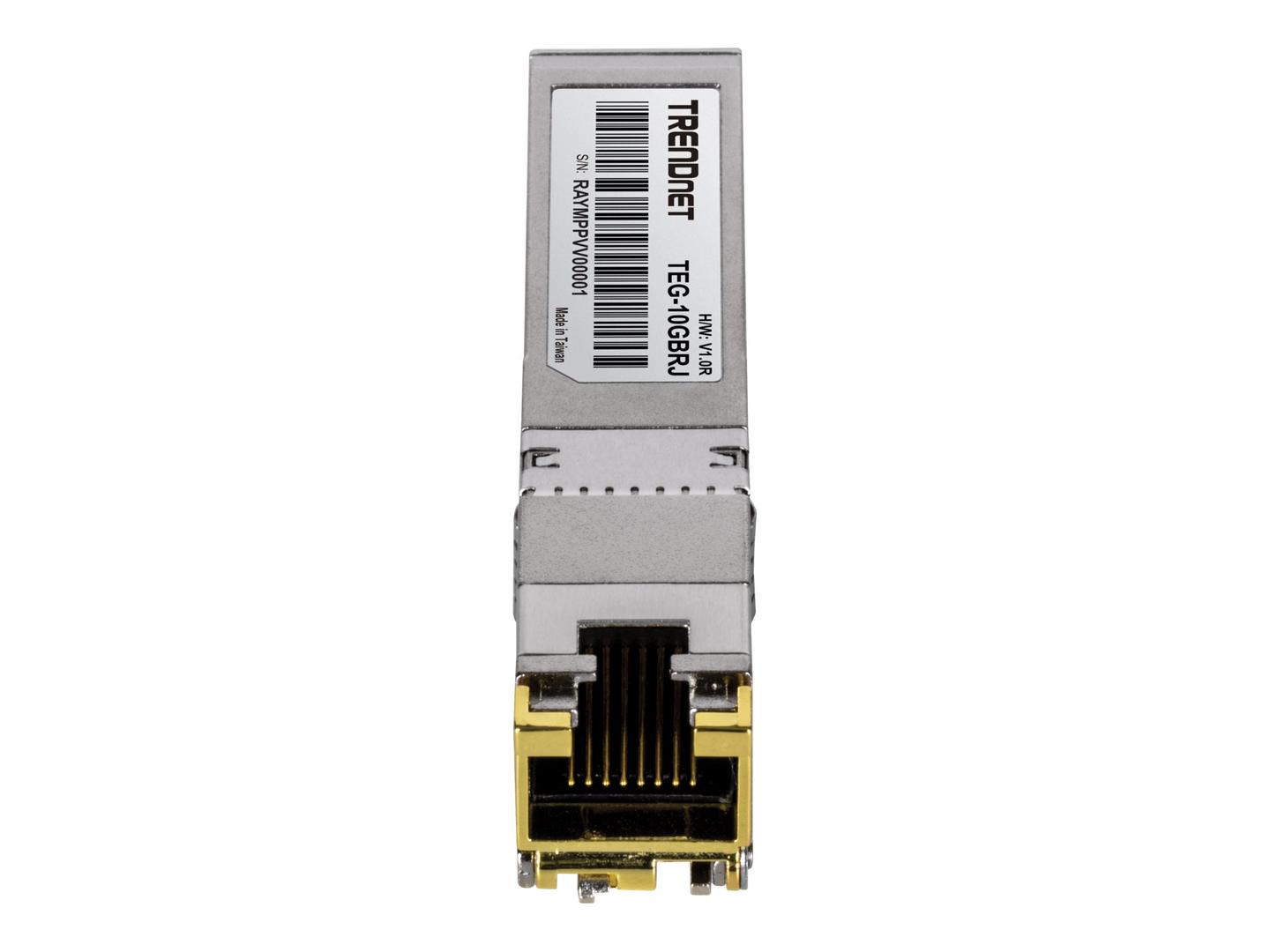

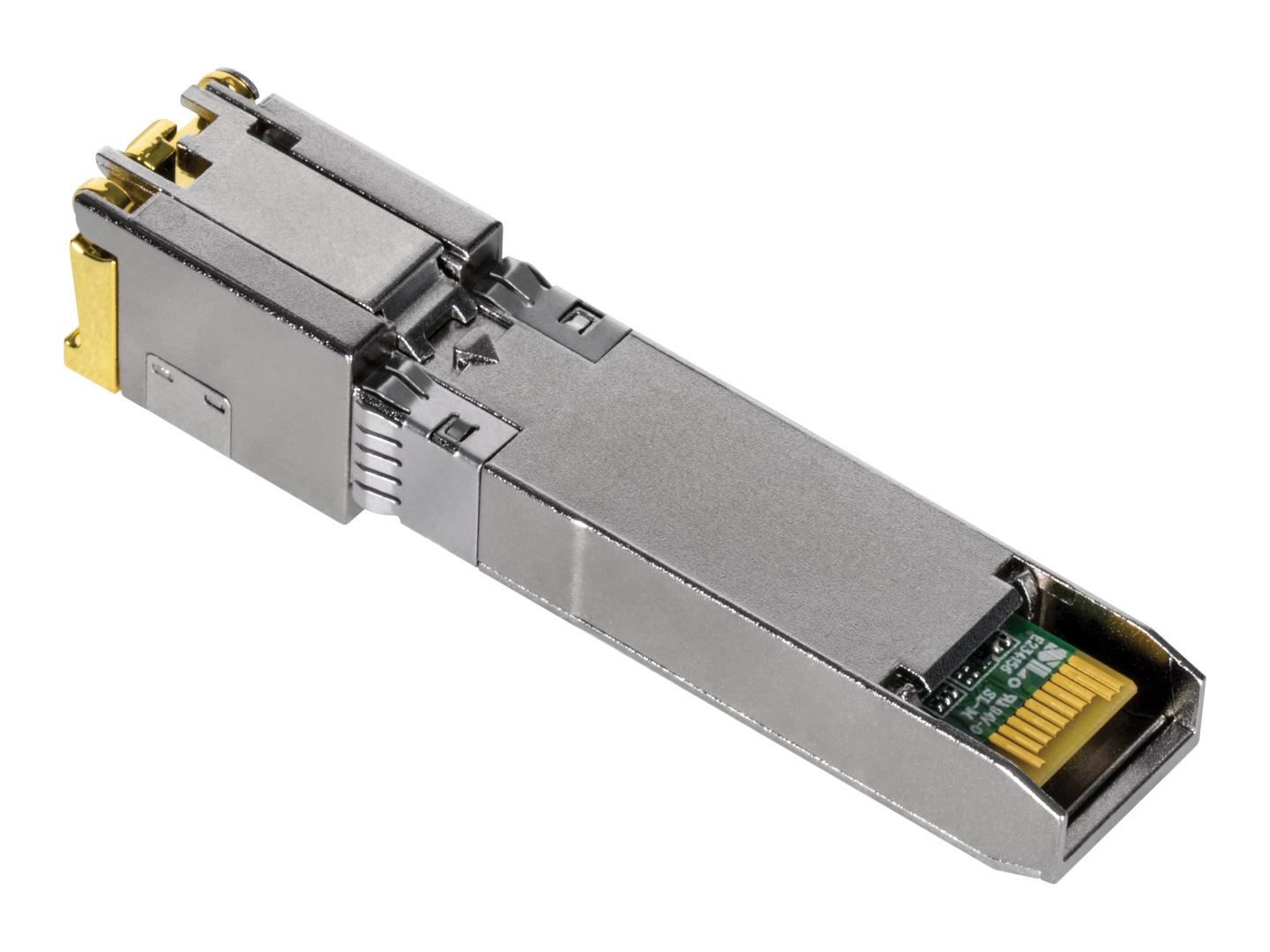

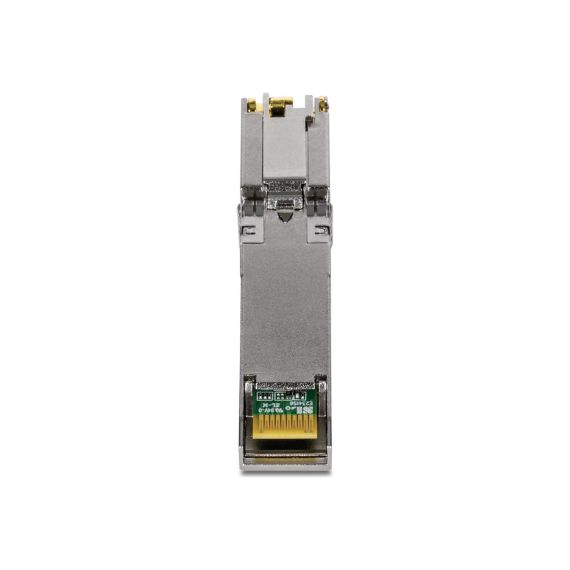

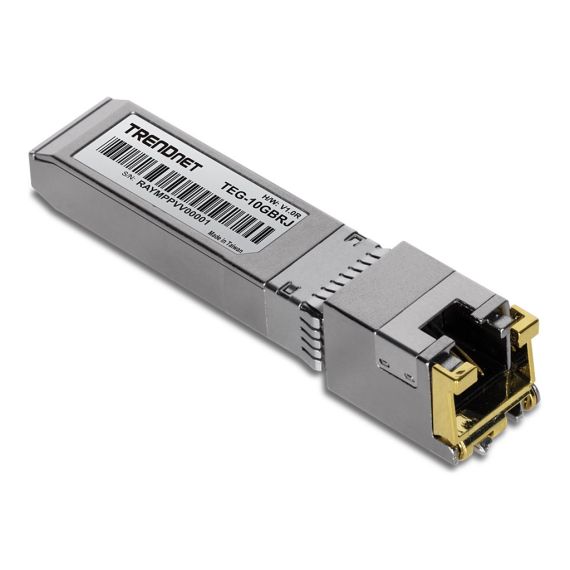

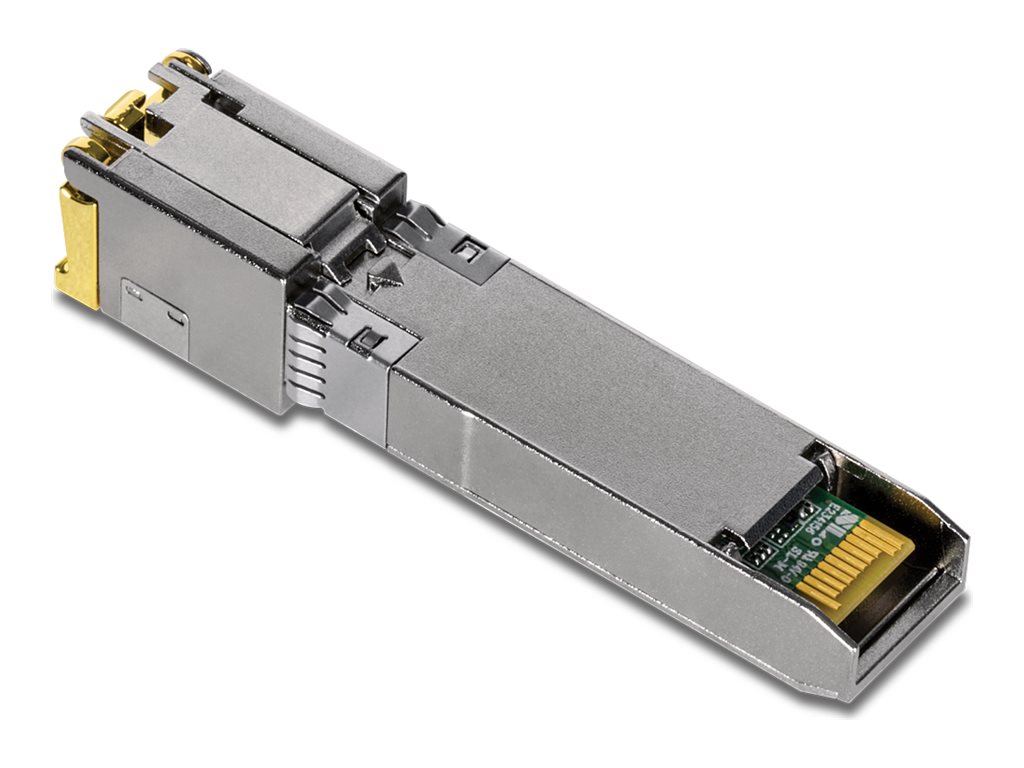

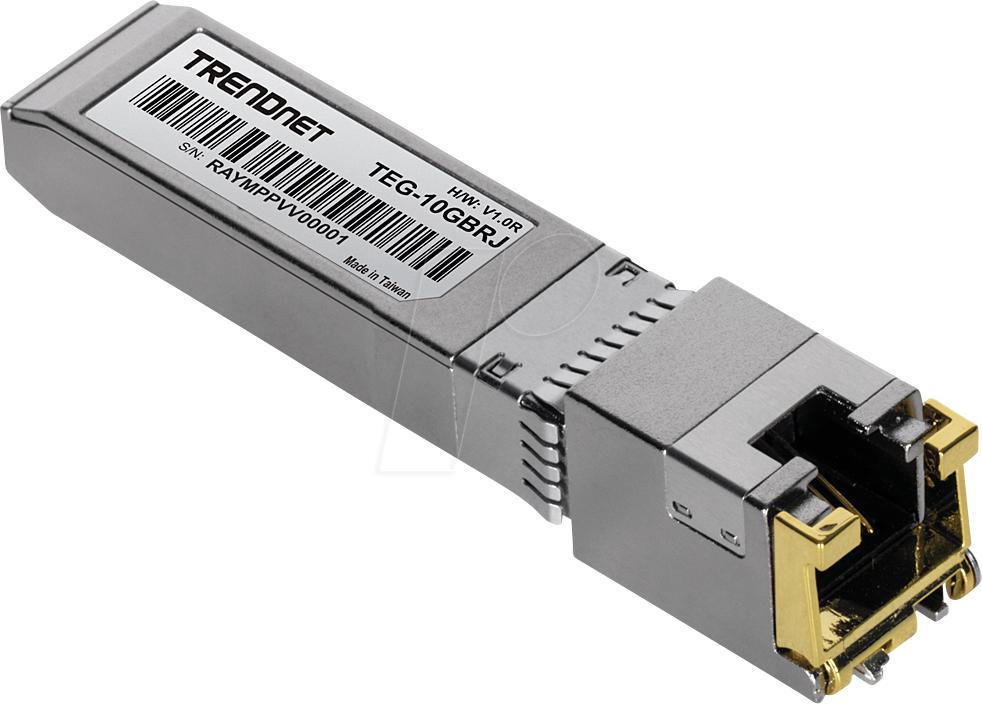

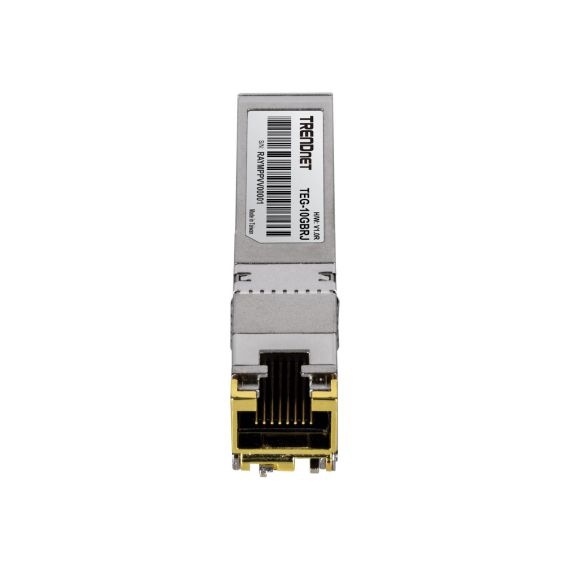

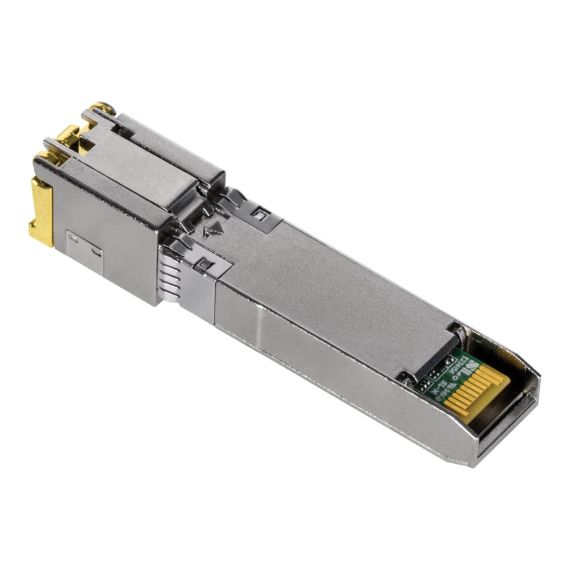

TRENDnet TEG 10GBRJ - SFP+ transceiver module - 10GbE, 5GbE, 2.5GbE - 1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T - RJ-45 - up to 100 m - TAA Compliant | TEG-10GBRJ
Please sign in so that we can notify you about a reply
Product Features
- RJ-45 copper SFP+
Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity. - Gigabit speeds
The 10G RJ-45 copper SFP+ spans distances up to 30m (98 ft.) and supports up to 10Gbps speeds. - Compatibility
Compatible with an MSA compliant SFP+ slot and multi-gigabit RJ-45 copper connections.
Special Fetures
- Connect devices up to 30m (98ft.) over cat6a cabling (or better) at 10G speeds
- Compliant with IEEE 802.3an 10 Gigabit Ethernet
- Backwards compatible with IEEE 802.3bz multi-gigabit (2.5G / 5G) speeds
- Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
- Shielded RJ-45 copper interface
- Low Electromagnetic Interference (EMI) design
- Digital Diagnostics Monitoring (DDM) support
- Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
- Hot-pluggable
- Low power consumption
Product Specification
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T |
| Data Link Protocol | 1GbE, 10GbE, 5GbE, 2.5GbE |
| Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 100 m |
| Features | Hot swap module replacement, metal housing, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-T - RJ-45 female |
| Miscellaneous | |
| Compliant Standards | FCC, MSA, EMI |
| TAA Compliant | Yes |
| Power | |
| Power Consumption Operational | 3 Watt |
| Dimensions & Weight | |
| Width | 1.38 cm |
| Depth | 6.8 cm |
| Height | 1.34 cm |
| Weight | 24 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TEG-10GBRJ
More Details
Product Code
CB48941
EAN Code
0710931140743
Manufacturer
Trendnet
