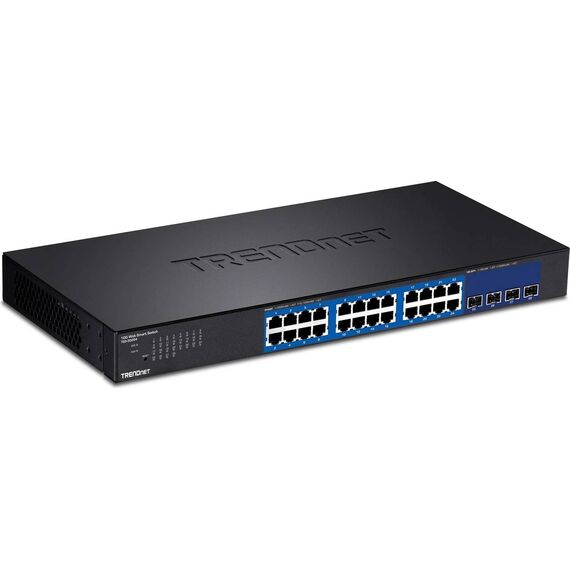

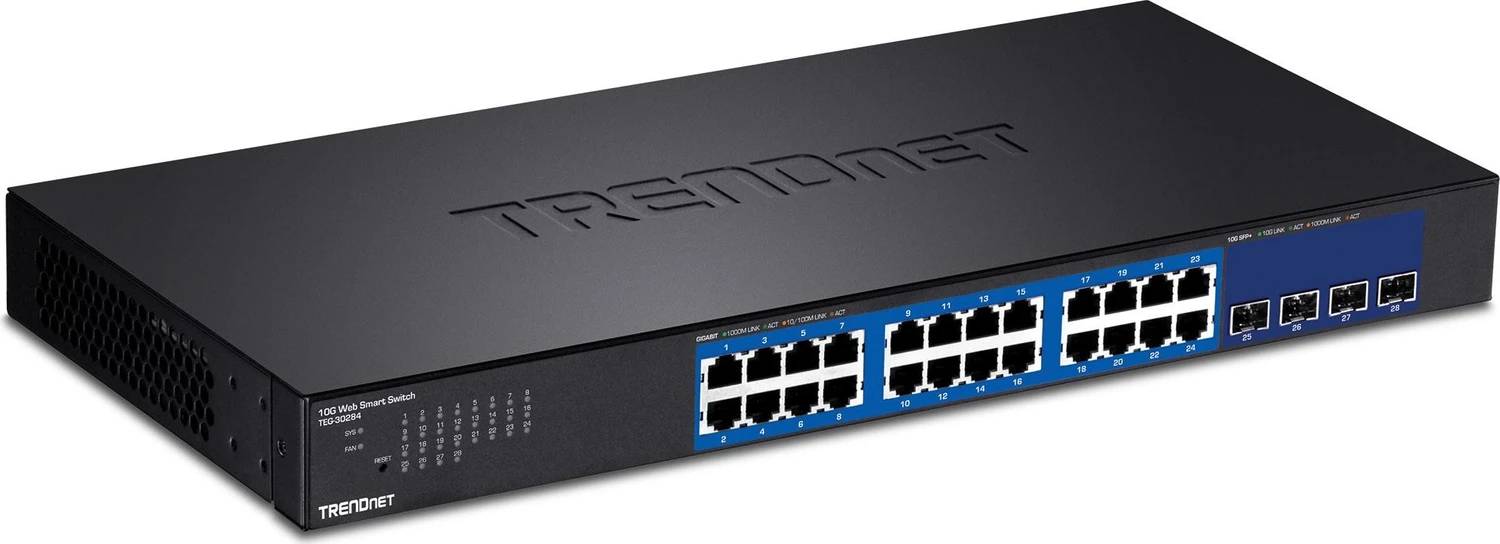

TRENDnet TEG 30284 / Switch / smart / 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ / rack-mountable | TEG-30284
Please sign in so that we can notify you about a reply
Product Features
- Web smart management
Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. - Integration flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration. - High-speed 10G SFP+
Offers four dedicated 10G SFP+ slots for high-speed network uplinks or downlink NAS / access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
Special Features
- 24 x Gigabit ports and 4 x 10G SFP+ slots for high speed connections
- Easy to use web-based management interface
- 128 Gbps switching capacity
- IGMP v1, v2, v3 snooping
- STP, RSTP, and MSTP spanning tree protocols
- ACLs, MAC filtering, DoS, and 802.1X / TACACS+ network access control
- 802.1p / DSCP / Queue Scheduling QoS support
- Smart fans reduce energy consumption and auto adjust for efficiency
Product Specification
| Device Type | Switch - 28 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 128 Gbps ¦ Forwarding performance (64-byte packet size): 95.2 Mpps |
| Capacity | VLAN groups: 256 ¦ Virtual interfaces (VLANs): 4094 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Encryption Algorithm | TLS, SSL 3.0, SSL 2.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SNMP trap, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), tagged VLAN, Denial of Service (DoS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, Head of Line Blocking Prevention, Management Information Base (MIB) II |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 25 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 450,021 hours |
| Compliant Standards | UL, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 21 cm |
| Height | 4.445 cm |
| Weight | 2.64 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TEG-30284
General
24-Port
More Details
Product Code
04:196474
EAN Code
0710931140200
Manufacturer
Trendnet
