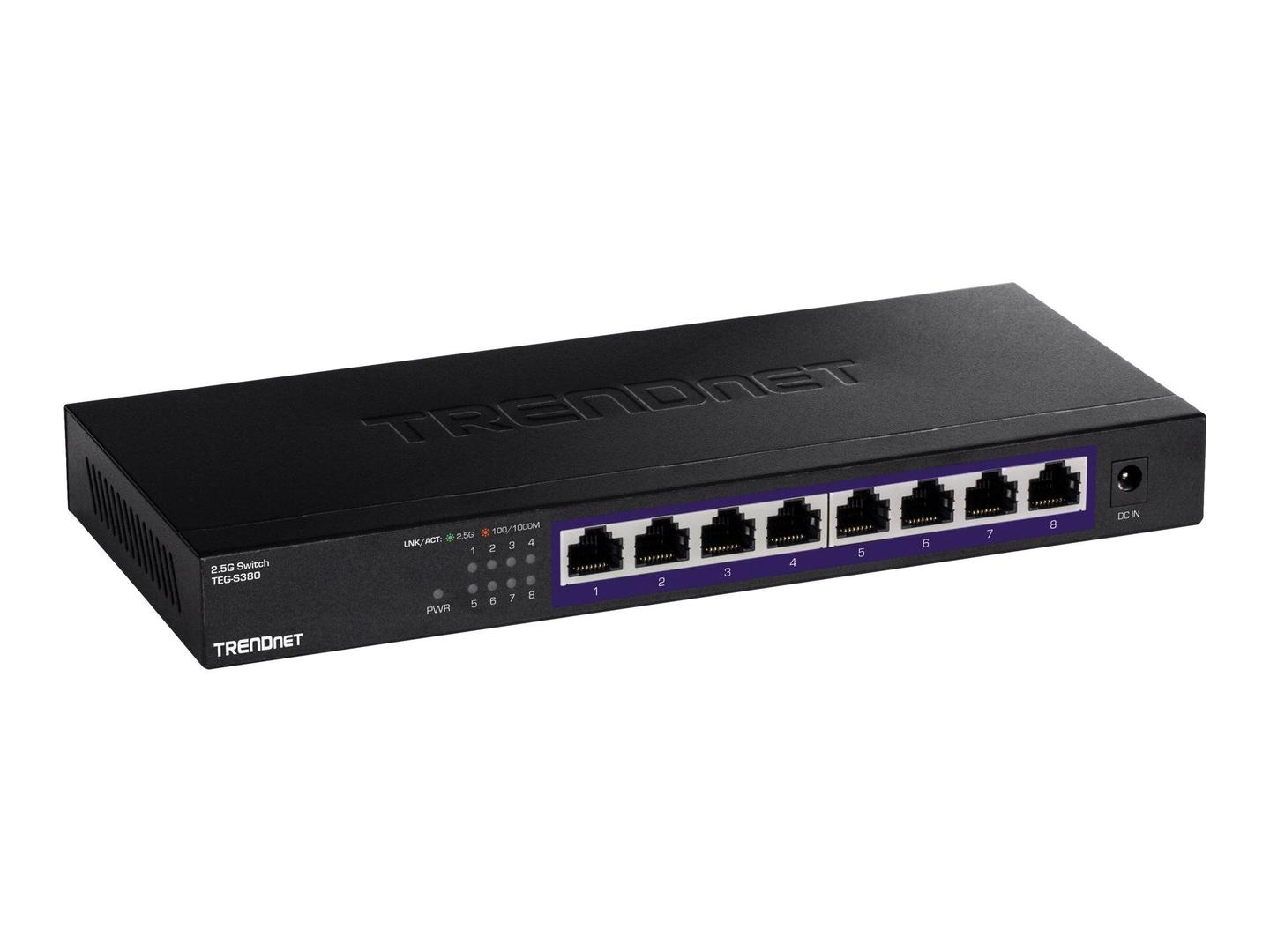

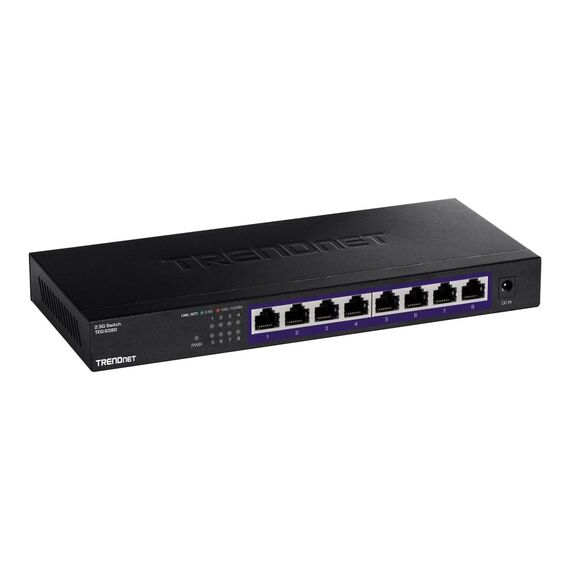

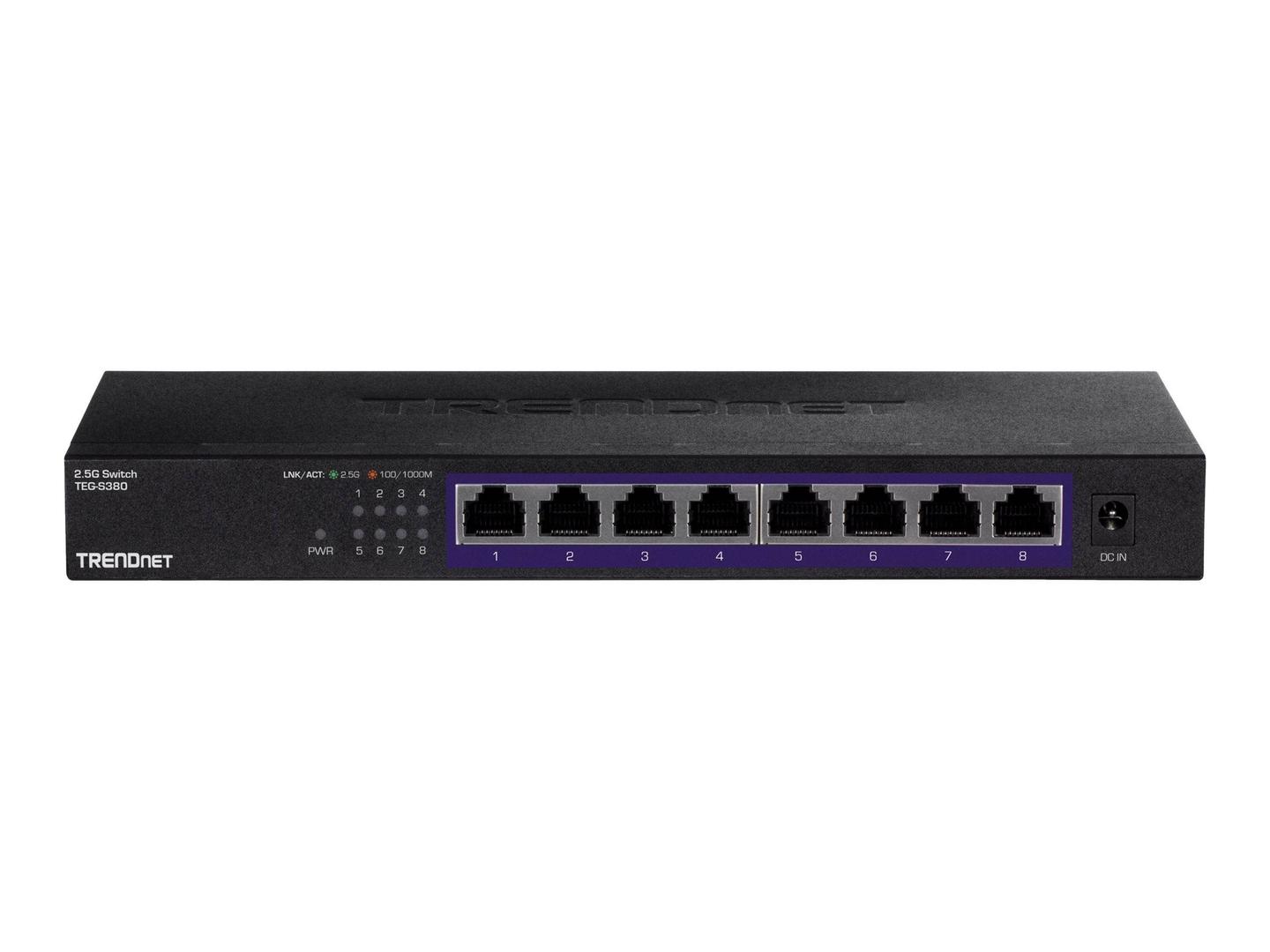

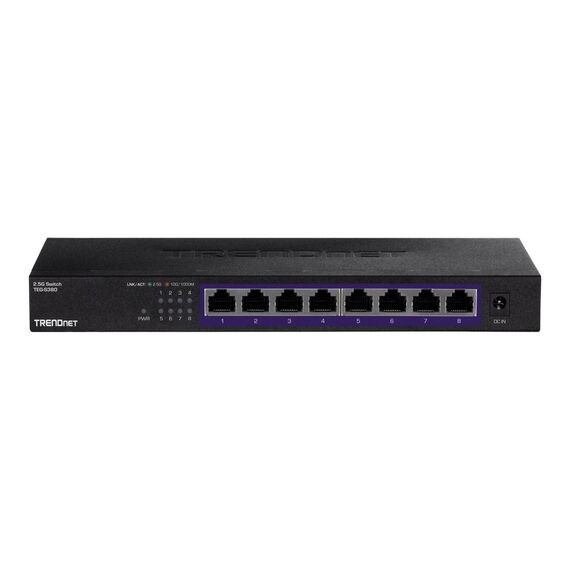

TRENDnet TEG S380 / Switch / unmanaged / 8 x 100/1000/2.5G / wall-mountable | TEG-S380
Please sign in so that we can notify you about a reply
Special Features
- 8 x 2.5GBASE-T ports
- IEEE 802.3bz (2.5G) compliant
- Backwards compatible with 10/100/1000Mbps devices
- 40Gbps switching capacity
- Fanless design eliminates noise
- Wall mountable for installation flexibility
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Wall-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G |
| Performance | Switching capacity: 40 Gbps ¦ Forwarding rate: 29.76 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Features | Full duplex capability, half duplex mode, fanless, 1.5MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz |
| Status Indicators | Port status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1/2.5GBase-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 1.5 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 12.4 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 1,401,356 hours |
| Compliant Standards | FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24 cm |
| Depth | 10.3 cm |
| Height | 2.6 cm |
| Weight | 600 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TEG-S380
General
8-Port
More Details
Product Code
04:399757
EAN Code
0710931140590
Manufacturer
Trendnet
