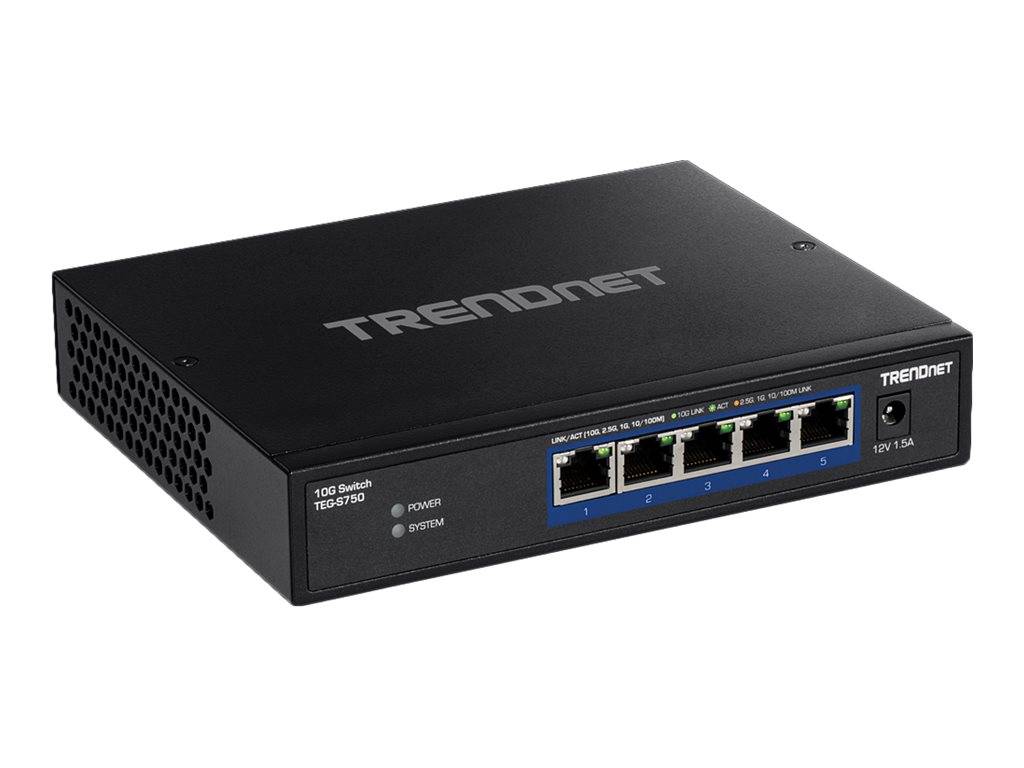

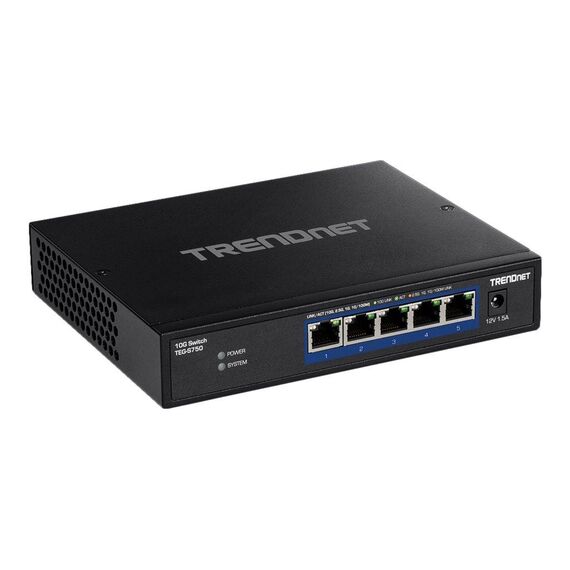

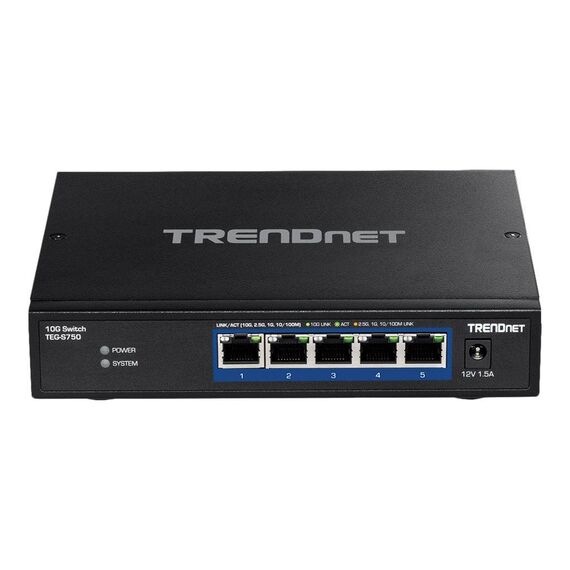

TRENDnet TEG-S750 / Switch / unmanaged / 5 x 10GBase-T / desktop, wall-mountable | TEG-S750
Please sign in so that we can notify you about a reply
Special Features
- 5x 10G RJ-45 ports
- Supports IEEE 802.3bz 2.5G/5G-BASE-T over Cat5e cabling (or better)
- Supports IEEE 802.3an 10G-BASE-T over Cat6a cabling (or better)
- 100Gbps switching capacity
- Fanless design for silent operation
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 5 x 10GBase-T |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding rate (64-byte packets): 44.64 Mpps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Features | Store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 10GBase-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 12 V - 1 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 11.9 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 379,884 hours |
| Compliant Standards | IC, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18 cm |
| Depth | 14.5 cm |
| Height | 3.3 cm |
| Weight | 2.33 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | Up to 95% (non-condensing) |
Features - Trendnet - TEG-S750
General
5-Port
More Details
Product Code
CB48939
EAN Code
0710931140705
Manufacturer
Trendnet
