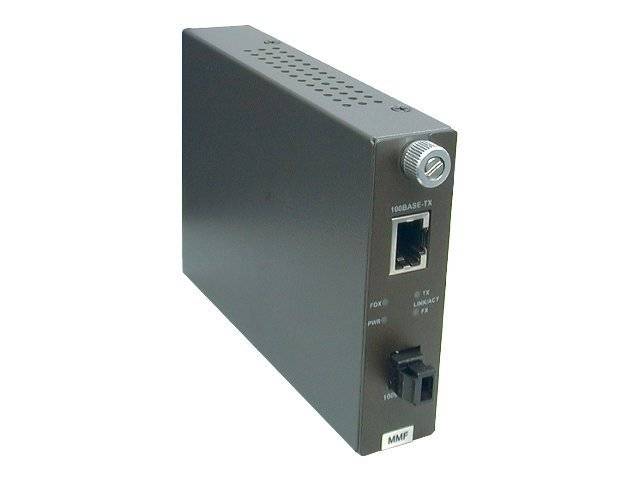

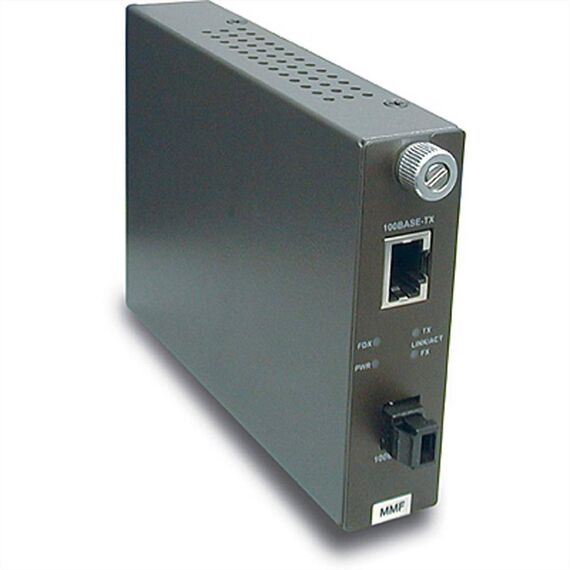

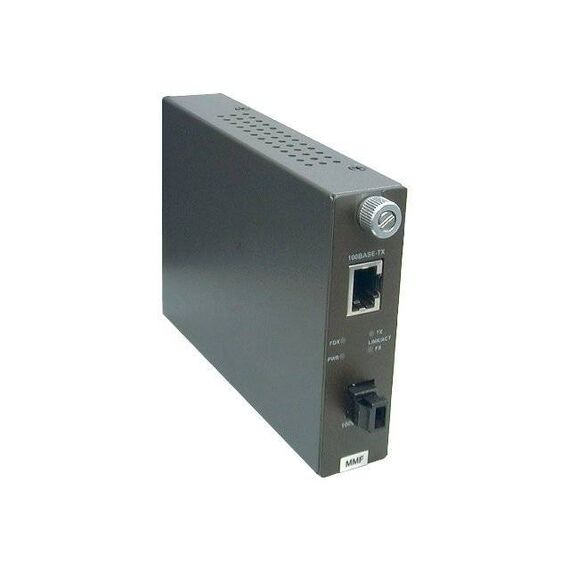

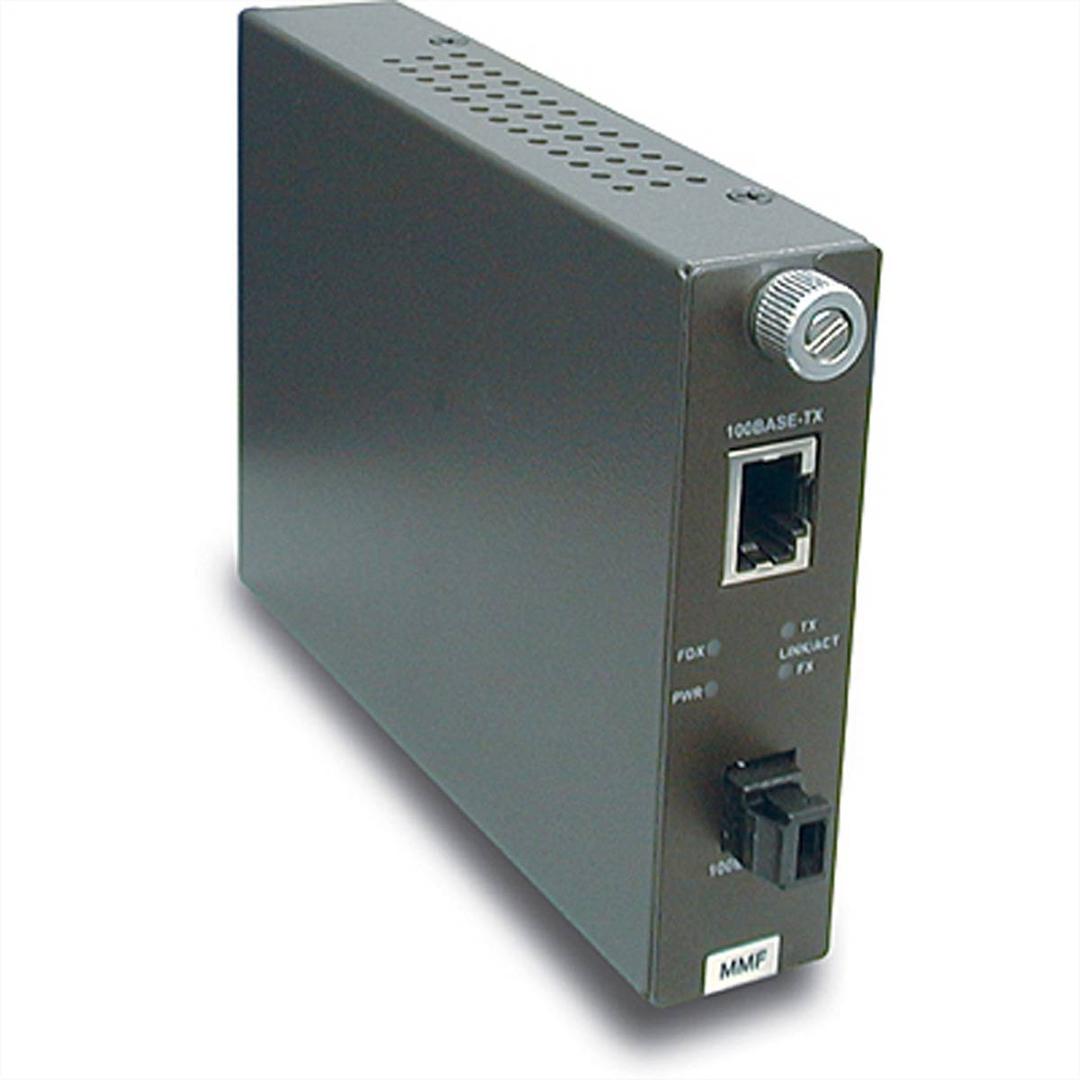

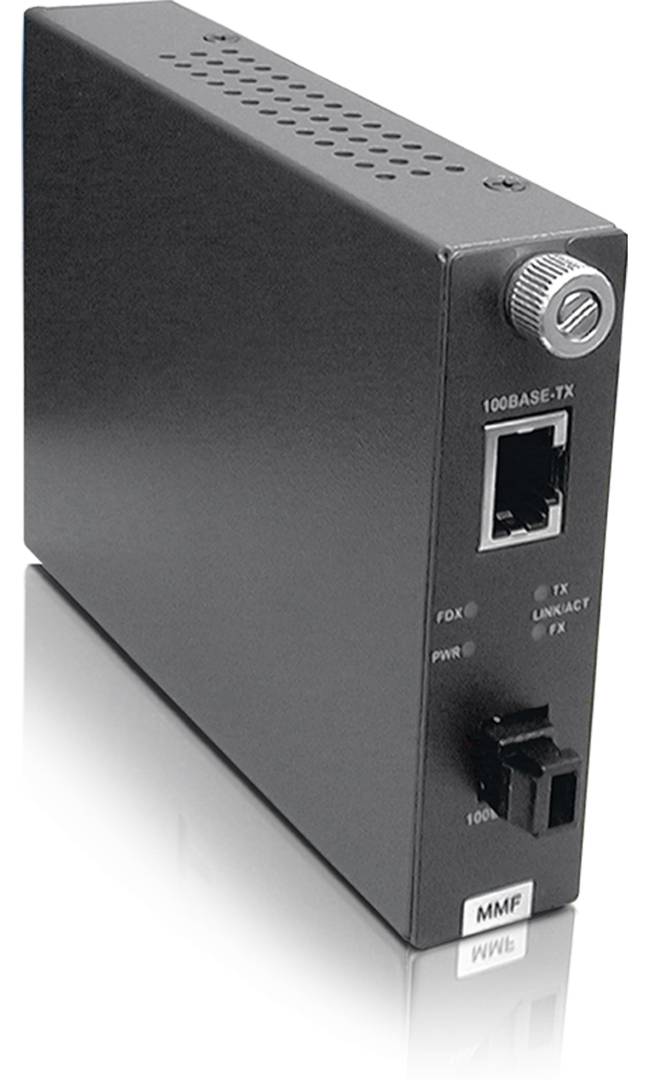

TRENDnet TFC-110 MM / Media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / MT-RJ multi-mode / up to 2 km / 1300 nm | TFC-110MM
Please sign in so that we can notify you about a reply
Special Features
- MT-RJ type multi-mode fiber port connects over distances of up to 2km
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
- One 10/100Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
- Auto MDIX for 10/100Base-TX port
- One 100Mbps fiber port with Multi-mode MT-RJ Connector
- Half / Full-Duplex mode selector on Fiber port
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Wall-Mountable
- Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Product Specification
| Device Type | Media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1300 nm |
| Max Transfer Distance | 2 km |
| Status Indicators | Port transmission speed, port duplex mode, power, link/activity |
| Features | Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - MT-RJ multi-mode female |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Optional |
| Compliant Standards | FCC Class B certified, VCCI Class B ITE, CISPR 22 Class B |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 7.2 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12 cm |
| Depth | 8.8 cm |
| Height | 2.5 cm |
| Weight | 0.4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
Features - Trendnet - TFC-110MM
More Details
Product Code
04:190315
EAN Code
0710931504194
Manufacturer
Trendnet
