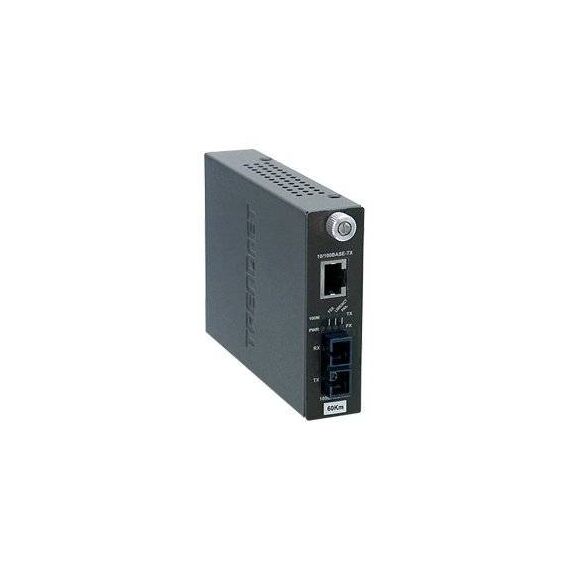

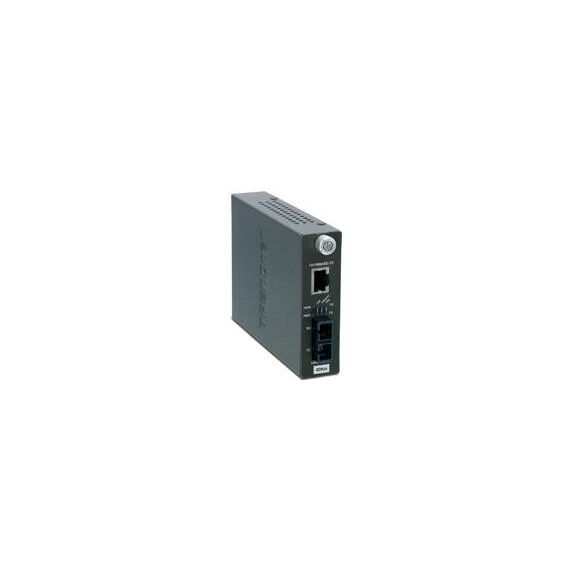

TRENDnet TFC-110S60i / Fibre media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / SC single-mode / RJ-45 / up to 60 km / 1310 nm | TFC-110S60I
Please sign in so that we can notify you about a reply
Special Features
- SC-type single-mode fiber port connects over distances of up to 60km
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards
- Provides Dip switch to set: Fiber (FDX/HDX), UTP (Auto Negotiation/Manual), Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for FX port
- Monitor the status of duplex/link for FC, duplex / speed / link for TX via management module (TFC-1600MM) through Media Converter Chassis System (TFC-1600)
- Single-Strand Fiber Optic, Hot Pluggable & Wall-Mountable
- Optional 19" System Chassis (TFC-1600) holds up to 16 Media Converters
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Remote Management Protocol | SNMP |
| Max Transfer Distance | 60 km |
| Status Indicators | Port transmission speed, power, link OK, link/activity |
| Features | Hot swap module replacement, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), wall mountable |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, RoHS |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 7.2 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12 cm |
| Depth | 8.8 cm |
| Height | 2.5 cm |
| Weight | 354 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% |
Features - Trendnet - TFC-110S60I
More Details
Product Code
04:190324
EAN Code
0710931504385
Manufacturer
Trendnet
