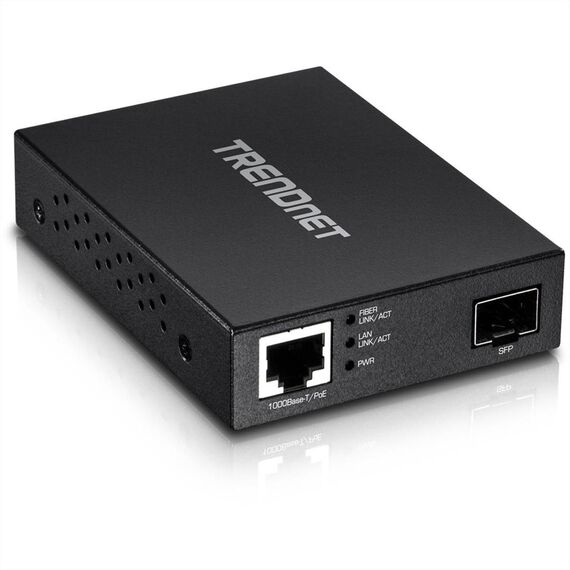

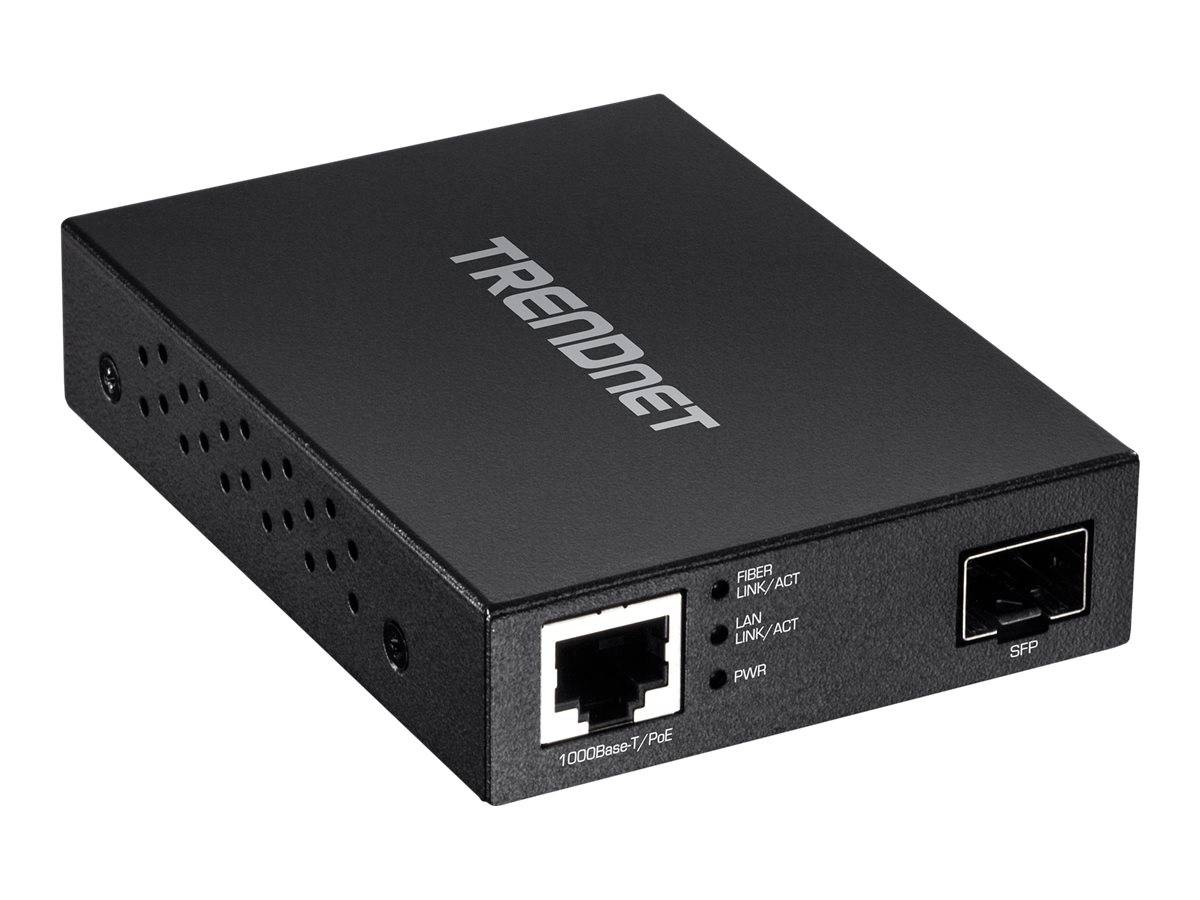

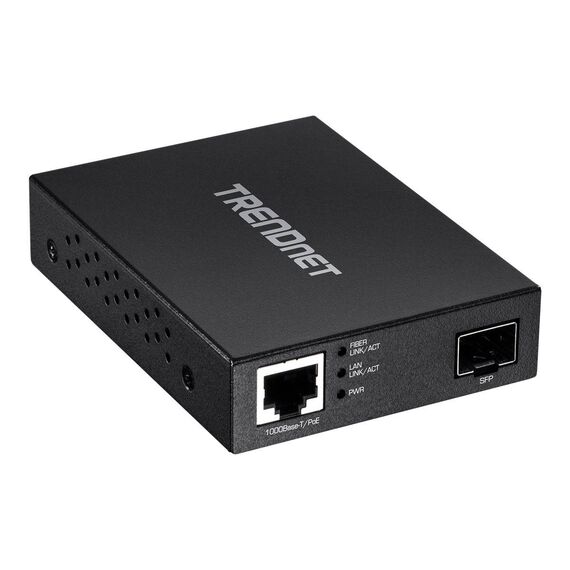

TRENDnet TFC-PGSFP / Media converter / GigE / 1000Base-LX, 1000Base-SX, 1000Base-T / RJ-45 / SFP (mini-GBIC) | TFC-PGSFP
Please sign in so that we can notify you about a reply
Special Features
- 1 x 100/1000BASE-T PoE input port
- 1 x 100/1000BASE-SX/LX SFP slot
- PoE powered - no power adapter is required
- SFP slot accommodates multimode or single-mode modules
- Supports link fault pass-through (LFPT)
- Jumbo frame (9KB) support
Product Specification
| Device Type | Media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX, 1000Base-SX, 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Power, LAN, fibre |
| Features | Half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-T (PoE+ input) - RJ-45 female ¦ 1 x Ethernet 1000Base-LX/1000Base-SX - SFP female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC |
| Power | Power |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | Power injector |
| Power Consumption Operational | 2.6 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.2 cm |
| Depth | 7.5 cm |
| Height | 2.3 cm |
| Weight | 200 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
