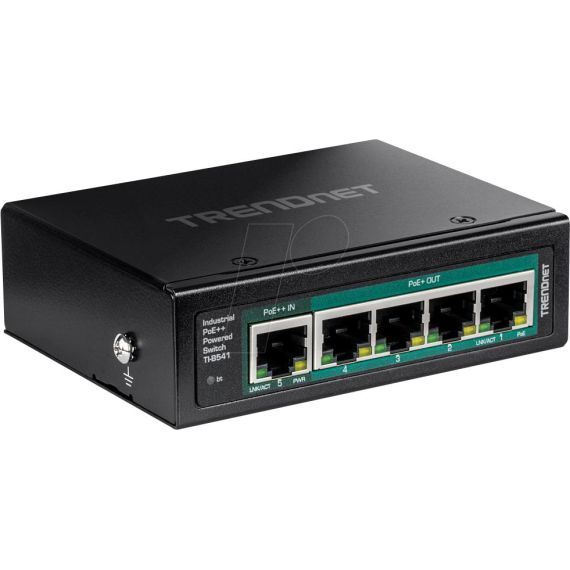

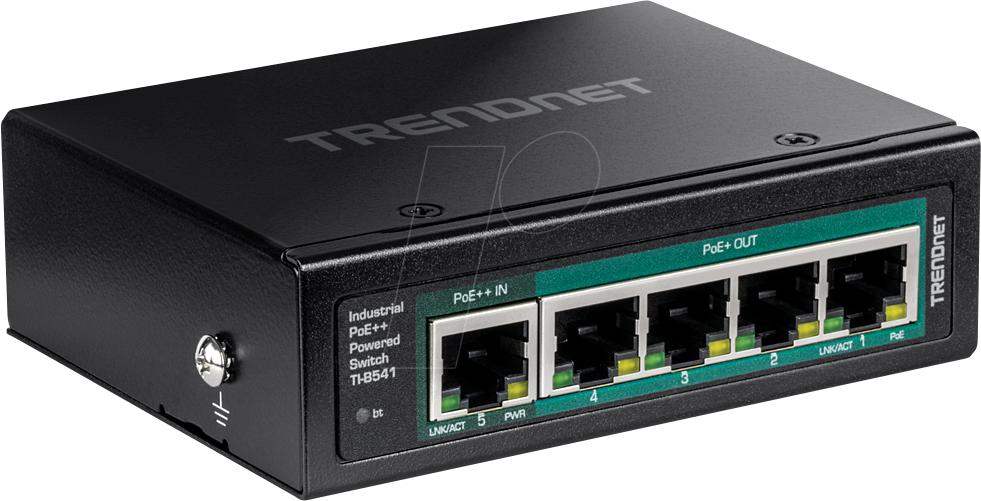

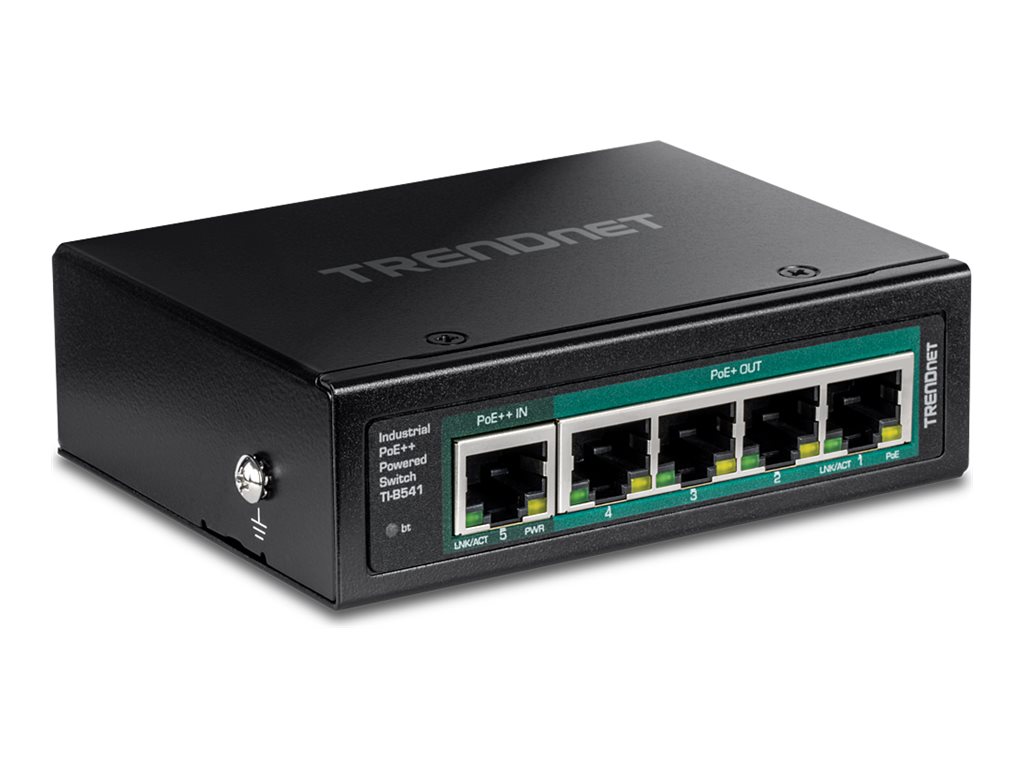

TRENDnet TI-B541 - Switch - industrial, with PoE pass-through - 1 x 10/100/1000 (PoE++ input) + 4 x 10/100/1000 (PoE+) - DIN rail mountable, wall-mountable - PoE+ (65 W) - TAA Compliant | TI-B541
Please sign in so that we can notify you about a reply
Product Features
- PoE++-powered
No AC adapter required - this switch is powered by a PoE++ switch or injector. It features four Gigabit PoE+ ports to power PoE devices such as IP cameras. - Industrial hardened design
Rugged IP30 enclosure with a high degree of vibration and shock resistance, ESD / EMI / surge protection, and a wide operating temperature range (- 40° - 75°C (- 40°- 167°F)). - Easy installation
No configuration needed, simply connect PoE network devices to the reliable PoE-powered industrial switch. - Grounding point
Grounding point on the PoE-powered industrial switch protects equipment against external electrical surges. - LED indicators
LED indicators on the PoE-powered industrial switch convey port status.
Special Fetures
- 1x Gigabit PoE++ input port
- 4x Gigabit PoE+ output ports
- 65W PoE power budget with PoE++ Type 4 (90W) input power
- 10Gbps switching capacity
- Hardened IP30-rated metal switch
- Includes DIN-Rail and wall mounts
- Extreme operating temperature range of -40° - 75°C (-40° - 167°F)
- NDAA / TAA compliant
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 1 x 10/100/1000 (PoE++ input) + 4 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Switching capacity: 10 Gbps <br /> Forwarding rate (64-byte packets): 7.44 Mpps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Auto-negotiation, half duplex mode, full duplex mode, 1MB packet buffer, metal housing, ground points |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt |
| Status Indicators | PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000 Base-T (PoE+) RJ-45 |
| Miscellaneous | |
| MTBF | 537,083 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, LVD, IP30, NDAA |
| TAA Compliant | Yes |
| Dimensions & Weight | |
| Width | 10.2 cm |
| Depth | 8 cm |
| Height | 3.1 cm |
| Weight | 160 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 95% (non-condensing) |
