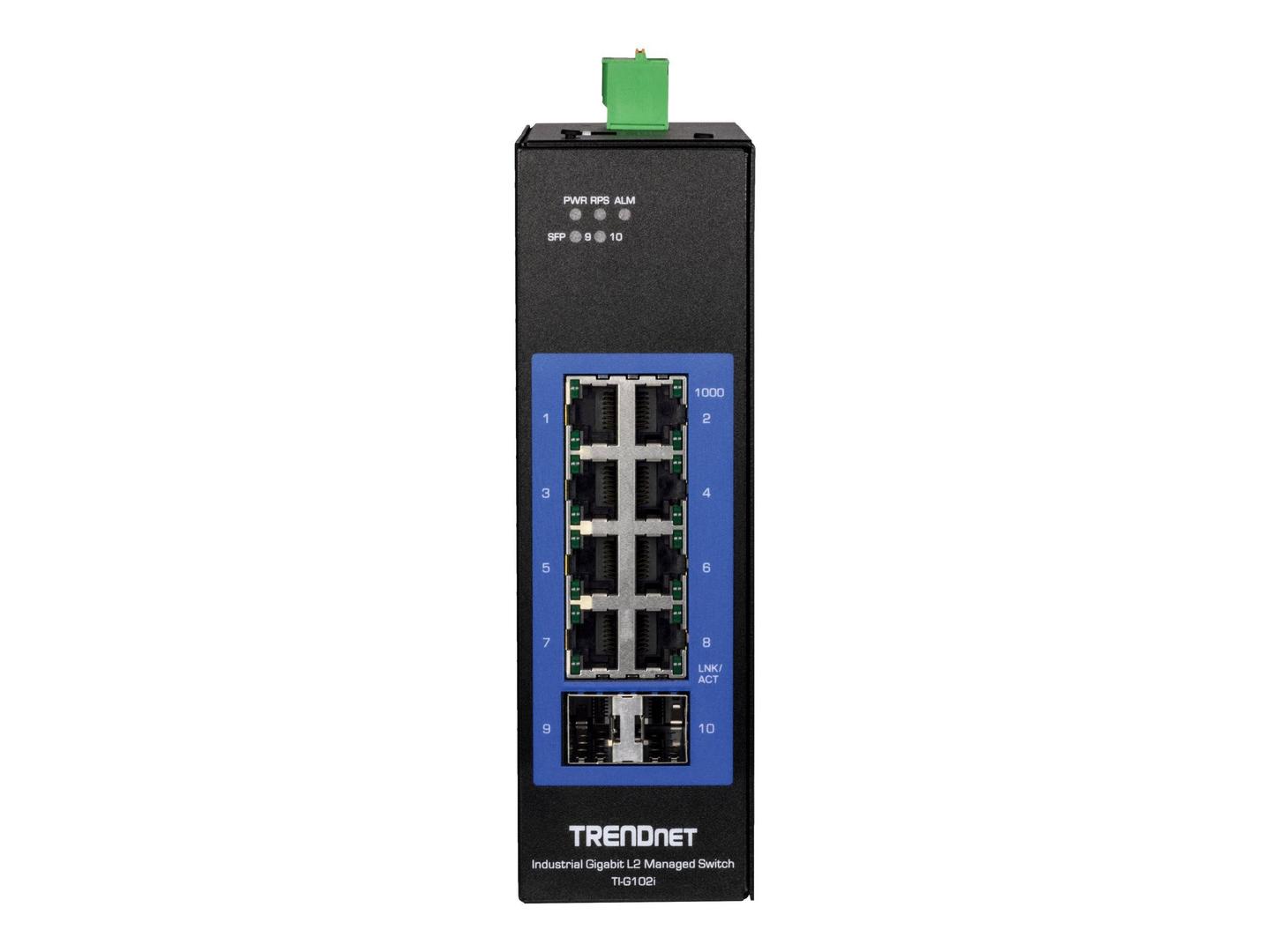

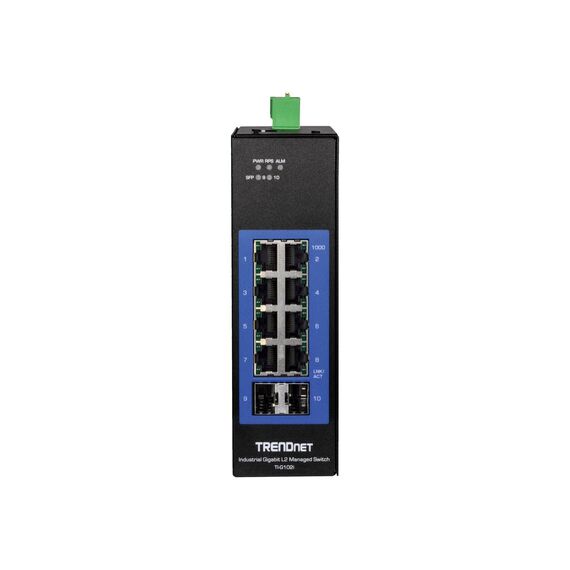

TRENDnet TI-G102i / Industrial / switch / Managed / 8 x 10/100/1000 + 2 x Gigabit SFP / DIN rail mountable / DC power | TI-G102I
TI-G102I
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Integration flexibility
Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration. - Shock and vibration resistant
The industrial layer 2 managed switches are rated for shock, free fall, and vibration. - Industrial design
Equipped with a hardened rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range.
Special Features
- Hardened metal housing
- Wide operating temperature range
- Bandwidth control per port
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
Product Specification
| Device Type | Switch - 10 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps |
| Capacity | VLAN groups: 256 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, SMTP, Modbus |
| Authentication Method | RADIUS, internal user database |
| Features | Layer 2 switching, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, SNTP support, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), reset button, bandwidth control, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, Management Information Base (MIB), Strict Priority Queuing (SPQ), built-in DIP switch, port isolation, Class of Service (CoS), tagged VLAN, 8KV ESD Protector, ONVIF support, metal housing, DiffServ Code Point (DSCP) support, IP source guard, ARP inspection, Management Information Base (MIB) II, MAC address learning, Ethernet Ring Protection Switching (ERPS) v2, 2KV Surge protection, BPDU Filter, MAC based VLAN, loopback detection, IGMP immediate leave, queue scheduling support, MAC address to port binding |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX |
| RAM | 128 MB |
| Built-in Devices | Led panel |
| Status Indicators | Power, alarm, RPS (Redundant Power Supply), link/activity, SFP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP |
| Power | Power |
| Power Device | External power adapter (not included) |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | DC 12 - 60 V |
| Power Consumption Operational | 13 Watt |
| Features | Overload Current Protection |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail mounting kit, removable terminal block |
| MTBF | 617,085 hours |
| Compliant Standards | FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5 cm |
| Depth | 12 cm |
| Height | 16 cm |
| Weight | 884 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
