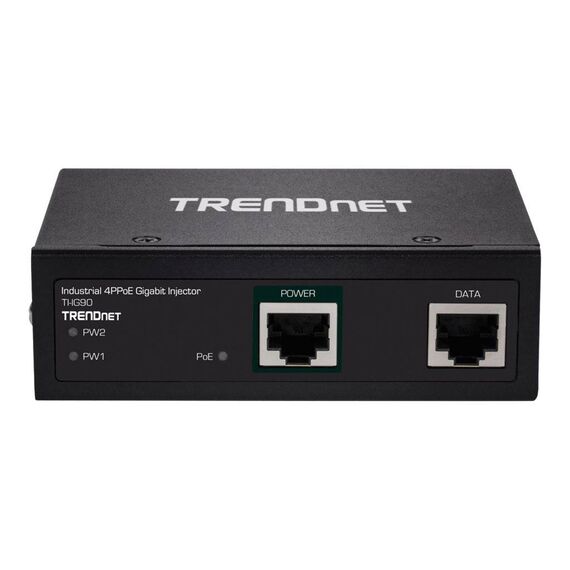

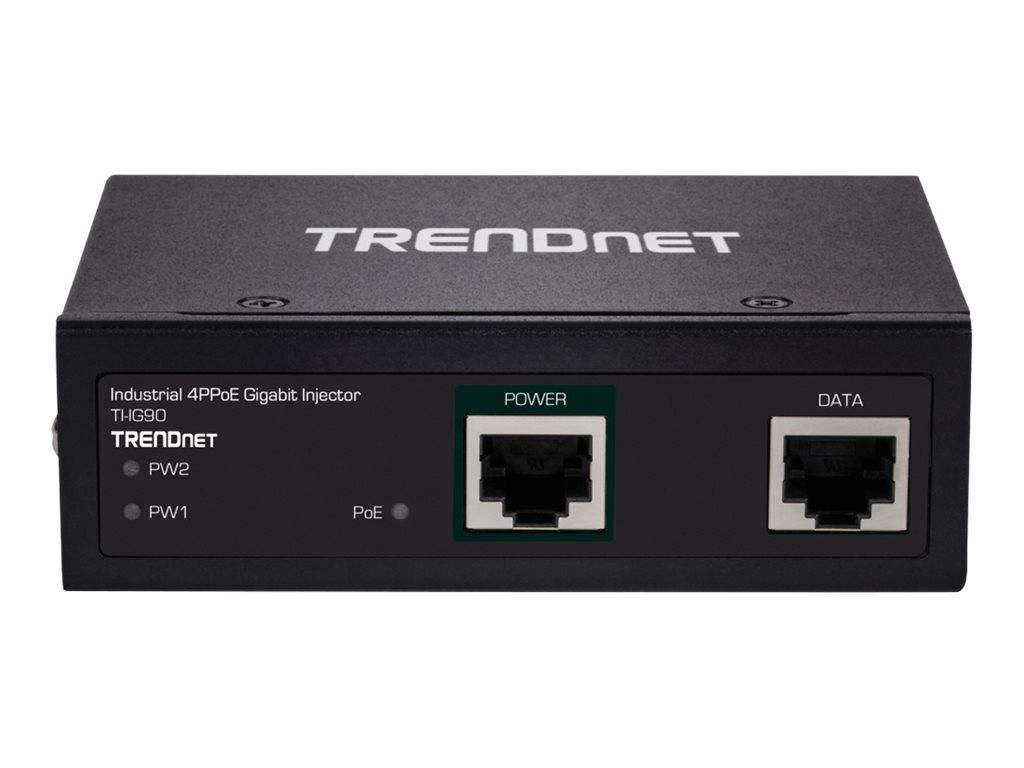

TRENDnet TI-IG90 / Hardened Industrial / PoE injector (DIN rail mountable) / DC 52 / 56 V / 90 Watt / output connectors: 1 / TAA Compliant | TI-IG90
Please sign in so that we can notify you about a reply
Product Features
- 4-pair PoE (4PPoE)
Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or 4PPoE (up to 90W) device. - Easy installation
No configuration needed, simply connect a PoE network device to the industrial PoE injector. - Gigabit ports
1 x Gigabit port and 1 x Gigabit 4PPoE port. - PoE distance
Provides a 4-Pair PoE network connection up to 100m (328 ft.) away from the industrial PoE injector. - LED indicators
LED indicators on the industrial PoE injector confirm PoE connectivity. - Redundant power
Redundant power inputs with overload current protection. - Alarm relay
Alarm relay output triggered by power failure of primary and / or redundant power. - Wide temperature range
A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with extreme hot or cold conditions. - Shock and vibration resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6). - Grounding point
Industrial PoE injector features grounding point to protect equipment from external electrical surges.
Special Features
- Hardened IP30 rated Gigabit 4PPoE injector
- PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
- Redundant power inputs with overload current protection
Product Specification
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | Power Device |
| Input Voltage | DC 52 - 56 V |
| Input Connectors | 1 x 4 pin terminal block |
| Power Consumption Operational | 72 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 90 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting bracket |
| MTBF | 716,685 hours |
| Features | Wall mountable, full duplex support, over current protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, EN55024, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30, EN 55022 Class A |
| TAA Compliant | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.4 cm |
| Depth | 8.2 cm |
| Height | 3.2 cm |
| Weight | 154 g |
Features - Trendnet - TI-IG90
More Details
Product Code
04:399750
EAN Code
0710931161595
Manufacturer
Trendnet
