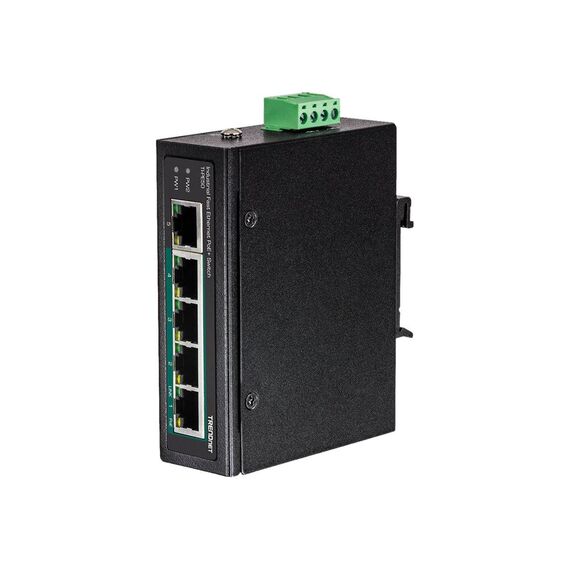

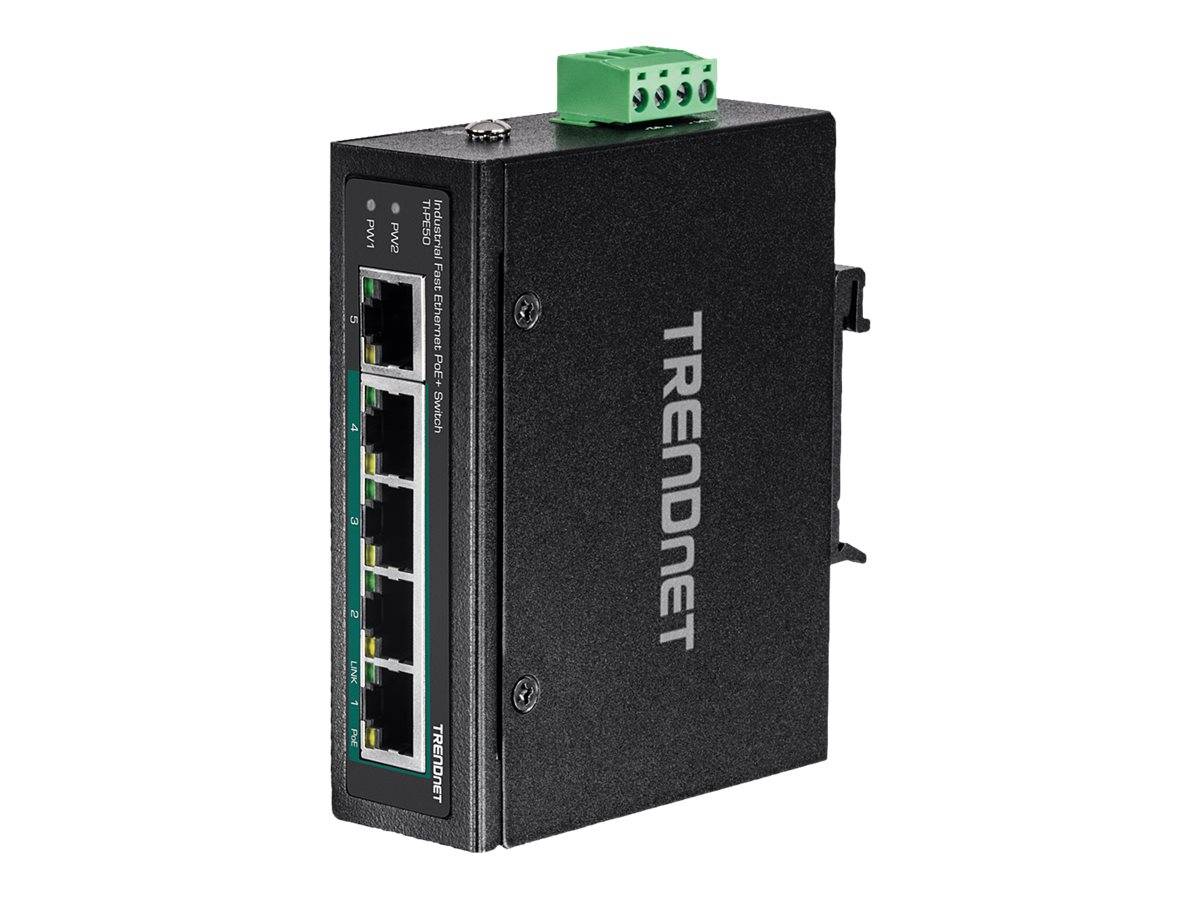

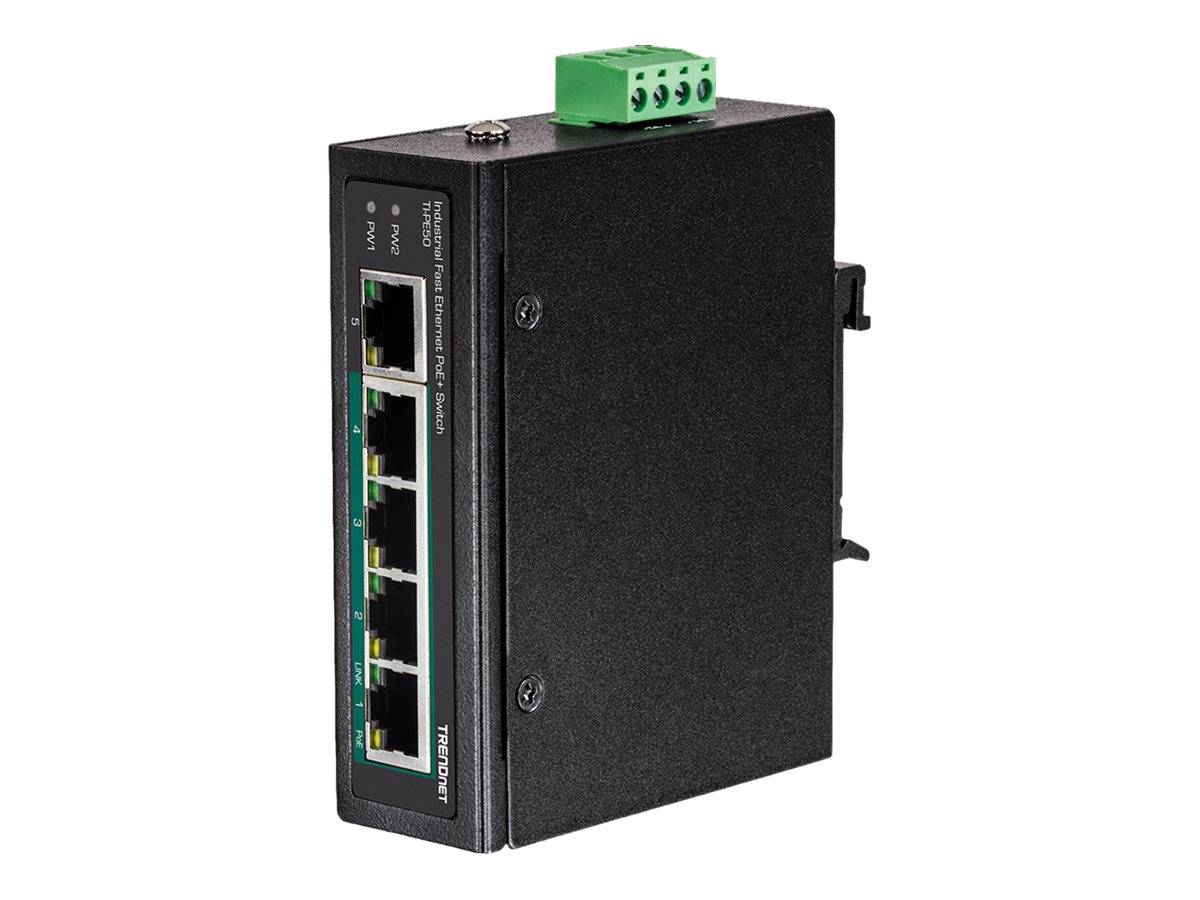

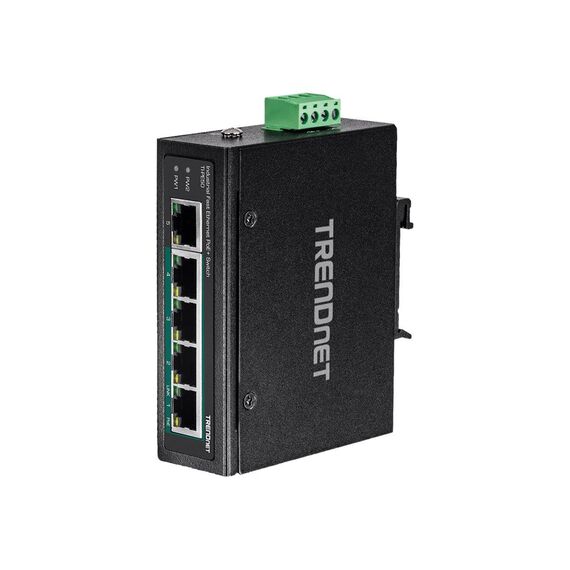

TRENDnet TI-PE50 / Switch / unmanaged / 4 x 10/100 (PoE+) + 1 x 10/100 / DIN rail mountable, wall-mountable / PoE+ (90 W) / DC power | TI-PE50
Please sign in so that we can notify you about a reply
Special Features
- 4 x Fast Ethernet PoE+ ports
- 1 x Fast Ethernet port
- 90W PoE power budget
- 1Gbps switching capacity
- Hardened IP30 rated metal switch
- Wide operating temperature range of -40° - 75°C (-40° - 167°F)

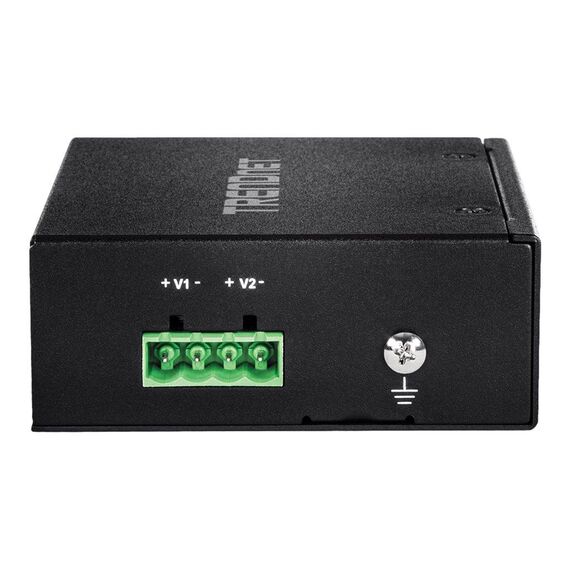

- Dual inputs provide redundant power with overload current protection
Product Specification
| Device Type | Switch - 5 ports - unmanaged |

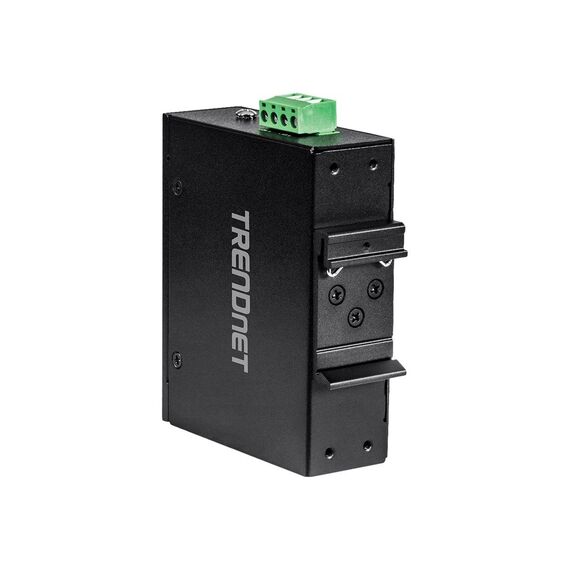

| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE+) + 1 x 10/100 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 90 W |
| Performance | Switching fabric bandwidth: 1 Gbps ¦ Forwarding performance (64-byte packet size): 0.744 Mpps |
| MAC Address Table Size | 1K entries |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, 56KB packet buffer, 6KV ESD Protector |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 1000Base-T RJ-45 ¦ 1 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 48 - 56 V |
| Power Consumption Operational | 2.76 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 708,903 hours |
| Compliant Standards | FCC, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.2 cm |
| Depth | 10.3 cm |
| Height | 3.1 cm |
| Weight | 160 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - Trendnet - TI-PE50
General
5-Port
More Details
Product Code
04:399722
EAN Code
0710931161601
Manufacturer
Trendnet
