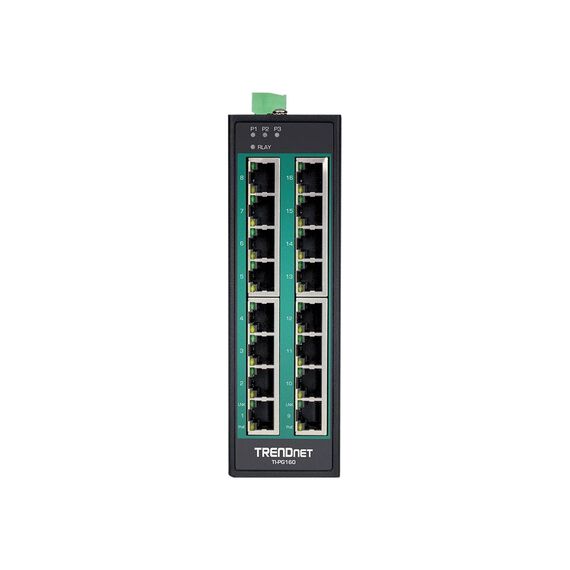

TRENDnet TI-PG160 / Switch / unmanaged / 16 x 10/100/1000 (PoE+) / DIN rail mountable, wall-mountable / PoE+ (240 W) | TI-PG160
Please sign in so that we can notify you about a reply
Product Features
- Fault tolerance

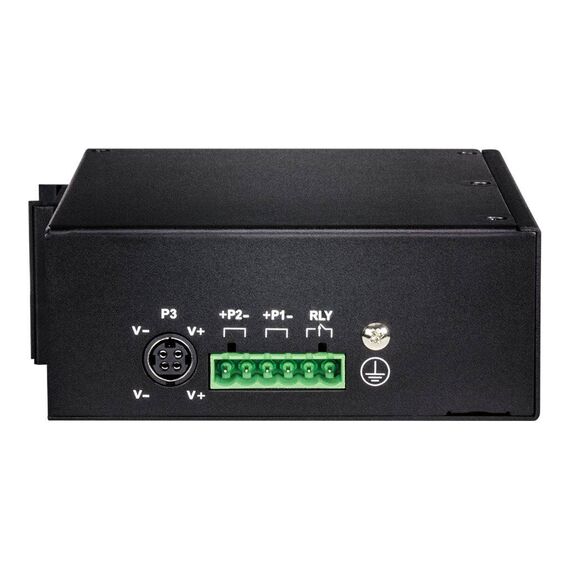

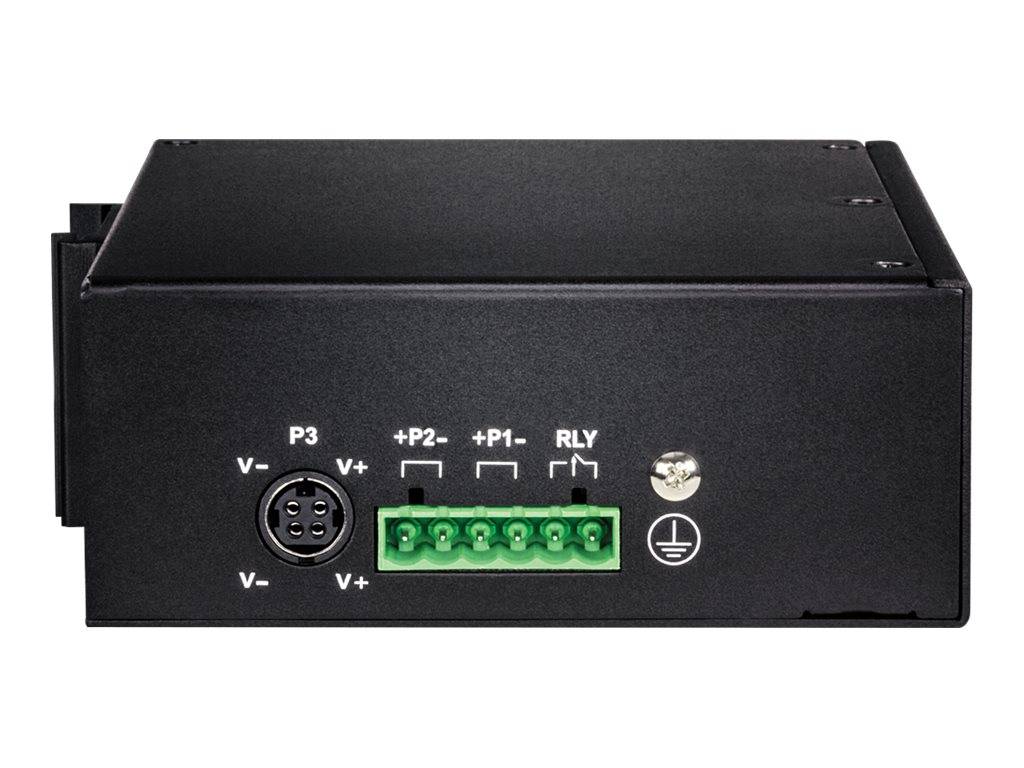

The industrial PoE switch features redundant power inputs with output alarm relay. - Grounding point
Grounding point on the industrial PoE switch protects equipment from external electrical surges. - Industrial design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F).
Special Features

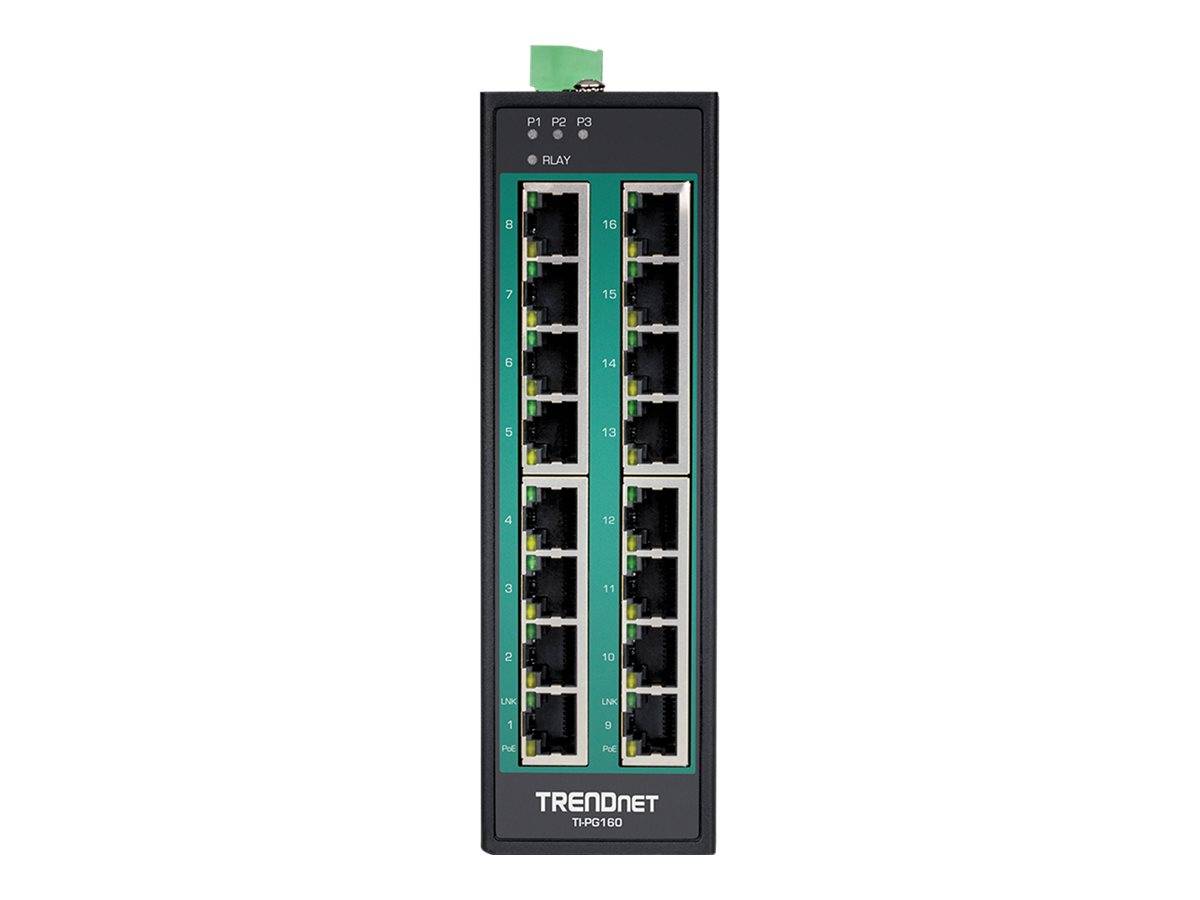

- 16x Gigabit PoE+ ports
- 240W PoE power budget
- 32Gbps switching capacity
- Hardened IP30 rated metal switch
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
Product Specification
| Device Type | Switch - 16 ports - unmanaged |

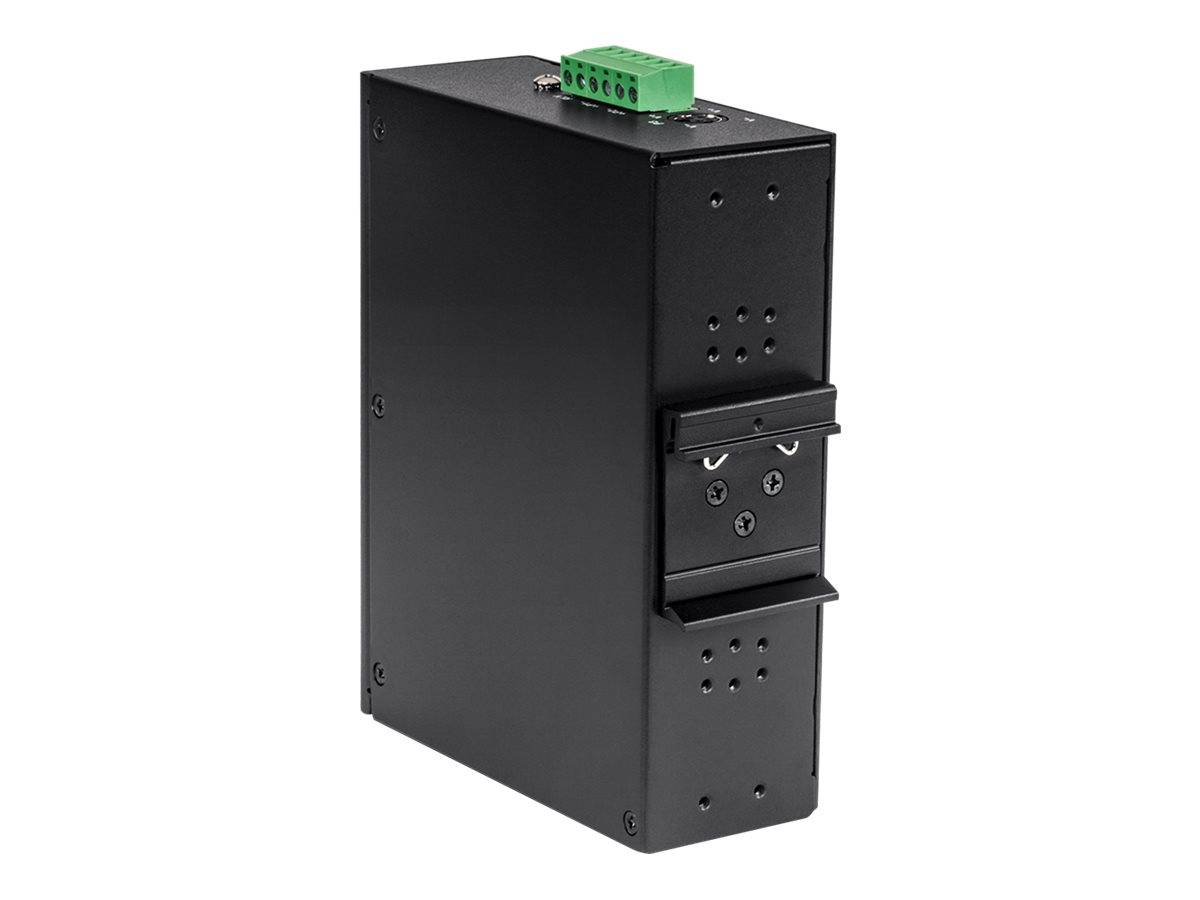

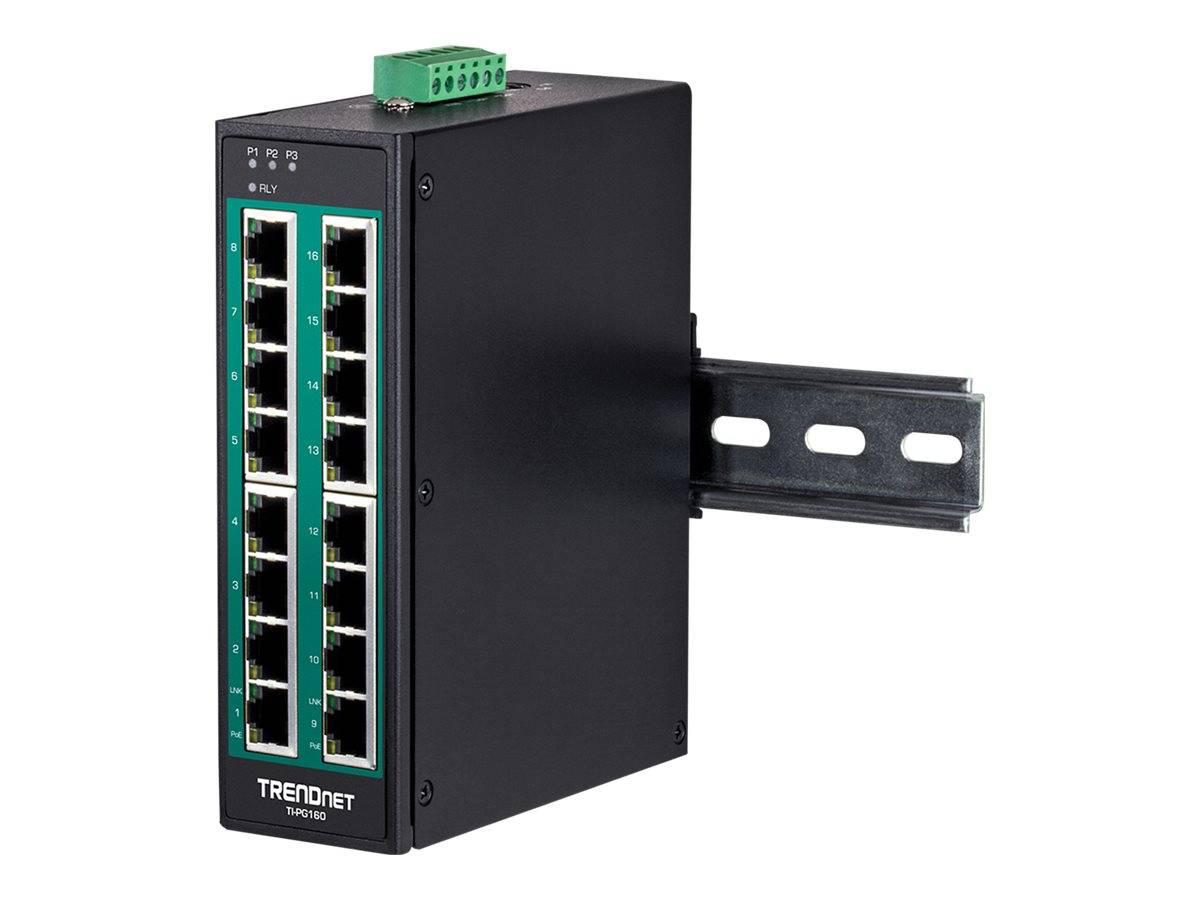

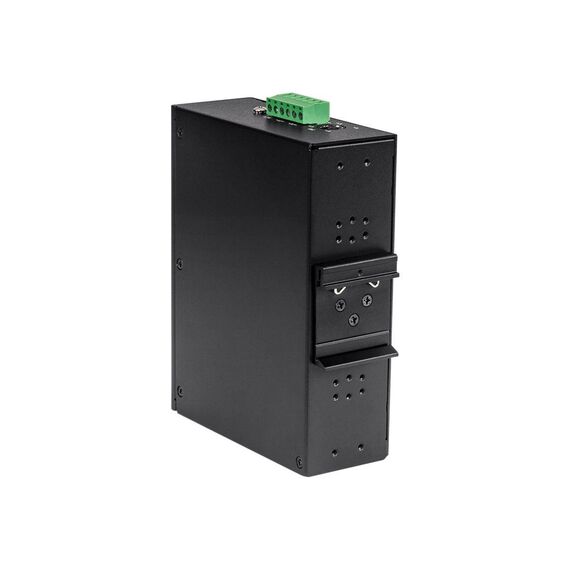

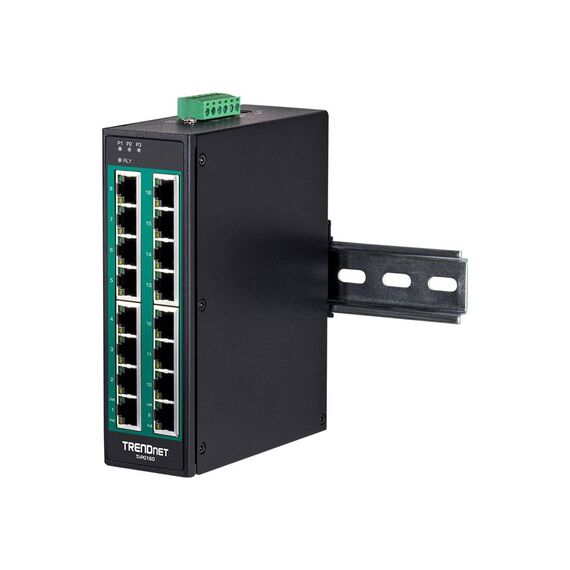

| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Features | Half duplex mode, full duplex mode, 512KB packet buffer, metal housing, 8KV ESD Protector (air-gap discharge) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power | Power |
| Power Device | External power adapter (not included) |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 5.76 Watt |
| Miscellaneous | Miscellaneous |

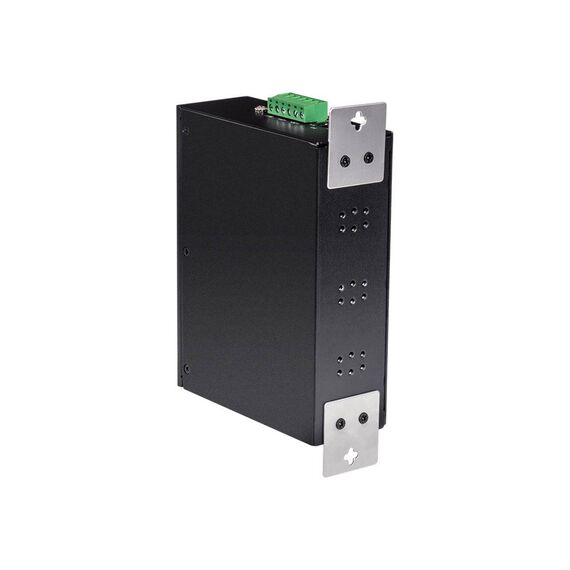

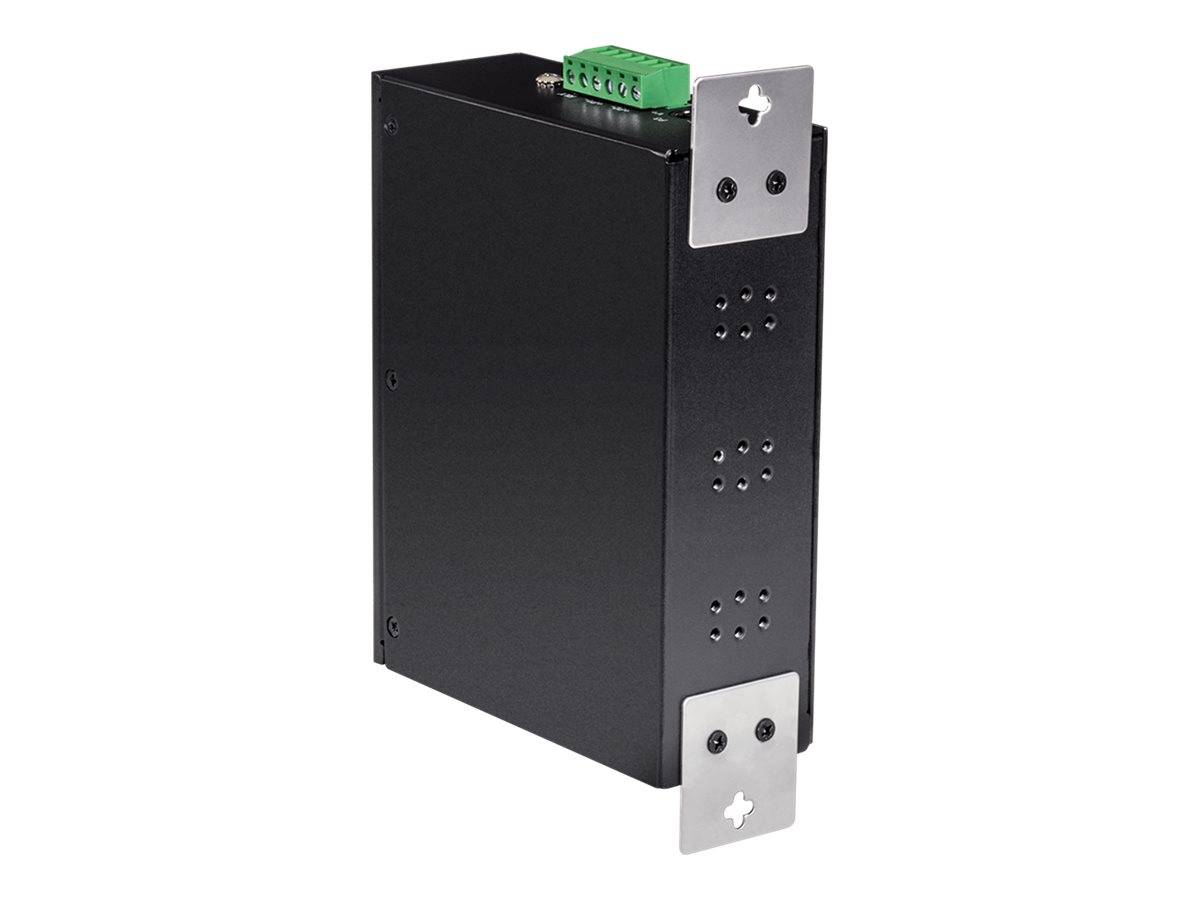

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 699,103 hours |
| Compliant Standards | UL, FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.8 cm |
| Depth | 12 cm |
| Height | 15.5 cm |
| Weight | 500 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - Trendnet - TI-PG160
General
16-Port
More Details
Product Code
04:399724
EAN Code
0710931161618
Manufacturer
Trendnet
