Product Features

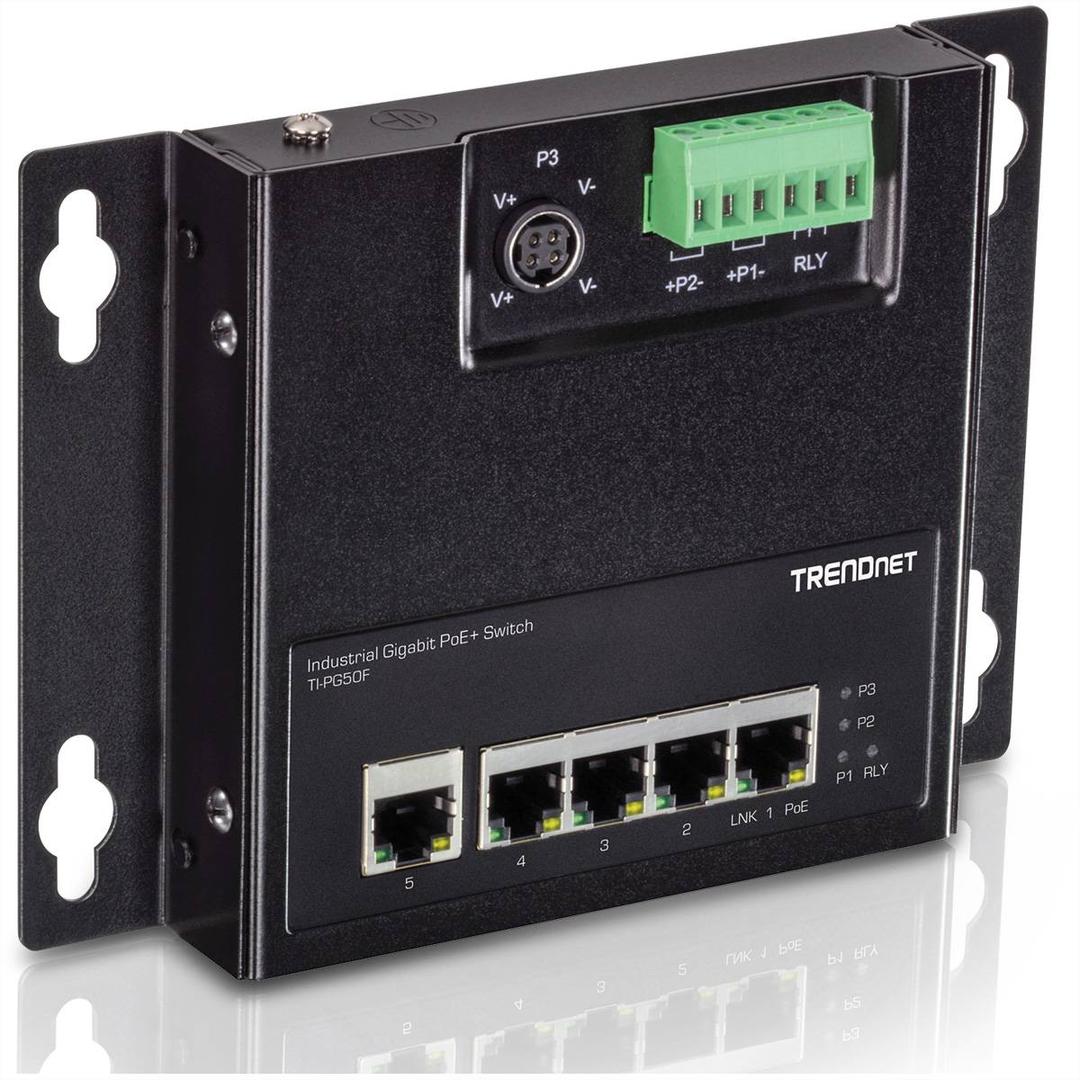

- Wall-mounted front access switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited. - PoE+ power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices. - Hardened industrial design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
Special Features
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 120W PoE power budget
- 10Gbps switching capacity
- Supports jumbo frames up to 9KB
- Hardened IP30 rated metal housing
- Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 7.44 Mpps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, 1MB packet buffer, 8KV ESD Protector, metal housing, shock-resistant, vibration-proof |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 1000Base-T RJ-45 PoE+ |
| Power | Power |
| Power Device | External power adapter (not included) |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 454,556 hours |
| Compliant Standards | UL, FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.8 cm |
| Depth | 2.32 cm |
| Height | 11.8 cm |
| Weight | 425 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - Trendnet - TI-PG50F
General
5-Port
More Details
Product Code
04:303538
EAN Code
0710931161564
Manufacturer
Trendnet
