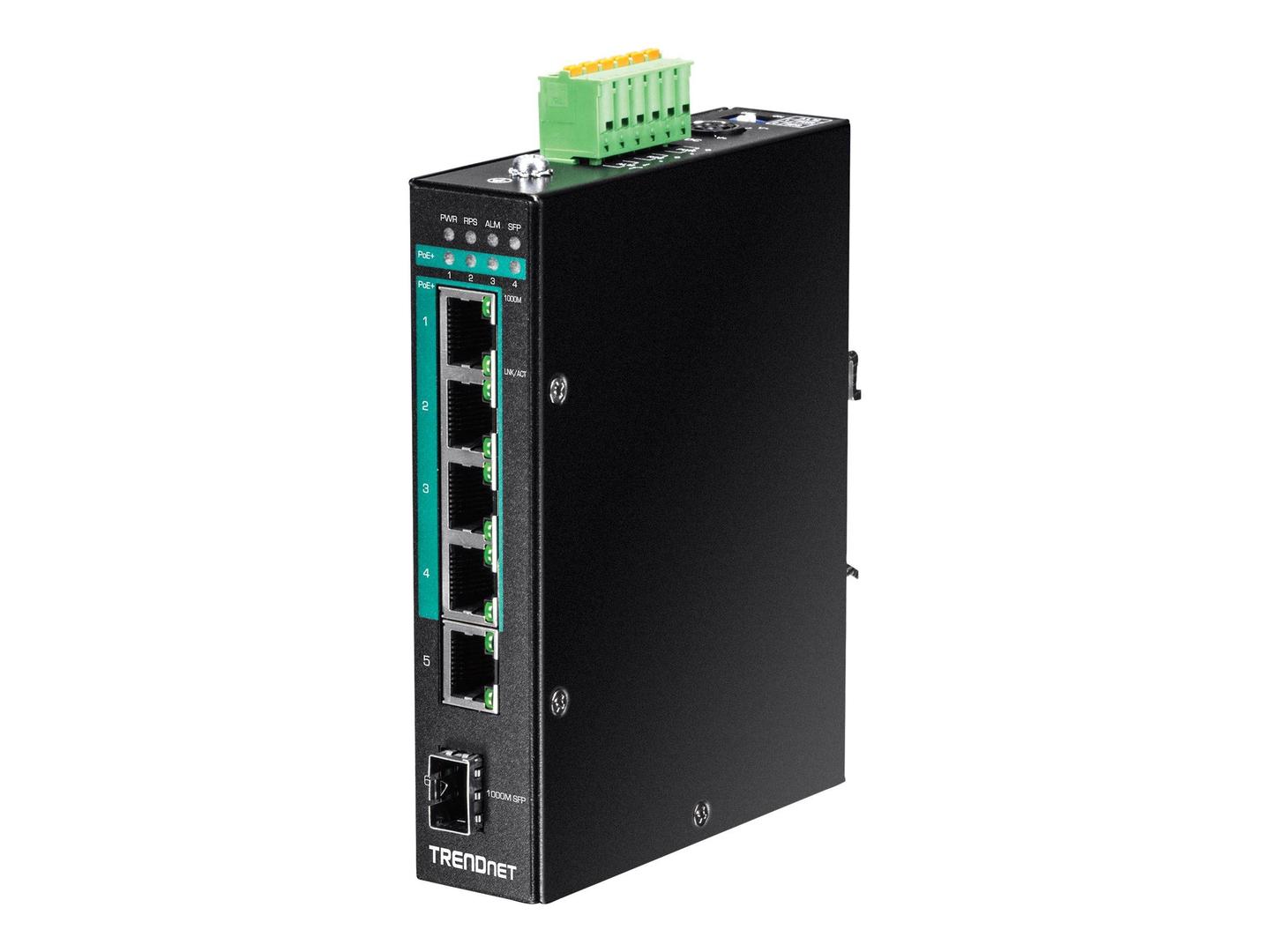

TRENDnet TI-PG541I / Switch / Managed / 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP / DIN rail mountable / PoE+ (120 W) | TI-PG541I
Please sign in so that we can notify you about a reply
Product Features
- Industrial hardened design
Equipped with a rugged IP30-rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range for harsh environments. - Integration flexibility
Managed features include PoE per port control/priority/scheduling/power delay, IGMP snooping, per port bandwidth control/802.1p/DSCP/queue scheduling, and SNMP trap/RMON/SMTP alert/syslog/port mirror for monitoring and flexible network integration. - Fault tolerance
It features dual redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.
Special Features
- Full PoE+ power budget
- IP30-rated metal enclosure with integrated DIN-rail mounting hardware
- Full PoE control per port
- L2 management
- System monitoring
- Dual redundant power inputs with overload current protection
- Alarm relay output triggered by power failure of primary and/or redundant power
- Resistant to shock and vibration
- LED indicators
- Grounding point protects equipment from external electrical surges
Product Specification
| Device Type | Switch - 6 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Switching capacity: 12 Gbps ¦ Forwarding performance: 8.93 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, CLI |
| Features | VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Weighted Fair Queuing (WFQ), surge protection, Quality of Service (QoS), SNMP trap, Management Information Base (MIB), built-in DIP switch, Strict Priority (SP), 8KV ESD Protector, metal housing, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM | 128 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 ¦ 1 x 1000Base-X SFP |
| Power | Power |
| Power Device | External power adapter |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 160 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 435,905 hours |
| Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC 61000-6-2:2005 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.1 cm |
| Depth | 12 cm |
| Height | 13.5 cm |
| Weight | 528 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TI-PG541I
More Details
Product Code
04:192707
EAN Code
0710931160581
Manufacturer
Trendnet
