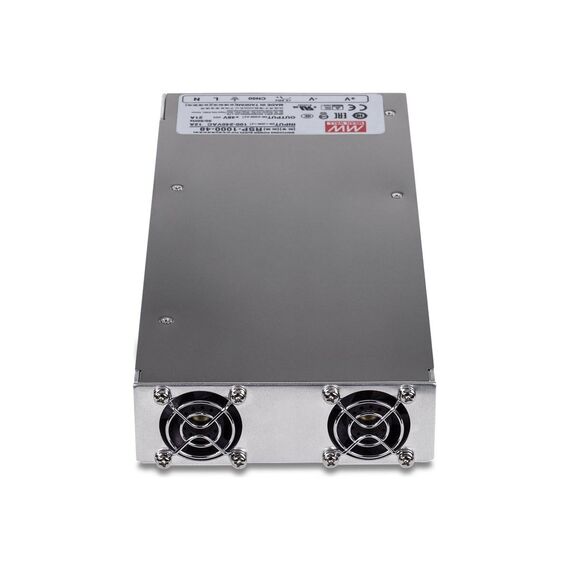

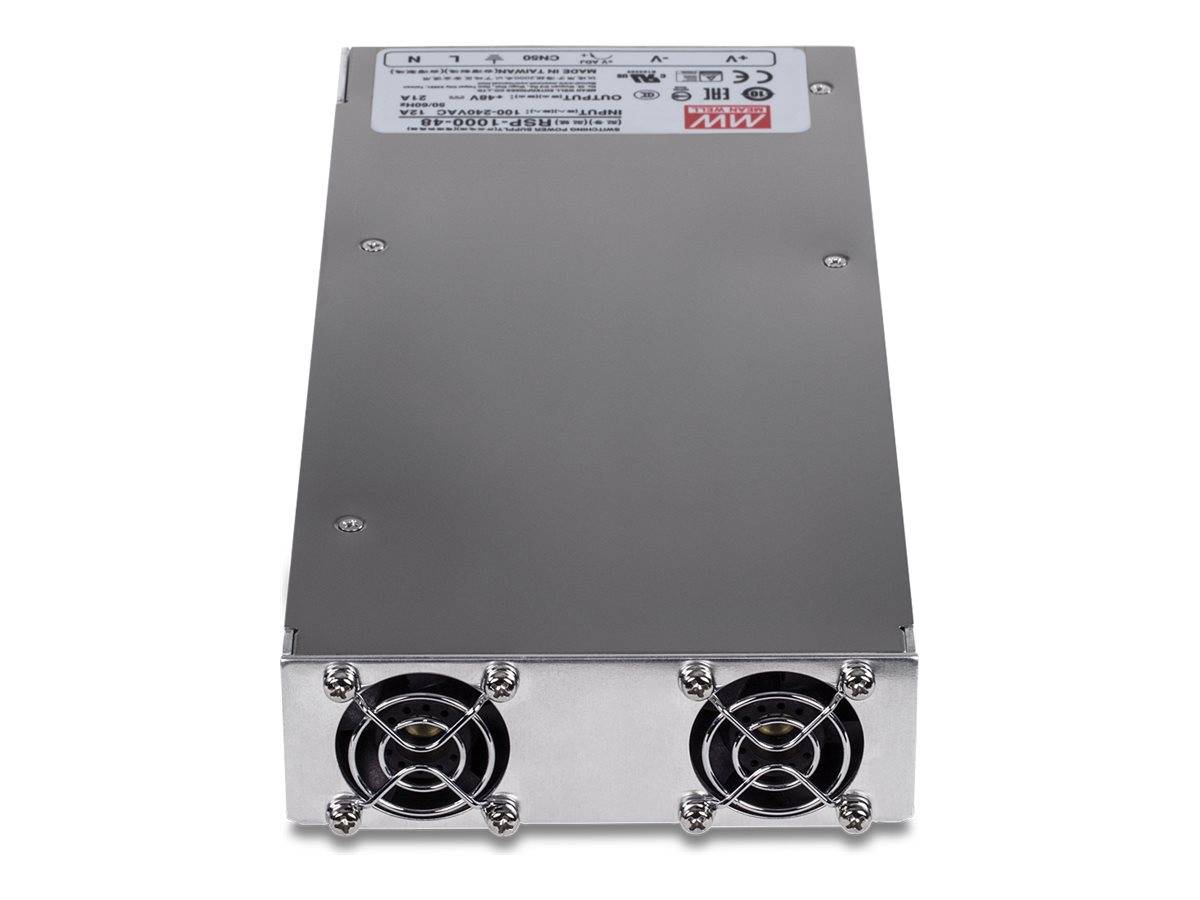

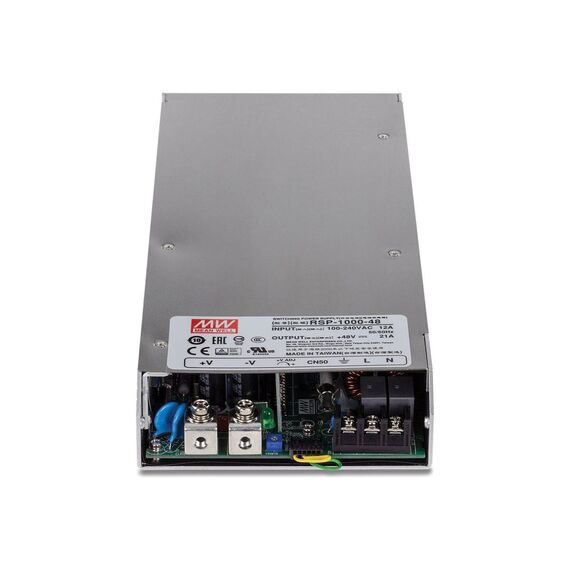

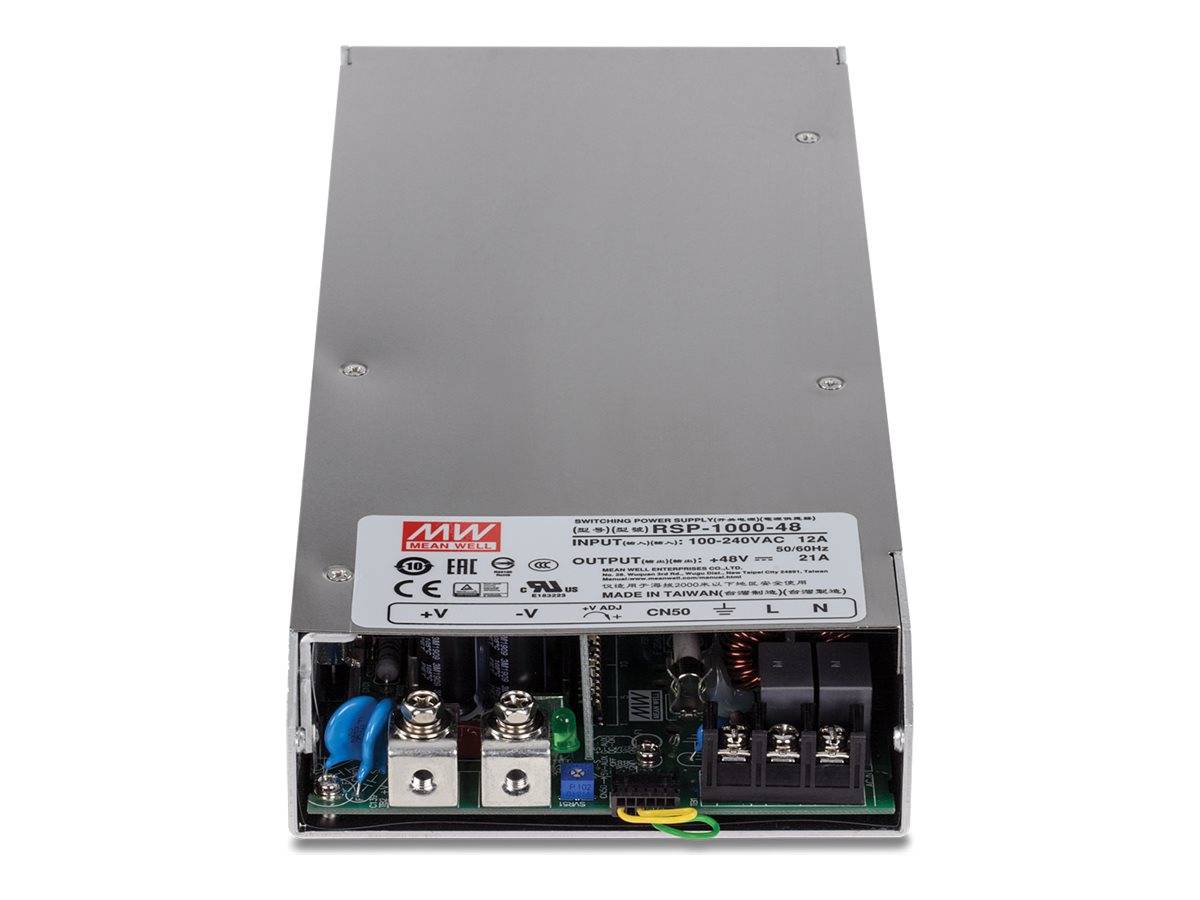

TRENDnet TI-RSP100048 / Power supply (rack-mountable) / AC 100-240 V / 1000 Watt / active PFC / 4U / 19" / TAA Compliant | TI-RSP100048
Please sign in so that we can notify you about a reply
Product Features
- 1000 W power
Provides up to 1000 W of power for PoE devices, such as switches, network cameras, and access points. - Active PFC
Built-in active power factor controller helps eliminate unusable reactive power. - Protection
Overload, short circuit, over voltage, and over temperature protection. - Operating temperature
Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F).
Special Features
- Provides up to 1000 W of power
- High efficiency 94% and low power dissipation
- Built-in active power factor controller
- Forced air cooling via built-in DC fans
- Protections: short circuit, overload, over voltage, over temperature
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 4U |
| Rack Size | 19" |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Output Voltage | 48 V |
| Max Electric Current | 21 A |
| Power Capacity | 1000 Watt |
| Efficiency | 94% |
| Miscellaneous | Miscellaneous |
| MTBF | 313,100 hours |
| Features | LED indicators, over voltage protection, overload protection, short-circuit protection, thermal protection |
| Compliant Standards | TUV, EN 61000-3-2, EN55022, EN55024, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, UL 508, EN 55011, EN 61204-3, EN60950-1:2001, CB 60950-1, EN 61204-3 Class B, SEMI F47, GL |
| TAA Compliant | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.7 cm |
| Depth | 29.5 cm |
| Height | 4.1 cm |
| Weight | 1.74 kg |
Features - Trendnet - TI-RSP100048
More Details
Product Code
04:450113
EAN Code
0710931161915
Manufacturer
Trendnet
