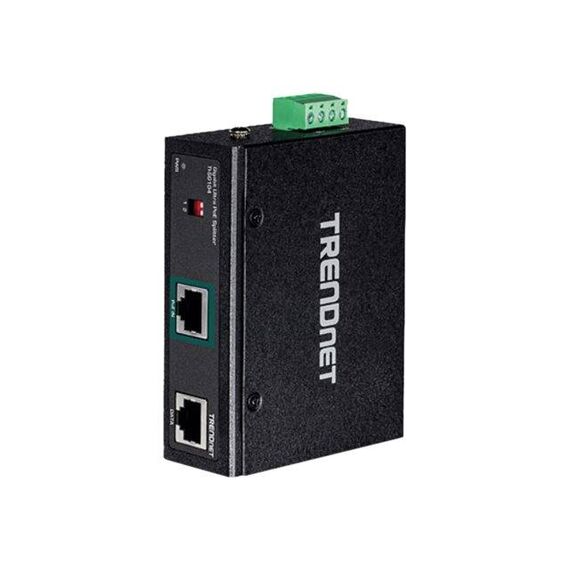

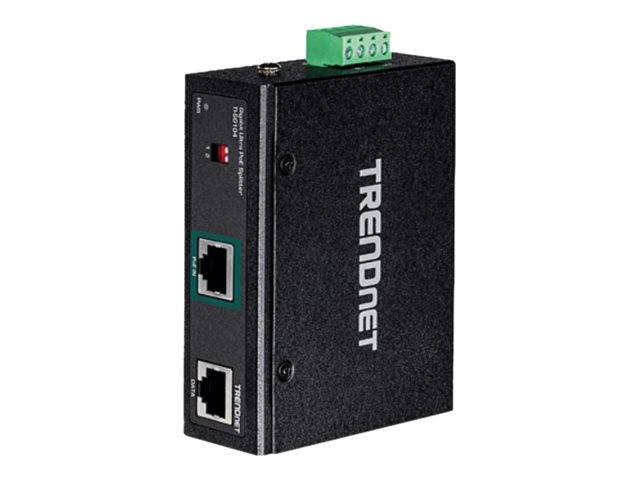

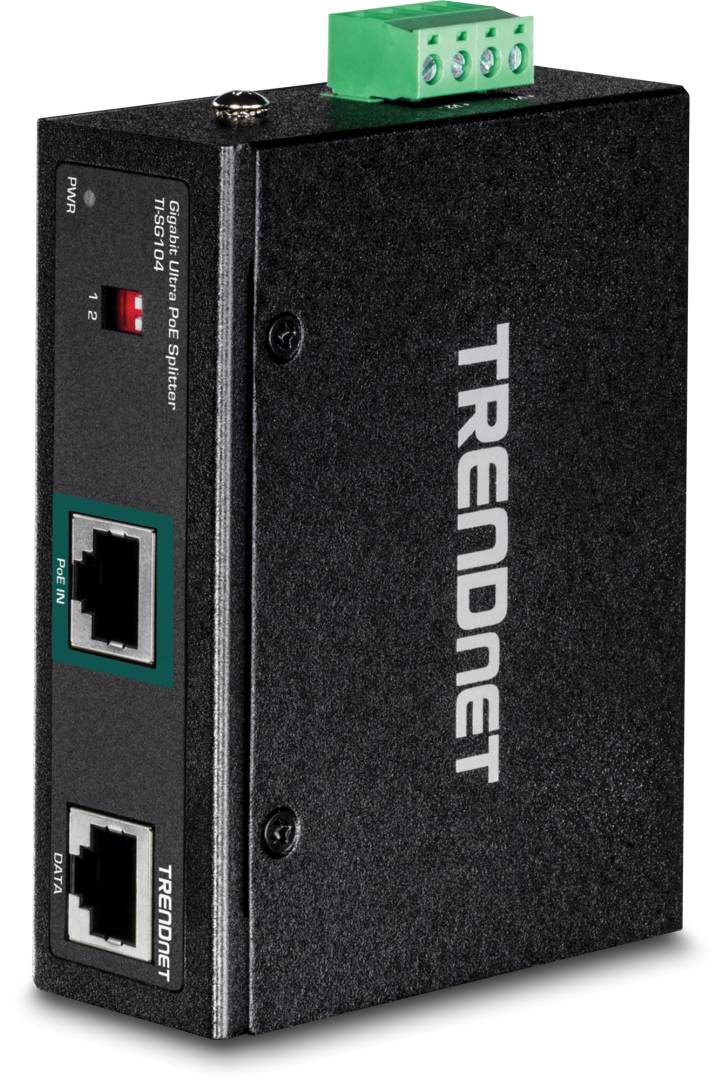

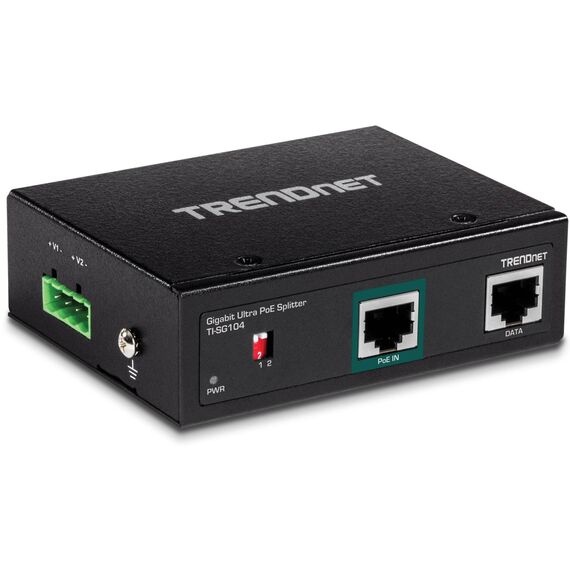

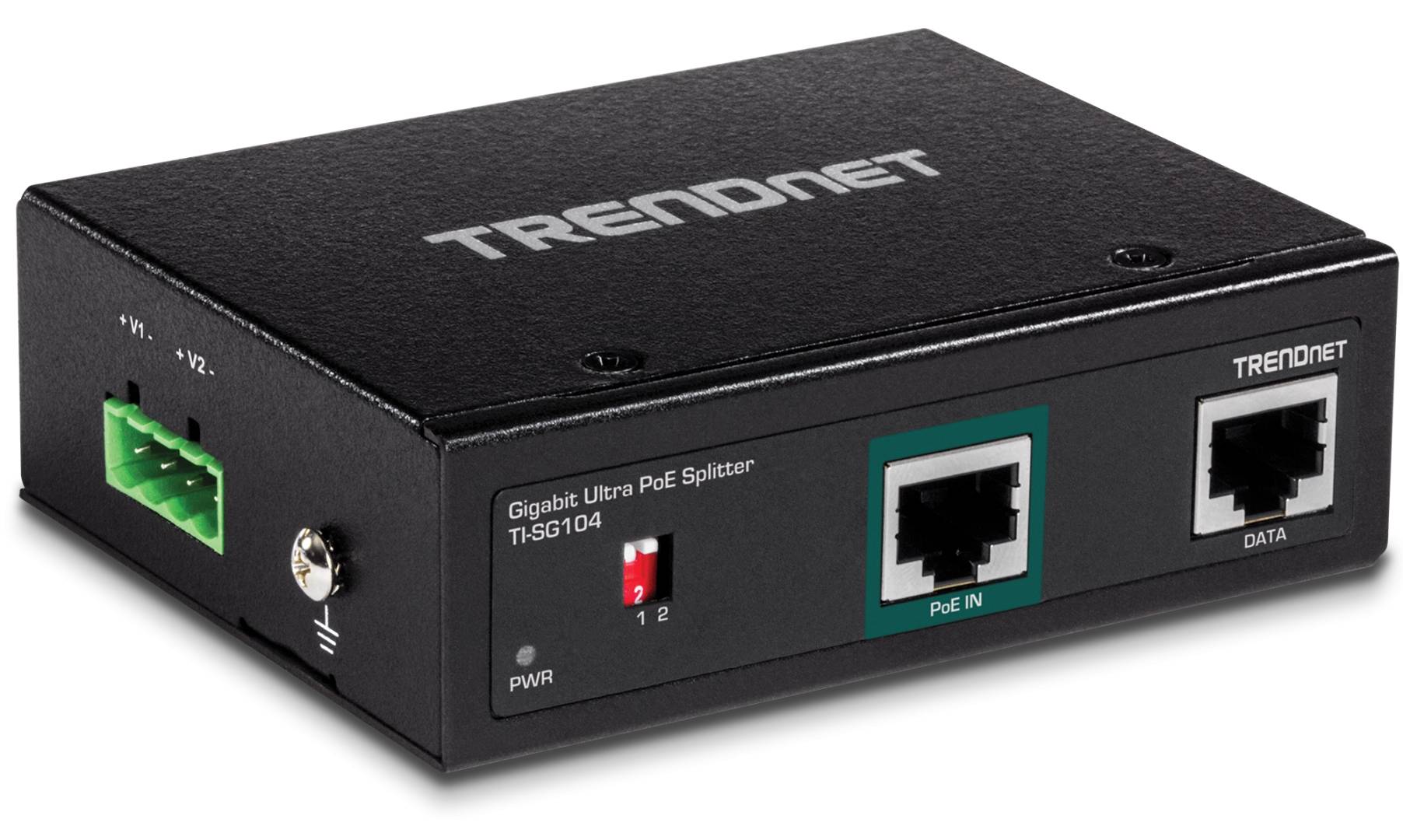

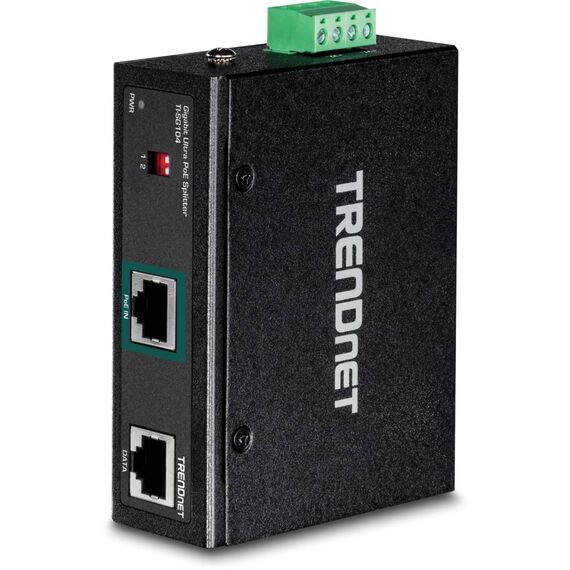

TRENDnet TI-SG104 / PoE splitter (DIN rail mountable) / 95 Watt / output connectors: 1 | TI-SG104
Please sign in so that we can notify you about a reply
Product Features
- UPoE powered
No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.). - Adjustable voltage output
Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.25A) to match non-PoE device power requirements. - Wall mountable
The UPoE splitter's wall mountable design accommodates most installation scenarios.
Special Features
- Power a non-PoE device up to 100m (328 ft.) away from PSE
- Splits a gigabit PoE signal into separate power and data sources
- A single Ultra PoE source can power up to two devices
- Adjustable voltage output supports 12V, 16V, 24V or 48V devices
- For best performance pair with UPoE switches or injectors
- Save on installation and equipment cost
- Full Duplex Gigabit speeds
- IEEE 802.3bt compatible
Product Specification
| Device Type | PoE splitter - DIN rail mountable |
| Power Over Ethernet (PoE) | UPOE |
| Power Device | Power Device |
| Input Connectors | 1 x RJ-45 |
| Power Consumption Operational | 7 Watt |

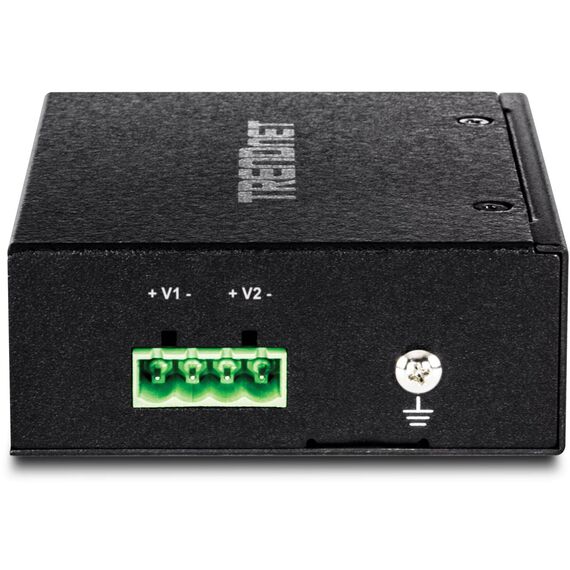

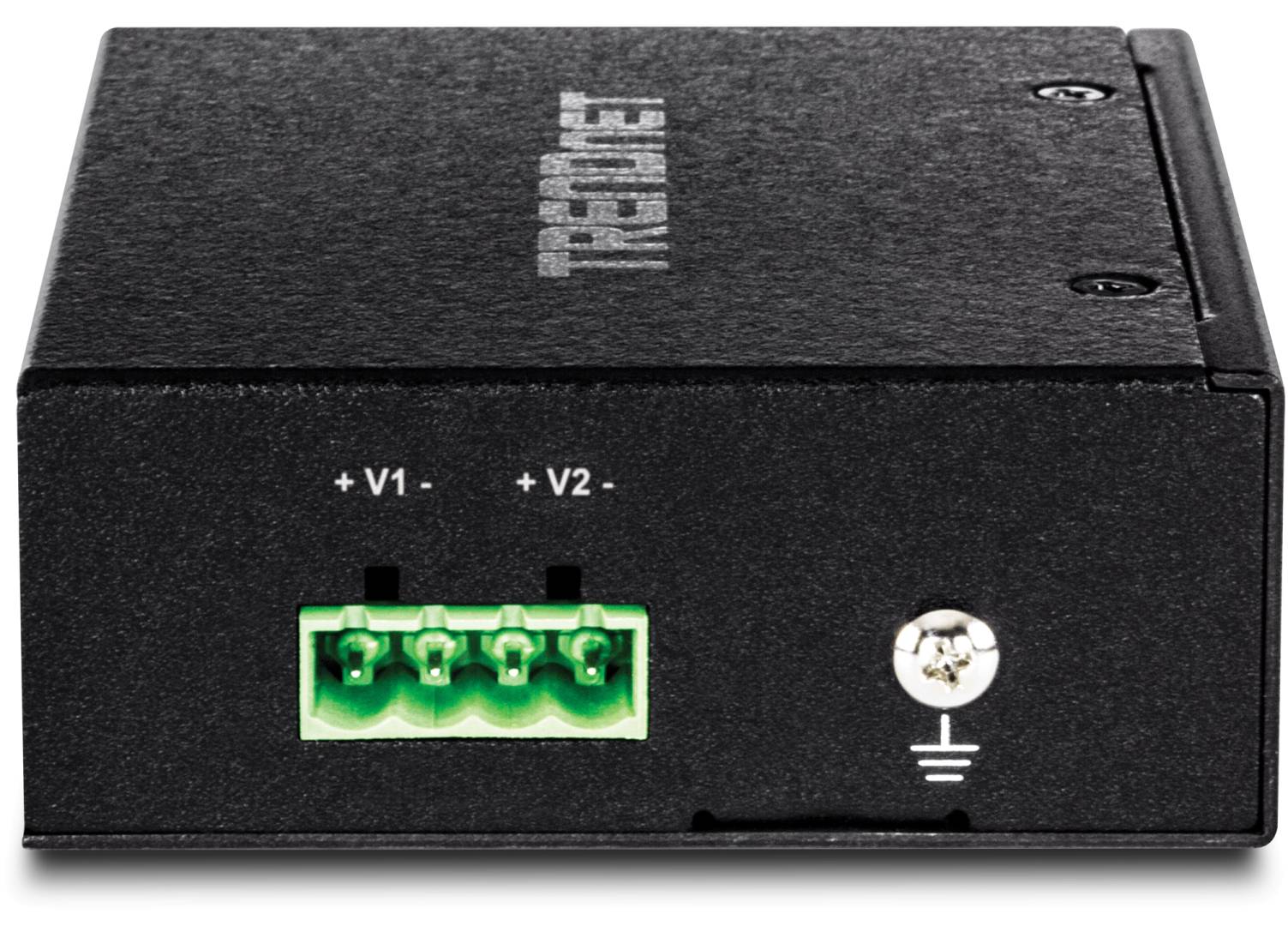

| Power Output Connectors Details | 1 x 4 pin terminal block |
| Output Voltage | 12 / 16 / 24 / 48 V |
| Max Electric Current | 2.3 A |
| Power Capacity | 95 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting bracket, DIN-rail brackets, terminal block |
| MTBF | 684,452 hours |
| Features | Wall mountable, LED indicators, 2 kV surge protection, 4 kV ESD protection, DIP switch |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC/EN 60950-1 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 10.4 cm |
| Depth | 8.2 cm |
| Height | 3.2 cm |
| Weight | 172 g |
Features - Trendnet - TI-SG104
More Details
Product Code
04:282660
EAN Code
0710931161380
Manufacturer
Trendnet
