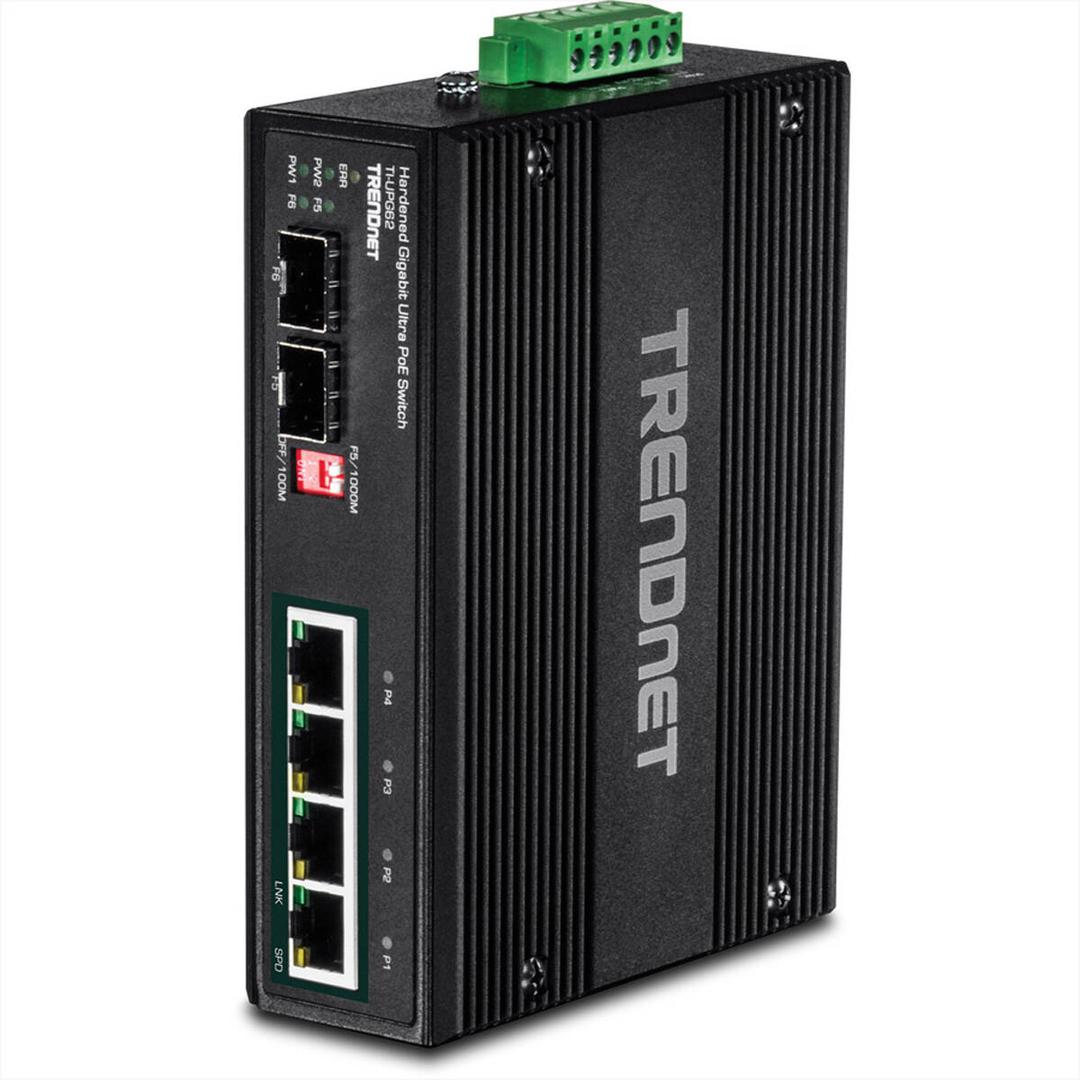

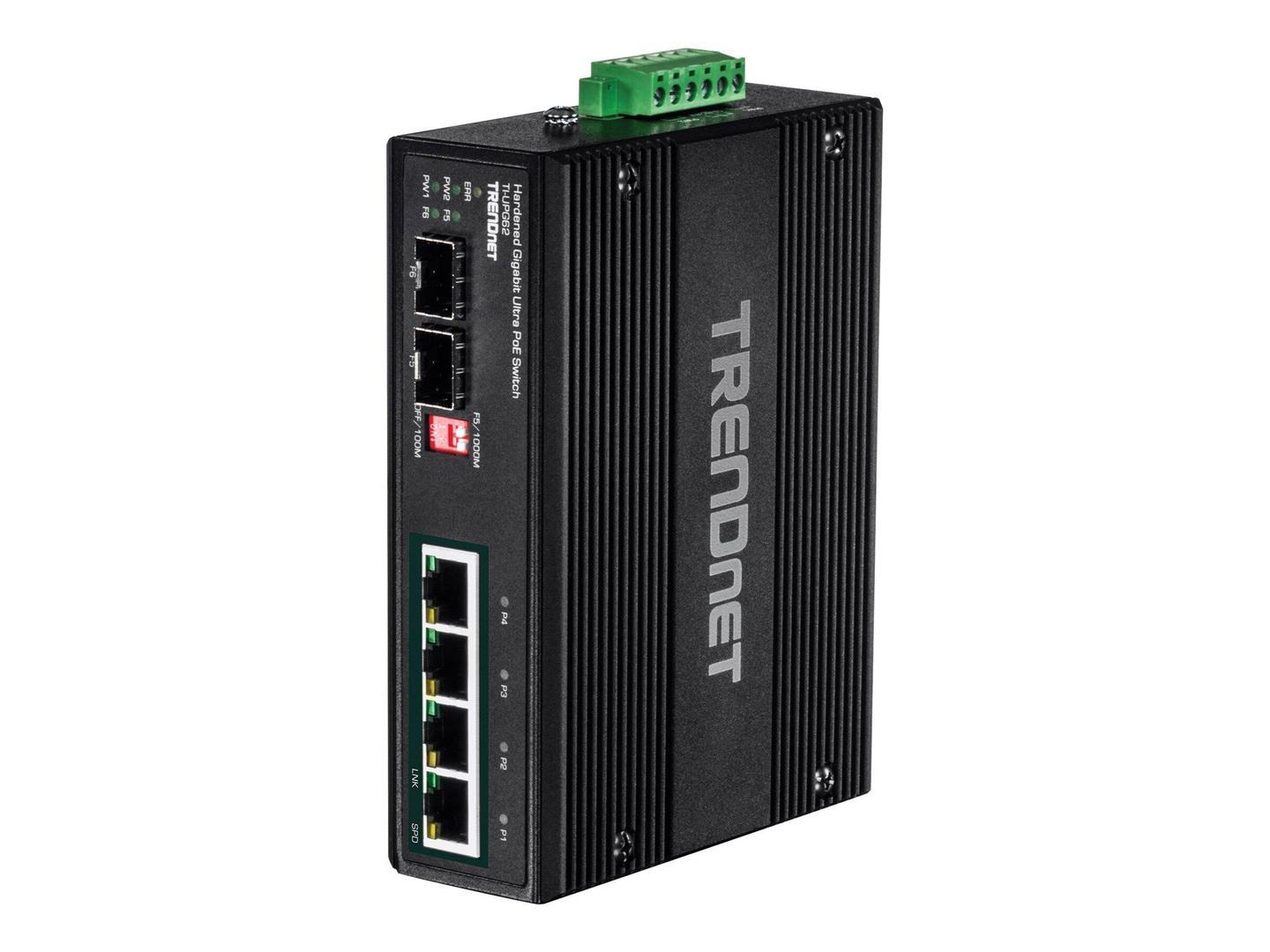

TRENDnet TI-UPG62 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ (240 W) - DC power | TI-UPG62
Please sign in so that we can notify you about a reply
Product Features
- Ultra PoE
A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power. - Fault tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure. - Industrial hardened design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
Special Fetures
- Ultra PoE
- Fault tolerance
- Industrial hardened design
Product Specification
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching fabric bandwidth: 12 Gbps ¦ Forwarding performance (64-byte packet size): 8.9 Mpps |
| MAC Address Table Size | 1K entries |
| Jumbo Frame Support | 9KB |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, rugged, built-in DIP switch, 8KV ESD Protector, shock-resistant, vibration-proof, integrated ground isolator |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 56 V |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 304,000 hours |
| Compliant Standards | EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30, EN 55022 Class A |
| Dimensions & Weight | |
| Width | 14.3 cm |
| Depth | 10.5 cm |
| Height | 3.6 cm |
| Weight | 514 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TI-UPG62
More Details
Product Code
04:268766
EAN Code
0710931160611
Manufacturer
Trendnet
