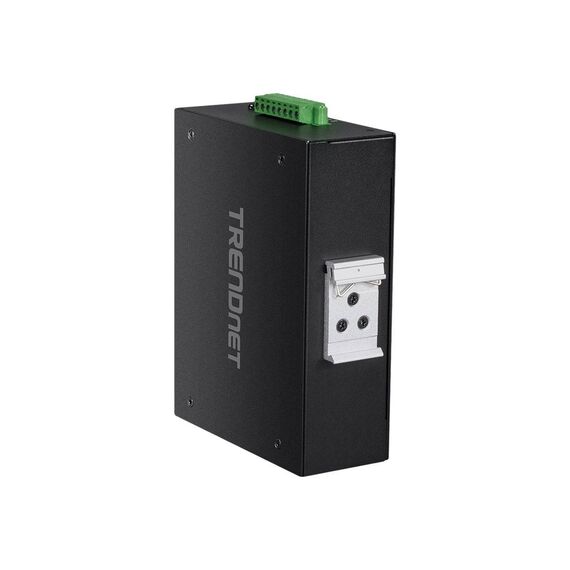

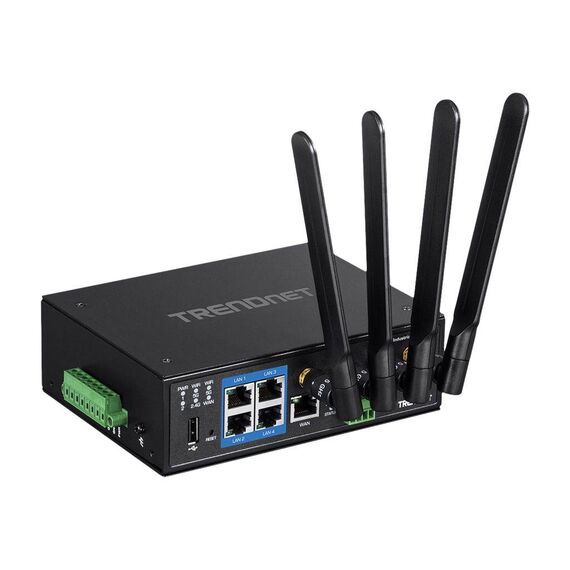

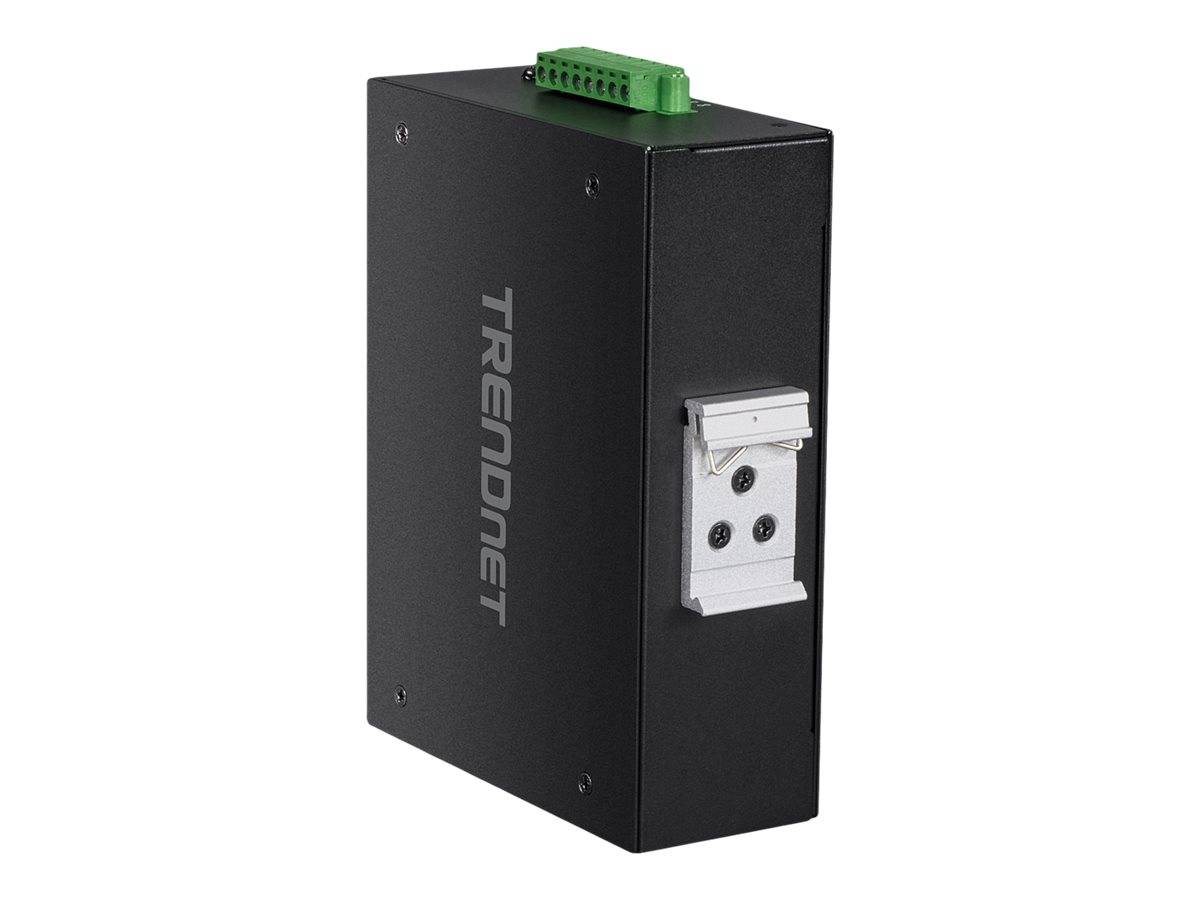

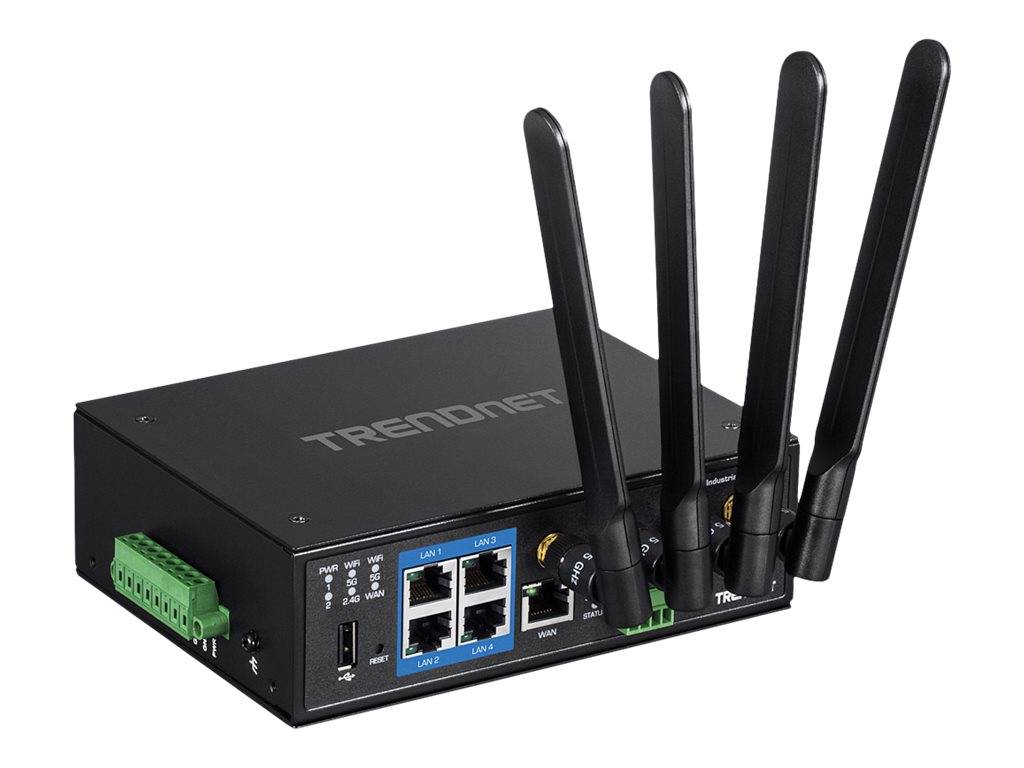

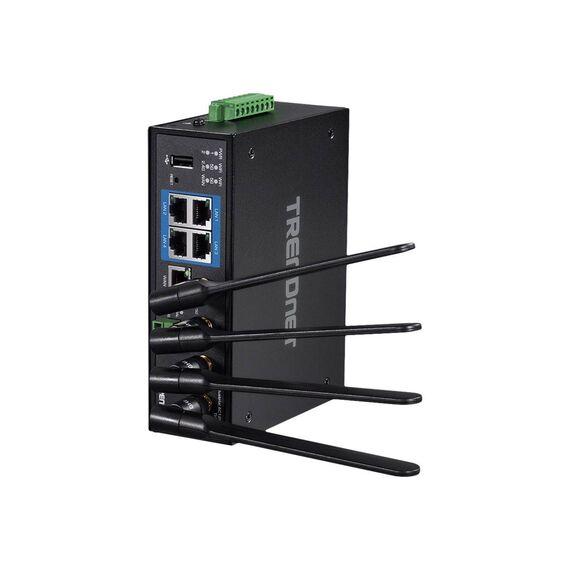

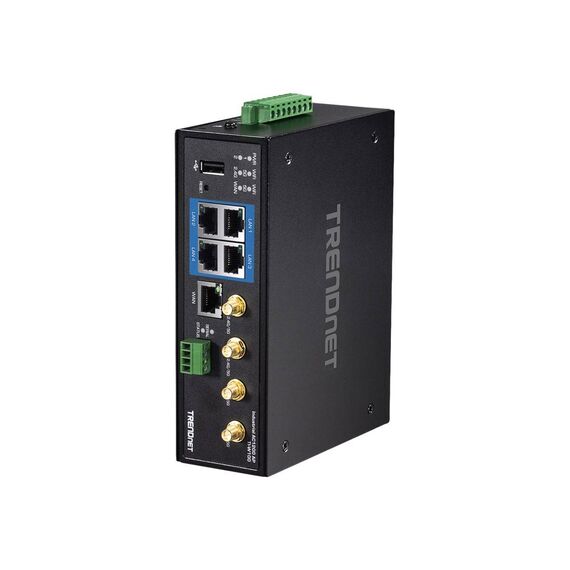

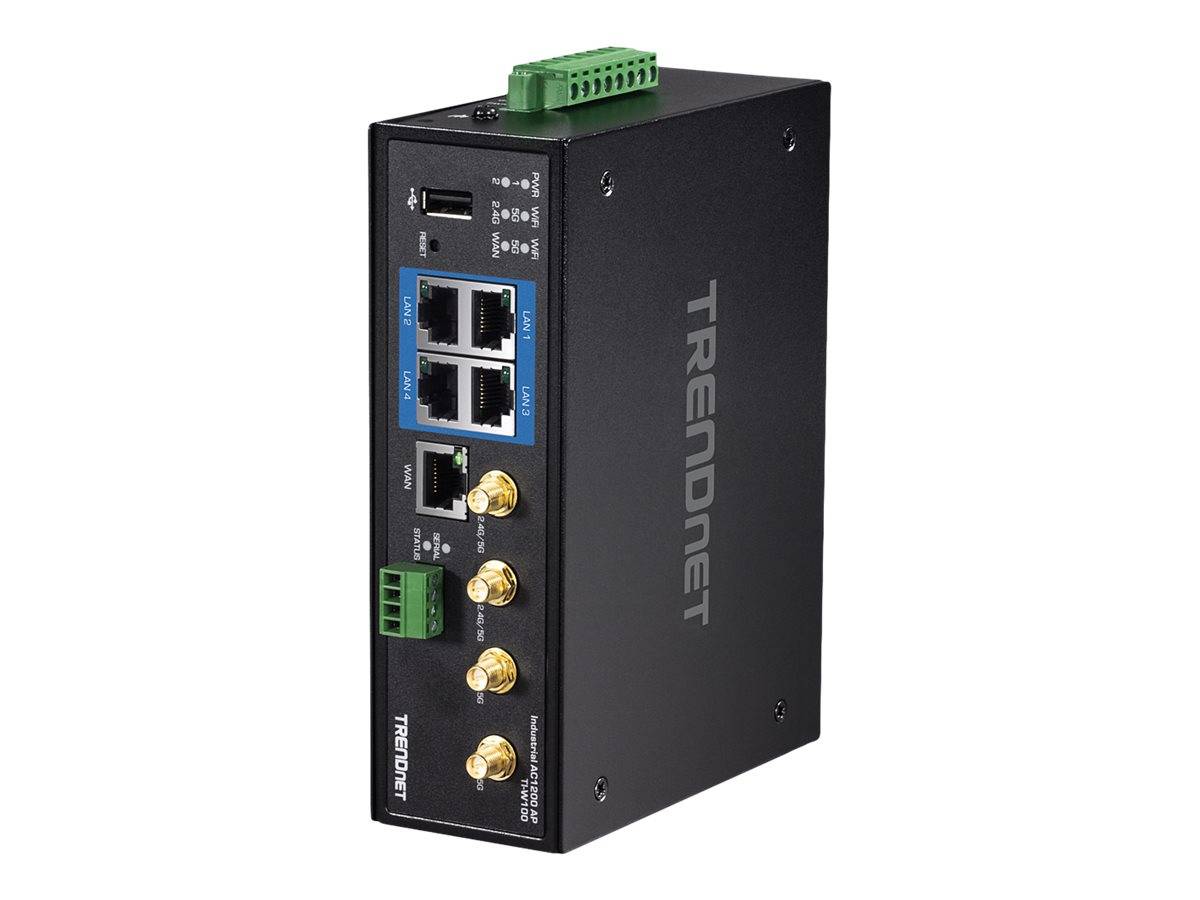

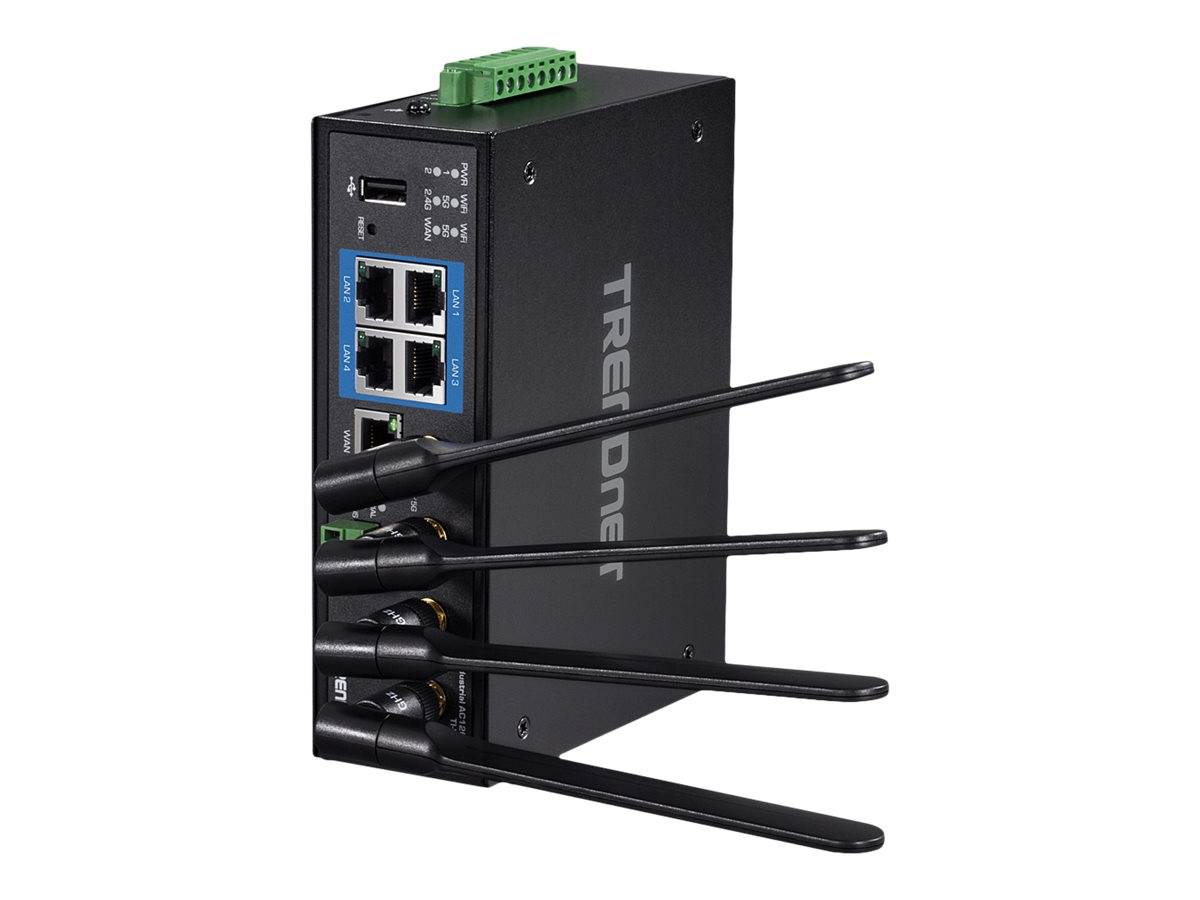

TRENDnet TI-W100 / Wireless router / 4-port switch / GigE / Wi-Fi 5 / Dual Band / TAA Compliant | TI-W100
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 900 Mbps ¦ NAT throughput: 900 Mbps ¦ VPN throughput (IPSec): 160 Mbps ¦ VPN throughput (SSL): 20 Mbps |
| Capacity | Maximum concurrent sessions: 32000 ¦ Virtual interfaces (VLANs): 4 ¦ SSL VPN tunnels: 2 ¦ IPSec VPN tunnels: 16 ¦ SSIDs per wireless band: 8 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, CSMA/CA, DHCPv6 |
| Routing Protocol | BGP-4, RIP-1, RIP-2, OSPFv2, static IP routing |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, TR-069 |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WEP |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Features | NAT support, ARP support, load balancing, wake on LAN (WOL), Syslog support, DoS attack prevention, ALG support, MAC address filtering, VPN passthrough, Wireless Distribution System (WDS) support, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), WAN failover, DHCP server, FTP server, Multiple SSID support, reset button, bandwidth control, fanless, SNMP trap, DIN rail mountable, 8KV ESD Protector, IGMP proxy, metal housing, SFTP server, band steering, SSID to VLAN mapping, 2KV Surge protection, Fast Roaming, Inter-VLAN Routing, client isolation, Modbus compatible, VLAN Tagging, port-based VLAN, NAT disabling, Stealth Mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, FCC, IEC 60068-2-32 |
| Line Properties | Line Properties |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Serial: 1 x RS-232/485 - terminal block ¦ Antenna: 4 x RP-SMA |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 4 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | DC 24 - 56 V |
| Power Consumption Operational | 20 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail bracket, 4-pin removable terminal block, 8-pin removable terminal block |
| Cables Included | 1 x network cable - 1.5 m |
| TAA Compliant | Yes |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16 cm |
| Depth | 12 cm |
| Height | 5.1 cm |
| Weight | 884 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | Up to 95% (non-condensing) |
Features - Trendnet - TI-W100
More Details
Product Code
CD07429
EAN Code
0710931161625
Manufacturer
Trendnet
