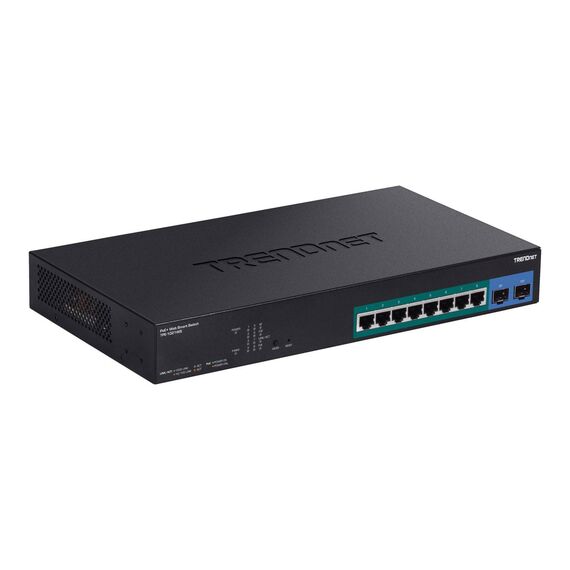

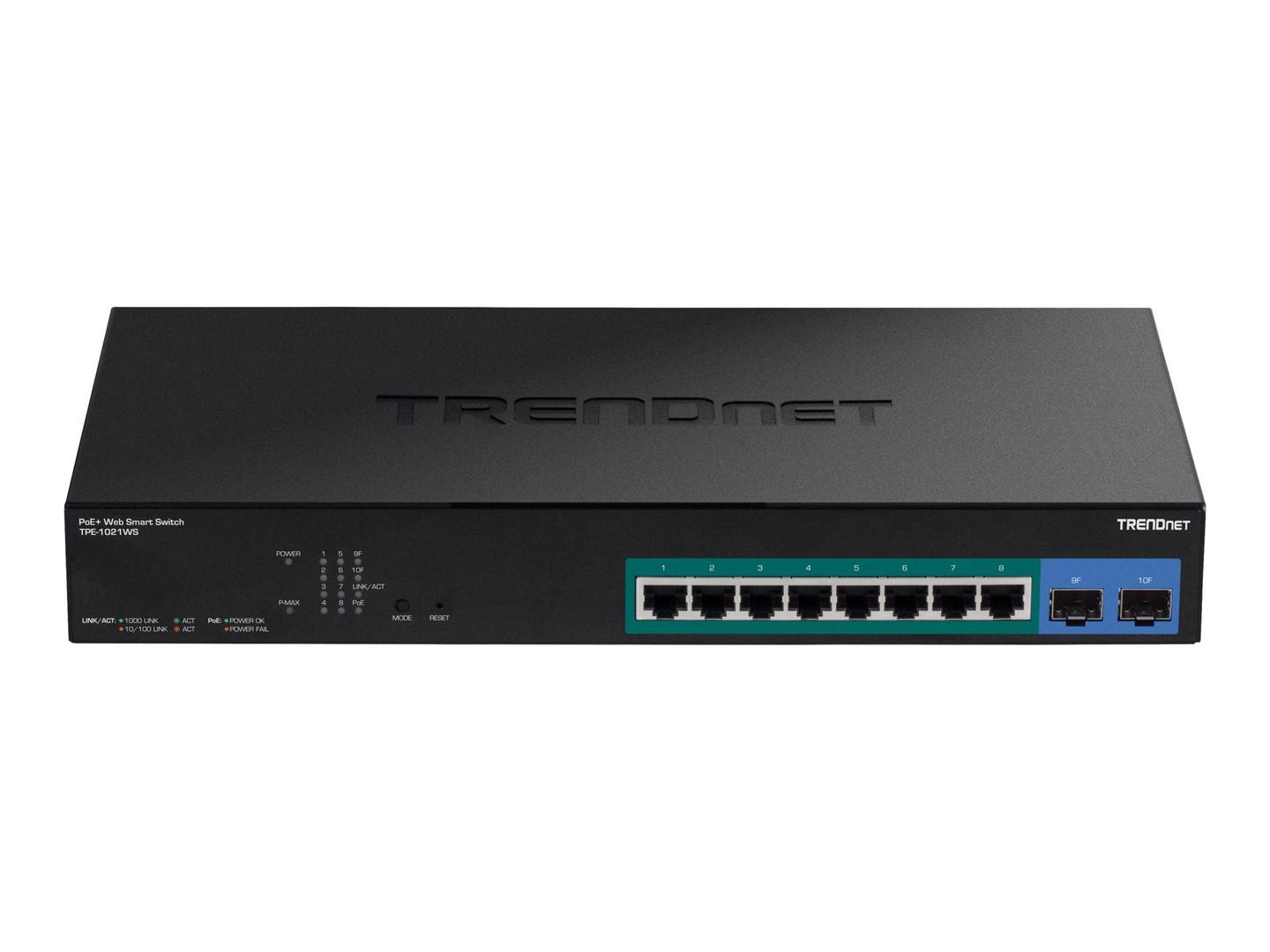

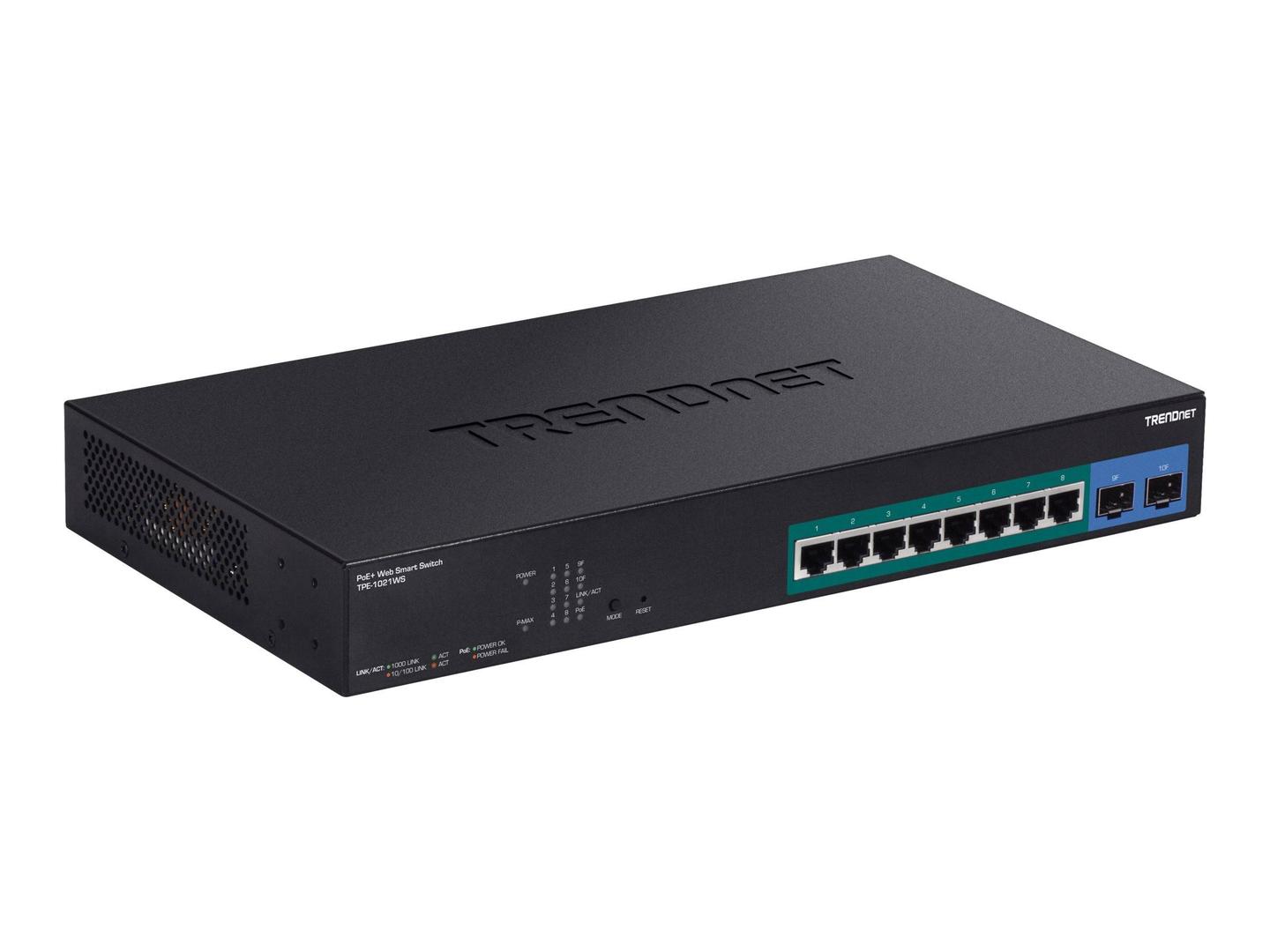

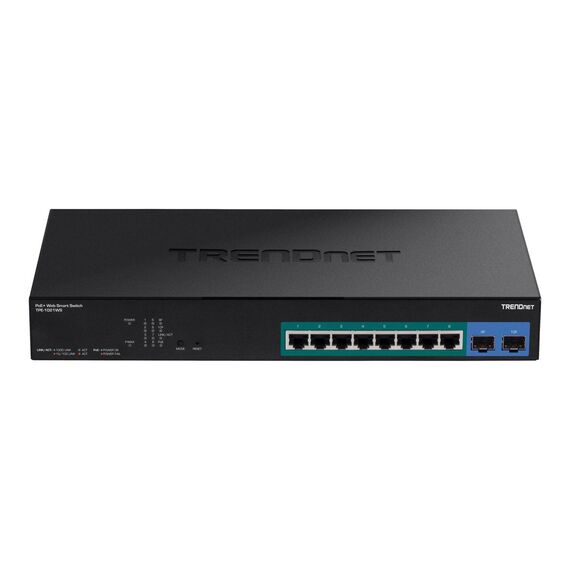

TRENDnet TPE-1021WS / Switch / smart / 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP / desktop, rack-mountable / PoE+ (130 W) | TPE-1021WS
Please sign in so that we can notify you about a reply
Product Features
- Hardware design
Provides 8 Gigabit PoE+ ports, 2 SFP slots, a 20Gbps switching capacity, and 1U 19" rackmount design with brackets. - PoE power
The 130W total PoE power budget on this PoE managed switch supplies 8 Power over Ethernet devices with up to 30W per port. - IPv6 ready
This managed switch supports IPv6 configuration and IPv6 neighbor discovery. - Traffic management
Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management. - IP routing
Offload routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. - Dynamic ARP inspection
Dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. - Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting. - Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.
Special Features
- 8x Gigabit PoE+ ports
- 2x SFP slots
- 130W PoE power budget
- Easy-to-use web-based management interface
- PoE alive check automatically attempts to recover an unresponsive PoE device connected
- Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
- IPv4/IPv6 Static Routing support
- Bandwidth control per port
- Private, Multicast, and Voice VLAN support
- IEEE 802.1p QoS with queue scheduling support
- 20Gbps switching capacity
Product Specification
| Device Type | Switch - 10 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding rate: 14.9 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 |
| Encryption Algorithm | SSL 3.0, SSL 2.0 |
| Features | Layer 3 switching, DHCP support, IGMP snooping, IPv6 support, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, static routing, IGMP support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM | 4.1 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x LAN SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 152.3 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| MTBF | 590,929 hours |
| Compliant Standards | UL, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33 cm |
| Depth | 18 cm |
| Height | 4.4 cm |
| Weight | 1.76 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TPE-1021WS
General
8-Port
More Details
Product Code
04:378513
EAN Code
0710931162103
Manufacturer
Trendnet
