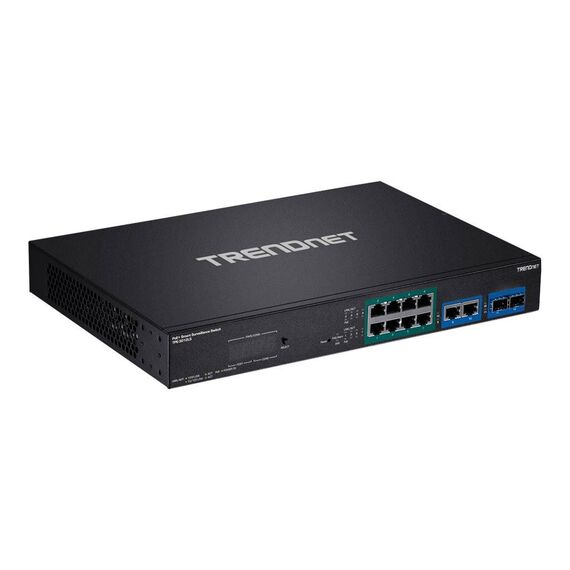

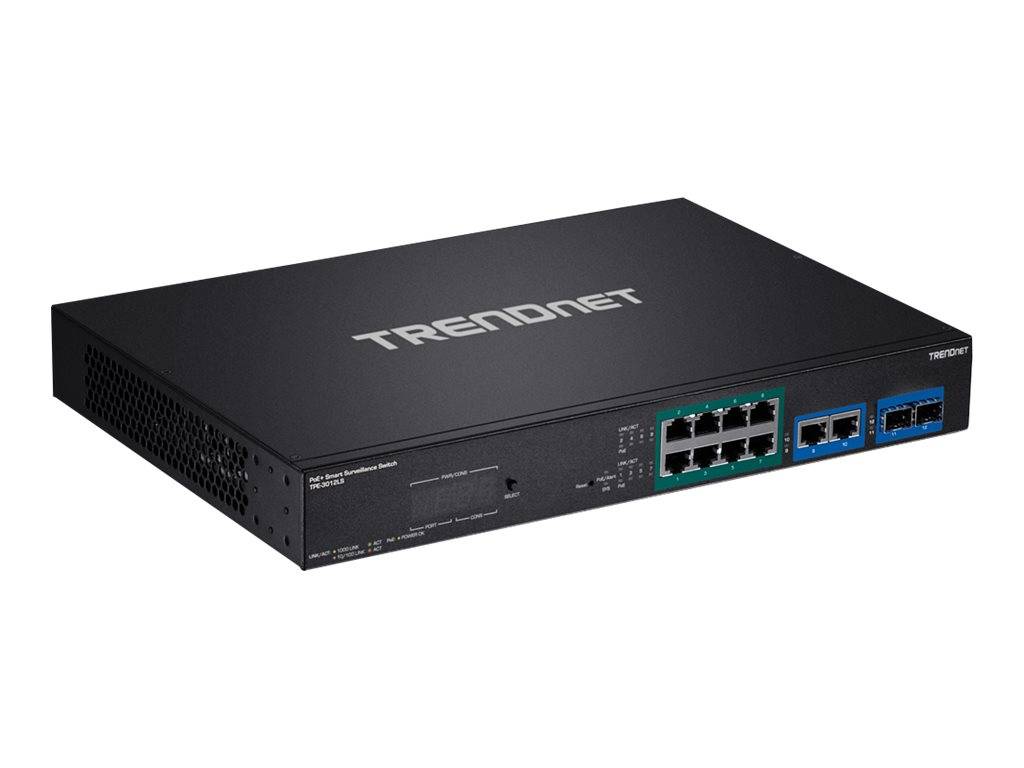

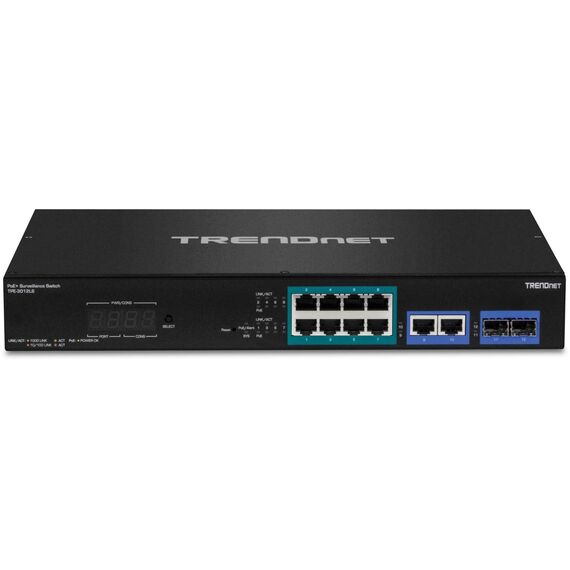

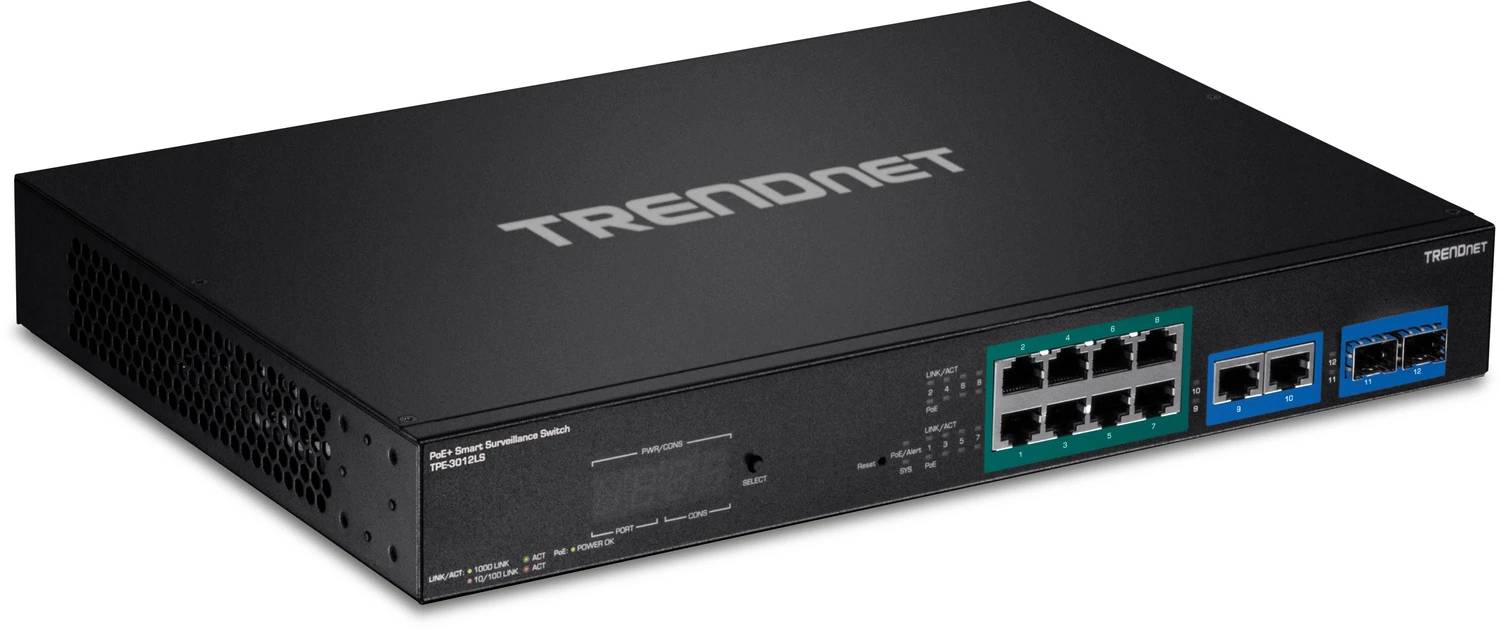

TRENDnet TPE 3012LS / Switch / smart / 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP / rack-mountable / PoE+ (110 W) | TPE-3012LS
Please sign in so that we can notify you about a reply
Special Features
- 8 x Gigabit PoE+ ports
- 2 x Gigabit ports
- 2 x SFP slots
- 110W PoE power budget
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
- Extend PoE+ signal up to 656 ft./200m at 10Mbps

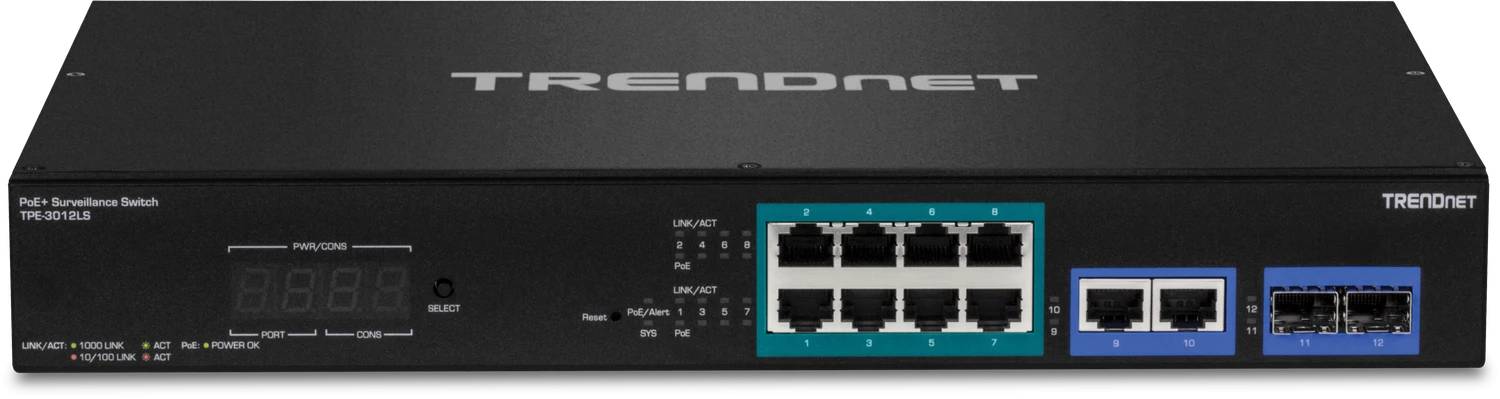

- Front panel 4-digit LED display provides PoE power statistics
- Surveillance mode GUI for simplified configuration and network monitoring
- Device discovery for ONVIF compliant IP cameras and NVRs
- Auto Surveillance VLAN
- IP camera single live view stream
- Upload building floorplans to create an E-map of surveillance devices
- Change IP camera IP address settings
- Upgrade IP camera firmware
- Change IP camera administrator user name and password
- Bandwidth control per port
- 802.1Q, MAC, Surveillance, and Voice VLAN support
- IEEE 802.1p QoS with queue scheduling support
- 24Gbps switching capacity
Product Specification
| Device Type | Switch - 12 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 110 W |
| Performance | Switching capacity: 24 Gbps ¦ Switching fabric bandwidth: 24 Gbps ¦ Forwarding performance (64-byte packet size): 17.8 Mpps |
| Capacity | VLAN groups: 256 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI |
| Features | VLAN support, IGMP snooping, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, Port Security, 512KB packet buffer, Multicast VLAN Registration (MVR), tagged VLAN, ONVIF support, per port bandwidth control, DiffServ Code Point (DSCP) support, IP source guard, Head of Line Blocking Prevention, IGMP querier, protected ports, Denial of Service (DoS) protection, loopback detection, IGMP immediate leave, Unknown Storm Control |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Built-in Devices | LED display |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP |
| Power | Power |
| Power Device | Internal power supply |

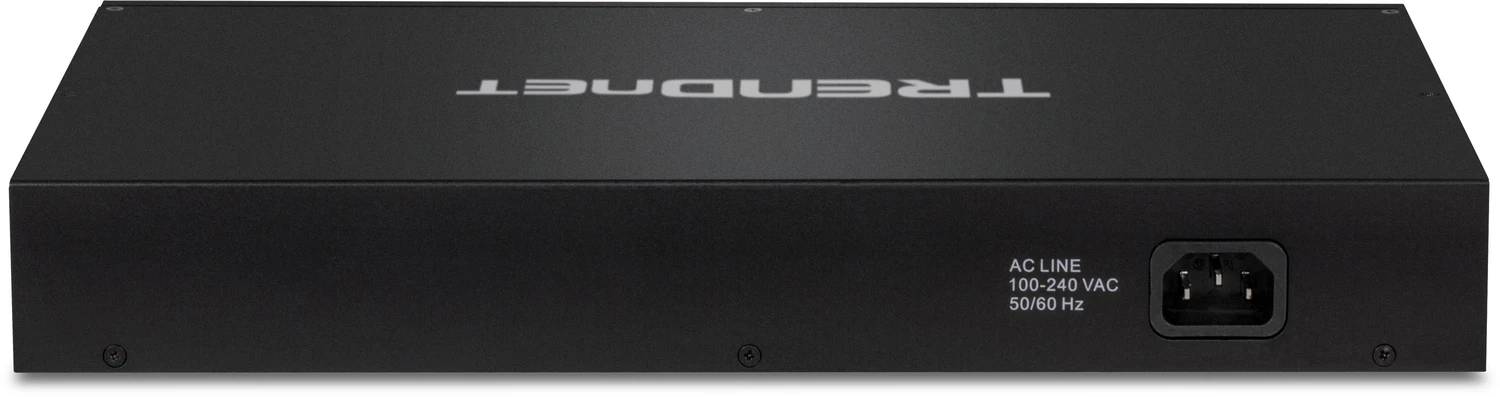

| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, ETL |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33 cm |
| Depth | 23 cm |
| Height | 4.445 cm |
| Weight | 2.26 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TPE-3012LS
General
8-Port
More Details
Product Code
04:399719
EAN Code
0710931161502
Manufacturer
Trendnet
