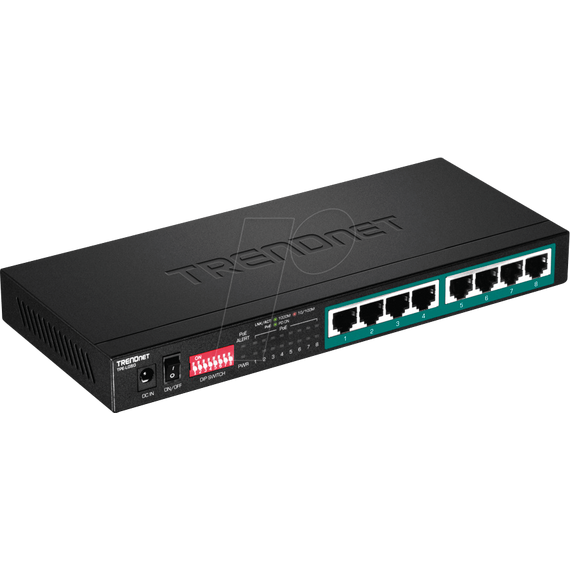

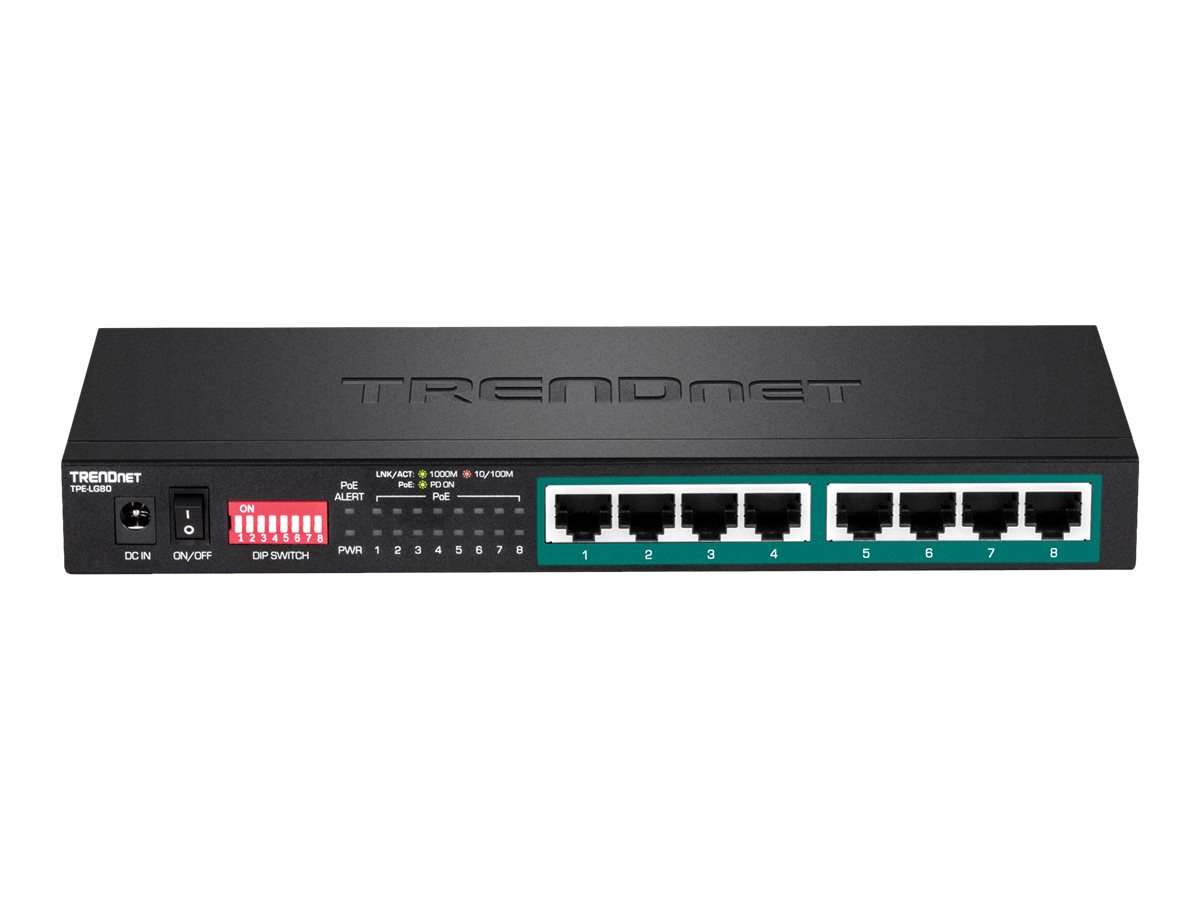

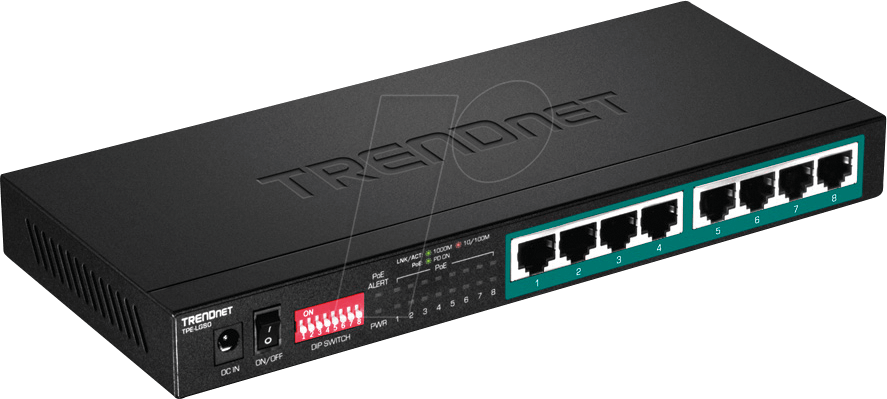

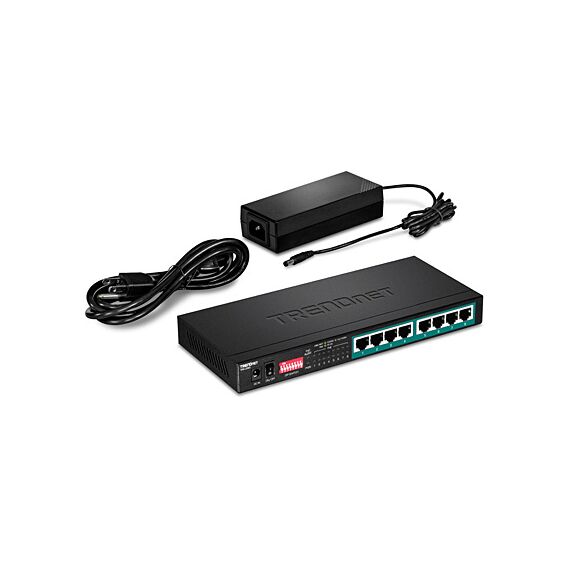

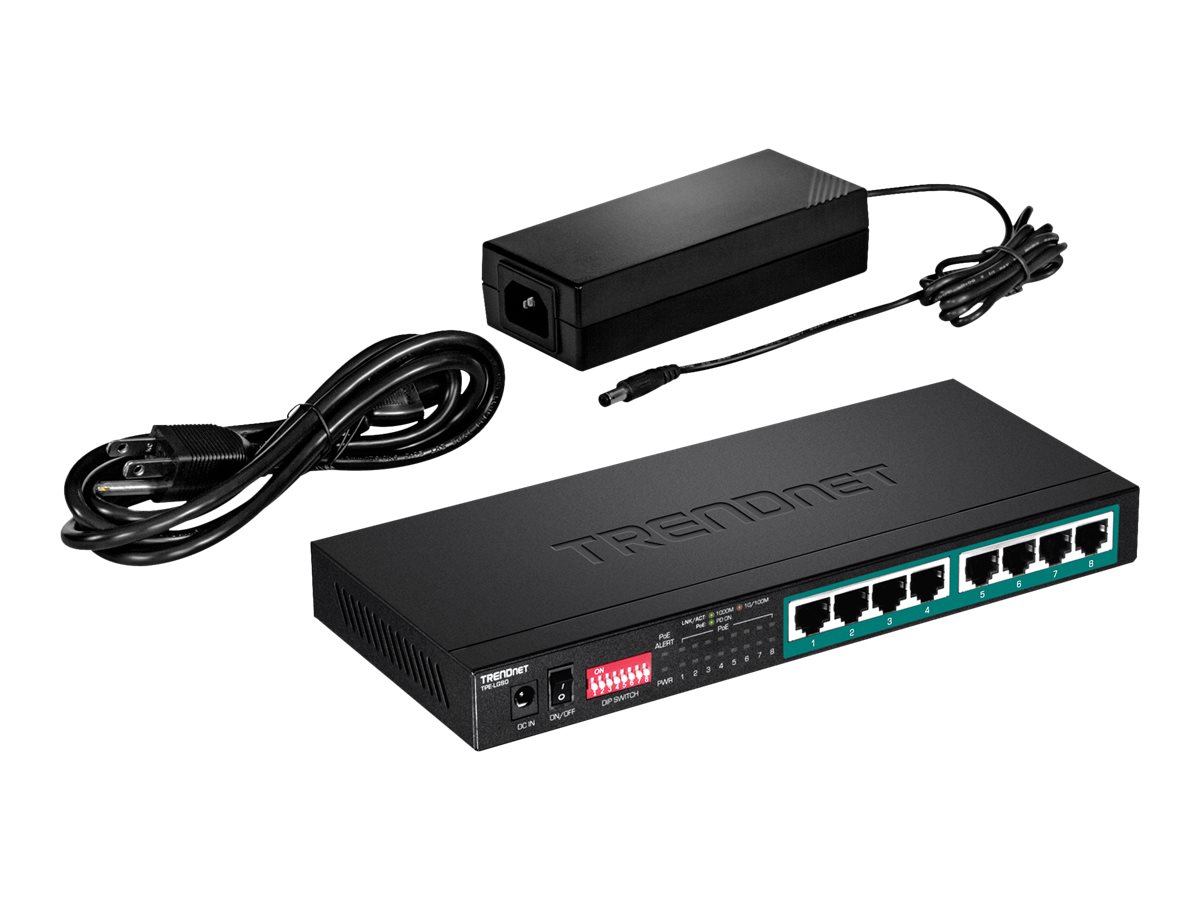

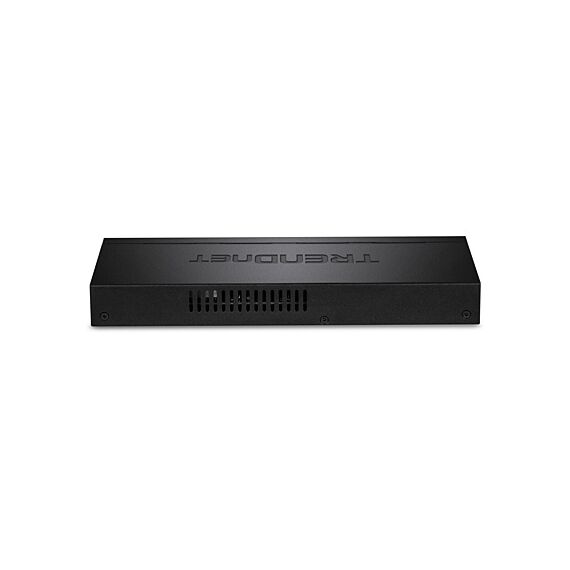

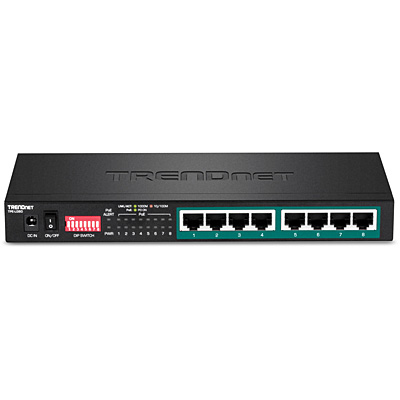

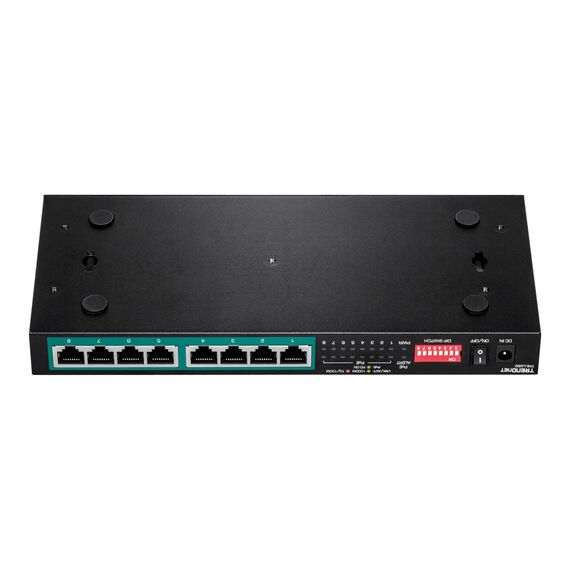

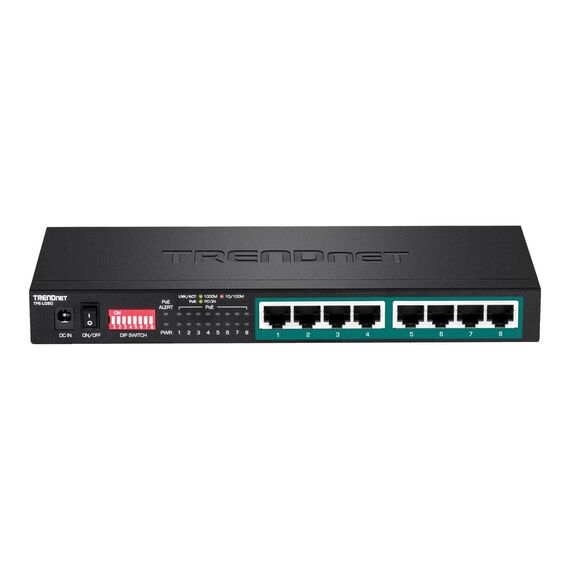

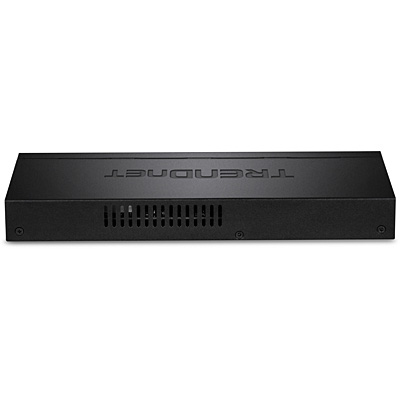

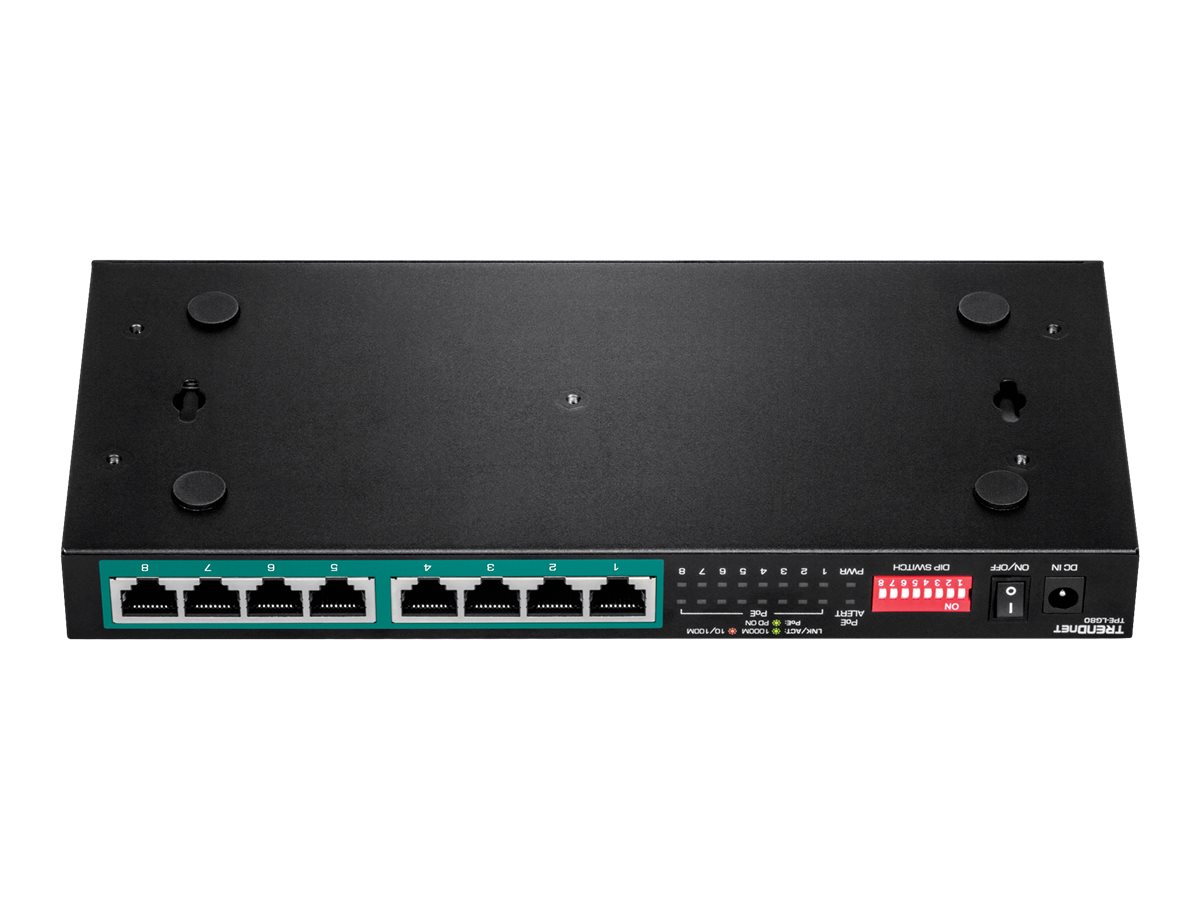

TRENDnet TPE LG80 - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - desktop - PoE+ (65 W) | TPE-LG80
Please sign in so that we can notify you about a reply
Product Features
- Port isolation
Ideal for surveillance networking applications, the DIP switch also enables port isolation. - LED indicators
LED indicators convey PoE and port status.
Special Fetures
- Port isolation
- LED indicators
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9KB |
| Features | VLAN support, half duplex mode, full duplex mode, wall mountable, Quality of Service (QoS), fanless, built-in DIP switch, port isolation, Class of Service (CoS), metal housing, long range PoE+ up to 200m at 10Mbps |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at, IEEE 802.3az |
| RAM | 192 KB |
| Status Indicators | Power, alert, PoE, link/activity, link/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x Gigabit LAN RJ-45 PoE+ |
| Power | |

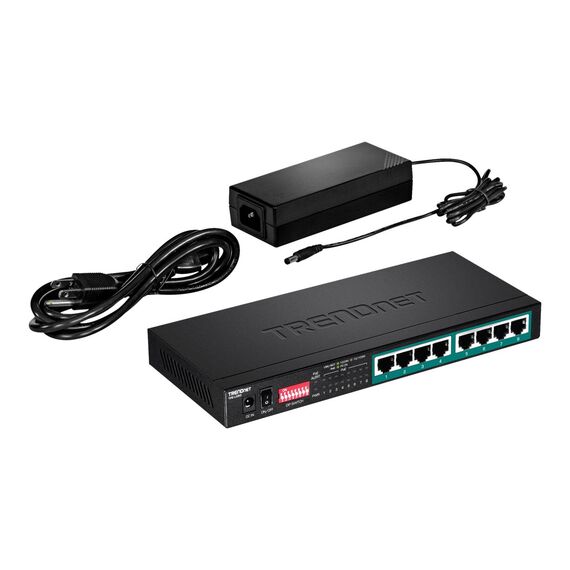

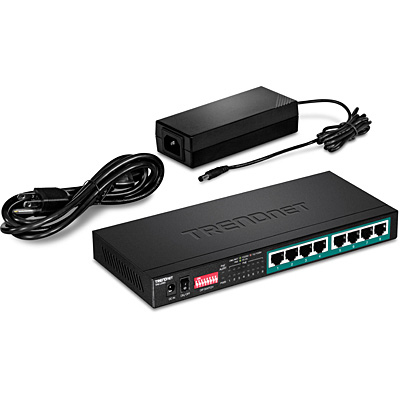

| Power Device | External power adapter |
| Power Provided | 55 V - 1.3 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 70.6 Watt |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS, WEEE |
| Dimensions & Weight | |
| Width | 24 cm |
| Depth | 10.5 cm |
| Height | 2.7 cm |
| Weight | 592 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TPE-LG80
General
8-Port
More Details
Product Code
04:282653
EAN Code
0710931161328
Manufacturer
Trendnet
