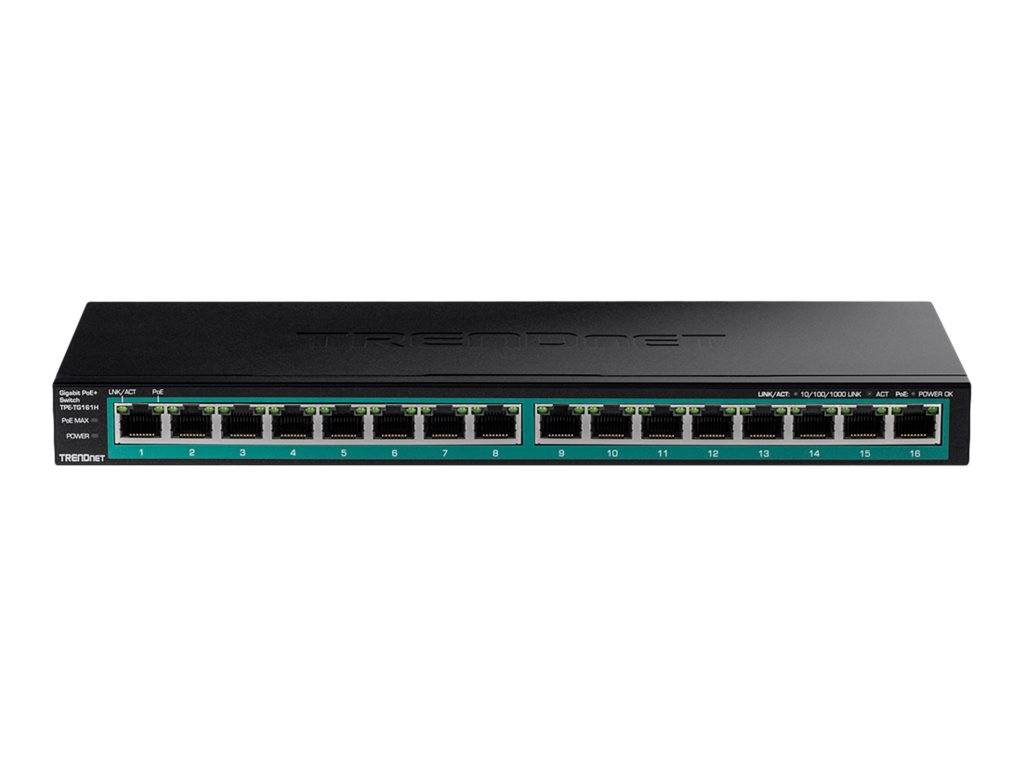

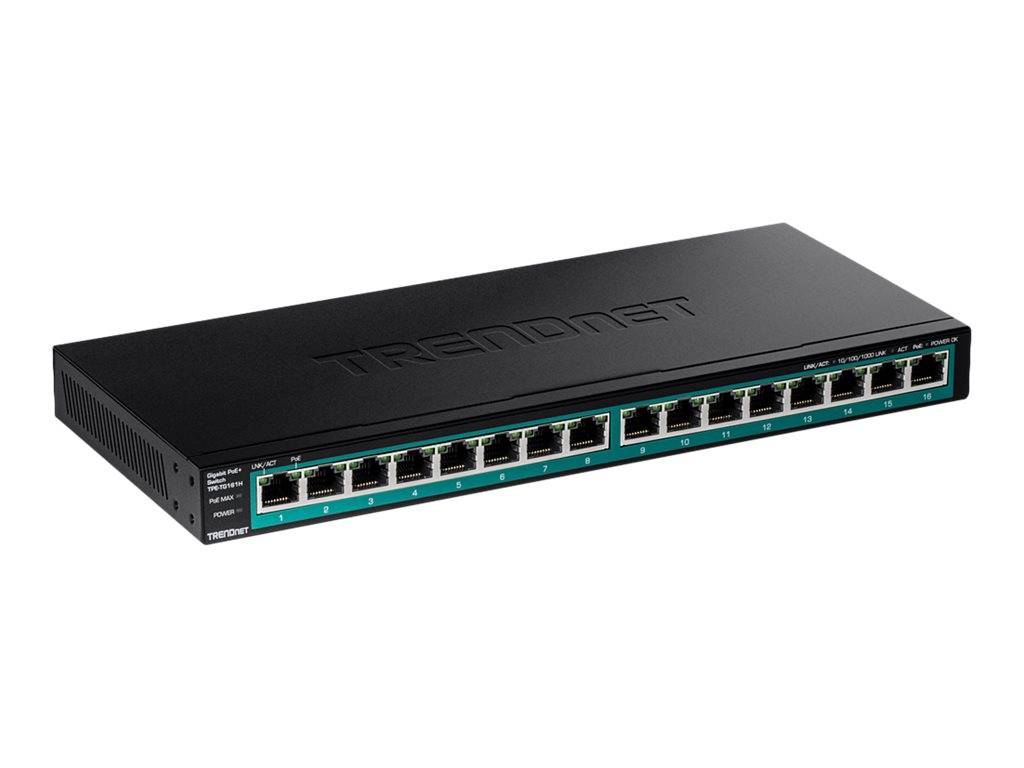

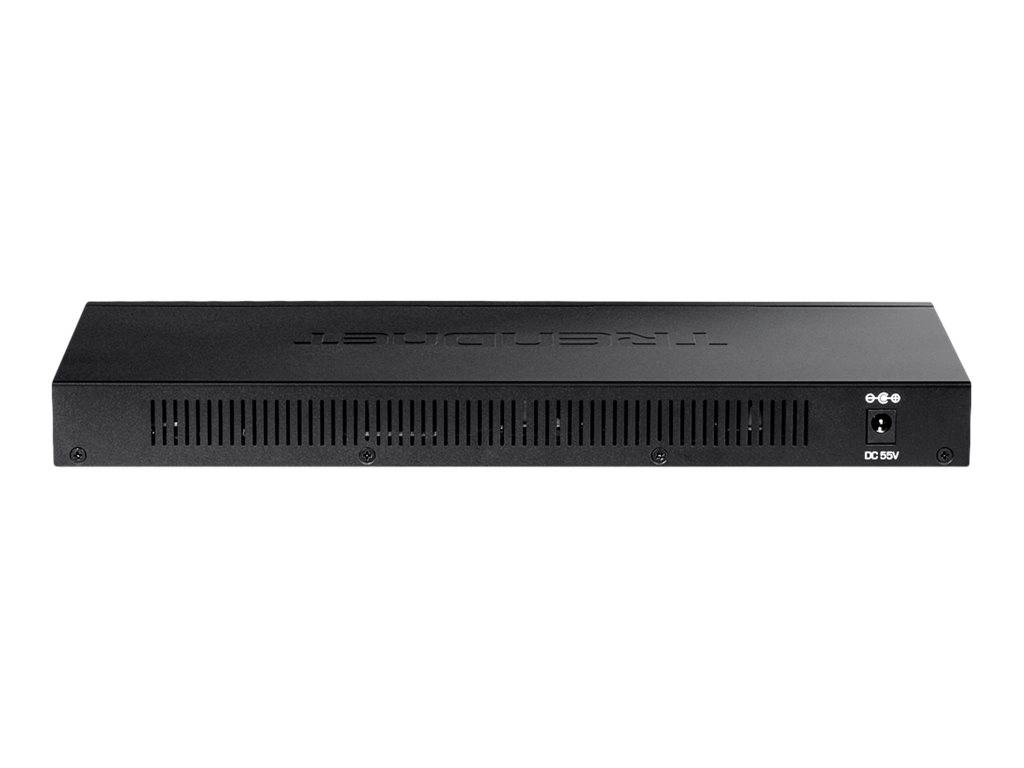

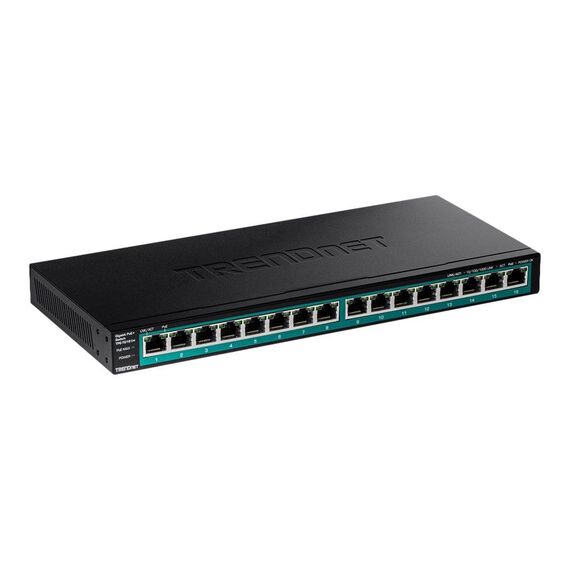

TRENDnet TPE TG161H / Switch / 16 x 10/100/1000 (PoE+) / rack-mountable / PoE+ (120 W) / TAA Compliant | TPE-TG161H
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 16 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Buffer memory: 512 KB |
| Capacity | MAC addresses: 8000 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Features | Half duplex mode, full duplex mode, wall mountable, fanless, over-current protection, short circuit protection, metal housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, link/activity, PoE max |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power | Power |

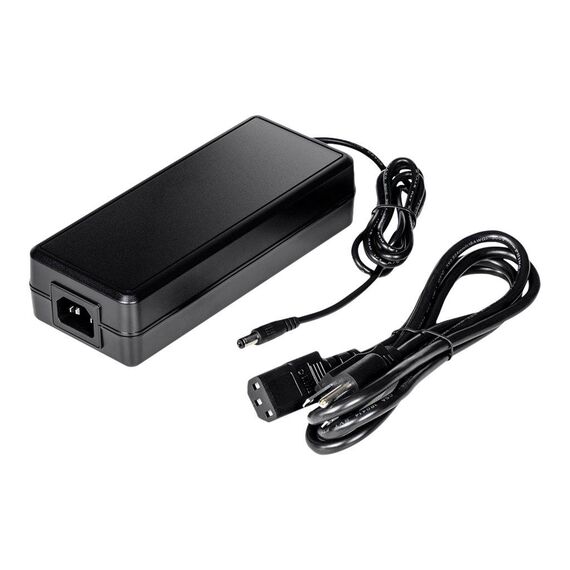

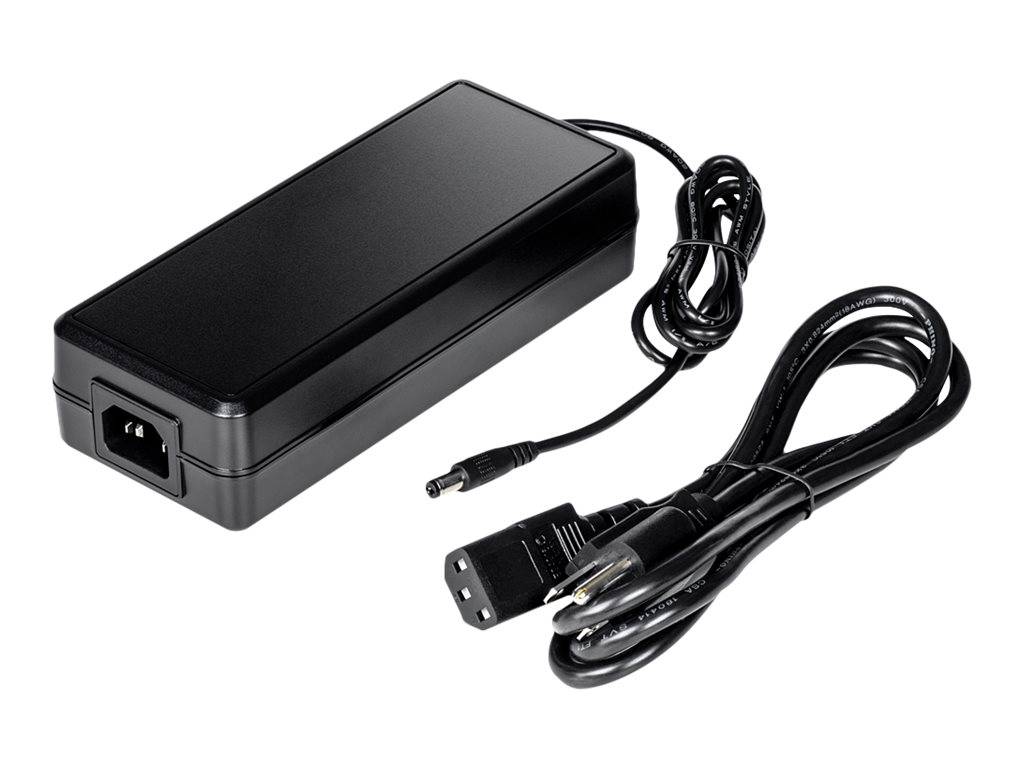

| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 12.8 Watt |
| Miscellaneous | Miscellaneous |

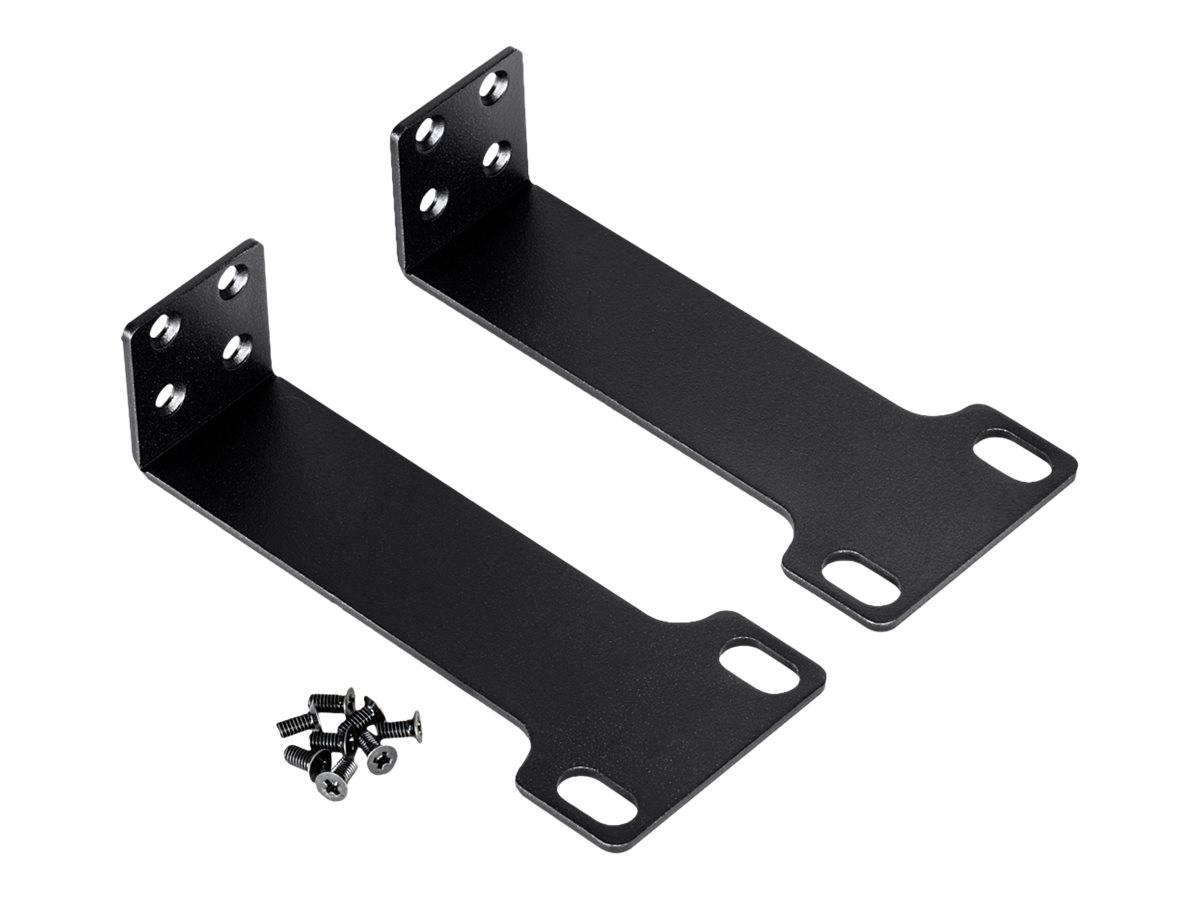

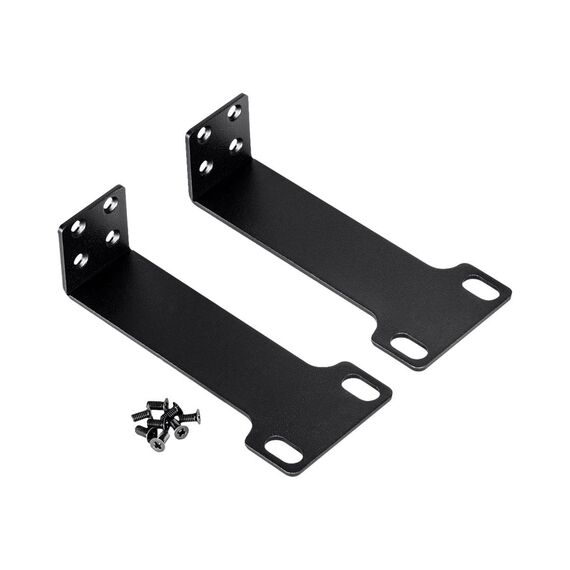

| Included Accessories | 2 mounting brackets |
| Rack Mounting Kit | Included |
| MTBF | 443,948 hours |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Dimensions & Weight | Dimensions & Weight |
| Width | 28.6 cm |
| Depth | 10.2 cm |
| Height | 2.7 cm |
| Weight | 908 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
