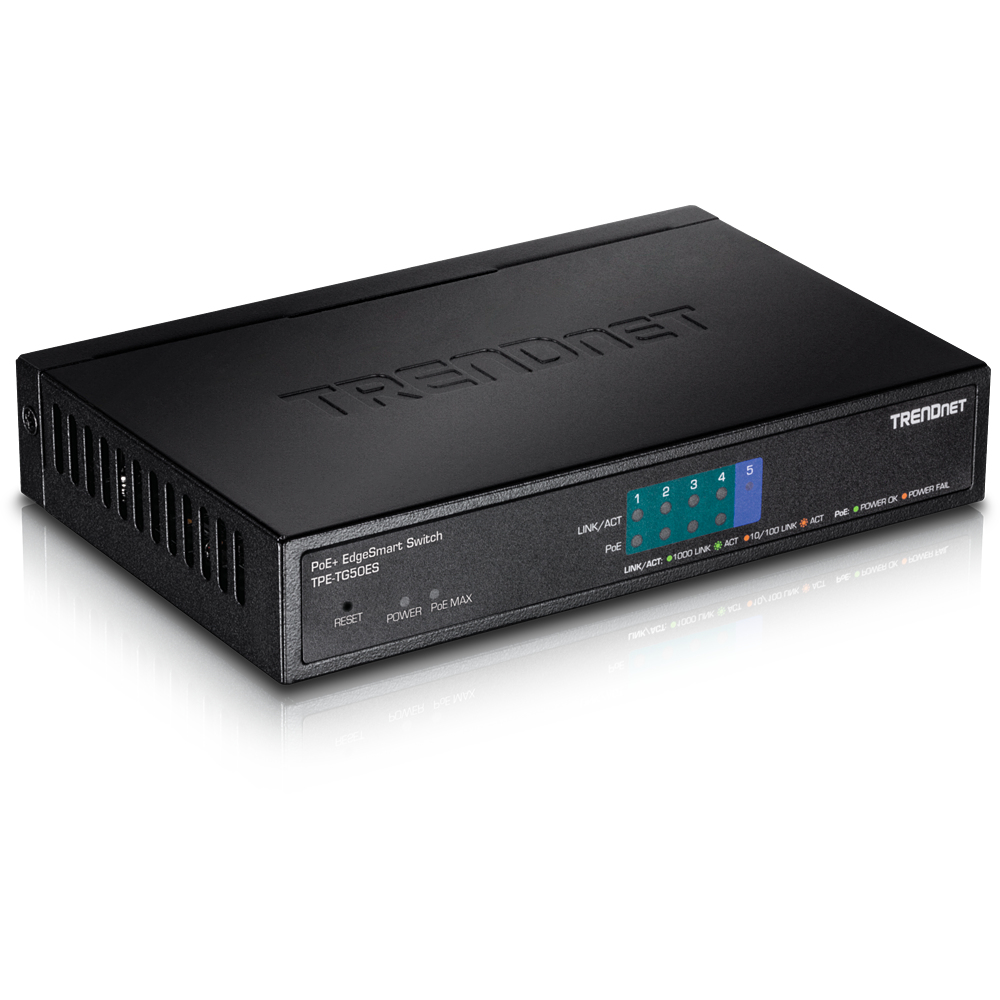

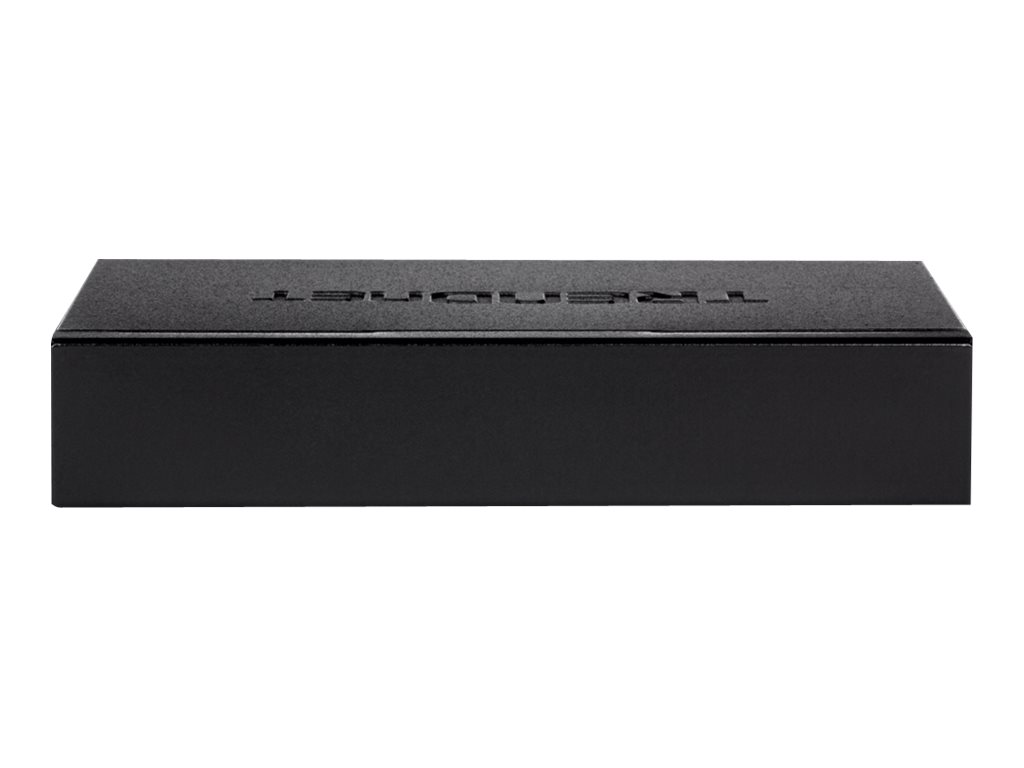

TRENDnet TPE TG50ES - Switch - smart - 5 x 10/100/1000 (PoE+) - desktop - PoE+ (30 W) | TPE-TG50ES
Please sign in so that we can notify you about a reply
Special Fetures
- 4 x Gigabit PoE+ ports
- 1x Gigabit port
- 31W PoE power budget
- Easy-to-use web-based management interface
- Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 10Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- Compact fanless design
- Wall mountable metal housing
Product Specification
| Device Type | Switch - 5 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 30 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps |
| Capacity | VLAN groups: 32 ¦ Multicast groups: 32 |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Features | IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), wall mountable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, reset button, bandwidth control, fanless, short circuit protection, Class of Service (CoS), Strict Priority (SP), tagged VLAN, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based QoS, block unknown multicast, Asymmetric VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| RAM | 512 KB |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 5 x Gigabit LAN RJ-45 PoE+ - 18 W |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 30 Watt |
| Miscellaneous | |
| MTBF | 730,455 hours |
| Compliant Standards | FCC, WEEE |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 9.7 cm |
| Height | 2.86 cm |
| Weight | 370 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
Features - Trendnet - TPE-TG50ES
General
5-Port
More Details
Product Code
04:282651
EAN Code
0710931161267
Manufacturer
Trendnet
