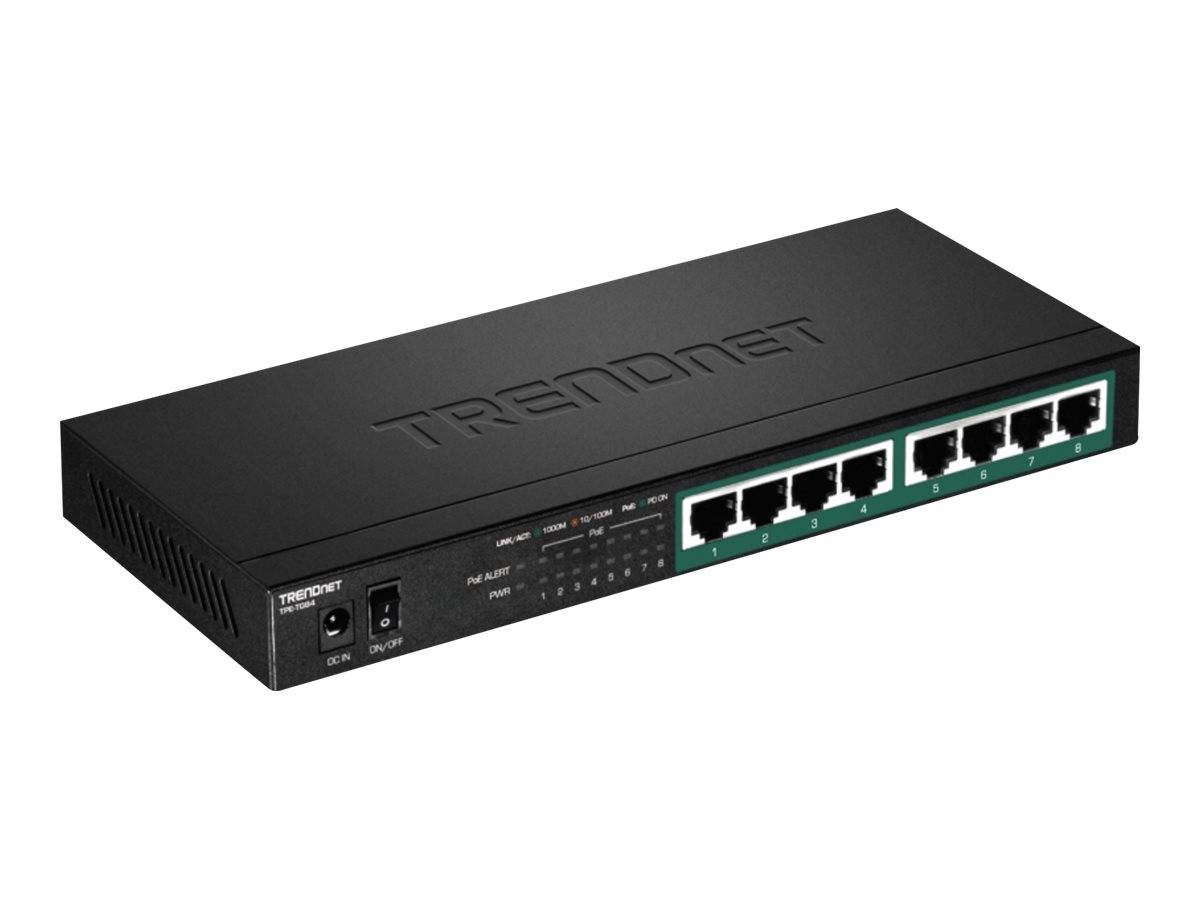

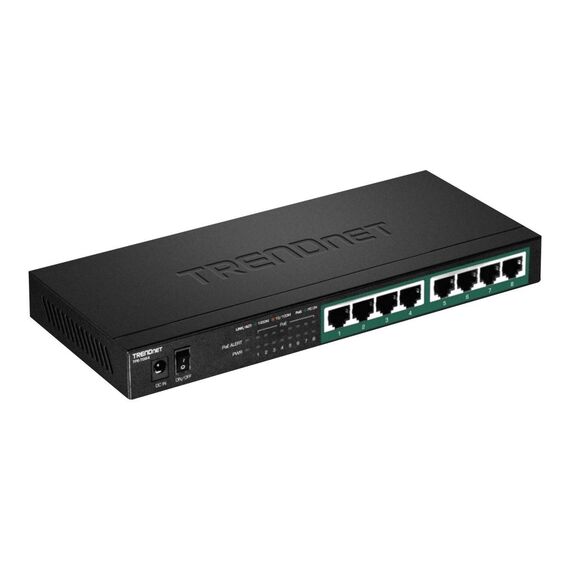

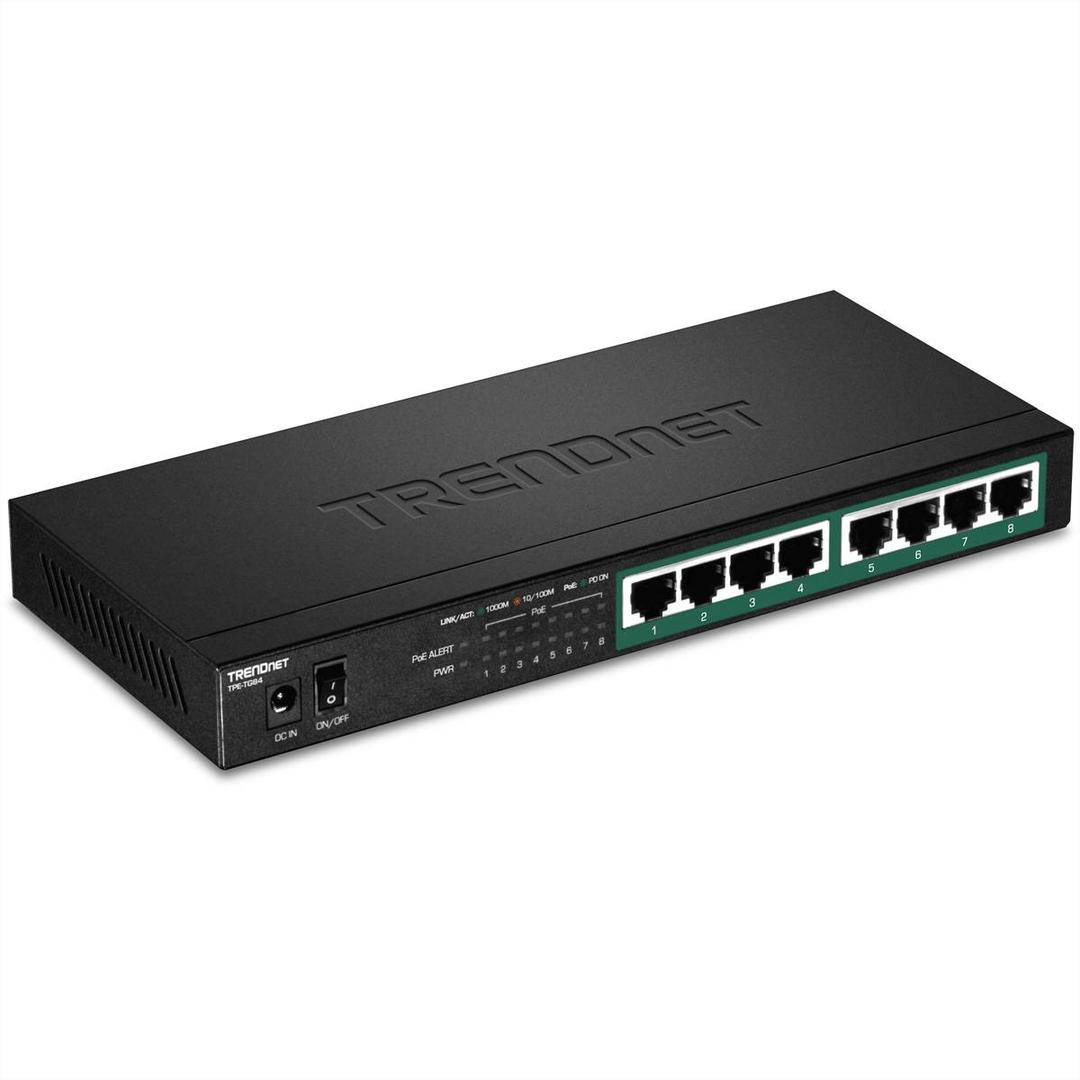

TRENDnet TPE TG84 / Switch / 8 x 10/100/1000 (PoE+) / desktop, wall-mountable / PoE+ (120 W) | TPE-TG84
Please sign in so that we can notify you about a reply
Special Features
- 8 x Gigabit PoE+ ports
- 120W PoE power budget
- 16Gbps switching capacity
- IEEE 802.1p QoS and DSCP pass-through support
- Compact fanless design
- Wall-mountable metal housing
Product Specification
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9KB |
| Features | Half duplex mode, full duplex mode, fanless, metal housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Port status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 55 V - 2.5 A |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 126 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24 cm |
| Depth | 10.5 cm |
| Height | 2.7 cm |
| Weight | 580 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
Features - Trendnet - TPE-TG84
General
8-Port
More Details
Product Code
04:399710
EAN Code
0710931162257
Manufacturer
Trendnet
