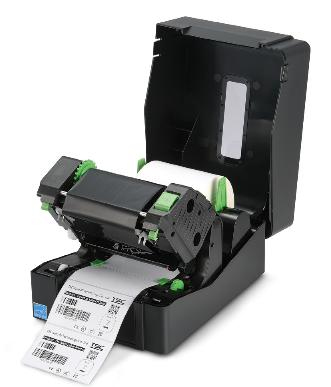

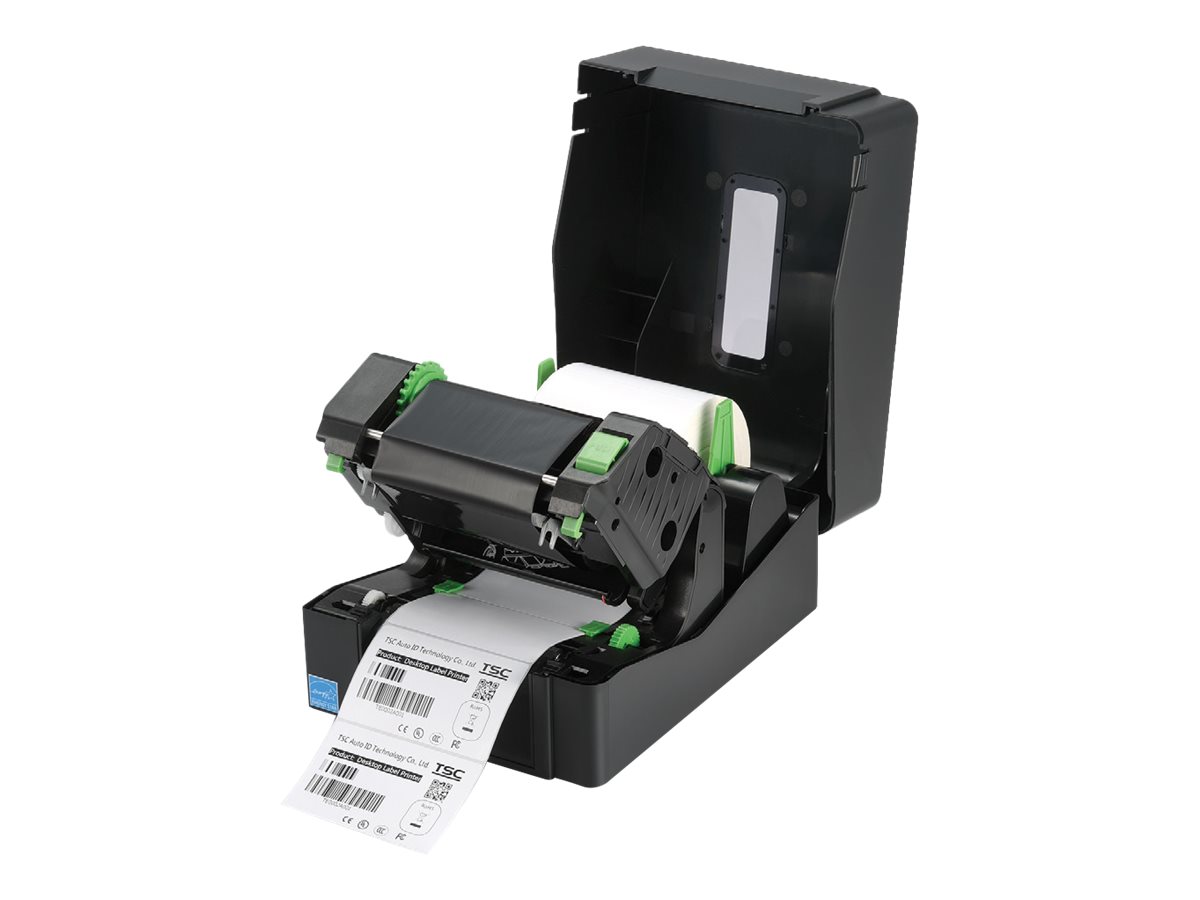

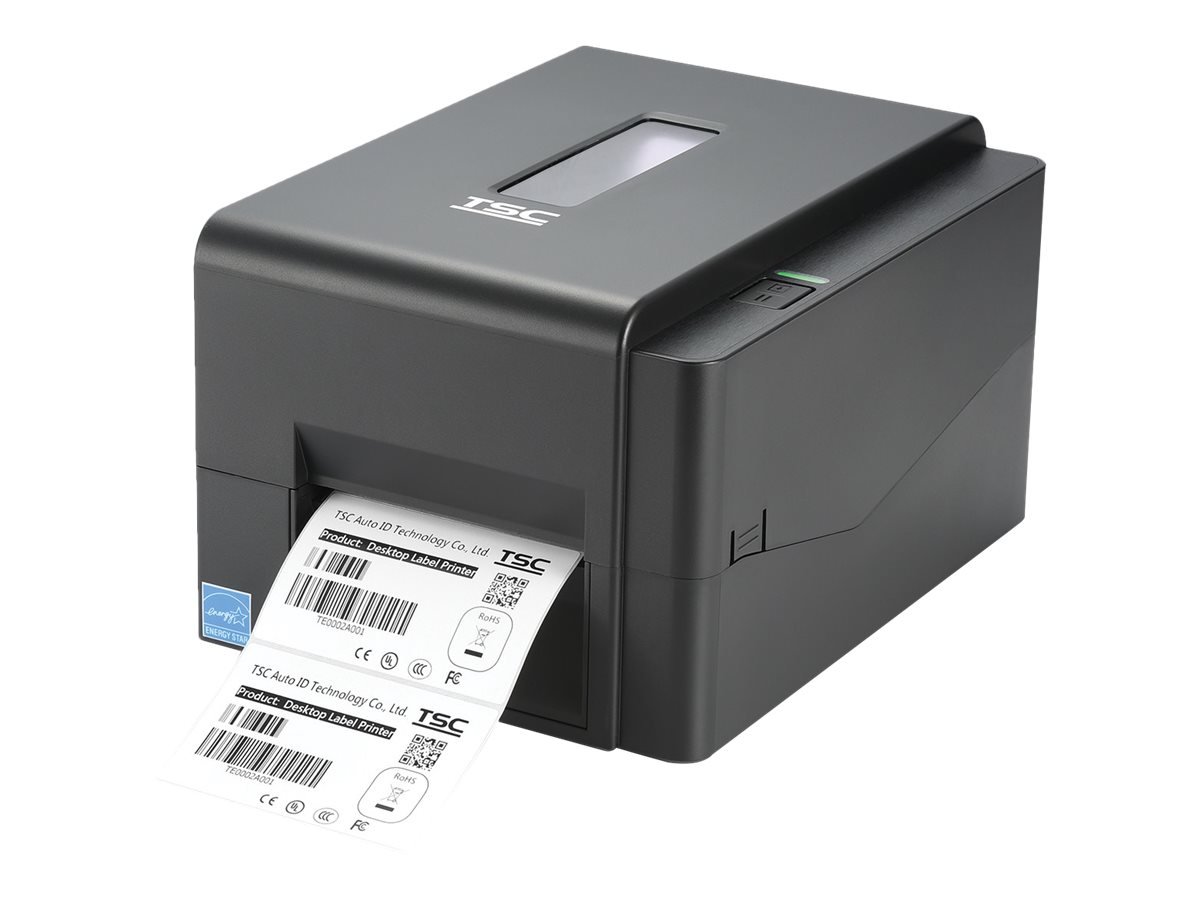

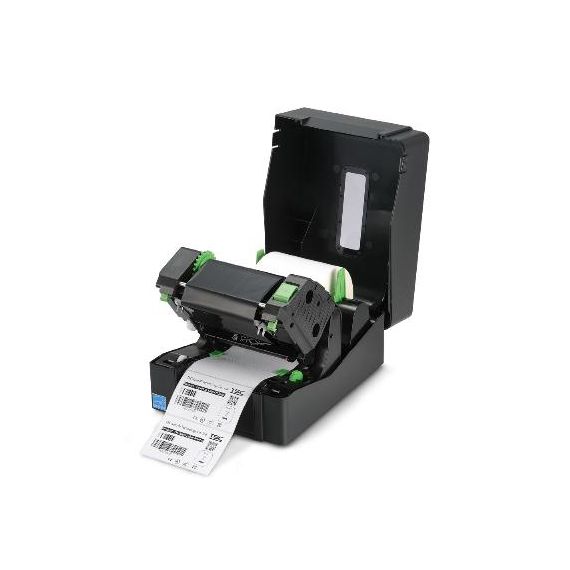

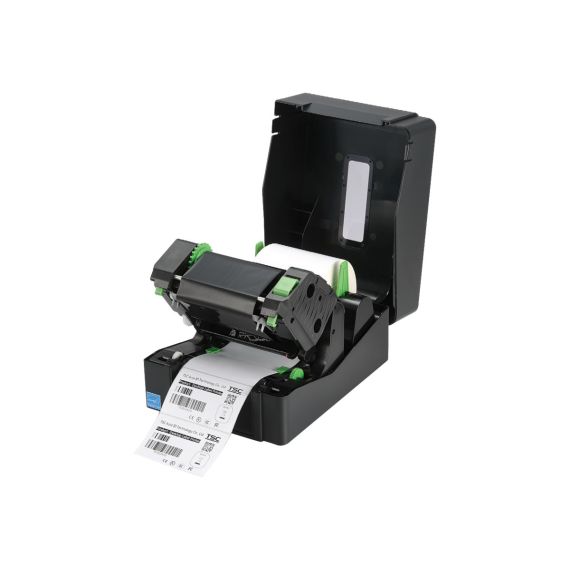

TSC TE200 - Label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 203 dpi - up to 152.4 mm/sec - USB 2.0 | 99-065A101-00LF00
Please sign in so that we can notify you about a reply
Special Fetures
- Fast print speed
- Print mechanism for kiosk applications
- Powerful processor with generous SDRAM and flash memory
- Internally scalable true type fonts
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 152.4 mm/sec - max speed - 203 dpi |
| Connectivity Technology | Wired |
| Interface | USB 2.0 |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | TSPL-EZ |
| Fonts | CG Triumvirate Bold Condensed |
| Features | Black Mark sensor, gap sensor, ribbon end sensor |
| Fonts Included | 8 x bitmapped |
| Barcodes | Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A, EAN-128, EAN-8, EAN-13, MSI |
| Processor | |
| Processor | 400 MHz |
| RAM | |
| RAM Installed (Max) | 16 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 8 MB |
| Media Handling | |
| Media Type | Labels, continuous labels, die cut labels, fanfold labels |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 20 mm x 10 mm |
| Max Media Size (Custom) | 112 mm x 2794 mm |
| Media Sizes | Roll (2 - 11.2 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 2794 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous | |
| Included Accessories | 1" label spindle, 1" ribbon spindle, 1" ribbon paper core, 2 x fixing tabs, 2 x 1.5" adapters |
| Cables Included | 1 x USB cable |
| Compliant Standards | FCC Class A certified, UL, TUV, cUL, CB, CCC, RoHS, WEEE, C-Tick Class A |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 60 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years <br /> Limited warranty - printhead - 1 year / 25 km <br /> Limited warranty - platen - 1 year / 50 km |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 20.4 cm |
| Depth | 28 cm |
| Height | 30.8 cm |
| Weight | 2.4 kg |
