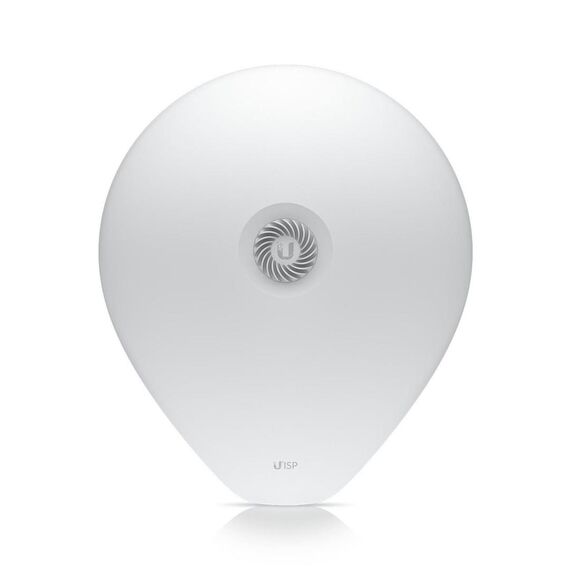

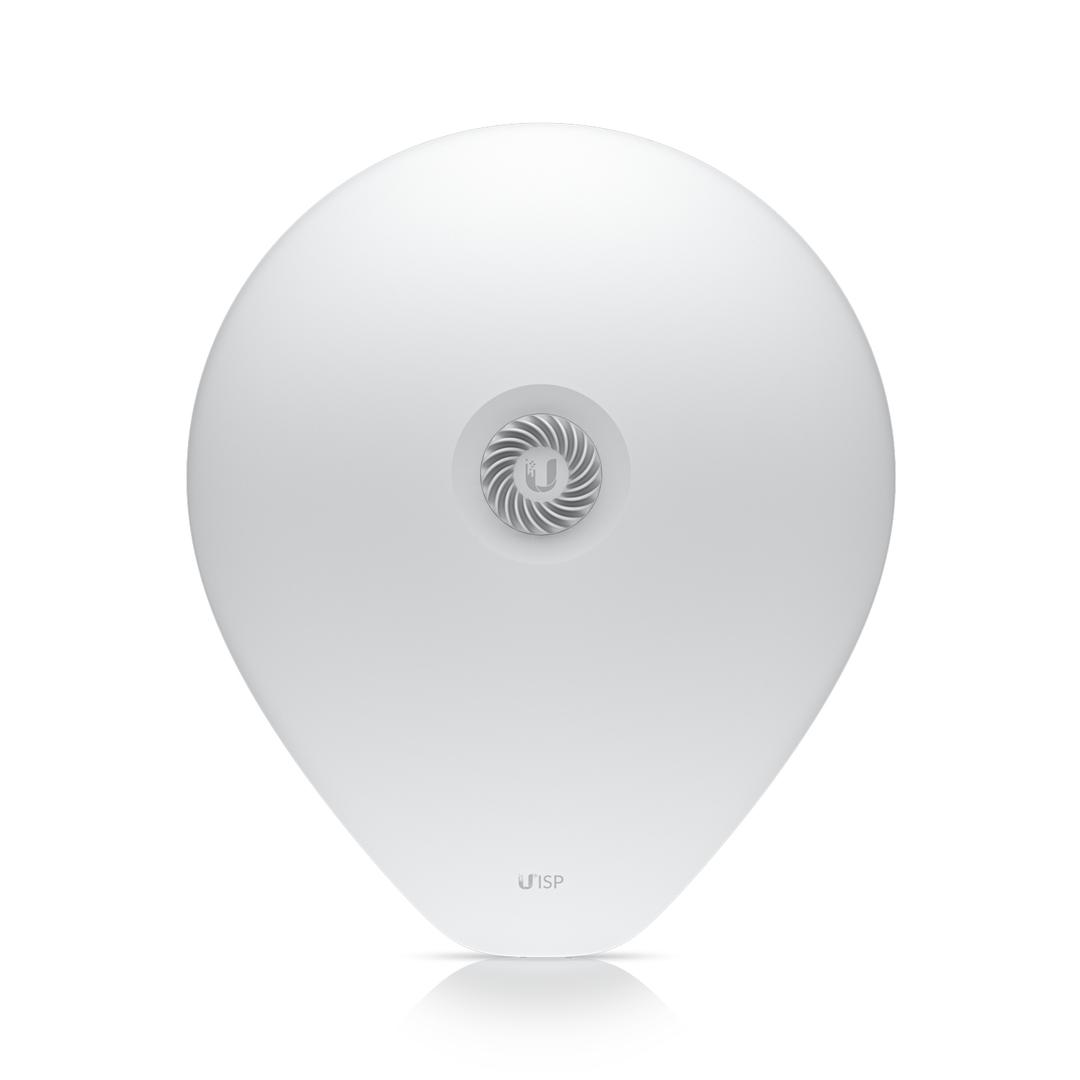

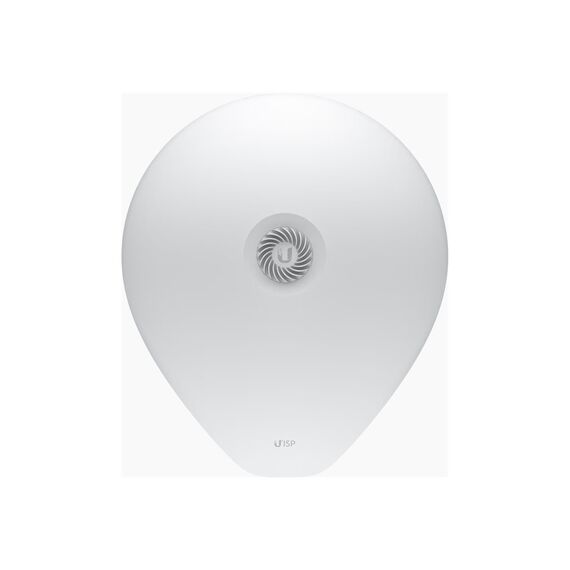

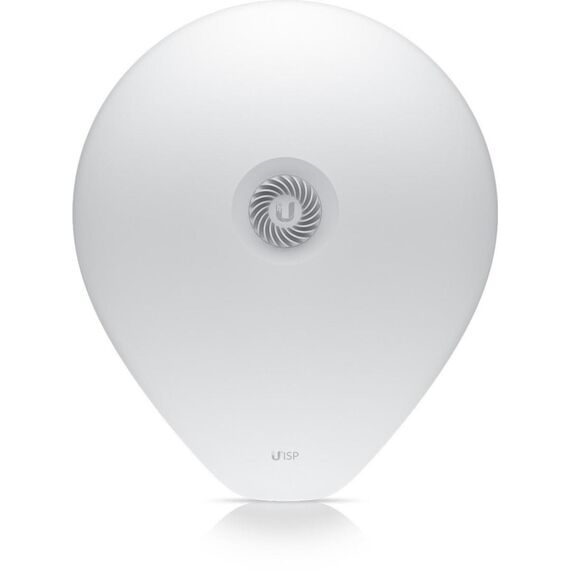

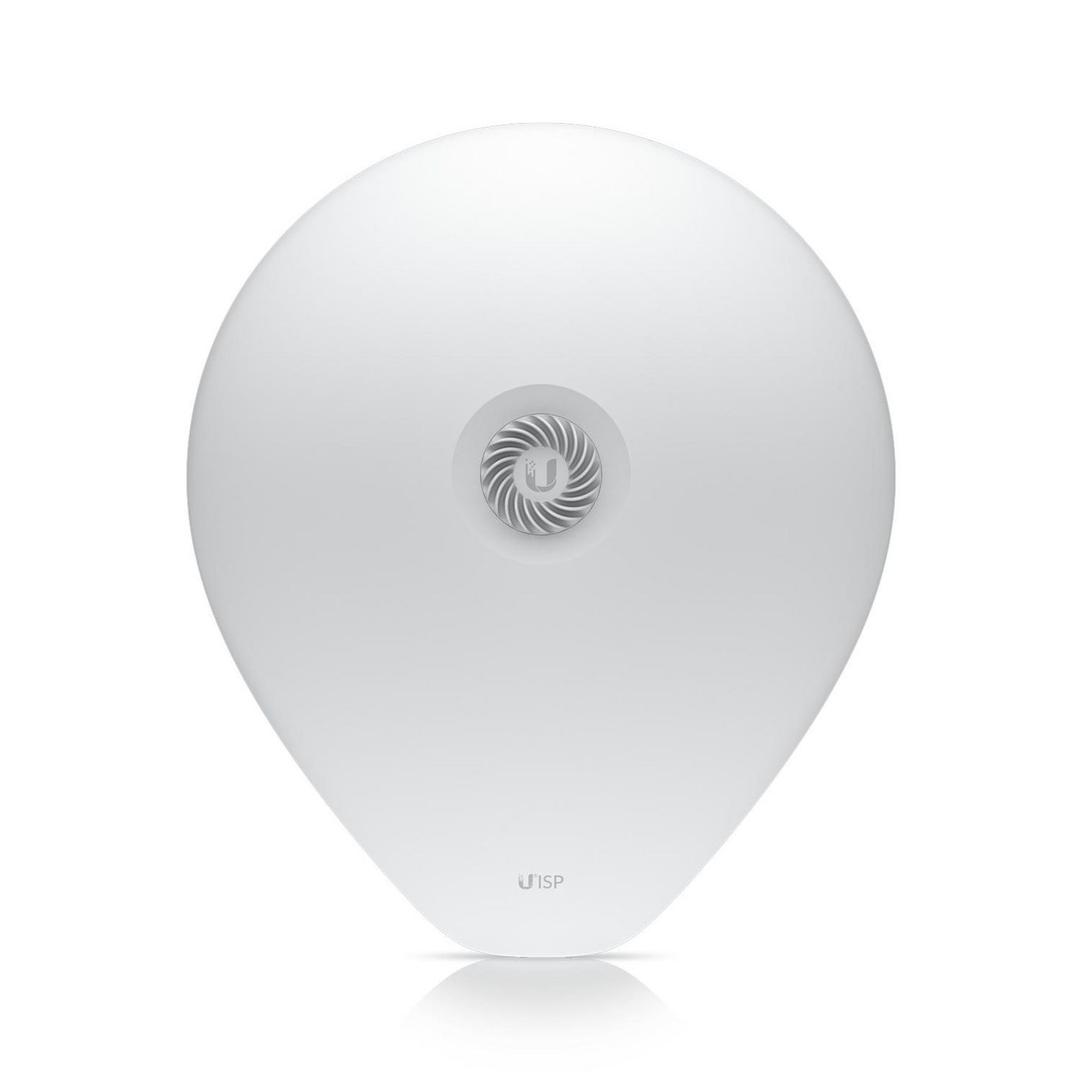

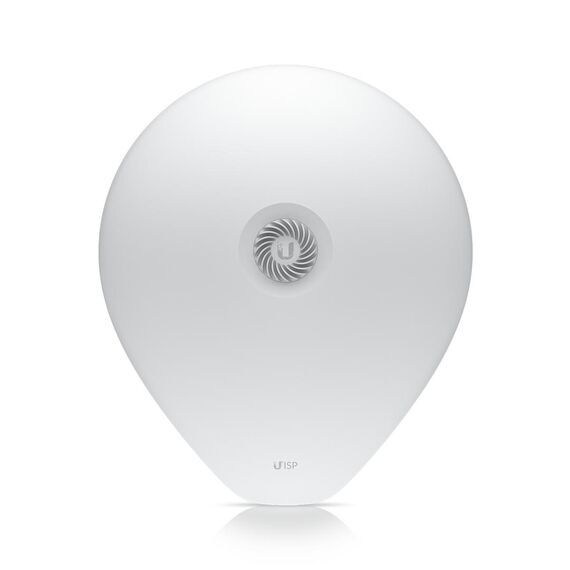

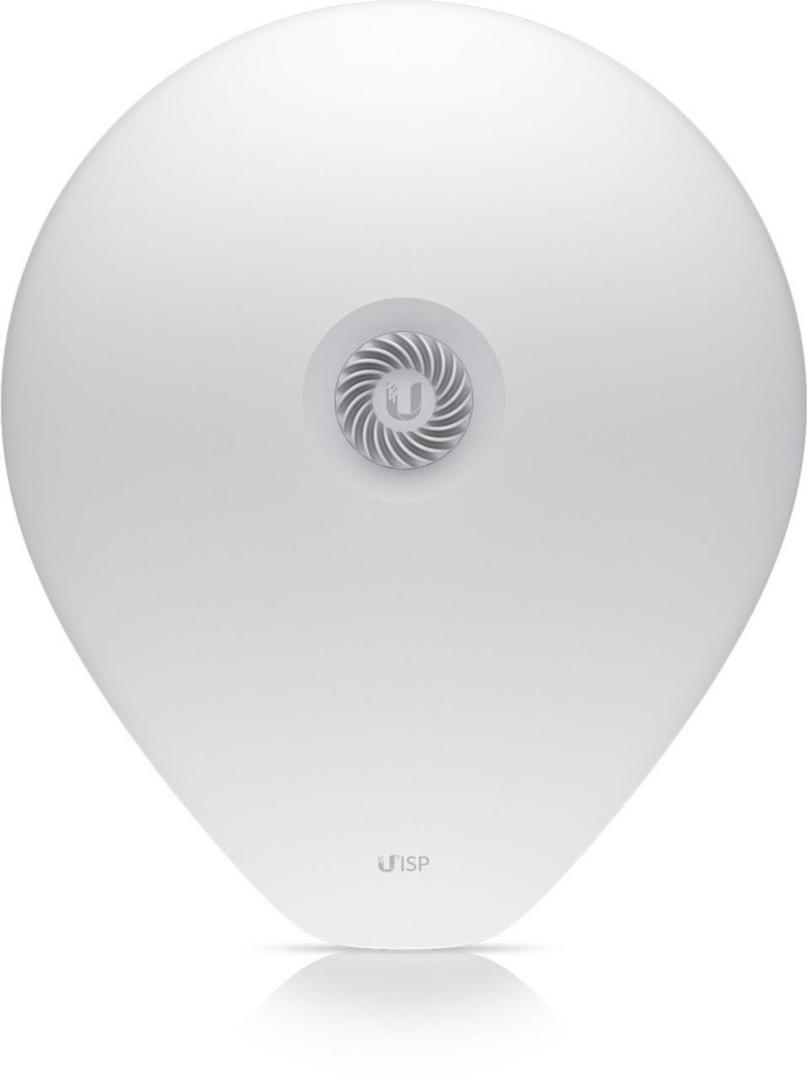

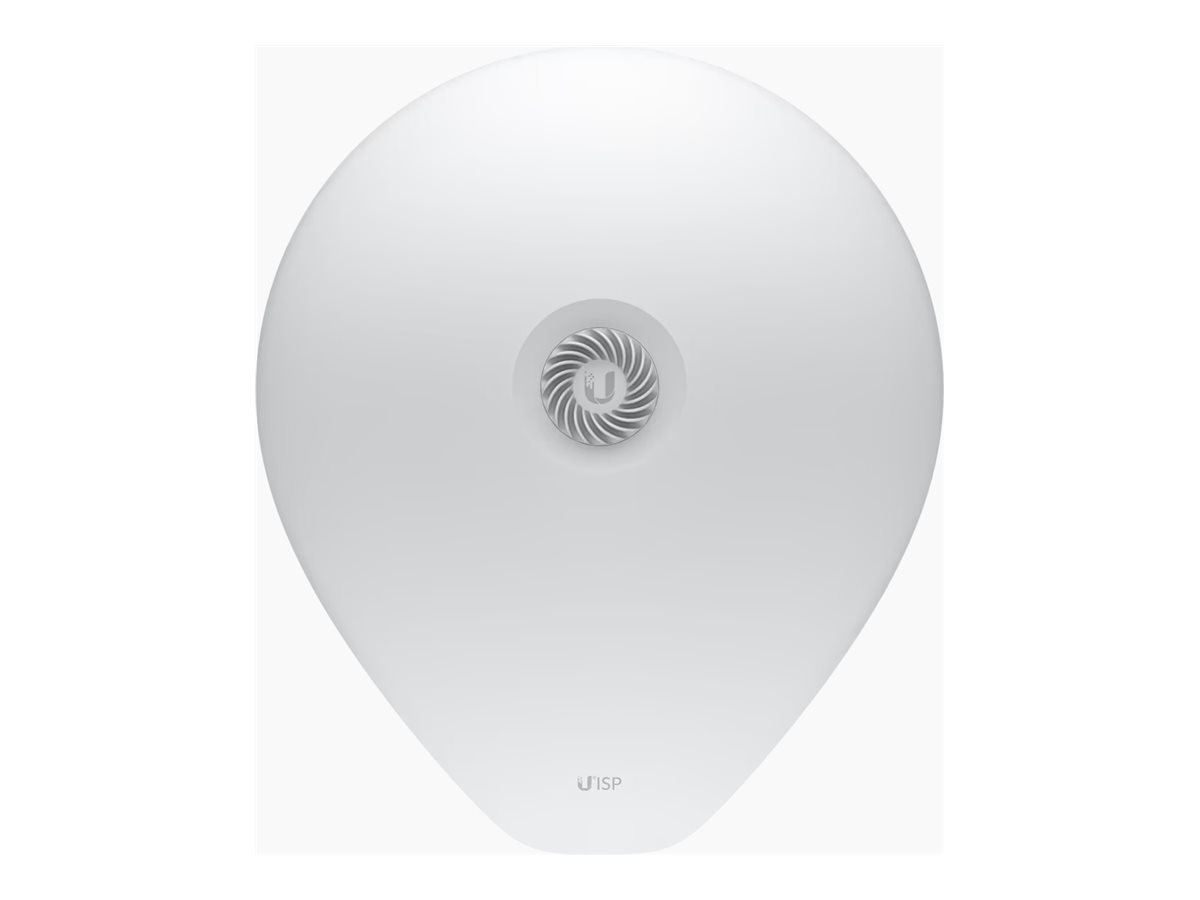

Ubiquiti airFiber 60 Xtreme-Range - Wireless bridge - AirFiber - 5 GHz | AF60-XR
Please sign in so that we can notify you about a reply
Special Fetures
- 15+ km link range
- 2.7 Gbps duplex
- 5 GHz 800+ Mbps weather-resilient backup radio

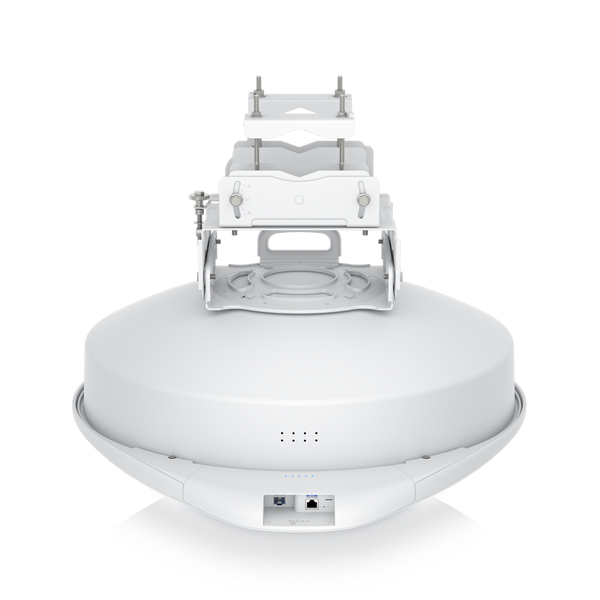

- 1 GbE and 1 10G SFP+ ports

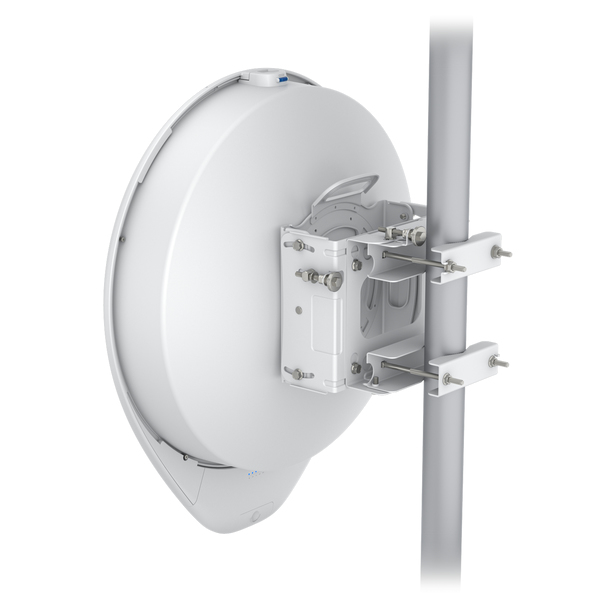

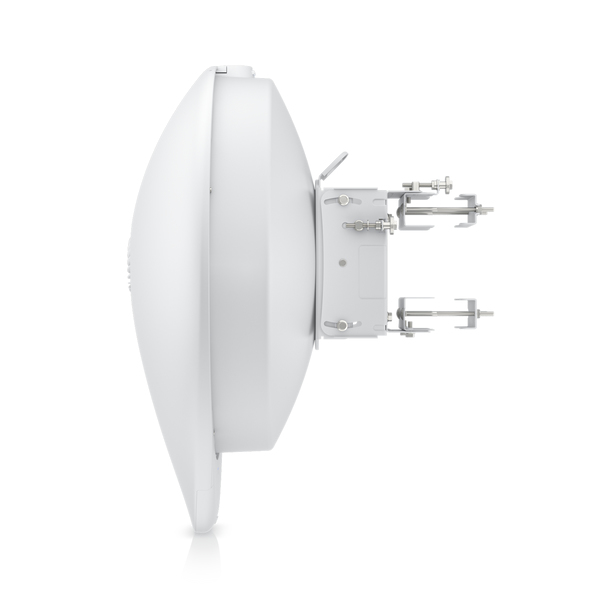

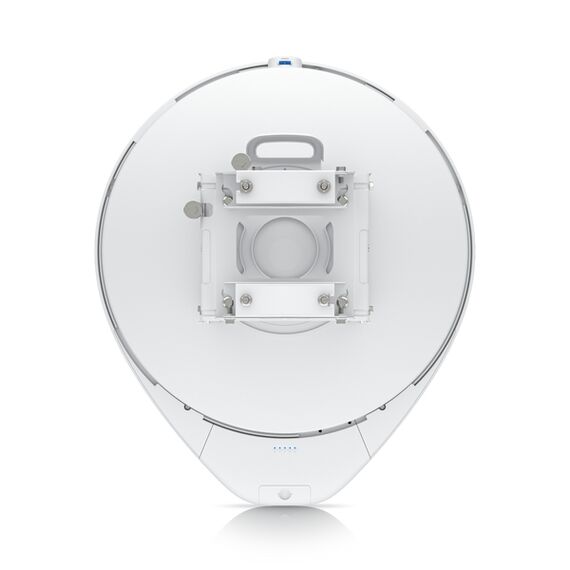

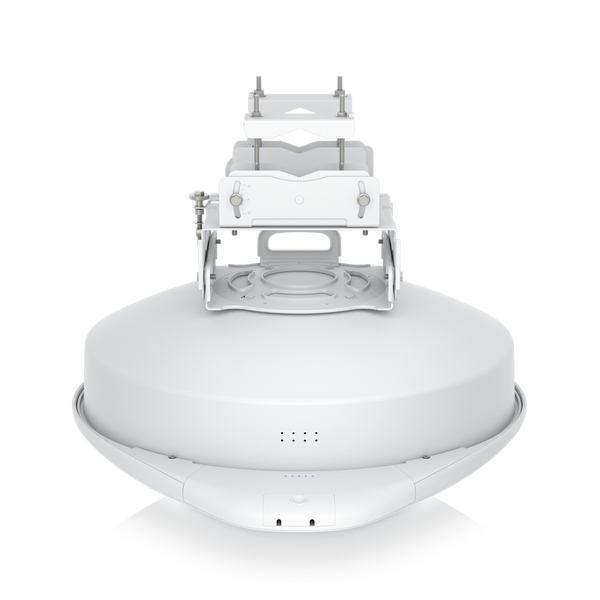

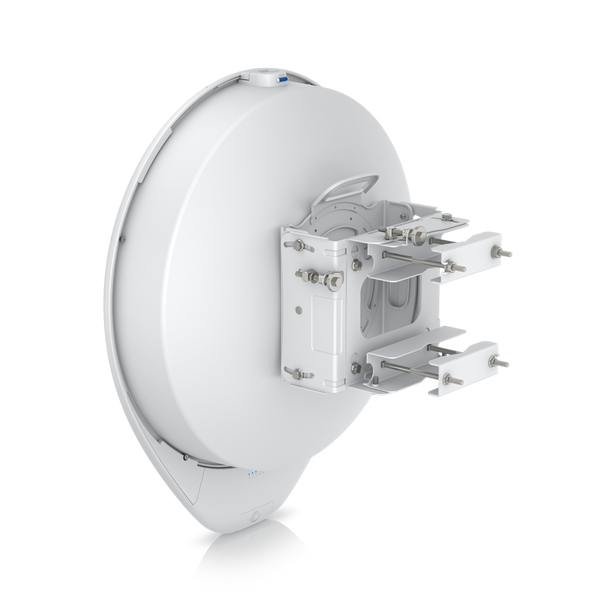

- Precision alignment mount
- Integrated GPS and Bluetooth
Product Specification
| Device Type | Wireless bridge |
| Built-in Devices | GPS |
| Width | 66.4 cm |
| Depth | 38.3 cm |
| Height | 77.9 cm |
| Weight | 8.6 kg |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Quad Core ARM CPU Cortex-A53 1.4 GHz |
| Max Supported Qty | 1 |
| RAM | 1 GB DDR3L SDRAM |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 5.4 Gbps |
| Data Link Protocol | AirFiber |
| Frequency Band | 5 GHz, 60 GHz |
| Max Range Open Space | 15 km |
| Status Indicators | Power, GPS, 5 GHz, 60 GHz, Ethernet link/activity |
| Features | Reset button, pole mountable, UV stabilised enclosure |
| Encryption Algorithm | AES, WPA2-PSK |
| Aerial | |
| Antenna | Internal |
| Gain Level | 26 dBi |
| Miscellaneous | |
| Included Accessories | Precision alignment kit |
| Compliant Standards | IC, FCC, IPX6 |
| Power | |
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - AF60-XR
More Details
Product Code
03:201891
EAN Code
0810010076106
Manufacturer
Ubiquiti
