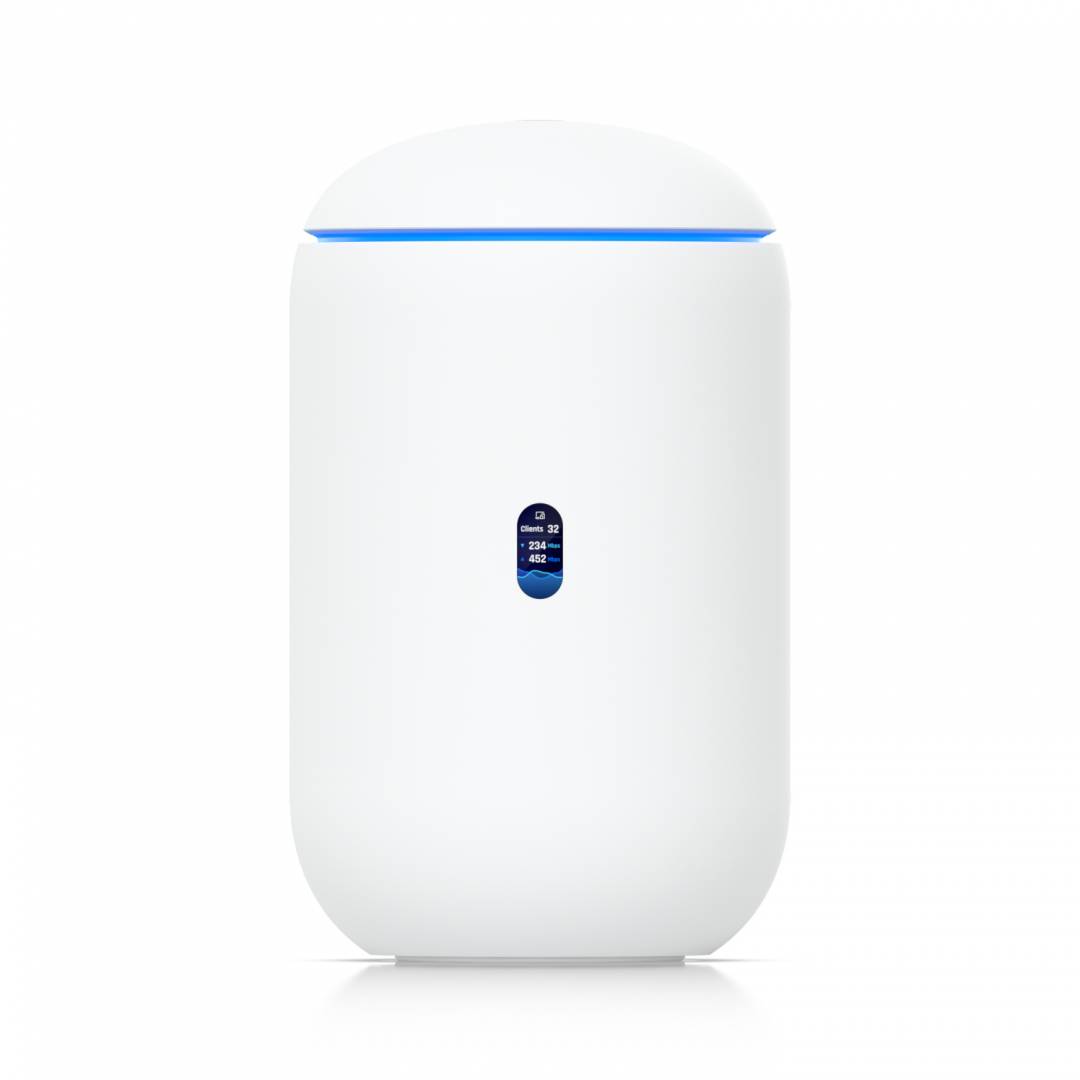

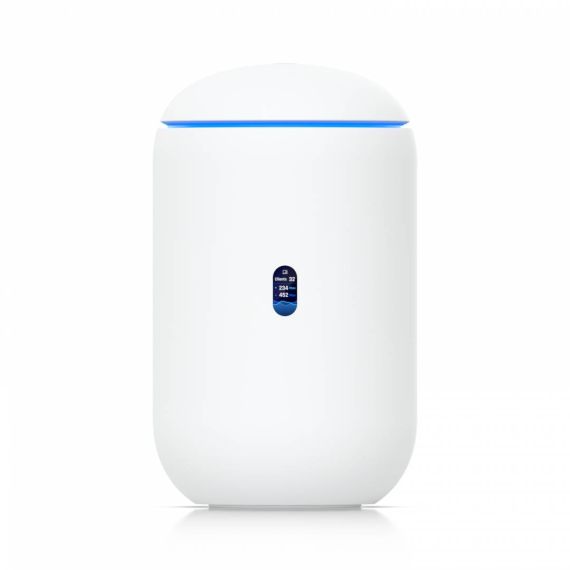

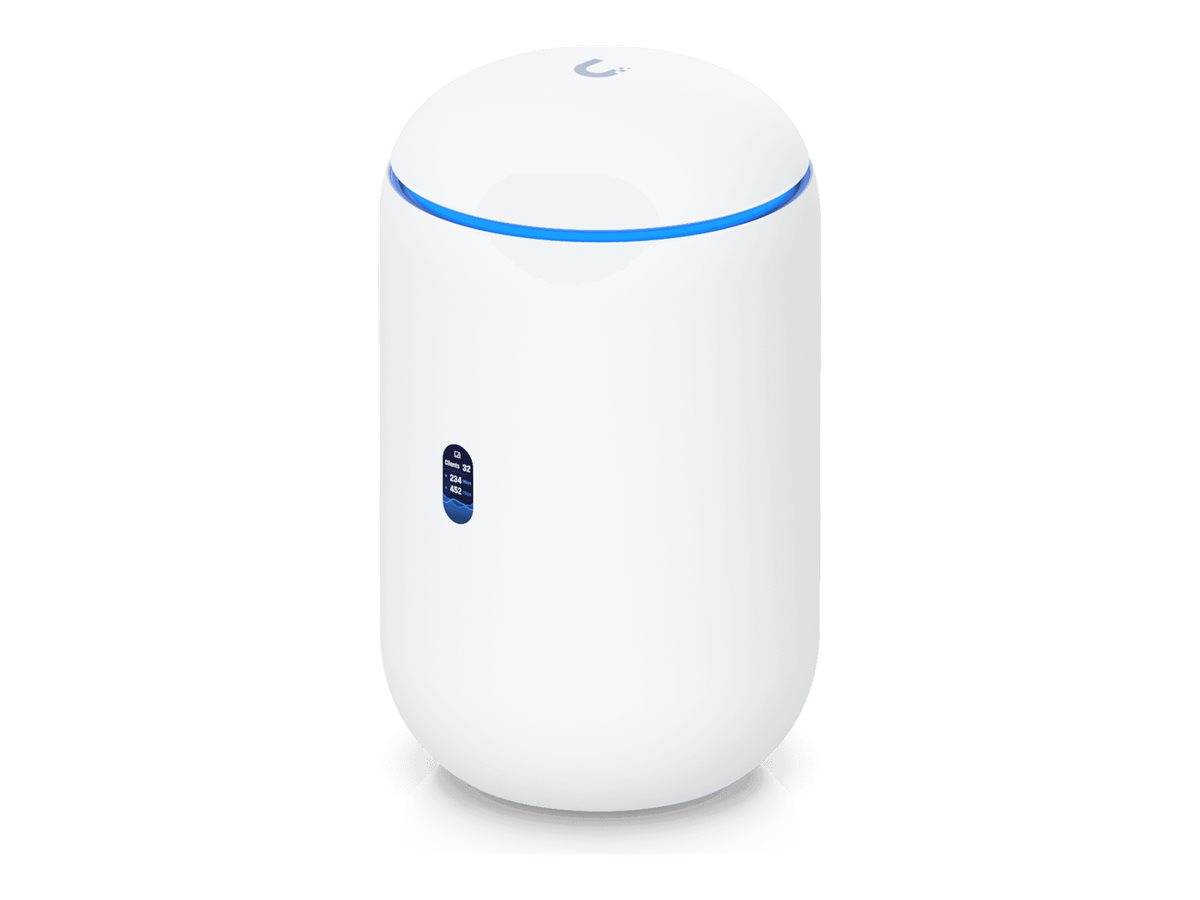

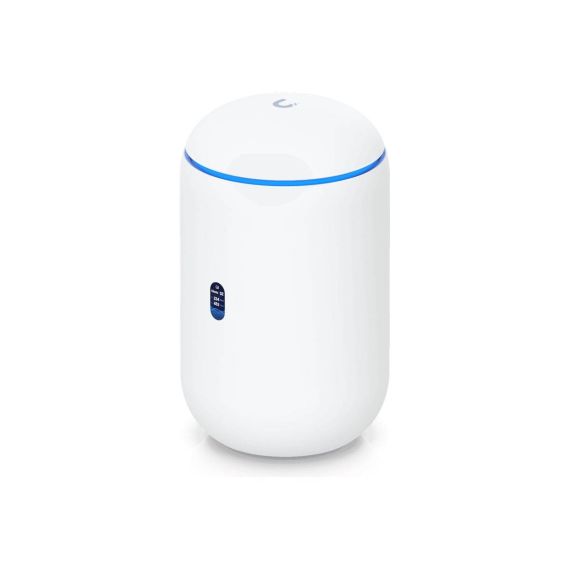

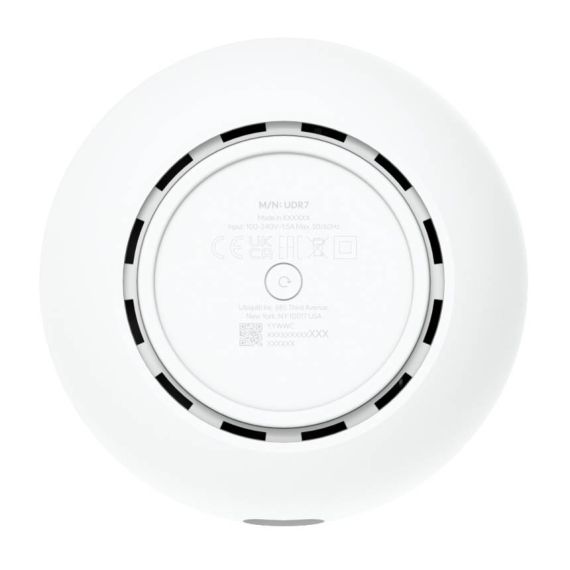

Ubiquiti Dream Router 7 / Wireless router 3-port switch / Wi-Fi 7, 10GbE, 2.5GbE / WAN ports: 2 / Wi-Fi 6 / Multi-Band / for P/N: UACC-CM-RJ45-MG | UDR7
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
Designed to handle up to 20,000 concurrent clients, the Ubiquiti Dream Router 7 delivers consistent and reliable performance for multiple devices in high-demand environments. - Versatile connectivity
With multiple Ethernet interfaces, including 10Gb and 2.5GBase-T, this router supports both wired and wireless connections, ensuring versatility for different networking setups. - Enhanced security
Equipped with robust encryption algorithms and authentication methods, this router ensures secure network communications, protecting sensitive data from unauthorized access. - User-friendly management
Features such as Bluetooth management and cloud support simplify network management, making it easy to monitor and control network settings remotely. - Environmentally resistant
Designed to operate in a wide range of temperatures from -10°C to 40°C and humidity levels between 5% to 95%, ensuring optimal performance in various environmental conditions.
Special Features
- Supports up to 20,000 concurrent clients
- Maximum data transfer rate of 10 Gbps
- Quad-core CPU for performance
- Security features including VPN support
- Compatible with Wi-Fi 6E and Wi-Fi 7 protocols
Product Specification
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Data Transfer Rate | 10 Gbps |
| Performance | IDS/IPS throughput: 2.3 Gbps Maximum data rate (2.4 GHz): 688 Mbps Maximum data rate (5 GHz): 4.3 Gbps Maximum data rate (6 GHz): 5.7 Gbps Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz |
| Capacity | BSSIDs per radio: 4 Number of concurrent clients: 300+ IPS signatures: 20000 |
| MAC Address Table Size | 2000 entries |
| Network / Transport Protocol | IPSec, OpenVPN, WireGuard, L2TP, DHCP, IGMP, IPv6 |
| Routing Protocol | OSPF |
| Encryption Algorithm | WPA-PSK, WPA2-Enterprise, WPA3-Enterprise, WPA-Enterprise |
| Authentication Method | RADIUS, RADSEC |
| Features | Cloud managed, full stateful firewall, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, IPS, IDS, ad blocking, VLAN segmentation, SD-WAN support, 1-click-VPN site-to-site, VPN Server, VPN client, load balancing, Advanced QoS, mDNS, NAT support, DNAT support, SNAT support, RADIUS Server, failover backup, ISP, policy-based WAN, VPN routing, DHCP server, IGMP proxy, 2x2 MU-MIMO technology, 15.4 W PoE power budget, Quad-core CPU, polycarbonate enclosure, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button, Guest Isolation |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11be, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, Wi-Fi CERTIFIED 7, IC, FCC |
| Processor | 1 x ARM 1.5 GHz |
| RAM | 3 GB |
| Built-in Devices | Status LCD |
| Status Indicators | System |
| Expansion / Connectivity | Expansion / Connectivity |

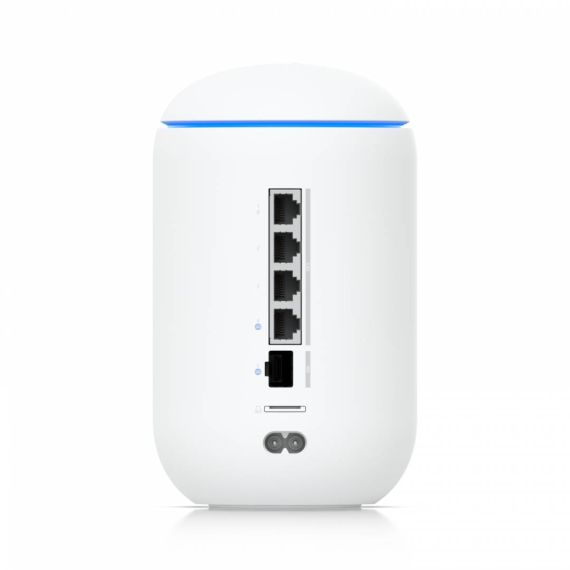

| Interfaces | LAN: 2 x 2.5GBase-T - RJ-45 LAN: 1 x 2.5GBase-T (PoE) - RJ-45 WAN: 1 x 10Gb Ethernet - RJ-45 WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x microSD |
| Aerial | Aerial |
| Aerial | Internal |
| Power | Power |
| Power Device | Internal power supply - 50 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |

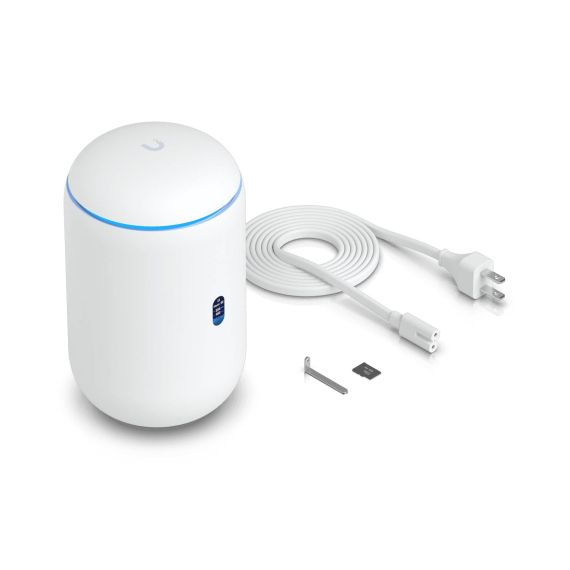

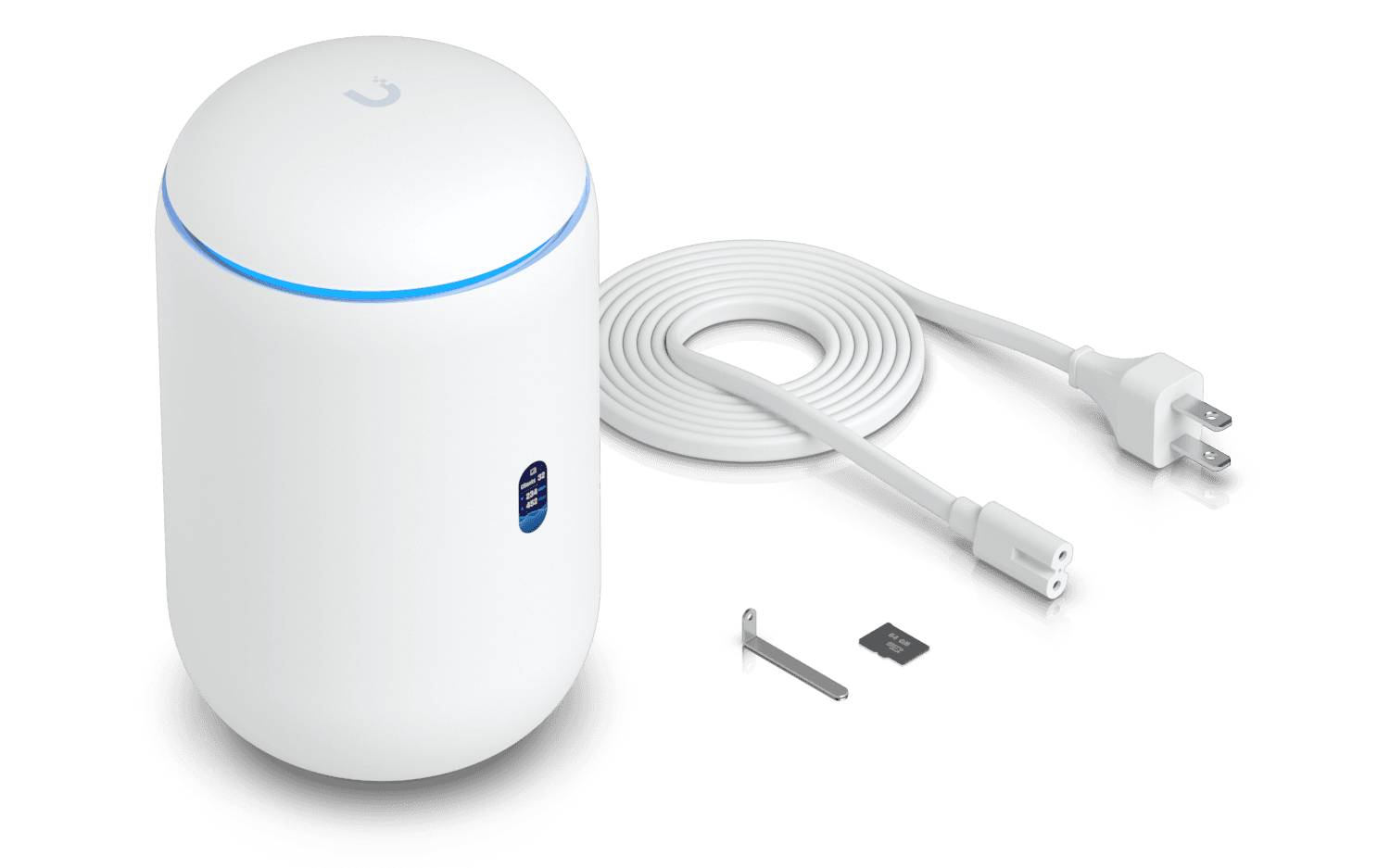

| Included Accessories | 64 GB microSD Card, power cable |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11 cm |
| Depth | 11 cm |
| Height | 18.41 cm |
| Weight | 1.1 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: UACC-CM-RJ45-MG |
Features - Ubiquiti - UDR7
More Details
Product Code
04:527008
EAN Code
0810177160212
Manufacturer
Ubiquiti
