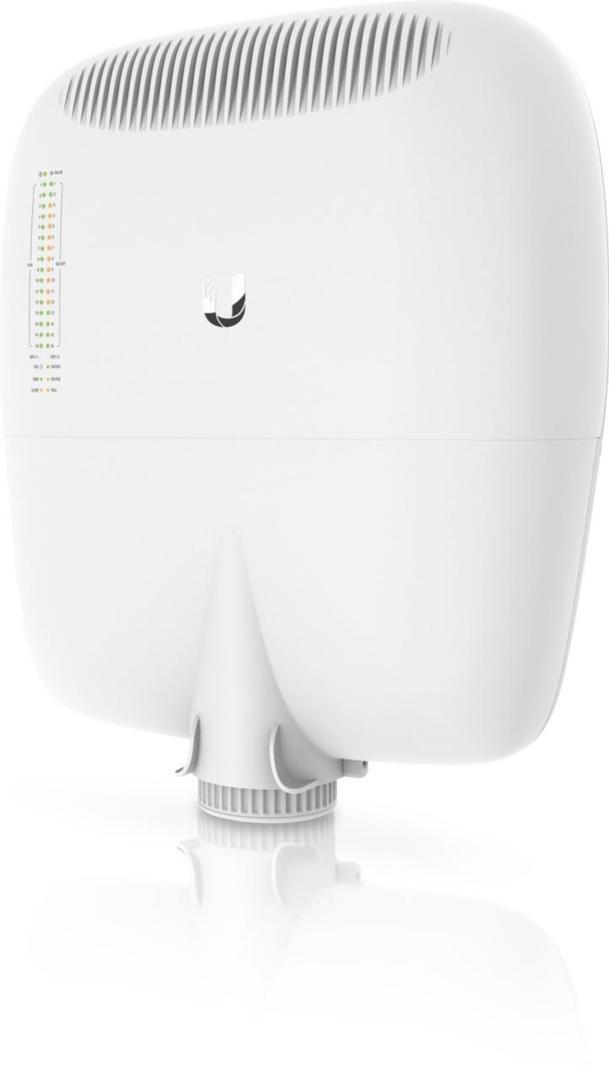

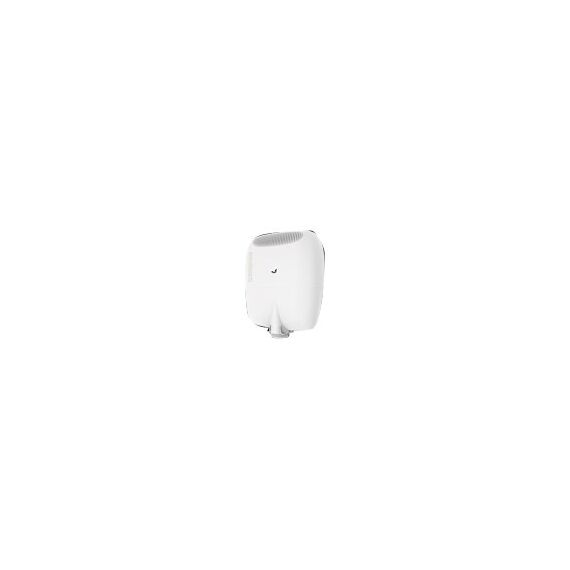

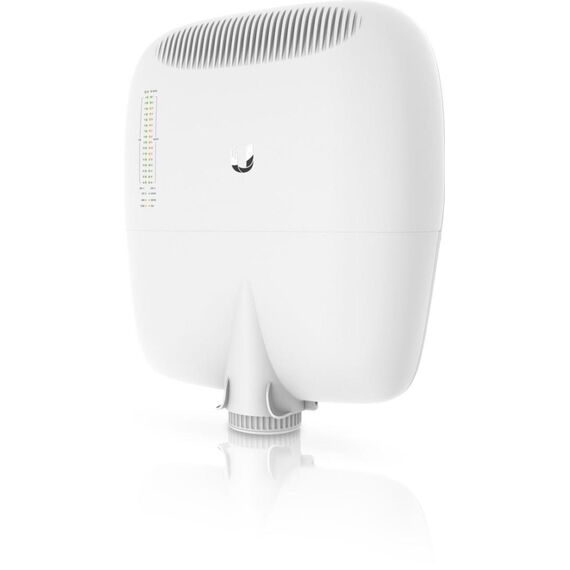

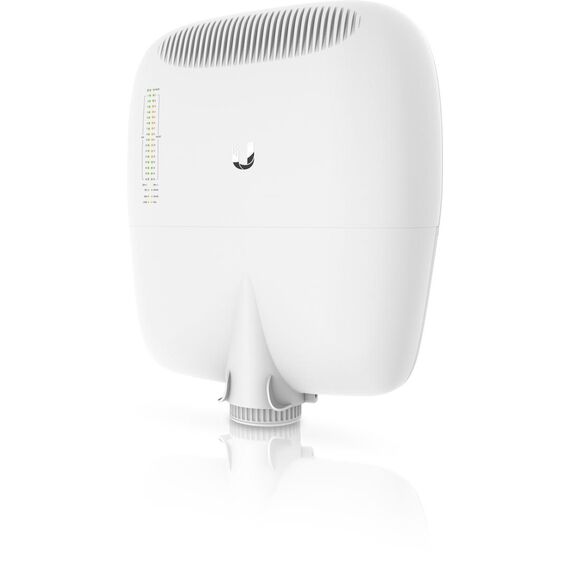

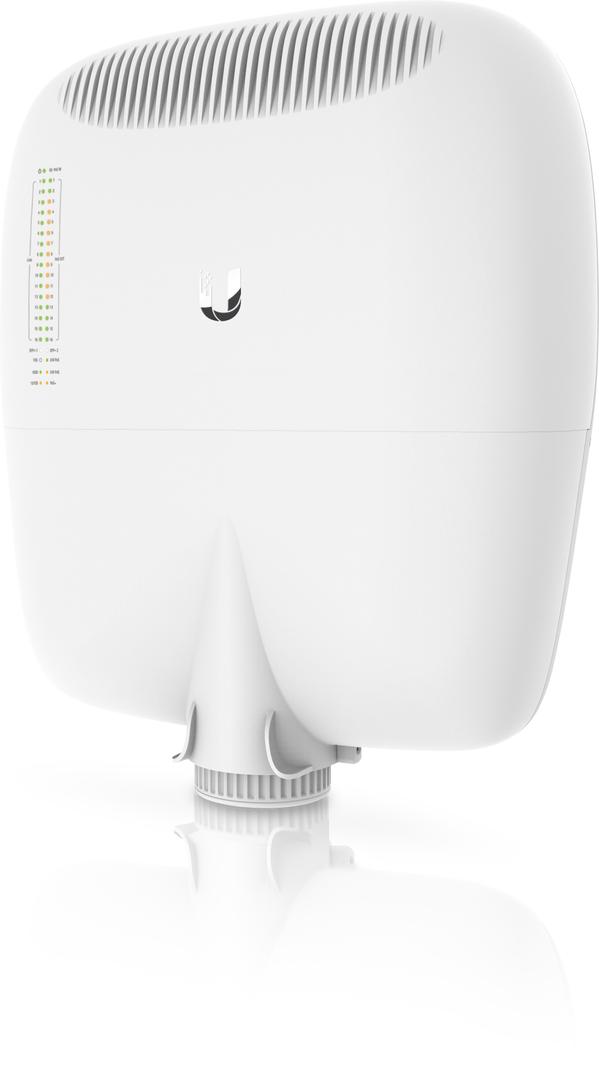

Ubiquiti EdgePoint S16 - Switch - 16 x 10/100/1000 (PoE) + 2 x 10 Gigabit SFP+ - wall-mountable - PoE - DC power | EP-S16
Please sign in so that we can notify you about a reply
Product Features
- Purposely built for WISP control
Specifically designed as a WISP control point, the EdgePoint combines advanced routing capabilities with fiber backhaul and versatile powering features.
All-in-one design
A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance. - Applications
Powerful routing features - such as link balancing - provide redundancy and increased performance for outdoor wireless links.
Special Fetures
- Purposely built for WISP control
- All-in-one design
- Powerful routing features
Product Specification
| Device Type | Switch - 16 ports |
| Enclosure Type | Wall-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| Routing Protocol | IGMP |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
| Processor | Cortex-A9: 400 MHz |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |

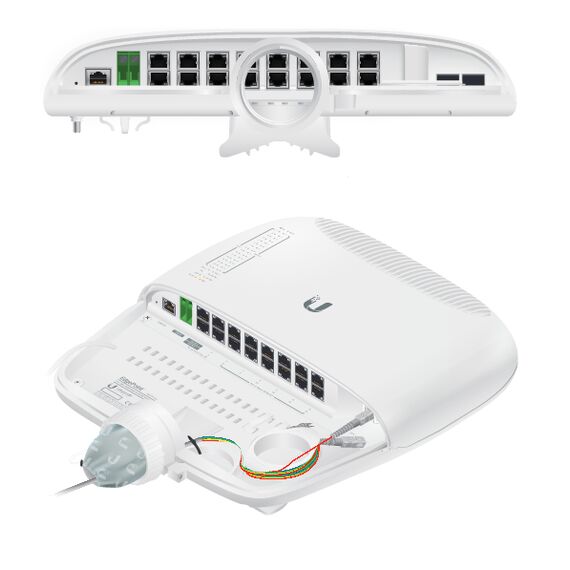

| Interfaces | 16 x 1000Base-T RJ-45 <br /> 2 x 10GBase-X SFP+ <br /> 1 x serial RJ-45 |
| Power | |
| Voltage Required | DC 54 V |
| Power Consumption Operational | 40 Watt |
| Miscellaneous | |
| Compliant Standards | FCC |
| Dimensions & Weight | |
| Width | 32.7 cm |
| Depth | 38.27 cm |
| Height | 8.88 cm |
| Weight | 3.4 kg |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Ubiquiti - EP-S16
General
16-Port
More Details
Product Code
07:633597
EAN Code
0810354024283
Manufacturer
Ubiquiti
