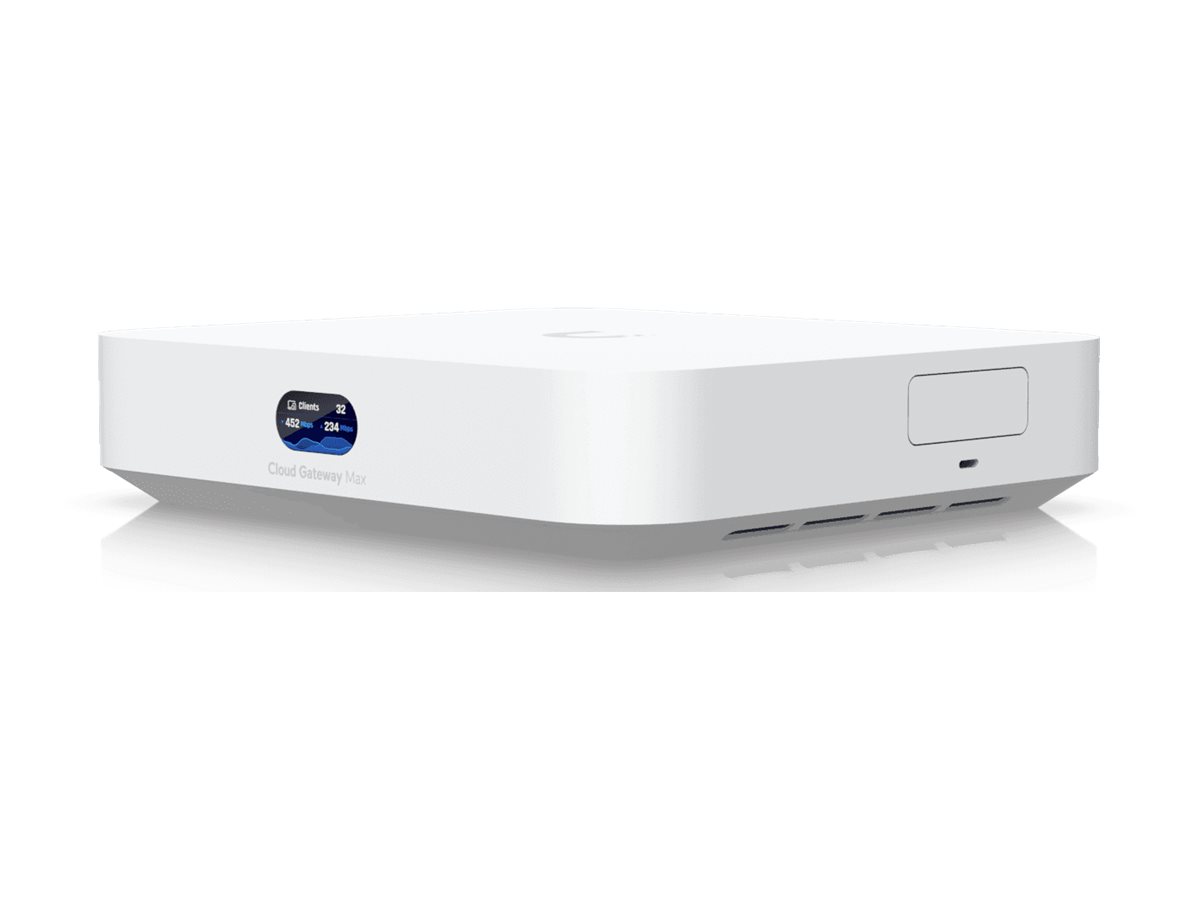

Ubiquiti - Gateway - 1GbE, 2.5GbE - cloud-managed - desktop | UCG-MAX-NS
Please sign in so that we can notify you about a reply
Product Features
- Reliable temperature range
The UCG-Max operates efficiently in environments from -10°C to 40°C, ensuring reliable functionality in varying conditions. - Versatile data protocols
This gateway supports multiple data link protocols including Ethernet, Fast Ethernet, and 2.5 Gigabit Ethernet, allowing for flexible connectivity options. - Powerful processing capabilities
Equipped with a Quad Core ARM Processor and 3 GB of DDR4 SDRAM, the UCG-Max handles high volumes of data efficiently, providing swift performance. - Advanced security features
The UCG-Max offers robust security with features like content filtering, ad filtering, and support for several VPN protocols for secure data transmission. - Cloud management convenience
The Ubiquiti UCG-Max is cloud-managed, simplifying network monitoring and management for users seeking effortless control of their network.
Special Fetures
- Operates in temperatures from -10°C to 40°C
- Supports a range of data link protocols including 2.5 Gigabit Ethernet
- Equipped with a Quad Core ARM Processor at 1.5 GHz
- Provides comprehensive security features with multiple VPN options
- Cloud-managed for simplified network control
Product Specification
| Device Type | Gateway |
| Width | 14.18 cm |
| Depth | 12.76 cm |
| Height | 3 cm |
| Weight | 519 g |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM Quad Core A53 1.5 GHz |
| RAM | 3 GB DDR4 SDRAM |
| Hard Drive | SSD 512 GB x 1 - NVMe |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | OpenVPN, IPSec, DHCP, IPv6 |
| Cloud-Managed | Yes |
| Performance | IDS/IPS throughput: 1 Gbps |
| Features | Polycarbonate enclosure, reset button, IGMP proxy, DHCP server, DHCP relay, policy-based WAN, VPN routing, OpenVPN client, OpenVPN server, L2TP VPN client, SD-WAN support, content filtering, country filtering, domain filter, ad filtering, outage reporting, Internet quality, QoS |
| Expansion / Connectivity | |
| Interfaces | 4 x 1/2.5Gb Ethernet - RJ-45 <br /> 1 x 1/2.5GBase-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Compliant Standards | FCC, IC |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 16.1 Watt |
| Software / System Requirements | |
| Software Included | Ubiquiti UniFi Software |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UCG-Max-NS
More Details
Product Code
07:139698
EAN Code
0810084698365
Manufacturer
Ubiquiti
