Ubiquiti UniFi UMA-D / Antenna / pole mountable, wall mountable / Wi-Fi / 10 dBi (for 2.4 / 2.5 GHz), 15 dBi (for 5.1 / 5.9 GHz) / directional | UMA-D
|

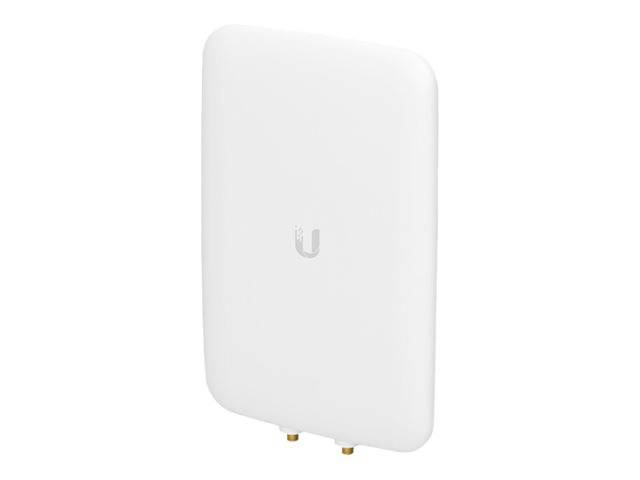

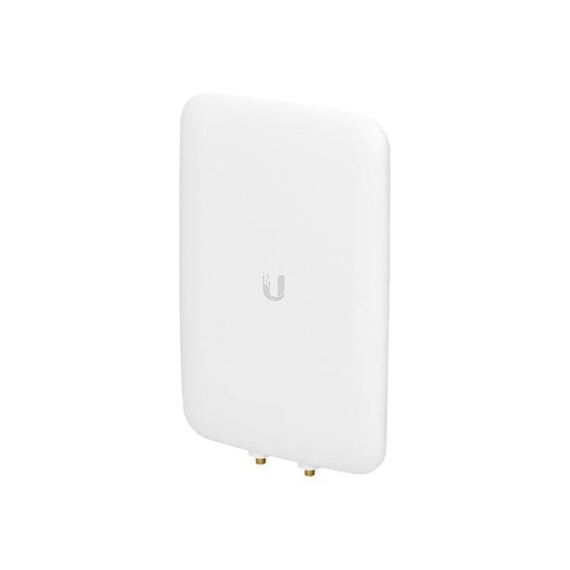

Description The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs. Ubiquiti UniFi UMA-D / Antenna | UMA-DSpecial Features
|
Product Specification
| Product Type | Antenna |
| Placing / Mounting | Pole mountable, wall mountable |
| Package Content | Wall/pole mount kit, ball joint mount |
| Product Material | UV-stable rugged thermoplastic |
| Width | 12.8 cm |
| Depth | 3.25 cm |
| Height | 20.13 cm |
| Weight | 400 g |
| Intended For | Wi-Fi |
| Compatibility | 802.11 ac |
| Frequency Range | 2.4 - 2.5 GHz, 5.1 - 5.9 GHz |
| Gain | 10 dBi (for 2.4 - 2.5 GHz), 15 dBi (for 5.1 - 5.9 GHz) |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Connector Provided | 2 x RP-SMA |
| Mounting Kit | Included |
| Features | Linear dual polarisation |
Features - Ubiquiti - UMA-D
More Details
Product Code
03:128261
EAN Code
0817882022736
Manufacturer
Ubiquiti
