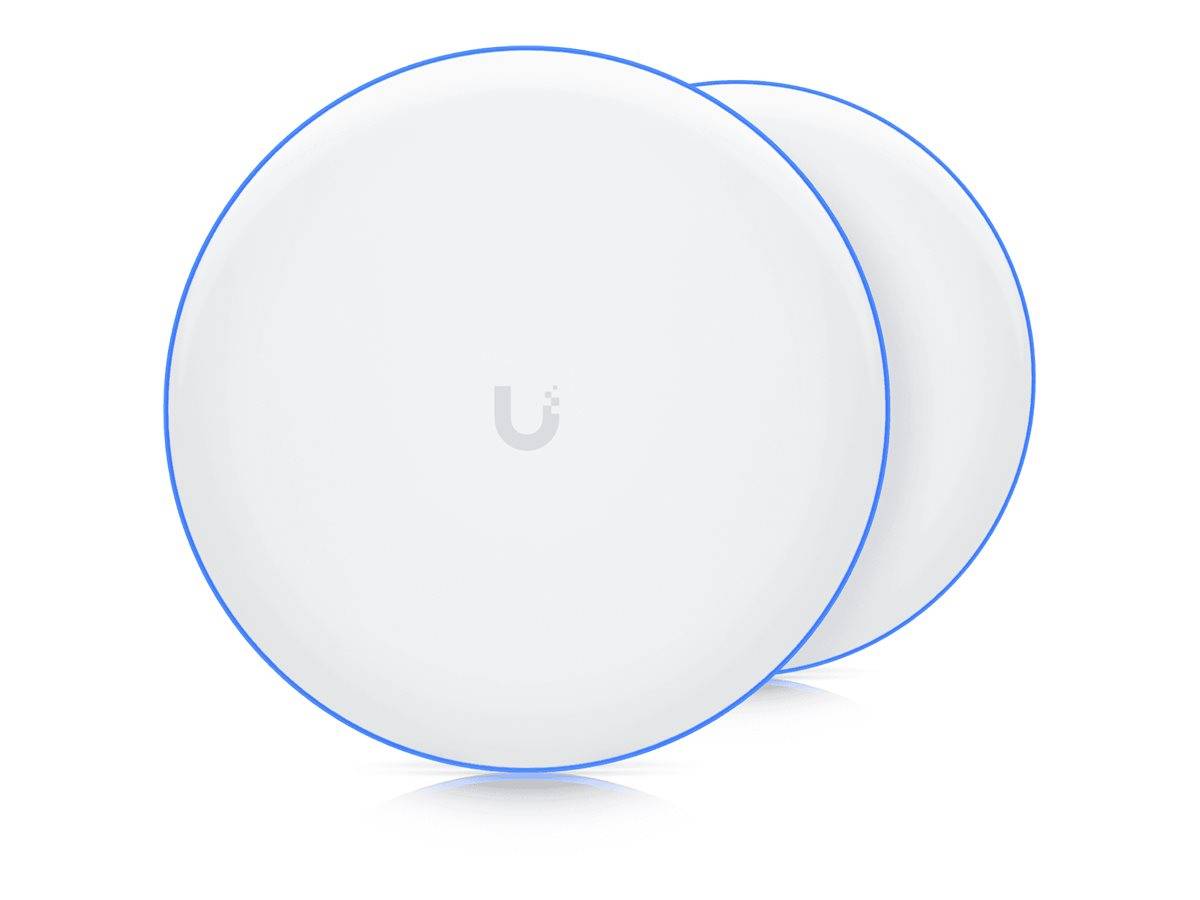

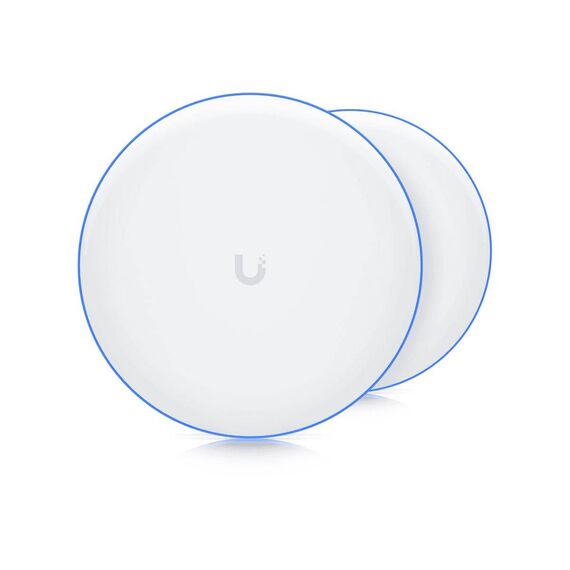

Ubiquiti UniFi Building Bridge XG / Wireless bridge / 10 GigE / Wi-Fi 5 / 802.11ad (WiGig) / 5 GHz, 60 GHz (pack of 2) | UBB-XG
Please sign in so that we can notify you about a reply
Product Specification
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | Wireless bridge |
| Width | 19.18 cm |
| Depth | 5.9 cm |
| Height | 19.18 cm |
| Weight | 1.7 kg |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 6 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ad (WiGig) |
| Frequency Band | 5 GHz, 60 GHz |
| Max Range Open Space | 500 m |
| Performance | Maximum data rate (5 GHz): 866.6 Mbps ¦ Maximum data rate (60 GHz): 6 Gbps |
| Features | Pole mountable, VLAN management, Point-to-Point (PtP) link mode, Bluetooth management, LED status indicator, aluminium alloy enclosure, UV stabilised polycarbonate enclosure |
| Encryption Algorithm | AES, WPA2 |
| Compliant Standards | IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ay |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 10 Gigabit Ethernet - SFP+ ¦ 1 x 1000Base-T (PoE++) - RJ-45 |
| Miscellaneous | Miscellaneous |

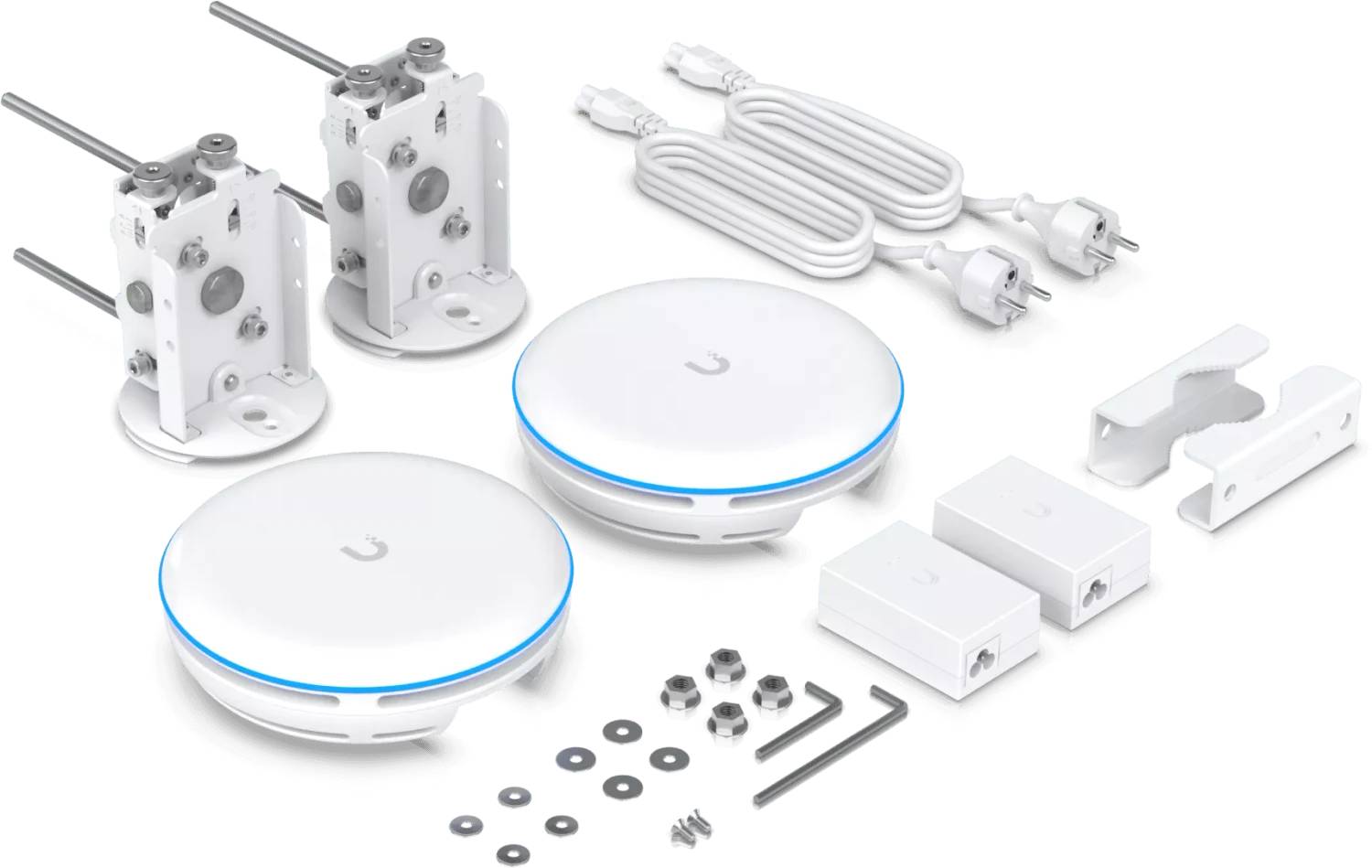

| Included Accessories | 2 PoE injectors, 2 x power cords, 2 pole mount kits |
| Compliant Standards | IC, FCC, IPX6 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE++ |
| Power Device | Power injector |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UBB-XG
More Details
Product Code
03:206629
EAN Code
0810010076120
Manufacturer
Ubiquiti
