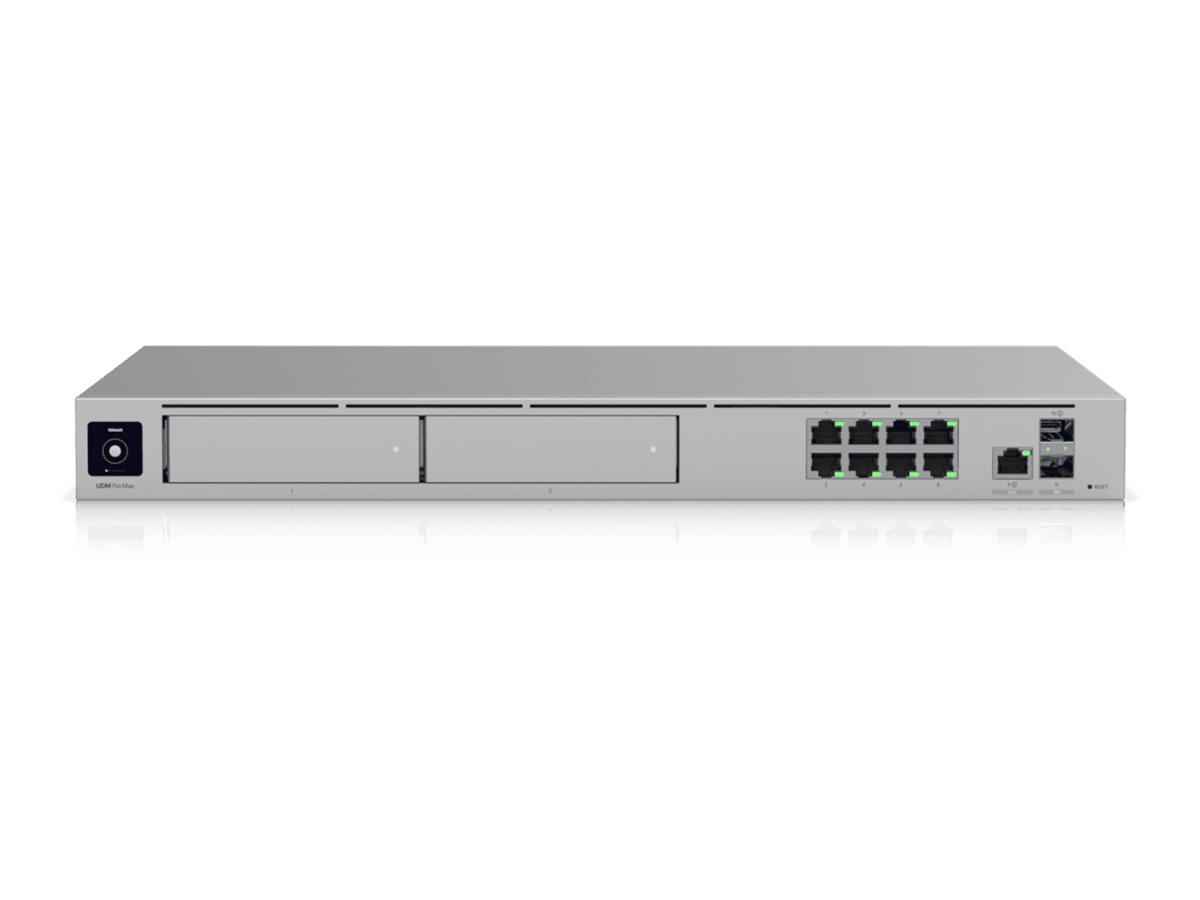

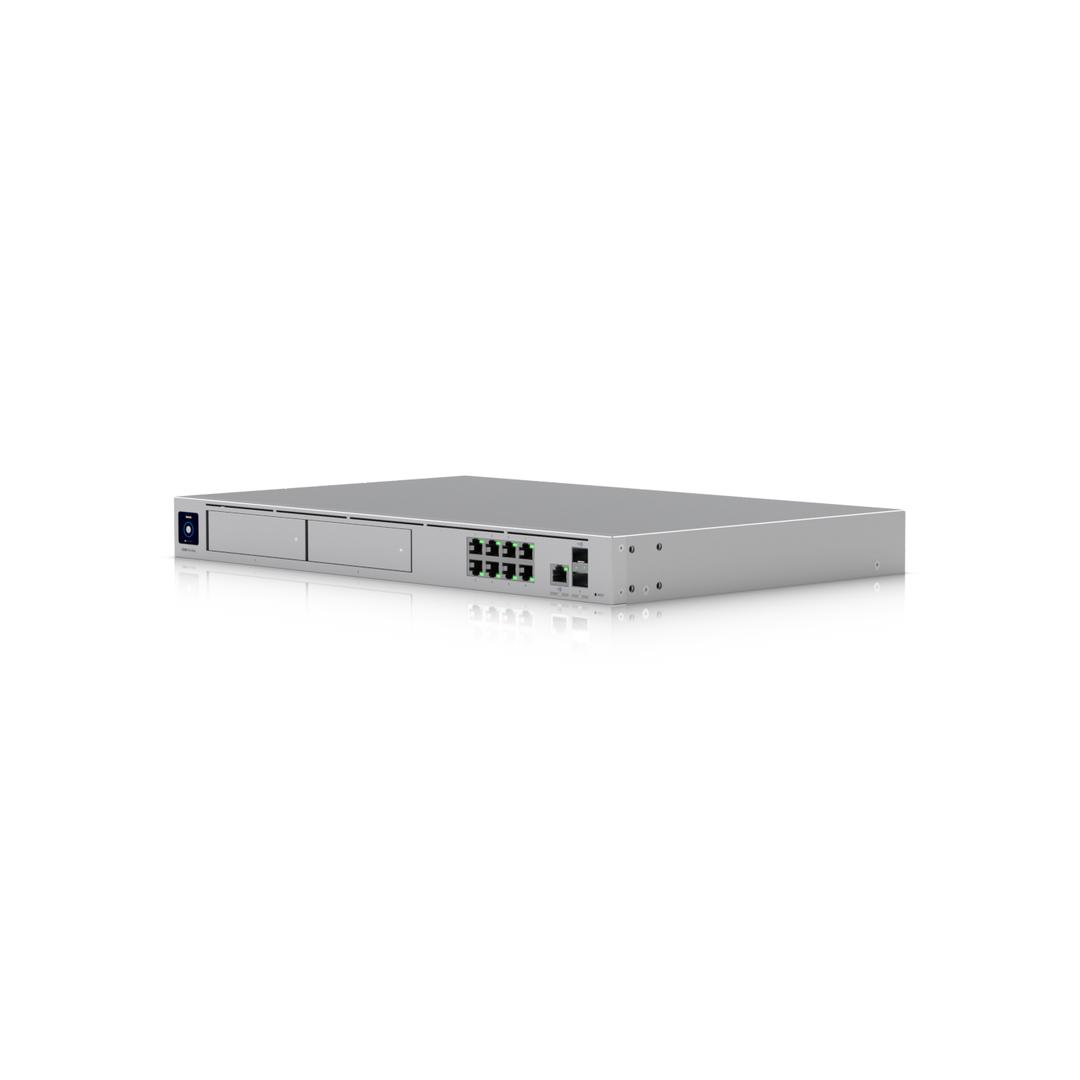

Ubiquiti UniFi Dream Machine Pro Max - - gateway - 8-port switch - 10GbE, 2.5GbE - WAN ports: 2 | UDM-PRO-MAX
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity
With Ethernet 10Base-T/100Base-TX/1000Base-T interfaces, alongside 10Gb Ethernet and 2.5G Gigabit Ethernet ports, the Ubiquiti UniFi Dream Machine Pro Max ensures versatile and high-speed connectivity options for diverse networking needs. - Advanced security features
Equipped with a quad-core CPU and supporting IDS/IPS throughput of 5 Gbps, the device offers strong security measures including VPN support, firewall capabilities, and advanced encryption protocols to protect your network. - Comprehensive network management
Features like DHCP server, IGMP proxy, and Quality of Service (QoS) enable efficient network traffic management, while cloud-managed capabilities allow for remote monitoring and adjustments, ensuring optimal network performance. - Durable and reliable design
The Dream Machine Pro Max is housed in an aluminum/steel case and includes 15KV ESD Protector (air-gap discharge) and 8KV ESD Protector (contact discharge), providing durability and reliability for long-term use. - High-capacity storage and memory
With a 128 GB SSD and 8 GB of DDR4 SDRAM, this device offers ample storage and memory to handle network configurations and data processing, ensuring smooth and efficient operation.
Special Fetures
- 8-port switch integrated for efficient network traffic management
- Supports both OpenVPN and WireGuard for secure remote access
- 5 Gbps IDS/IPS throughput for enhanced network security
- Cloud managed for easy remote monitoring and management
- Dual WAN ports for reliable Internet connectivity
Product Specification
| Device Type | Gateway - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Performance | IDS/IPS throughput: 5 Gbps |
| Network / Transport Protocol | L2TP, DHCP, WireGuard, OpenVPN |
| Routing Protocol | IGMP |
| Remote Management Protocol | DHCP, IPv6 |
| Features | ISP, QoS, DHCP server, reset button, DHCP relay, IGMP proxy, cloud managed, Site-to-Site Replication, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), OpenVPN client, OpenVPN server, Bluetooth management, aluminium/steel housing, Quad-core CPU, policy-based WAN, VPN routing |
| Compliant Standards | IC, FCC |
| Processor | 1 x ARM 2 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Built-in Devices | 128 GB SSD, 1.3" touch screen display |
| Status Indicators | RPS (Redundant Power Supply), link/activity, disk |
| Expansion / Connectivity | |
| Interfaces | LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Gb Ethernet - SFP+ ¦ WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 ¦ WAN: 1 x 10Gb Ethernet - SFP+ |
| Expansion Slots | 2 (total) / 2 (free) x 3.5" HDD bay |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Miscellaneous | |

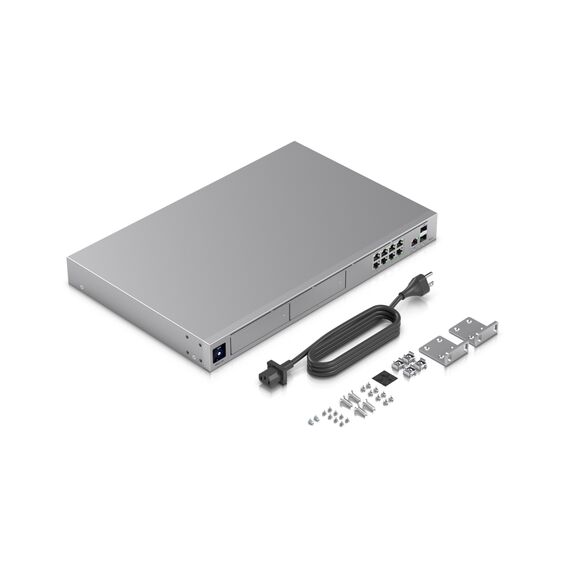

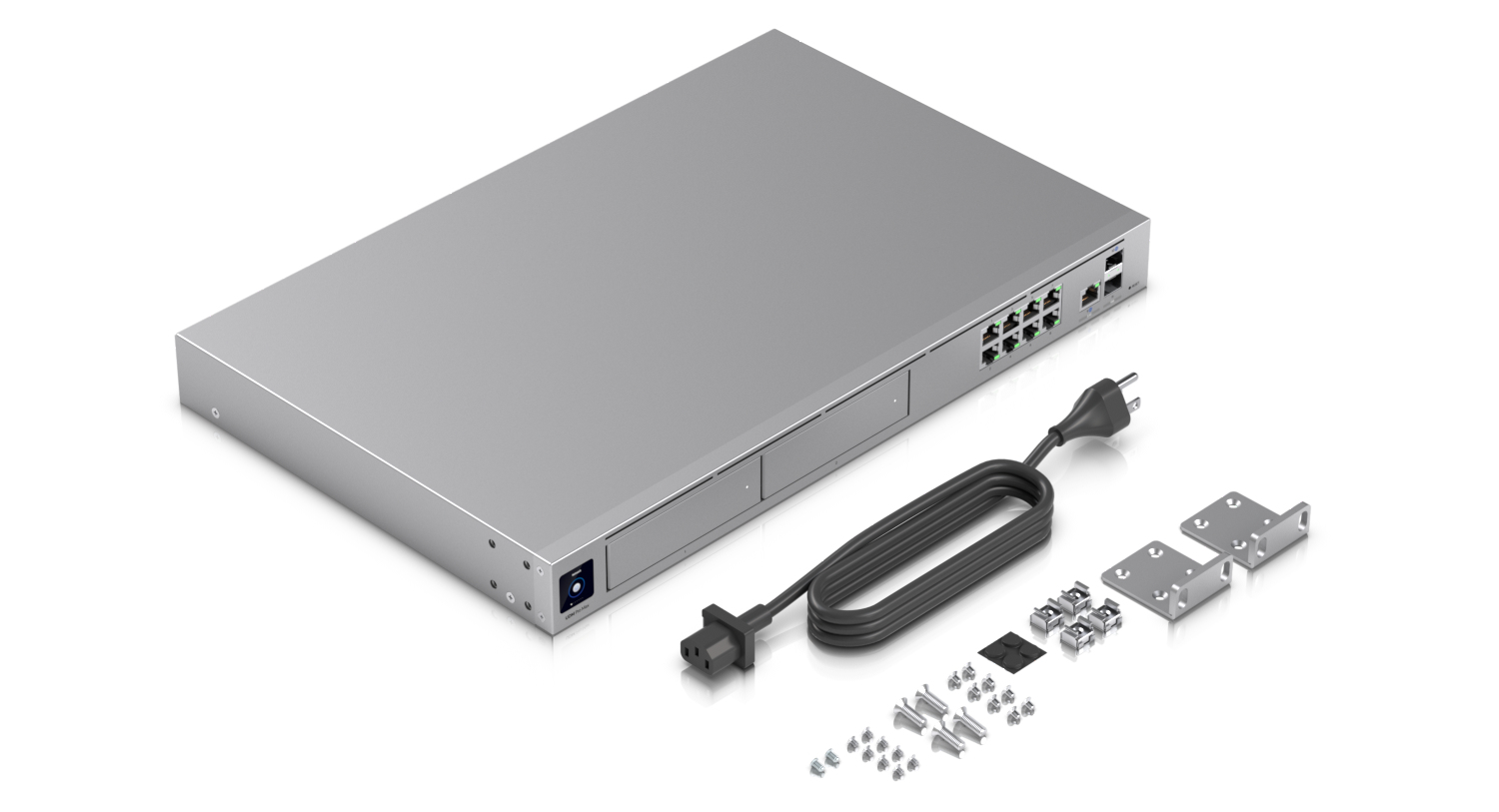

| Included Accessories | Power cable |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Width | 44.24 cm |
| Depth | 28.56 cm |
| Height | 4.37 cm |
| Weight | 4.7 kg |
| Environmental Parameters | |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UDM-PRO-MAX
General
8-Port
More Details
Product Code
03:238967
EAN Code
0810084693254
Manufacturer
Ubiquiti
