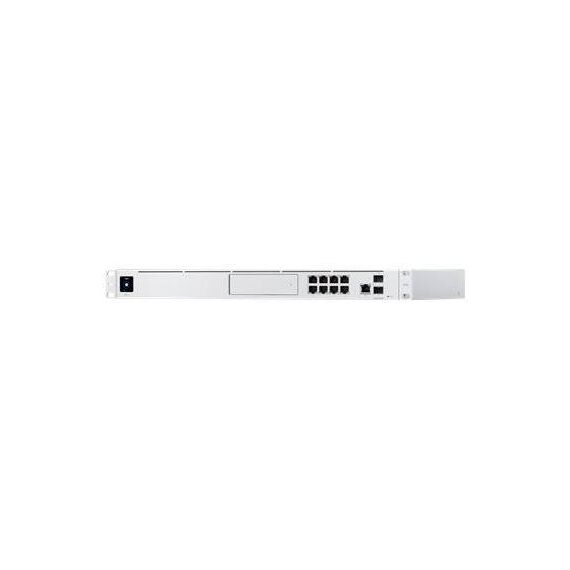

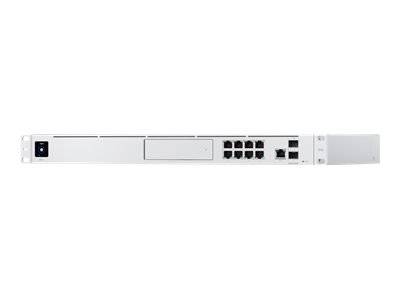

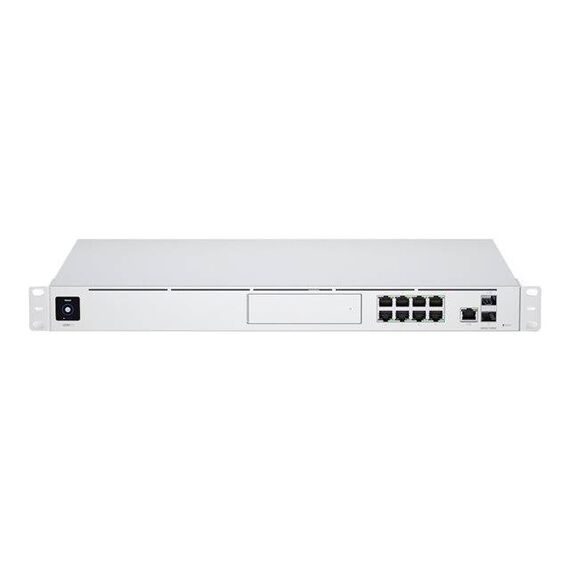

Ubiquiti Unifi Dream Machine Pro / Network management device / GigE / 1U / rack-mountable | UDM-PRO
Description
UniFi Dream Machine Pro is an all-in-one enterprise network appliance. UDM-Pro integrates UniFi controllers with a security gateway.
Product Specification
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Built-in Devices | 1.3" touch screen display |
| Width | 44.24 cm |
| Depth | 28.56 cm |
| Height | 4.37 cm |
| Weight | 3.9 kg |
| Processors Installed | 1 x ARM Cortex-A57 1.7 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | IPS throughput: 3.5 Gbps |
| Status Indicators | HDD activity, link/activity/speed |
| Features | Auto-uplink (auto MDI/MDI-X), content filtering, deep inspection, Spanning Tree Protocol (STP) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, VPN Server, Storm Control, dual WAN failover, Bluetooth management, 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge) |
| Compliant Standards | IEEE 802.1x |
| Expansion Bays | 1 (total) / 1 (free) x internal - 3.5" |
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 10GBase-X - SFP+ ¦ 1 x 10GBase-X - SFP+ (WAN) |
| Included Accessories | Rack mount kit |
| Compliant Standards | IC, FCC |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 33 Watt |
| Software Included | UniFi Controller |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UDM-PRO
More Details
Product Code
03:142718
EAN Code
0817882027373
Manufacturer
Ubiquiti
