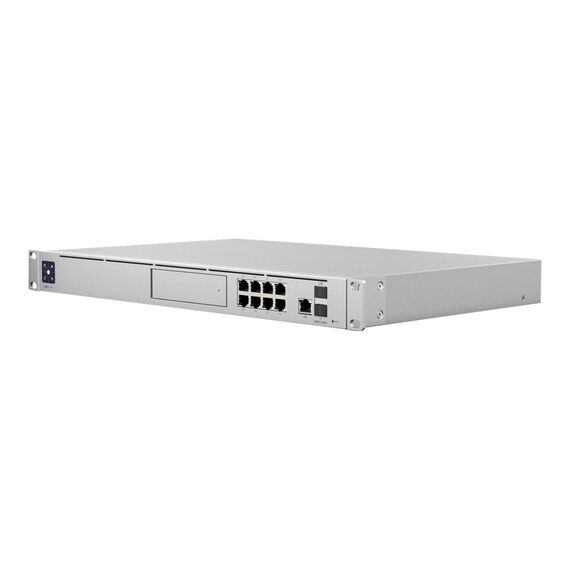

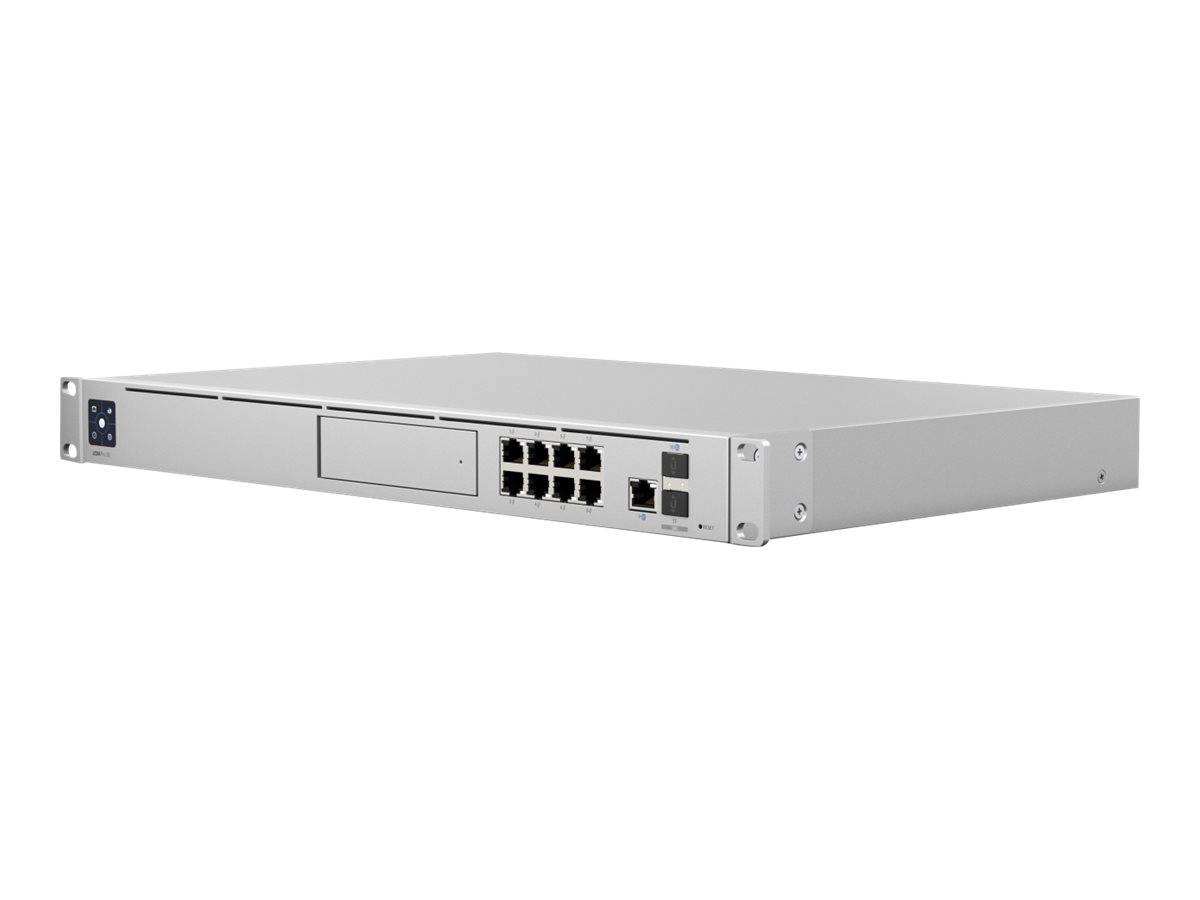

Ubiquiti UniFi Dream Machine Special Edition / Network management device / 10 GigE, 2.5 GigE / 1U / rack-mountable | UDM-SE
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Built-in Devices | 1.3" touch screen display, NVR |
| Width | 44.24 cm |
| Depth | 28.56 cm |
| Height | 4.37 cm |
| Weight | 4.95 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x 1.7 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
| Hard Drive | SSD 128 GB x 1 |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Switching Protocol | Ethernet |
| Performance | IPS throughput: 3.5 Gbps ¦ Intrusion detection throughput: 3.5 Gbps |
| Status Indicators | HDD activity, RPS (Redundant Power Supply), link/activity, HDD fault |
| Features | Routing, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, reset button, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), Bluetooth management |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 1 (total) / 1 (free) x internal - 2.5" / 3.5" |
| Interfaces | 6 x 1000Base-T (PoE) - RJ-45 - 15.4 W ¦ 2 x 1000Base-T (PoE+) - RJ-45 - 30 W ¦ 1 x 10Gb Ethernet - SFP+ ¦ 1 x 2.5 GBase-T - RJ-45 (WAN) ¦ 1 x 10Gb Ethernet - SFP+ (WAN) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IC, FCC |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | Internal power supply |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 240 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | UniFi OS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UDM-SE
More Details
Product Code
03:183459
EAN Code
0810010077769
Manufacturer
Ubiquiti
