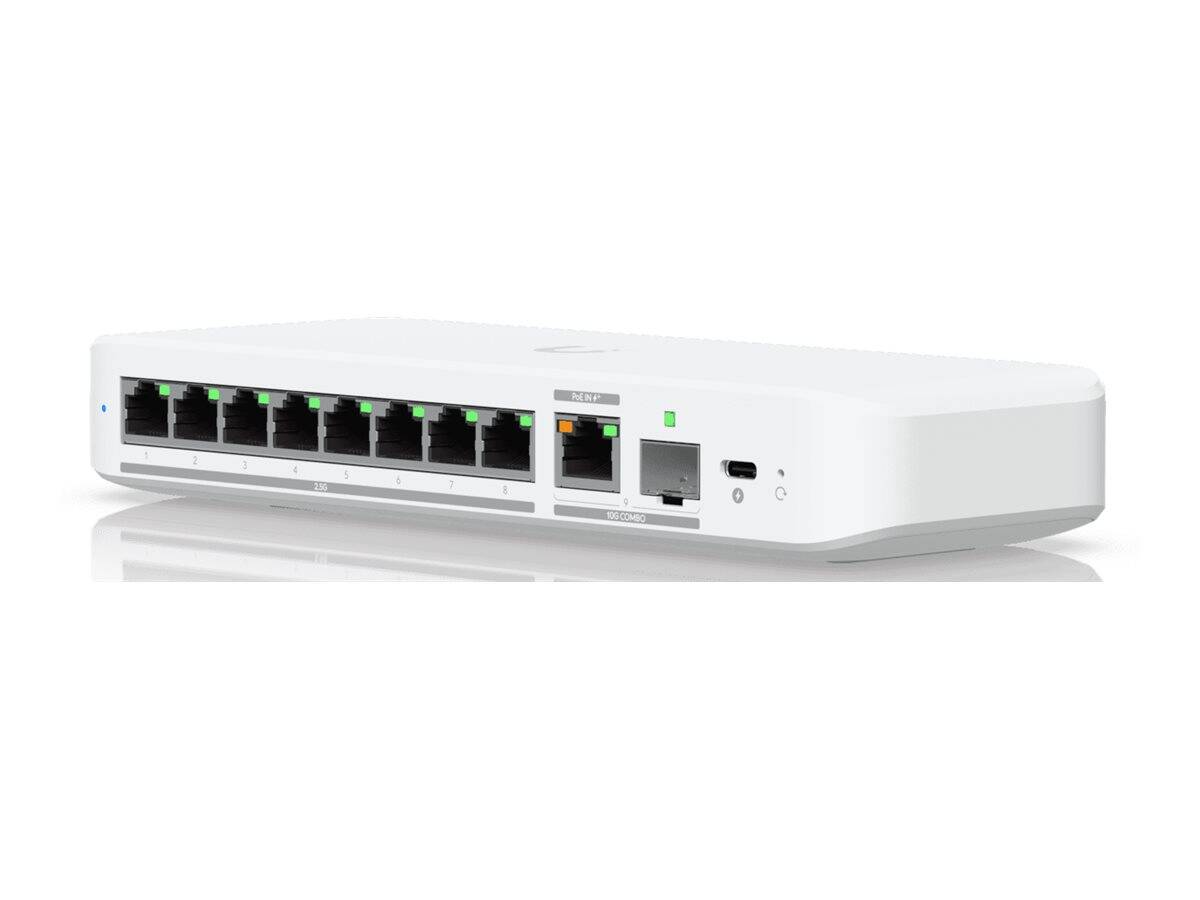

Ubiquiti UniFi Flex 2.5G - Switch - Managed - 8 x 2.5GBase-T + 1 x 10Gb Ethernet + 1 x 10Gb Ethernet SFP+ - desktop, wall-mountable, DIN rail mountable - PoE+ | USW-Flex-2.5G-8
Please sign in so that we can notify you about a reply
Product Features
- High capacity management
The Ubiquiti UniFi Flex 2.5G accommodates 4,000 MAC addresses and 256 VLANs, enabling efficient network segmentation and management for diverse applications. - Efficient performance
With a switching capacity of 60 Gbps and a forwarding rate of 45 Mpps, this switch delivers performance data handling to meet operational demands. - Flexible installation
The device supports multiple installation methods, being suitable for desktop, DIN rail, or wall mounting, providing adaptability to different environments. - Environmentally resilient
Designed to operate in a temperature range from -20°C to 45°C and withstand humidity levels of 10% to 90%, this switch is reliable in various conditions. - Advanced networking features
Equipped with features like port mirroring, Jumbo Frame support, and storm control, the switch optimizes network traffic and enhances overall performance.
Special Fetures
- Supports up to 4,000 MAC addresses and 256 VLANs
- Switching capacity of 60 Gbps
- Flexible form factors including desktop and wall-mountable
- Designed for extreme environmental conditions
- Features like port mirroring and storm control
Product Specification
| Device Type | Switch - 10 ports - Managed |
| Enclosure Type | Desktop, wall-mountable, DIN rail mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 2.5GBase-T + 1 x 10Gb Ethernet + 1 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Non-blocking switching throughput: 30 <br /> Switching capacity: 60 Gbps <br /> Forwarding rate: 45 Mpps |
| Capacity | VLANs supported: 256 <br /> MAC addresses: 4000 |
| Jumbo Frame Support | Yes |
| Routing Protocol | STP, RSTP |
| Features | Egress rate limit, flow control, Storm Control, multicast/broadcast rate limiting, port isolation, port mirroring, Jumbo Frames support, loop protection |
| Expansion / Connectivity | |
| Interfaces | 8 x 2.5Gbit LAN RJ-45 <br /> 1 x 10Gbit LAN RJ-45 <br /> 1 x 10Gbit LAN SFP+ |
| Power | |
| Power Device | External power adapter |
| Power Provided | 15 Watt |
| Power Consumption Operational | 14 Watt |
| Miscellaneous | |
| Compliant Standards | FCC, IC |
| Dimensions & Weight | |
| Width | 21.29 cm |
| Depth | 7.6 cm |
| Height | 3.35 cm |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
