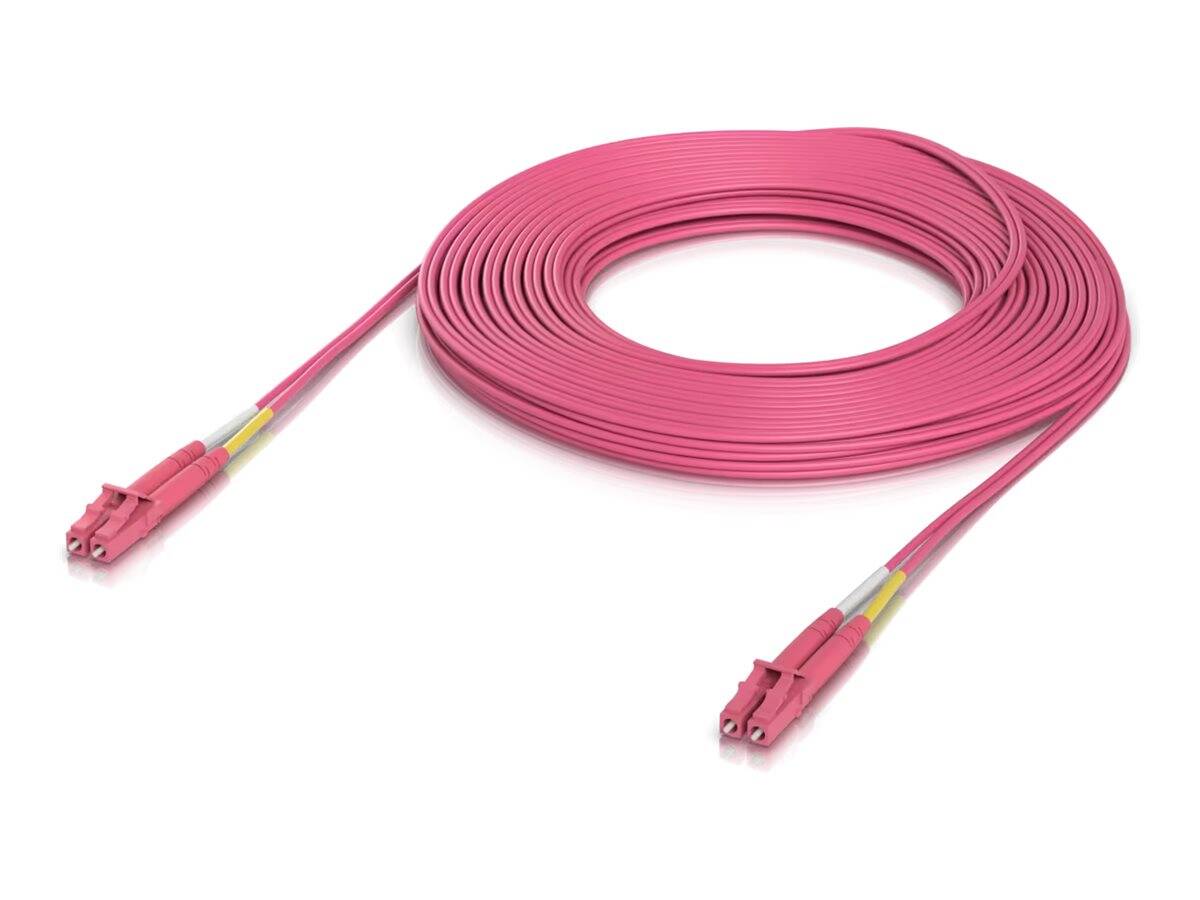

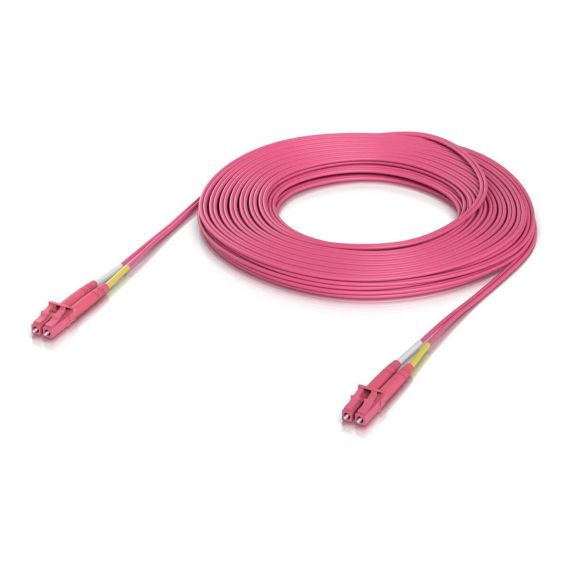

Ubiquiti UniFi - Patch cable - LC/UPC multi-mode (M) to LC/UPC multi-mode (M) - 15 m - 2 mm - fibre optic - duplex - OM4 - halogen-free, indoor - rose | UACC-OFC-M2-LULU-15M
UACC-OFC-M2-LULU-15M
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Durability
The cable is constructed with a low smoke zero halogen (LSZH) jacket, making it safe for indoor environments while providing protection against fire hazards. - Performance connectors
Equipped with LC/UPC multi-mode connectors on both ends, facilitating seamless connection without signal loss, ensuring steady and reliable data transmission. - Optical performance
Delivers signal integrity with an insertion loss of <= 0.3 dB and repeatability of = 0.1 dB, allowing for consistent data transfer in demanding applications. - Temperature tolerance
The patch cable remains functional in a wide range of conditions, withstanding temperatures from -40 °C to 75 °C, ideal for various installation environments. - Optimized for multimode applications
Designed for multimode connections with a fiber quantity of 2, ensuring efficient data handling and clear communication within network systems.
Special Fetures
- Made with OM4 compliant fiber optic technology
- Features low smoke zero halogen (LSZH) jacket for safety
- Includes LC/UPC male connectors for secure connections
- Offers high performance with <= 0.3 dB insertion loss
- Supports a wide operational temperature range from -40 °C to 75 °C
Product Specification
| Network Cable Type | Patch cable - OM4 |
| Technology | Duplex fibre optic |
| Type of Fibre Optics | Multimode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Fibre Qty | 2 |
| Features | Halogen-free, indoor, <= 0.3 dB insertion loss, >= 35 dB return loss, = 0.1 dB repeatability, wavelength of 850/1300 nm |
| Length | 15 m |
| Diameter | 2 mm |
| Colour | Rose |
| Connectivity | |
| Connector | 2 x LC/UPC multi-mode - male |
| Connector (Second End) | 2 x LC/UPC multi-mode - male |
| Manufacturer Warranty | |
| Service & Support | 2-year warranty |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
