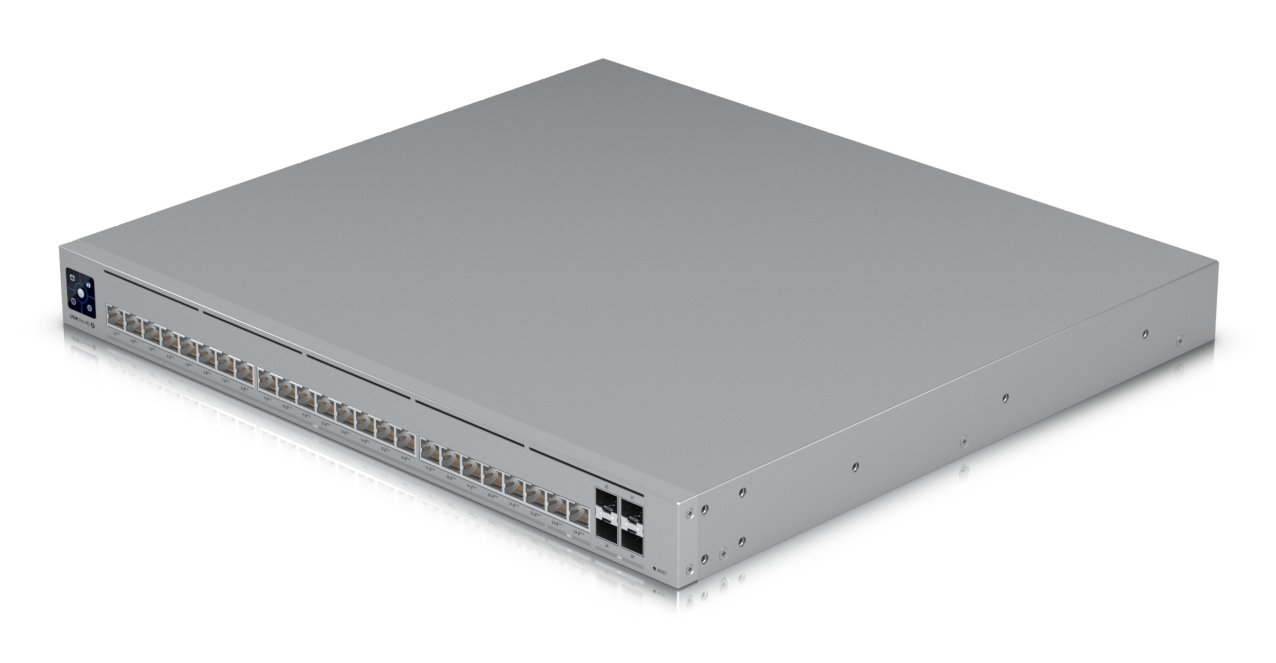

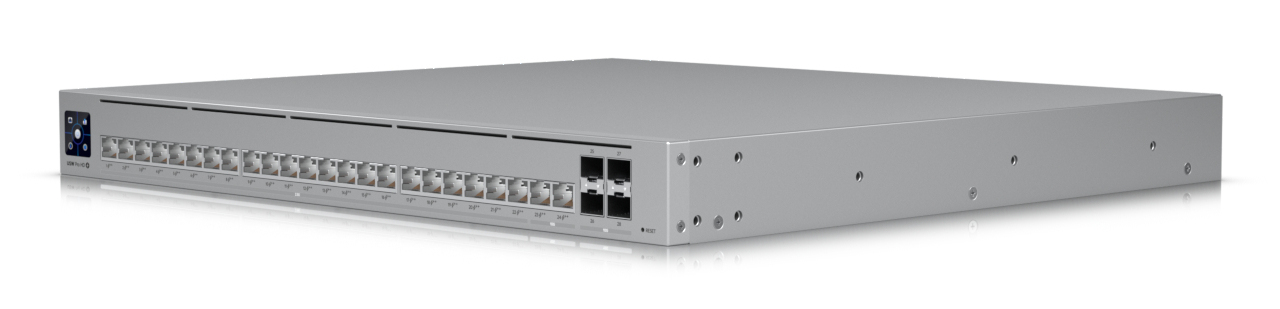

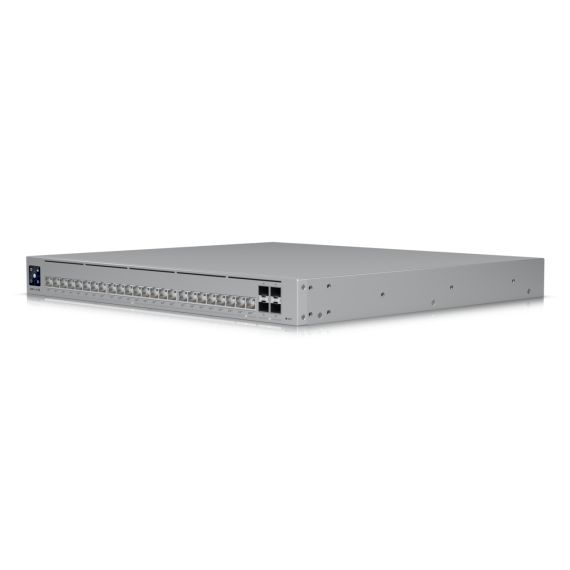

Ubiquiti UniFi Pro Max / Switch / L3 / 2 x 10GBase-T (PoE++) + 22 x 2.5GBase-T (PoE++) + 4 x 10 Gigabit SFP+ / rack-mountable / PoE++ (600 W) / for P/N: UACC-CABLE-PATCH-EL-0.15M-W, UACC-DAC-SFP10-0.5M | USW-PRO-HD-24-POE
USW-PRO-HD-24-POE
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- High capacity performance
The Ubiquiti UniFi Pro Max supports up to 1000 IPv4 routes and 6000 ARP entries, providing ample capacity for larger networking environments. - Versatile connectivity options
With 24 ports, including 2.5GBase-T and 10GBase-T, this switch offers flexible connectivity to cater to various network needs. - Reliable environmental operation
Operates in a wide temperature range from -5°C to 40°C and within a humidity range of 10-90%, suitable for different operational settings. - Robust networking features
Incorporates advanced networking capabilities such as IGMP snooping, Layer 2 and Layer 3 switching, and static routing to enhance network performance. - User-friendly design
Equipped with a 1.3-inch touch screen display, this switch facilitates easy management and navigation through its features and settings.
Special Fetures
- Supports 1000 IPv4 routes and 6000 ARP entries
- Includes 24 ports with a mix of 2.5GBase-T and 10GBase-T options
- Features a 1.3-inch touch screen display for easy management
- Robust operating temperature and humidity range
- Compliant with IC and FCC standards
Product Specification
| Device Type | Switch - 24 ports - L3 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |

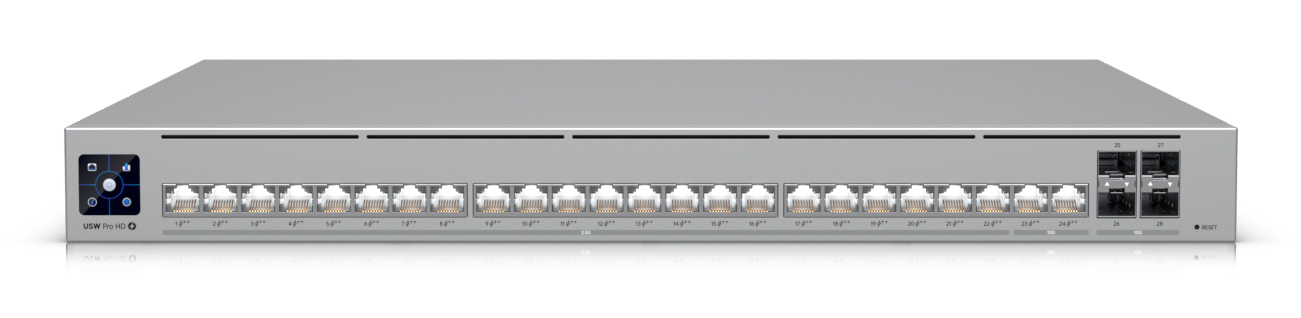

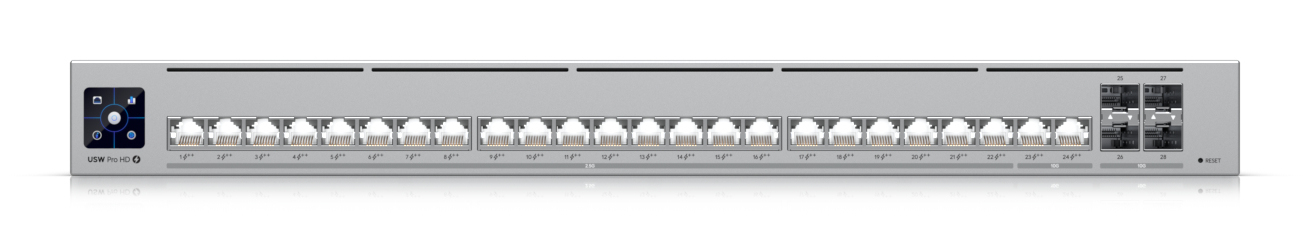

| Ports | 2 x 10GBase-T (PoE++) + 22 x 2.5GBase-T (PoE++) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 600 W |
| Performance | Switching capacity: 112 Gbps <br /> Non-blocking switching throughput: 56 Gbps <br /> Forwarding rate: 83 Mpps |
| Capacity | VLANs supported: 1000 <br /> ARP entries: 6000 <br /> IPv4 routes: 512 |
| MAC Address Table Size | 16000 entries |
| Routing Protocol | STP, RSTP, static IP routing |
| Features | Etherlighting ports, DHCP server, DHCP relay, Inter-VLAN Routing, static routing, port aggregation, MC-LAG, IGMP snooping, egress rate limit, flow control, Storm Control, DHCP snooping, DHCP guardian, multicast rate limiting, broadcast rate limiting, MAC address blocking, IP-based ALCs, port isolation, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, Layer 2 switching |
| Compliant Standards | IEEE 802.1x |
| Built-in Devices | 1.3" touch screen display |
| Expansion / Connectivity | |
| Interfaces | 22 x 2.5GBase-T RJ-45 64 W <br /> 2 x 10GBase-T RJ-45 64 W <br /> 4 x 10GBase-T SFP+ |
| Power | |

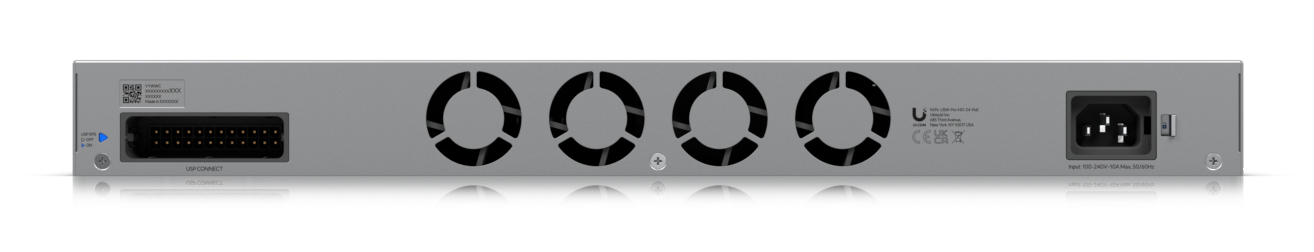

| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Power Provided | 660 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 50 Watt |
| Features | DC power backup |
| Miscellaneous | |

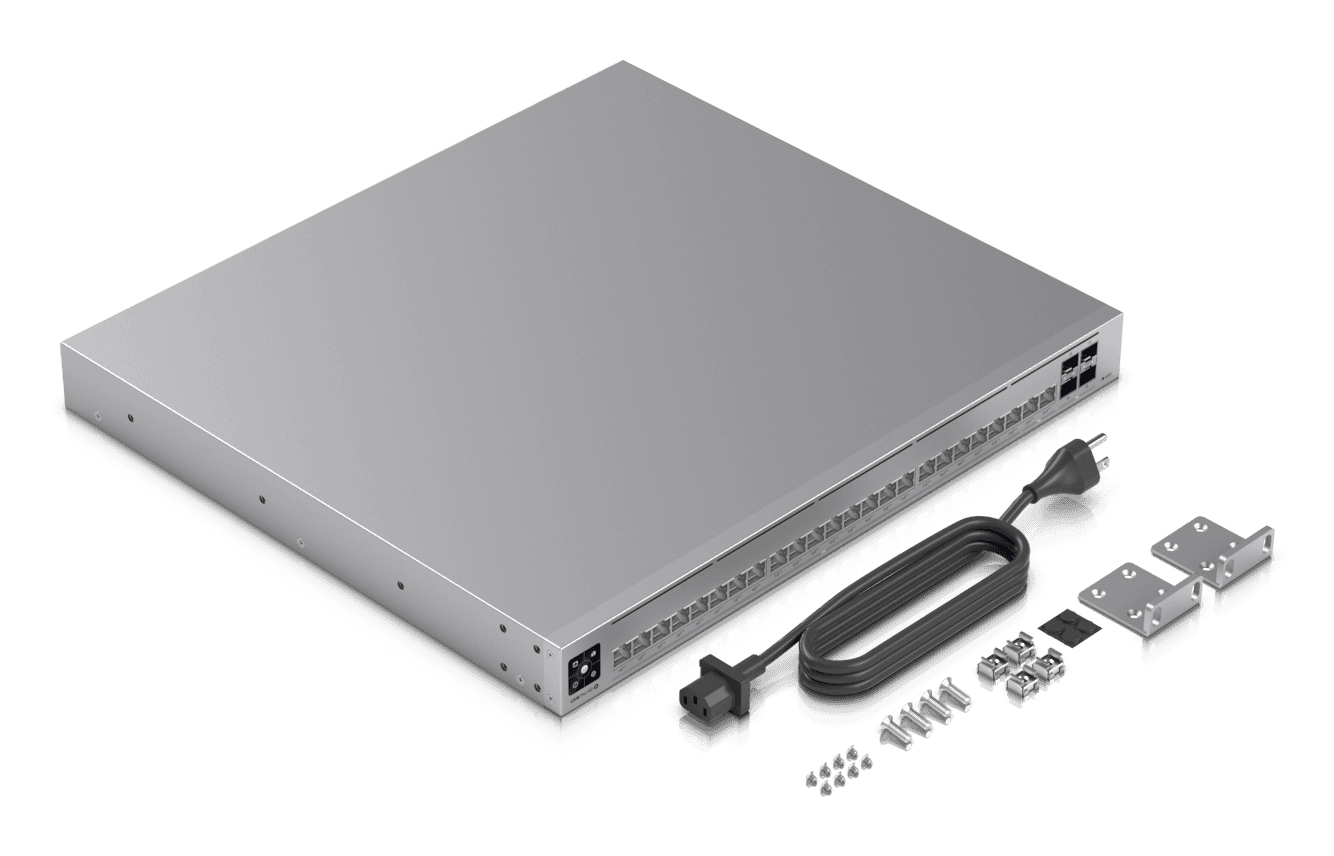

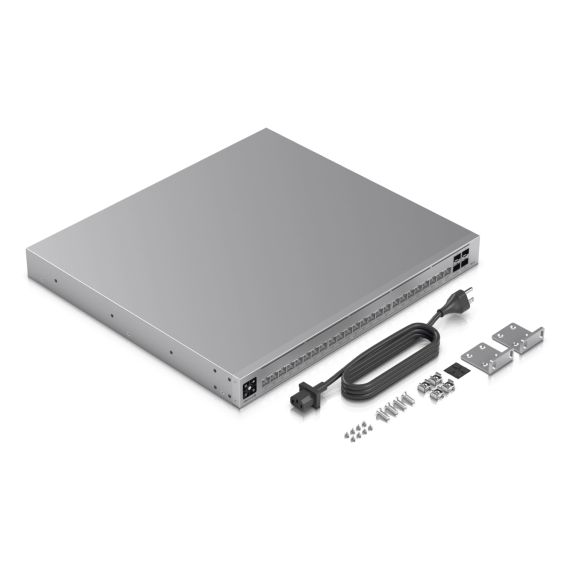

| Rack Mounting Kit | Included |
| Compliant Standards | FCC, IC |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 32.5 cm |
| Height | 4.4 cm |
| Weight | 4.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: UACC-CABLE-PATCH-EL-0.15M-W, UACC-DAC-SFP10-0.5M |
Features - Ubiquiti - USW-PRO-HD-24-POE
More Details
Product Code
03:263556
EAN Code
0810084696606
