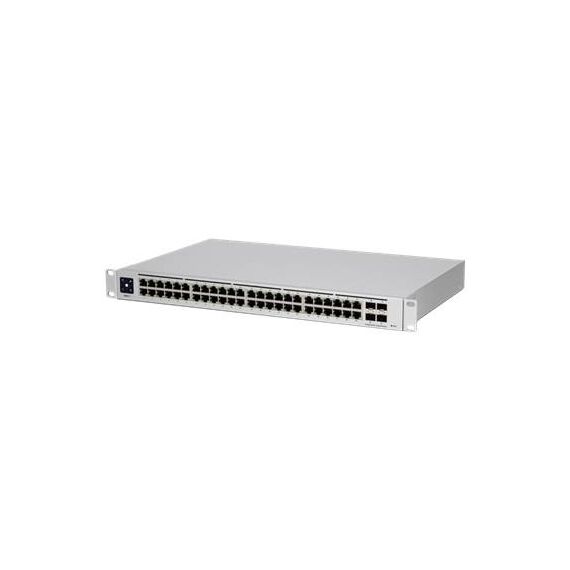

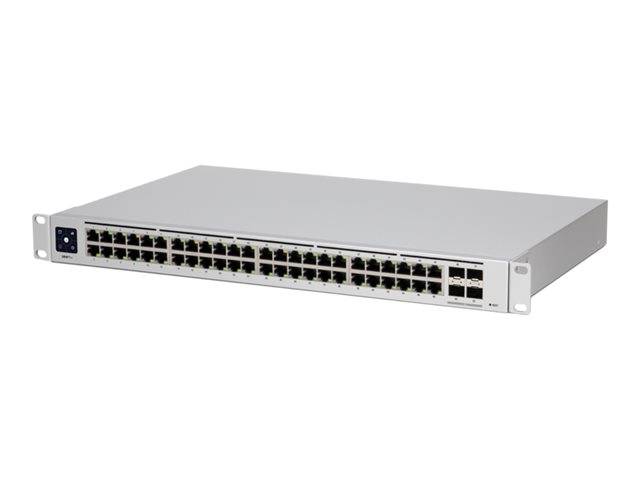

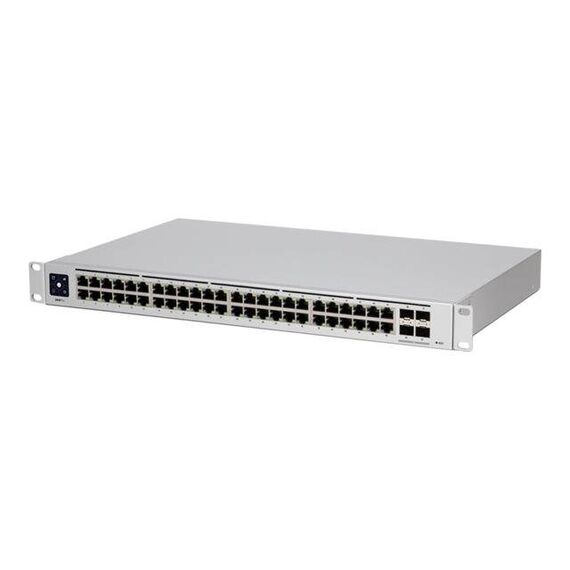

Ubiquiti UniFi Switch PRO 48 / Switch / L3 / Managed / 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ / rack-mountable / AC 120/230 V / DC 11.5 V | USW-PRO-48
Please sign in so that we can notify you about a reply
Ubiquiti UniFi Switch PRO 48 / Switch / L3 / Managed / 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ / rack-mountable / AC 120/230 V / DC 11.5 V | USW-PRO-48
Description
The UniFi Switch PRO 48 features a rich set of layer 2 capabilities and integrates layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch PRO 48 is an ideal aggregation and access layer switch for any UniFi solution - it combines innovative near-silent cooling with UniFi power redundancy.
Ubiquiti UniFi Switch PRO 48 / Switch | USW-PRO-48
Special Features
- Layer 2 and layer 3 features
- Near-silent cooling
- Touchscreen display
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ |
| Performance | Non-blocking bandwidth: 88 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.944 Mpps |
| Authentication Method | RADIUS |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), port mirroring, deep inspection, Jumbo Frames support, DHCP server, fanless, Dynamic VLAN Support (GVRP), 802.1x authentication, Storm Control, Link Aggregation, Inter-VLAN Routing, aggregation mode, 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge) |
| Compliant Standards | IEEE 802.1x |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | Link/activity, link/activity/speed |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x management |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V / DC 11.5 V (50/60 Hz) |
| Power Consumption Operational | 60 Watt |
| Rack Mounting Kit | Included |
| Compliant Standards | IC, FCC, ETSI 300 019-1-4 |
| Width | 44.24 cm |
| Depth | 28.54 cm |
| Height | 4.37 cm |
| Weight | 4 kg |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Ubiquiti - USW-PRO-48
General
48-Port
More Details
Product Code
03:143756
EAN Code
0810010070616
Manufacturer
Ubiquiti
