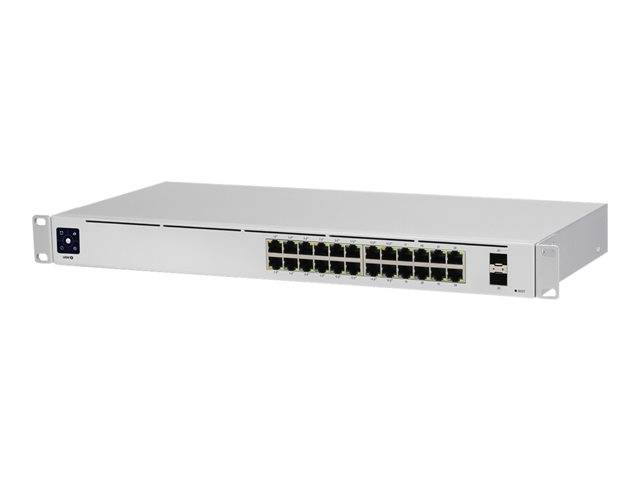

Ubiquiti UniFi Switch USW-24-POE / Switch / Managed / 24 x 10/100/1000 (16 PoE+) + 2 x Gigabit SFP / desktop, rack-mountable / PoE++ (95 W) | USW-24-POE
Please sign in so that we can notify you about a reply
Ubiquiti UniFi Switch USW-24-POE / Switch / Managed / 24 x 10/100/1000 (16 PoE+) + 2 x Gigabit SFP / desktop, rack-mountable / PoE++ (95 W) | USW-24-POE
Description
Expand and power your network with the UniFi PoE Switch, part of the Ubiquiti UniFi Enterprise System.
Ubiquiti UniFi Switch USW-24-POE / Switch | USW-24-POE
Special Features
- Fiber connectivity
- Fanless, silent cooling
- Switching performance
Product features
- Fiber connectivity
SFP ports enable network uplinks of up to 1 Gbps. - Fanless, silent cooling
The UniFi PoE Switch features fanless, silent thermal cooling, so it can be located in any workspace. - Switching performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Product Specification
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (16 PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 95 W |
| Performance | Non-blocking bandwidth: 26 Gbps ¦ Switching capacity: 52 Gbps ¦ Forwarding rate: 38.69 Mpps |
| Authentication Method | RADIUS |
| Features | Flow control, switching, auto-uplink (auto MDI/MDI-X), port mirroring, deep inspection, Jumbo Frames support, fanless, Dynamic VLAN Support (GVRP), 12KV ESD Protector, Storm Control, aggregation mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.11x |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | Status, PoE, link/activity, link/activity/speed |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 32 W ¦ 8 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP ¦ 1 x management |
| Power Device | Internal power supply |
| Power Provided | 120 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 25 Watt |
| Compliant Standards | IC, FCC, ETSI 300 019-1-4 |
| Width | 44.24 cm |
| Depth | 20 cm |
| Height | 4.37 cm |
| Weight | 3 kg |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Ubiquiti - USW-24-POE
General
24-Port
More Details
Product Code
04:322570
EAN Code
0817882028554
Manufacturer
Ubiquiti
