Description

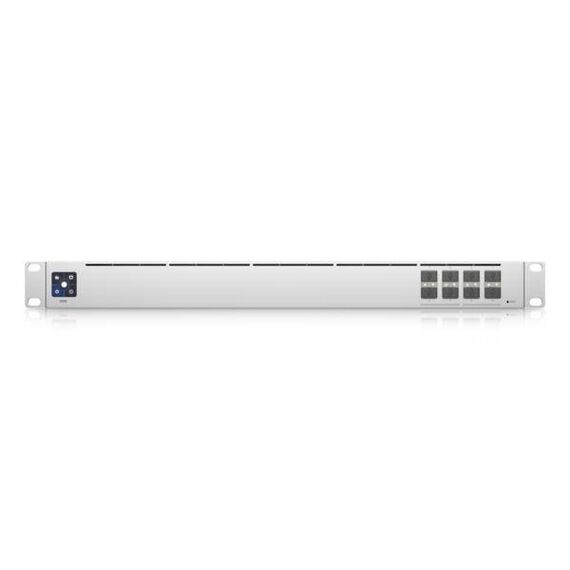

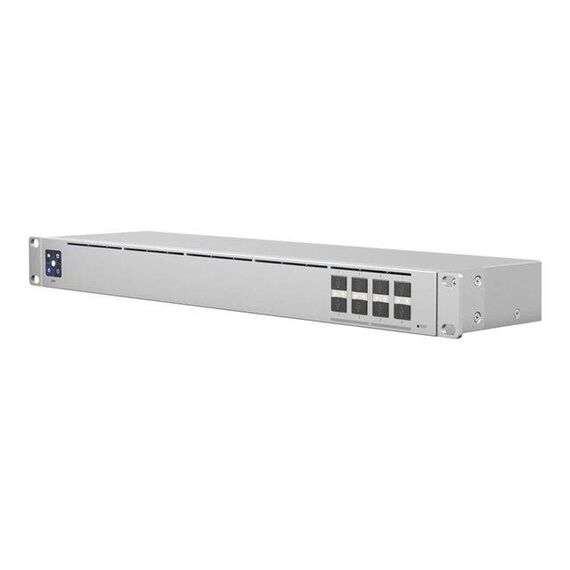

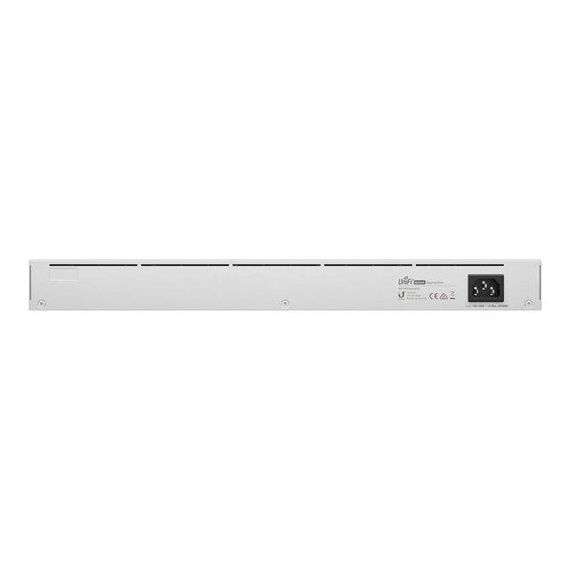

UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Ubiquiti UniFi Switch USW-Aggregation / Switch | USW-AGGREGATION
Special Features
- (8) 10G SFP+ ports
- 160 Gbps switching capacity
- 1.3" touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U rackmountable (kit included)
- Managed by UniFi network controller
Product Specification
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 10 Gigabit SFP+ |
| Performance | Non-blocking switching throughput: 80 Gbps ¦ Switching capacity: 160 Gbps ¦ Forwarding rate: 119.04 Mbps |
| Features | Layer 2 switching, fanless, 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge) |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | System, SFP+, firmware, steady |
| Interfaces | 8 x 10Gbit LAN SFP+ |
| Power Device | Internal power supply |
| Power Provided | 36 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 30 Watt |
| Rack Mounting Kit | Included |
| Compliant Standards | IC, FCC |
| Width | 44.24 cm |
| Depth | 12 cm |
| Height | 4.37 cm |
| Weight | 2.65 kg |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Ubiquiti - USW-AGGREGATION
General
8-Port
More Details
Product Code
03:151912
EAN Code
0810010074331
Manufacturer
Ubiquiti
