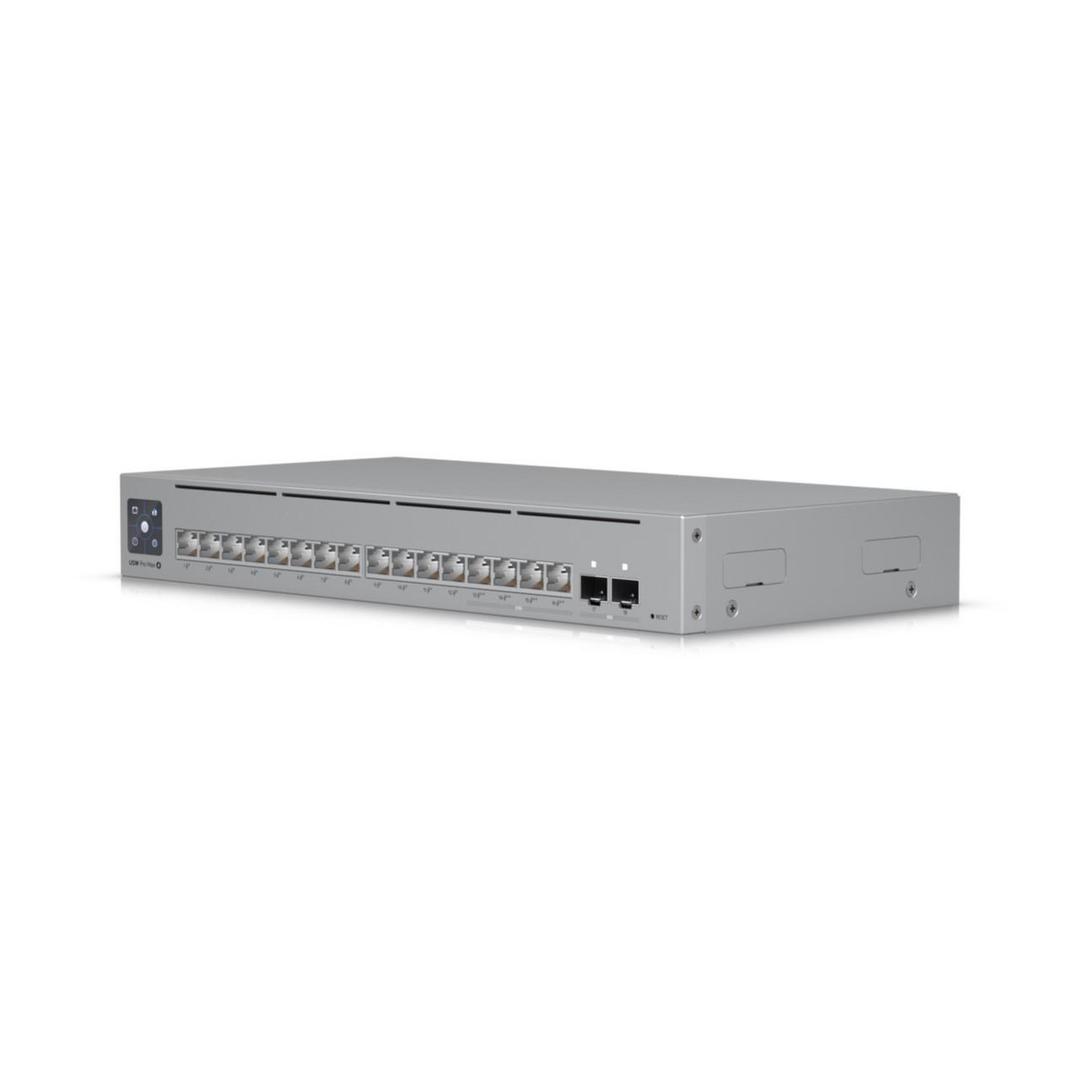

Ubiquiti UniFi Switch Pro Max 16 PoE - Switch - L3 - Managed - 12 x 10/100/1000 (12 PoE+, 4 PoE++) + 4 x 2.5GBase-T + 2 x 10 Gigabit Ethernet - desktop, rack-mountable - PoE++ (180 W) - DC | USW-Pro-Max-16-PoE
Please sign in so that we can notify you about a reply
Product Features
- Robust performance
With non-blocking switching throughput of 42 Gbps, a switching capacity of 84 Gbps, and a forwarding rate of 62.496 Mpps, the Ubiquiti UniFi Switch Pro Max 16 PoE delivers reliable, high-speed network performance suitable for demanding business applications. - Advanced connectivity
Equipped with 12 10/100/1000 Base-T ports, 4 2.5GBase-T ports, and 2 10GBase-T SFP+ ports, this switch offers versatile connectivity options for a wide range of devices and network requirements. - Comprehensive PoE support
With a PoE budget of 180 W and support for both PoE+ and PoE++, the switch can power a variety of devices, including high-power items such as access points and surveillance cameras, directly through network cables, simplifying installation and reducing cable clutter. - Intelligent network management
Featuring Layer 3 advanced switching, VLAN support, and manageability, the switch enables efficient network segmentation and resource allocation. Its comprehensive feature set, including ACL support, DHCP snooping, and IGMP snooping, ensures secure and optimized network performance. - Durable and operational under extreme conditions
Designed to operate in a wide temperature range from -5°C to 40°C and housed in a robust steel casing, the Ubiquiti UniFi Switch Pro Max 16 PoE is built to withstand challenging environmental conditions, ensuring reliable operation in a variety of settings.
Special Fetures

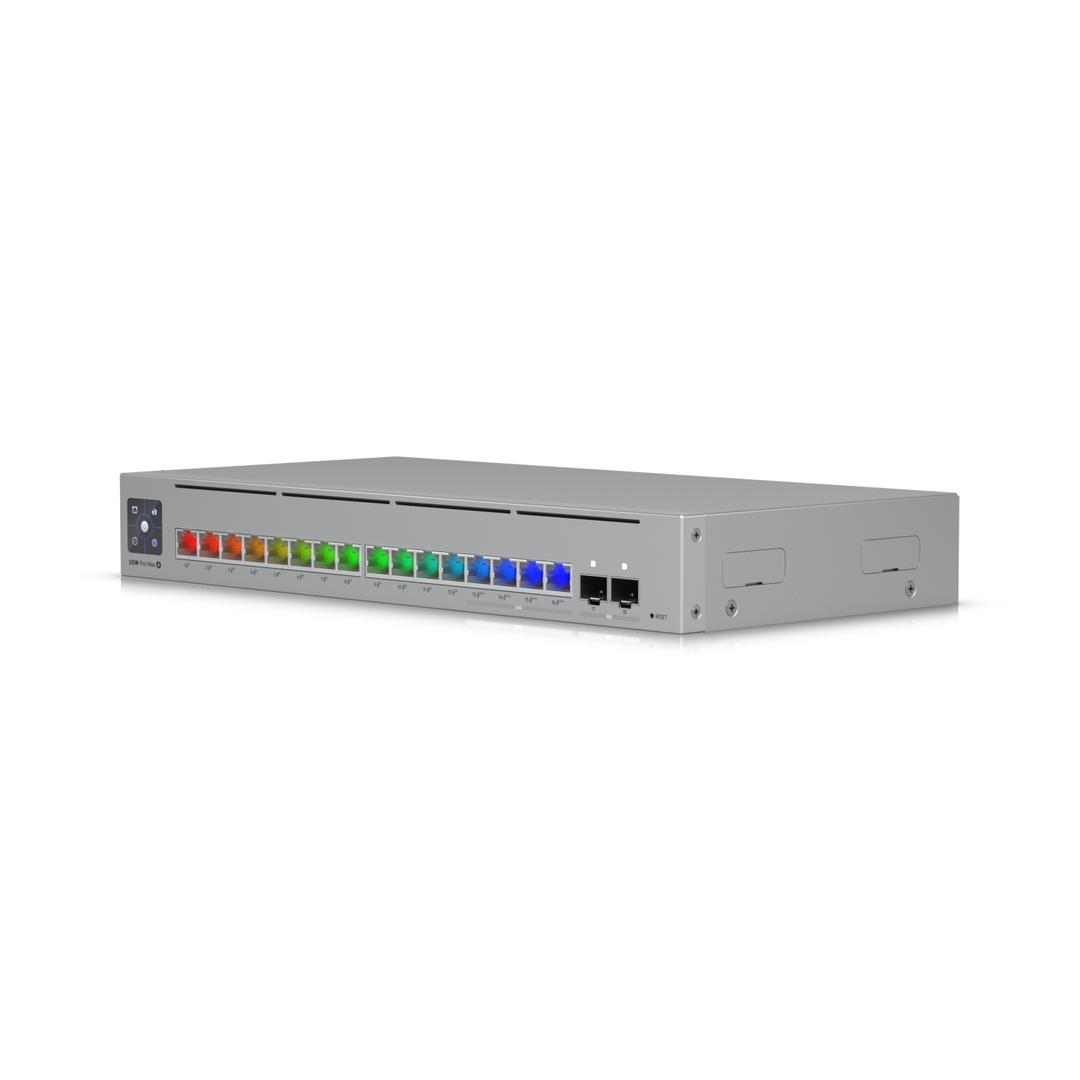

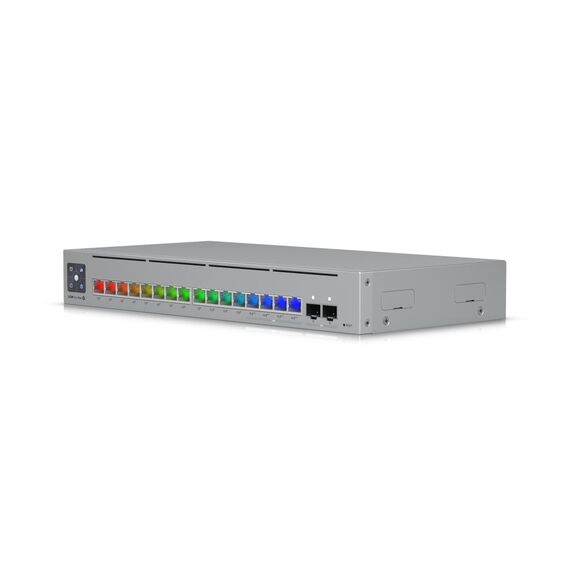

- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
- 4x 2.5 GbE PoE++ ports
- 12x GbE PoE+ ports
- 2x 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fan-less cooling system
Product Specification
| Device Type | Switch - 16 ports - L3 - Managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Ports | 12 x 10/100/1000 (12 PoE+, 4 PoE++) + 4 x 2.5GBase-T + 2 x 10 Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 180 W |
| Performance | Non-blocking switching throughput: 42 Gbps ¦ Switching capacity: 84 Gbps ¦ Forwarding rate: 62.496 Mpps |
| Routing Protocol | RSTP, STP |
| Features | Flow control, VLAN support, IGMP snooping, port mirroring, RSTP support, DHCP snooping, ACL support, Jumbo Frames support, PoE+, reset button, DHCP relay, LACP, DHCP protection, port isolation, static routing, 802.1x authentication, PoE++, Storm Control, MAC address authentication, Voice VLAN, LLDP-MED, Inter-VLAN Routing, egress rate limiting, port disable, steel housing, loop protection, LED status indicators, port aggregation, Etherlighting ports, multicast/broadcast rate limiting |
| Compliant Standards | IEEE 802.1x |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | Status, RPS (Redundant Power Supply), link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 12 x 10/100/1000 Base-T RJ-45 ¦ 4 x 2.5GBase-T RJ-45 ¦ 2 x 10GBase-T SFP+ |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 210 Watt |
| Voltage Required | DC |
| Power Consumption Operational | 30 Watt |
| Miscellaneous | |

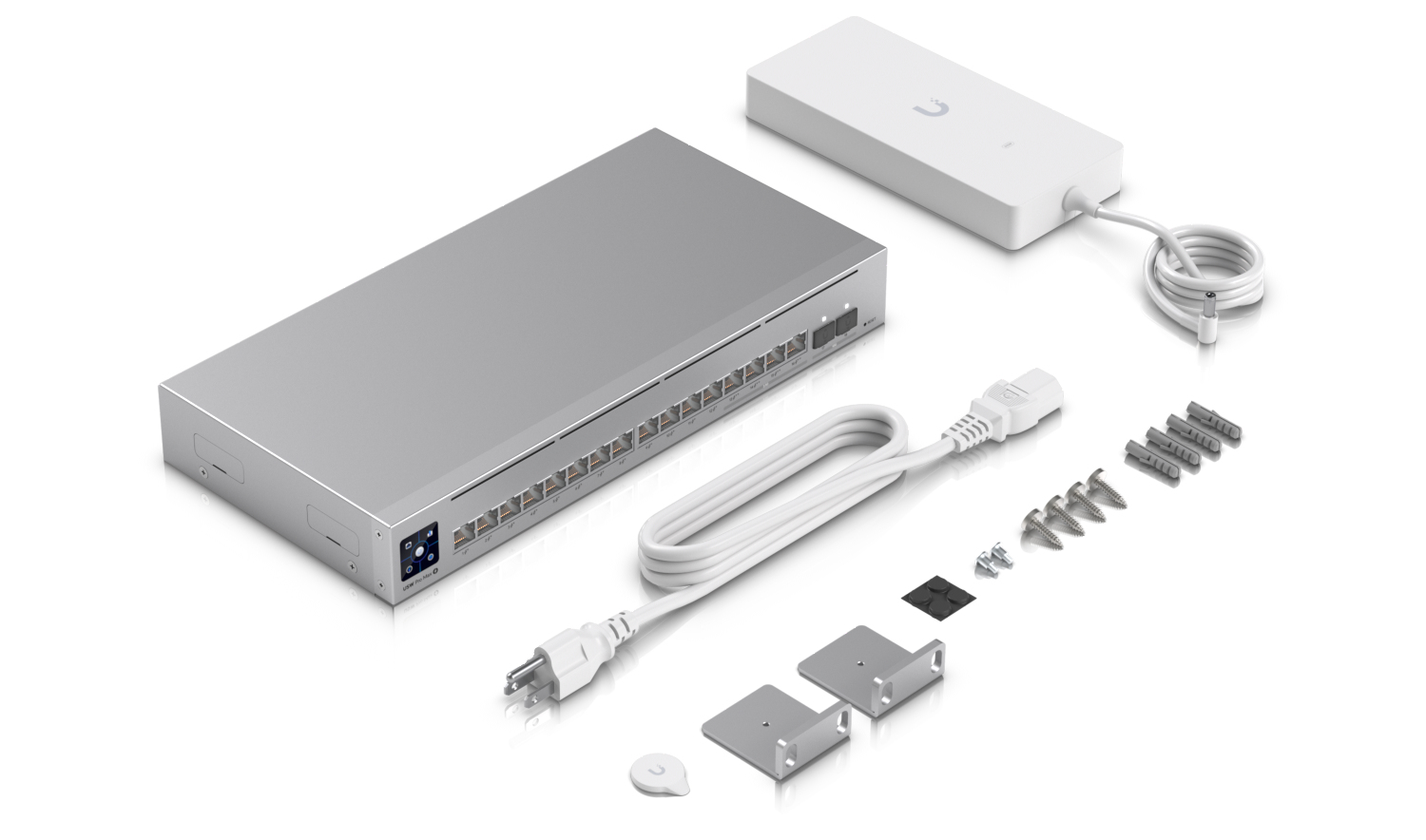

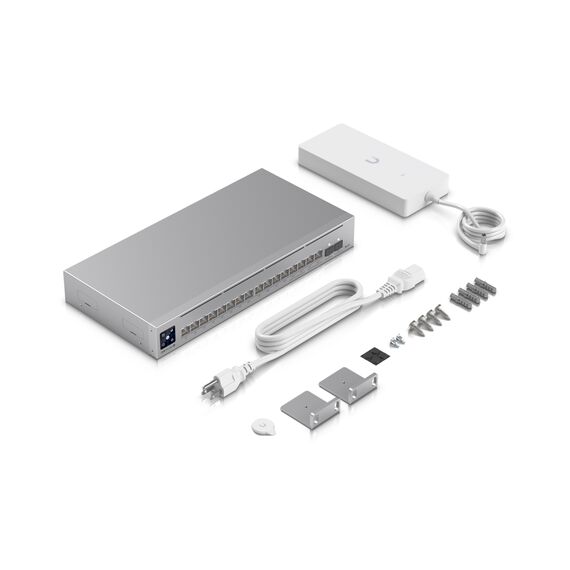

| Included Accessories | Rack mount kit, power cord |
| Compliant Standards | IC, FCC, SGCC |
| Dimensions & Weight | |
| Width | 32.51 cm |
| Depth | 16 cm |
| Height | 4.37 cm |
| Weight | 2.1 kg |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Ubiquiti - USW-Pro-Max-16-PoE
More Details
Product Code
04:482021
EAN Code
0810084694572
Manufacturer
Ubiquiti
