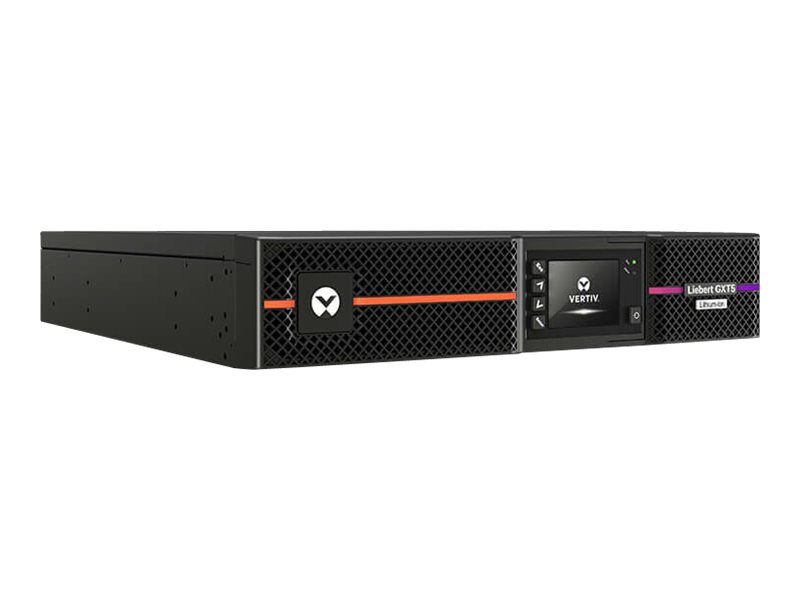

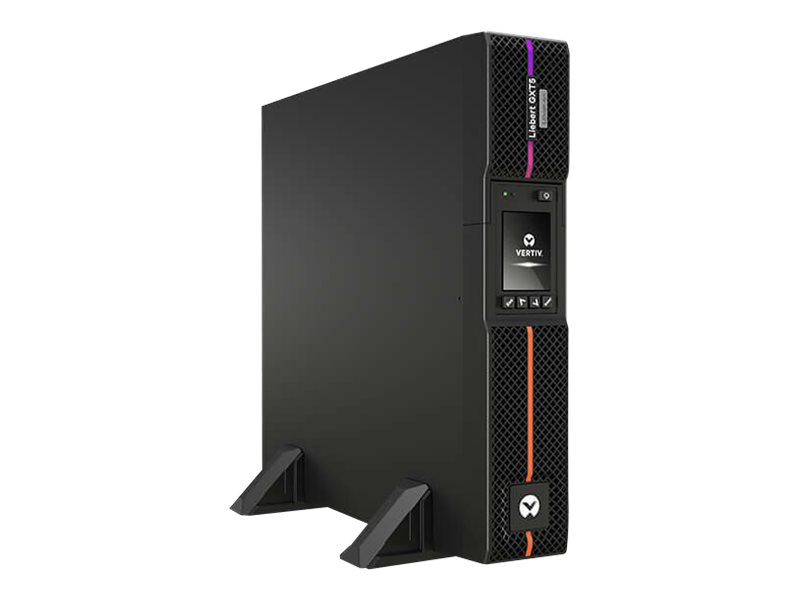

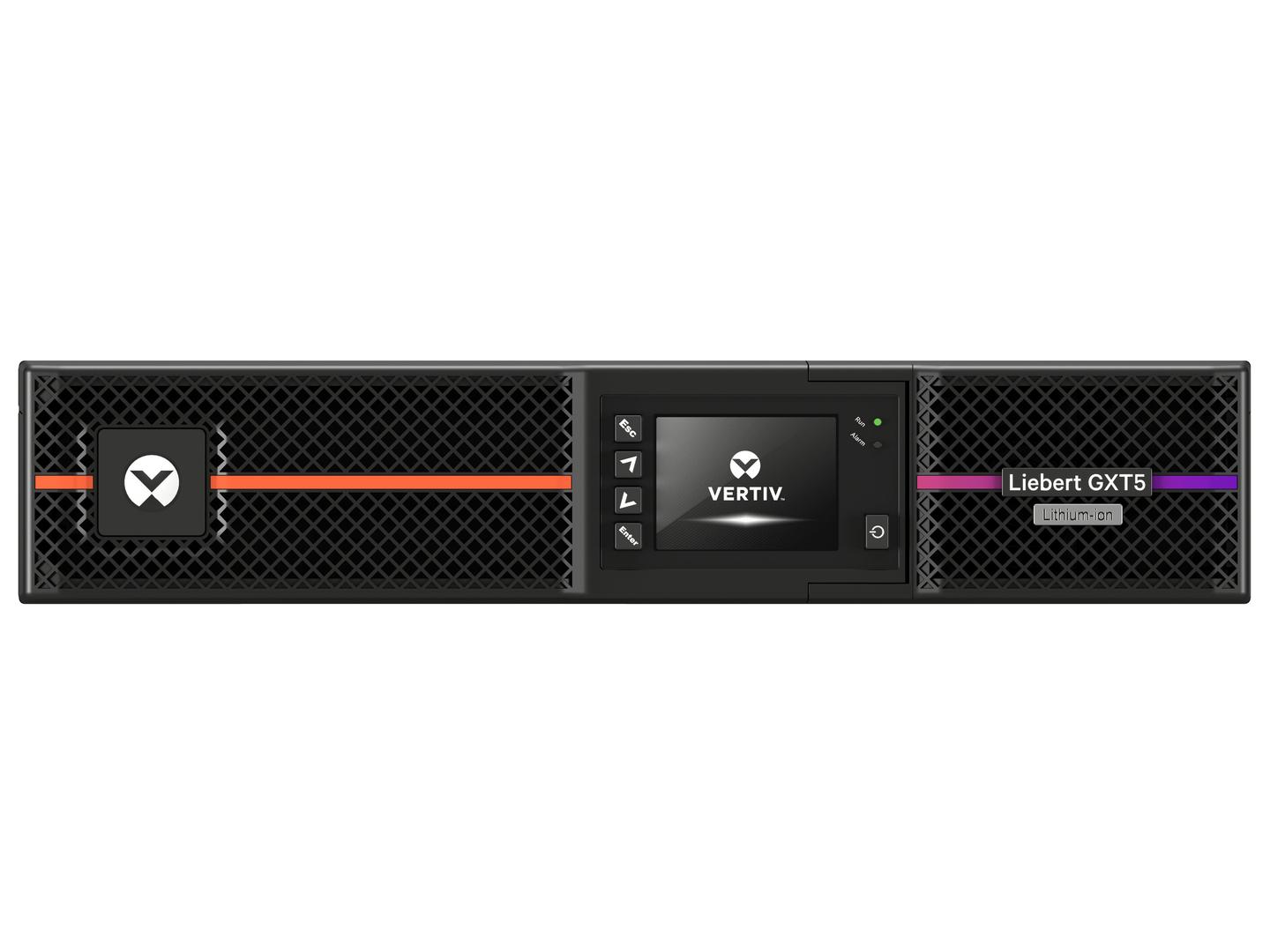

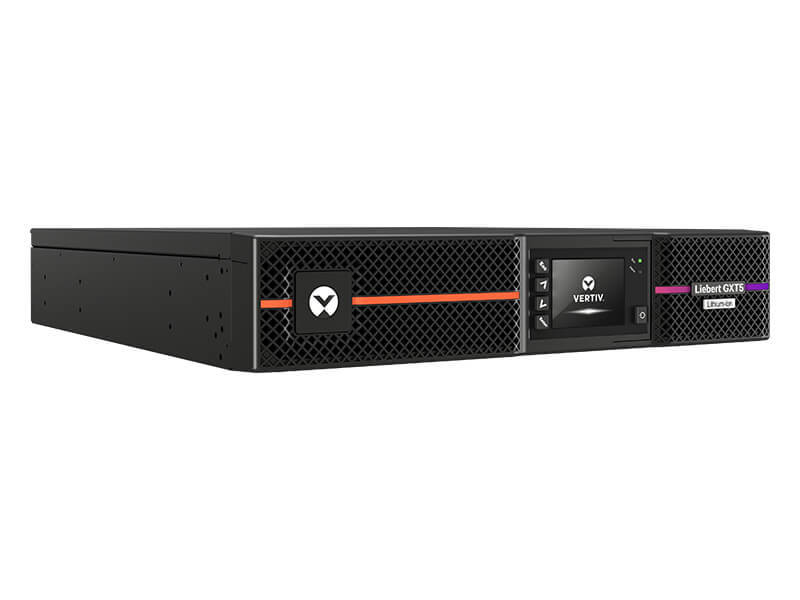

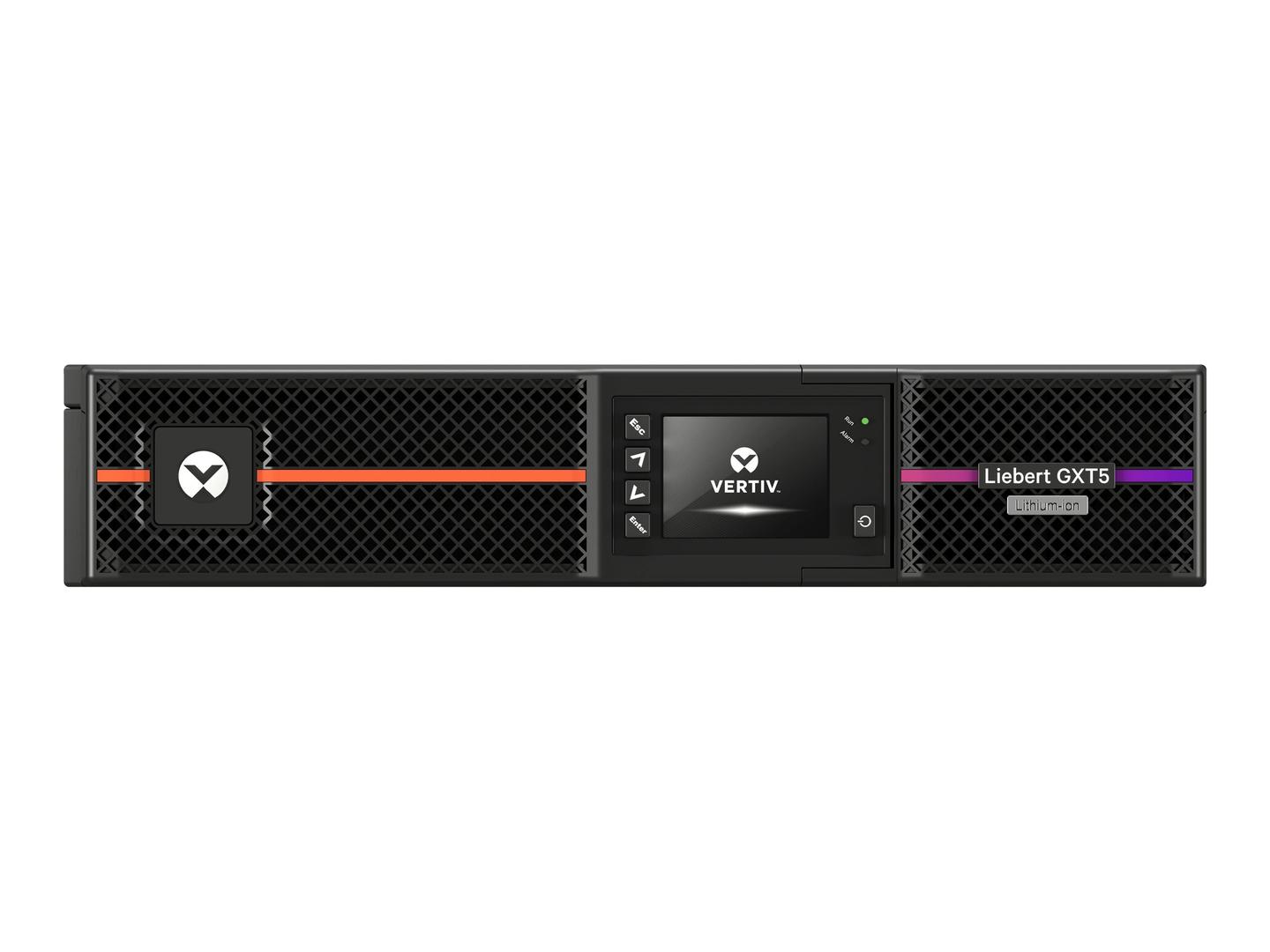

UPS (rack-mountable / external) - AC 230 V - 1500 Watt - 1500 VA - USB, serial - output connectors: 8 - 2U | GXT5LI-1500IRT2UXL
Product Features
- Efficient power management
The Liebert GXT5 UPS showcases an impressive efficiency of 95% in online mode and 98% in Eco mode, ensuring optimal power usage and reduced energy costs. Its advanced power factor of 0.9 delivers more power to connected loads, making it an ideal solution for energy-conscious businesses. - Reliable battery technology
Equipped with a lithium-ion battery, the Liebert GXT5 offers a quick recharge time of just 2 hours and provides up to 13 minutes of run time at full load. This combination of efficiency and reliability ensures your critical equipment remains operational during power disruptions, minimizing downtime. - Comprehensive protection
This UPS is designed to safeguard your equipment from a wide range of power issues, including overcurrent, overvoltage, and undervoltage situations. Its seamless transfer time of 0 ms and sinewave output waveform ensure a smooth transition during power outages, protecting sensitive electronic devices. - Advanced connectivity options
With both USB and serial remote management interfaces, alongside SNMP protocol support, the Liebert GXT5 offers versatile monitoring and management capabilities. This ensures you can easily oversee your power infrastructure and make adjustments as needed, directly contributing to operational efficiency. - Flexible installation and maintenance
The rack-mountable / external form factor, combined with hot-swappable and replaceable battery features, provides a flexible and convenient installation and maintenance process. This adaptability makes it a perfect fit for various IT environments, from server rooms to network closets.
Special Fetures
- 95% efficiency in online mode and 98% in Eco mode for optimal power usage
- Quick 2-hour recharge time with up to 13 minutes of run time at full load
- Seamless 0 ms transfer time and sinewave output for smooth power transitions
- USB and serial interfaces with SNMP protocol support for advanced monitoring
- Hot-swappable and replaceable battery for easy maintenance
Product Specification
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 2U |
Power Device | |
UPS Technology | On-line |
Input Voltage | AC 230 V |
Input Voltage Range | AC 176 - 288 V |
Input Voltage Range (Adjustable) | AC 115 - 288 V |
Frequency Required | 40 - 70 Hz |

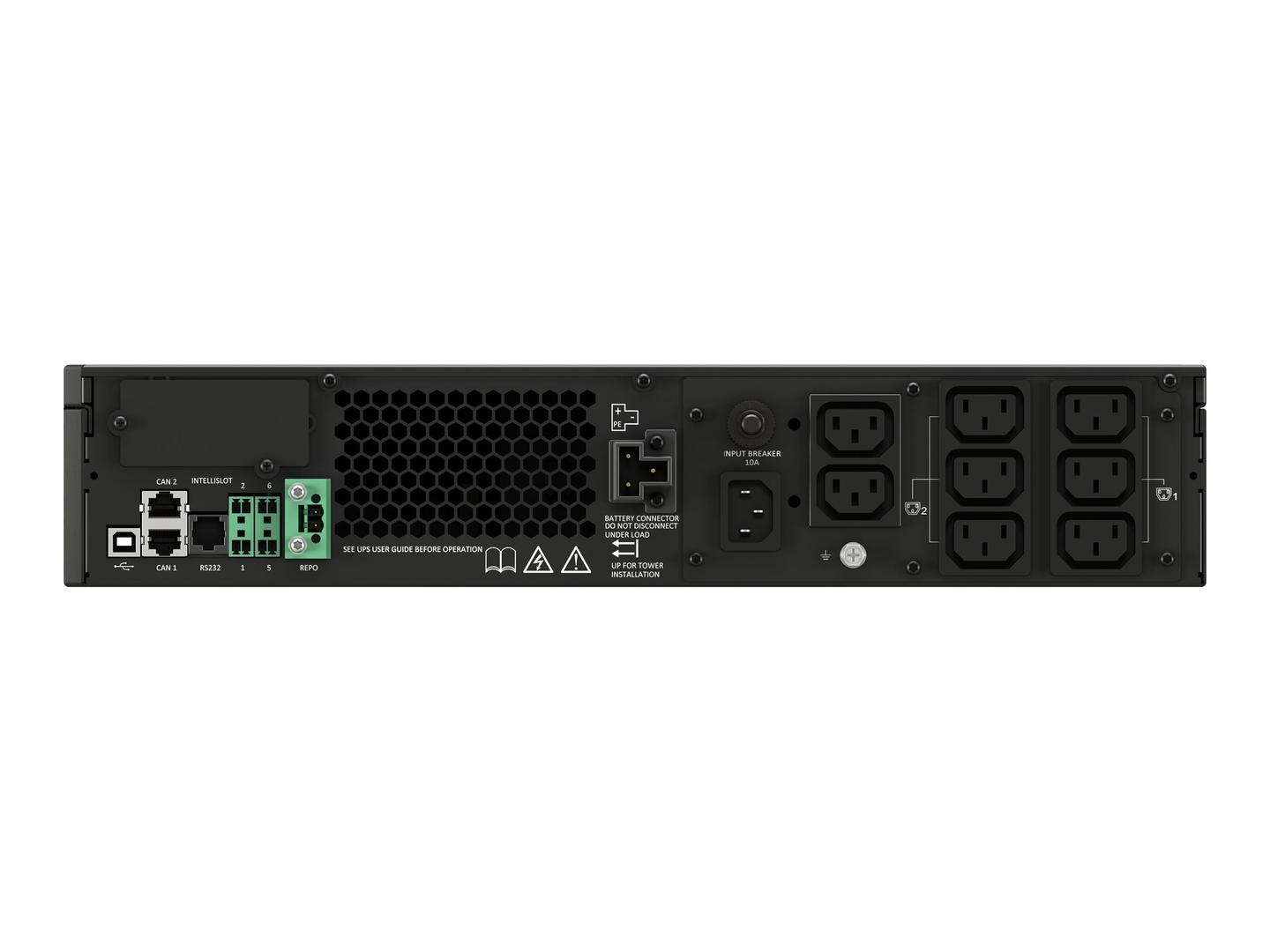

Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 8 x power IEC 60320 C13 |
Output Voltage | AC 200/208/220/230/240 V |
Power Capacity | 1500 Watt / 1500 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Efficiency | 98% Eco mode, 95% online mode |
Power Factor (PF) | 0.9 |
Battery | |
Technology | Lithium ion |
Run Time (Up To) | 13 min at full load <br /> 27 min at half load |
Recharge Time | 2 hours |
Transfer Time | 0 ms |
Networking | |
Remote Management Interface | USB, serial |
Remote Management Protocol | SNMP |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Liebert IntelliSlot |
Miscellaneous | |
Features | Hot-swappable battery, replaceable battery, LCD display, over current protection, over voltage protection, undervoltage protection, Remote Emergency Power Off (REPO), wide input voltage range, 2 x controllable outlet groups |
Compliant Standards | IEC 61000-3-2, IEC 61000-4-5, WEEE, REACH, RoHS2, Directive 2002/95/EC, UL 1642, IEC 61000-3-12, ISTA 2A, AS/NZS CISPR22 Class A, UL 1973, ANSI C62.41 Category B, IEC 62040-1:2008+A1:2013, IEC 62619 1st Ed., IEC 62040-2 2nd Ed. |
Software / System Requirements | |
Software Included | Vertiv Power Insight, Vertiv Power Assist, Vertiv Intelligence Director |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 95% RH (non-condensing) |
Sound Emission | 48 dB |
Dimensions & Weight | |
Width | 43 cm |
Depth | 47.6 cm |
Height | 8.5 cm |
Weight | 17 kg |
Dimensions & Weight (Shipping) | |
Shipping Width | 57 cm |
Shipping Depth | 59.7 cm |
Shipping Height | 24.2 cm |
Shipping Weight | 24 kg |
