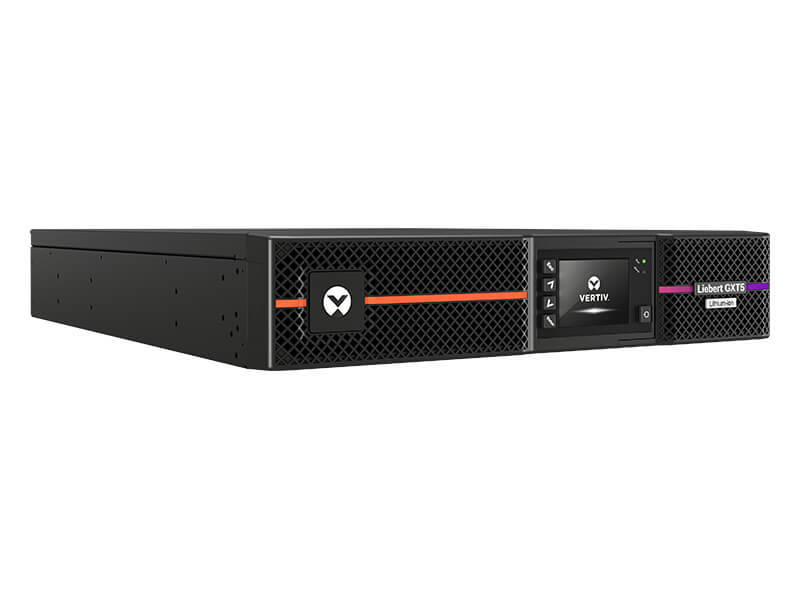

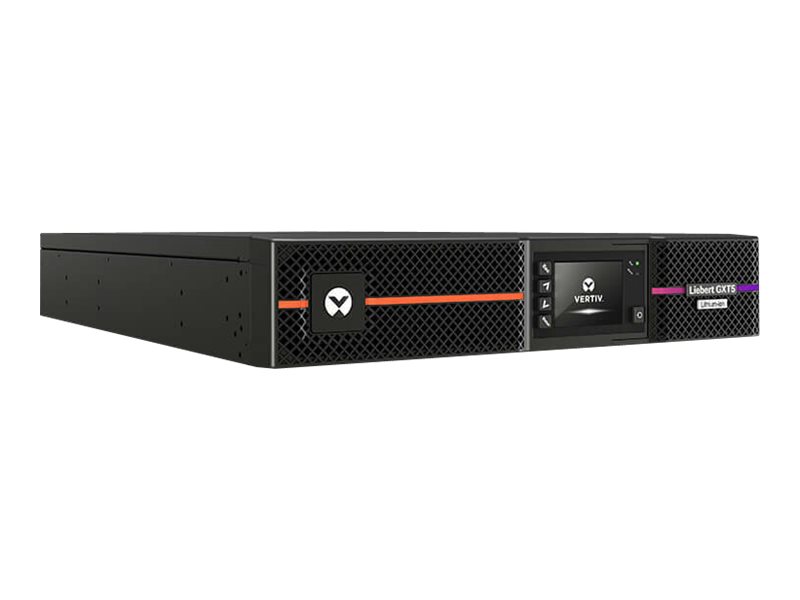

UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - USB, serial - output connectors: 7 - 2U | GXT5LI-3000IRT2UXL
Product Features
- Efficient power management
The Liebert GXT5 UPS showcases an impressive efficiency of 95% in online mode and 98% in Eco mode, ensuring optimal power usage and reduced energy costs. - Advanced connectivity options
Equipped with USB and serial remote management interfaces, alongside SNMP protocol support, this UPS offers versatile connectivity options for comprehensive power management and monitoring. - Robust environmental adaptability
Designed to operate within a wide temperature range of 0 to 40 °C and capable of handling humidity levels from 0 to 95% RH (non-condensing), the Liebert GXT5 ensures reliable performance in diverse operating conditions. - Comprehensive protection features
Featuring overcurrent, overvoltage, and undervoltage protection, along with a wide input voltage range, the Liebert GXT5 provides superior protection for your equipment against various power anomalies. - Rapid recharge with extended runtime
With a battery recharge time of just 2 hours and a runtime of up to 6.5 minutes at full load, this UPS ensures your equipment remains operational during power interruptions, minimizing downtime.
Special Fetures
- 95% efficiency in online mode and 98% in Eco mode for energy savings
- USB and serial interfaces with SNMP for easy monitoring and management
- Operates effectively in 0 - 95% RH and temperatures from 0 to 40 °C
- Overcurrent, overvoltage, and undervoltage protection for equipment safety
- 2-hour recharge time and up to 6.5 minutes runtime at full load
Product Specification
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 2U |
Power Device | |
UPS Technology | On-line |
Input Voltage | AC 230 V |
Input Voltage Range | AC 176 - 288 V |
Input Voltage Range (Adjustable) | AC 115 - 288 V |
Frequency Required | 40 - 70 Hz |
Input Connectors | 1 x power IEC 60320 C20 |

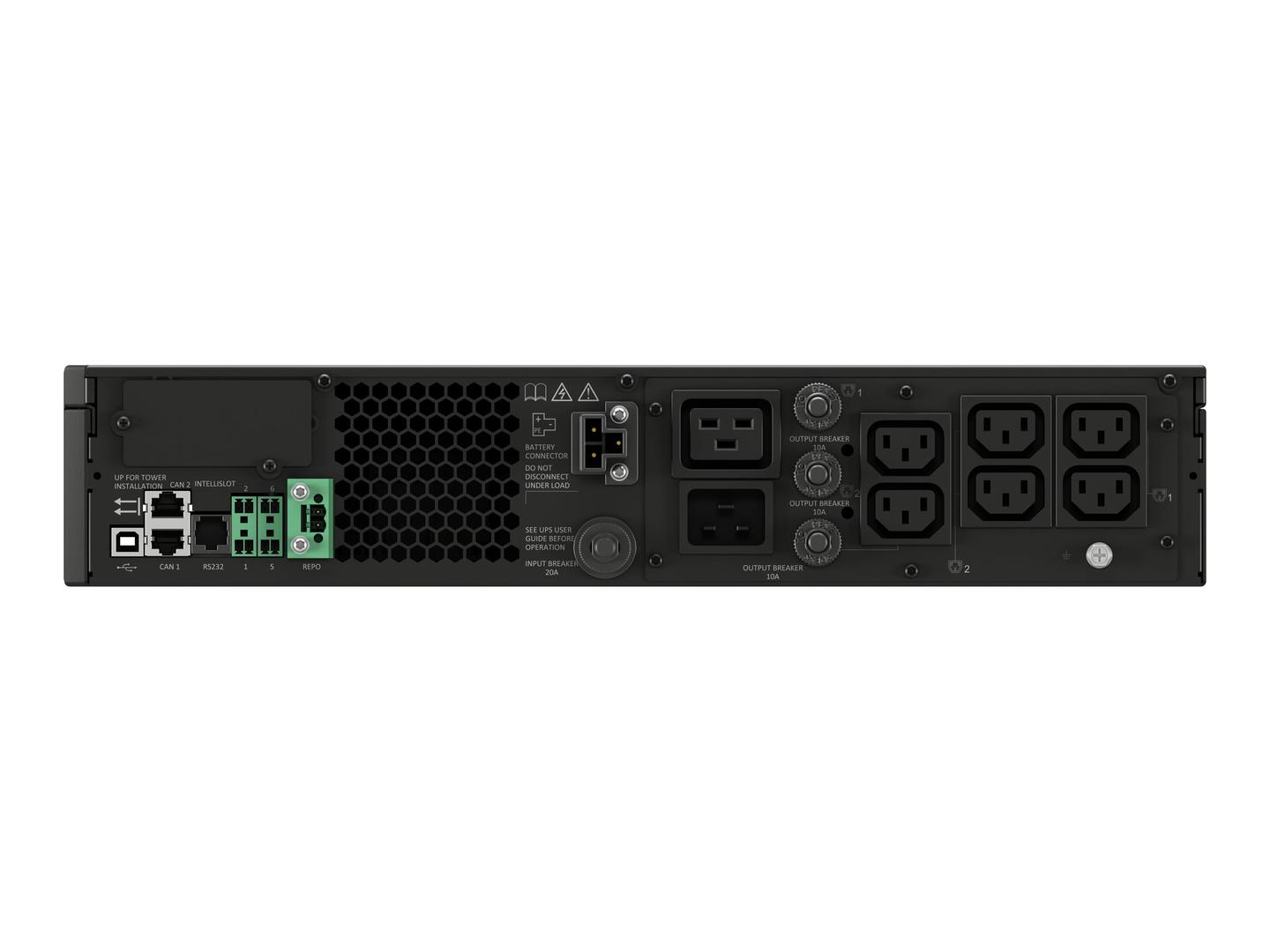

Power Output Connectors Details | 6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
Output Voltage | AC 200/208/220/230/240 V |
Power Capacity | 2700 Watt / 3000 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Efficiency | 98% Eco mode, 95% online mode |
Power Factor (PF) | 0.9 |
Battery | |
Technology | Lithium ion |
Run Time (Up To) | 6.5 min at full load ¦ 14.5 min at half load |
Recharge Time | 2 hours |
Transfer Time | 0 ms |
Networking | |
Remote Management Interface | USB, serial |
Remote Management Protocol | SNMP |
Miscellaneous | |
Features | Hot-swappable battery, replaceable battery, LCD display, over current protection, over voltage protection, undervoltage protection, Remote Emergency Power Off (REPO), wide input voltage range, 2 x controllable outlet groups |
Compliant Standards | IEC 61000-3-2, IEC 61000-4-5, WEEE, REACH, RoHS2, Directive 2002/95/EC, UL 1642, IEC 61000-3-12, ISTA 2A, AS/NZS CISPR22 Class A, UL 1973, ANSI C62.41 Category B, IEC 62040-1:2008+A1:2013, IEC 62619 1st Ed., IEC 62040-2 2nd Ed. |
Software / System Requirements | |
Software Included | Vertiv Power Insight, Vertiv Power Assist, Vertiv Intelligence Director |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 95% RH (non-condensing) |
Sound Emission | 48 dB |
Dimensions & Weight | |
Width | 43 cm |
Depth | 54.6 cm |
Height | 8.5 cm |
Weight | 21 kg |
Dimensions & Weight (Shipping) | |
Shipping Width | 57 cm |
Shipping Depth | 71.7 cm |
Shipping Height | 24.2 cm |
Shipping Weight | 27 kg |
