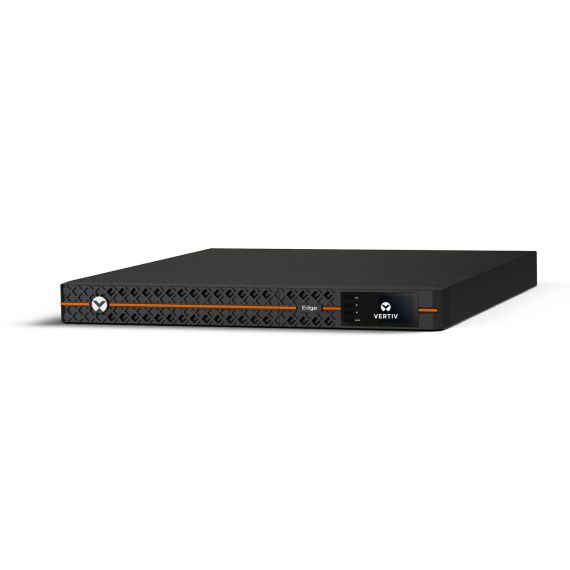

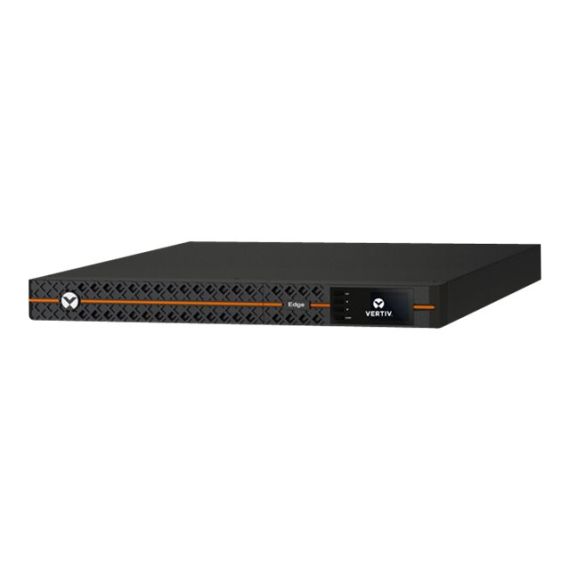

Vertiv EDGE - UPS (rack-mountable) - AC 230 V - 1350 Watt - 1500 VA - 9 Ah - USB - output connectors: 6 - 1U | EDGE-1500IRM1U
EDGE-1500IRM1U
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- High efficiency
Vertiv EDGE UPSs operate at up to 98% efficiency in normal operation mode, saving on electricity costs throughout their lifetime. - Extended battery life
Deep discharge protection prevents the potential damage that can occur when a UPS battery fully drains. - Configurable Green function
When in battery mode with only very small loads, the UPS will automatically shut itself down to protect batteries. - Easy to install, configure and operate
Auto-detect external battery modules and color LCD display help to make the UPS operation easier and the user interface more intuitive. - Remote emergency power off
Allows the UPS to be remotely shut down during an emergency.
Special Fetures
- Reliable and powerful: 0.9 output power factor, ensuring more active power to protect larger loads
- Highly efficient
- Color graphic LCD display
- Advanced AVR design for a more stable output voltage regulation
Product Specification
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 166 - 278 V |
| Frequency Required | 55 - 65 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 6 x power IEC 60320 C13 |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 1350 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 624 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 97% line mode |
| Power Factor (PF) | 0.9 |
| Battery | |
| Quantity | 6 |
| Technology | Lead Acid |
| Capacity | 9 Ah |
| Run Time (Up To) | 5 min at full load <br /> 9 min at 70% load <br /> 15 min at 50% load <br /> 42 min at 20% load |
| Recharge Time | 3 hours |
| Transfer Time | 6 ms |
| Features | Valve-regulated, spill-proof |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Expansion Slots | 1 (total) / 1 (free) x Liebert IntelliSlot |
| Miscellaneous | |
| Included Accessories | 4-post rail rack mounting kit |
| Cables Included | USB cable |
| Features | Programmable load outlets, Automatic Voltage Regulation (AVR), LCD display, emergency power off |
| Compliant Standards | CB, EN 60020-1:2008+A1:2013, ISTA 2A, RoHS, REACH |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 60 cm |
| Height | 4.4 cm |
| Weight | 23 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 57 cm |
| Shipping Depth | 78 cm |
| Shipping Height | 20 cm |
| Shipping Weight | 25 kg |
