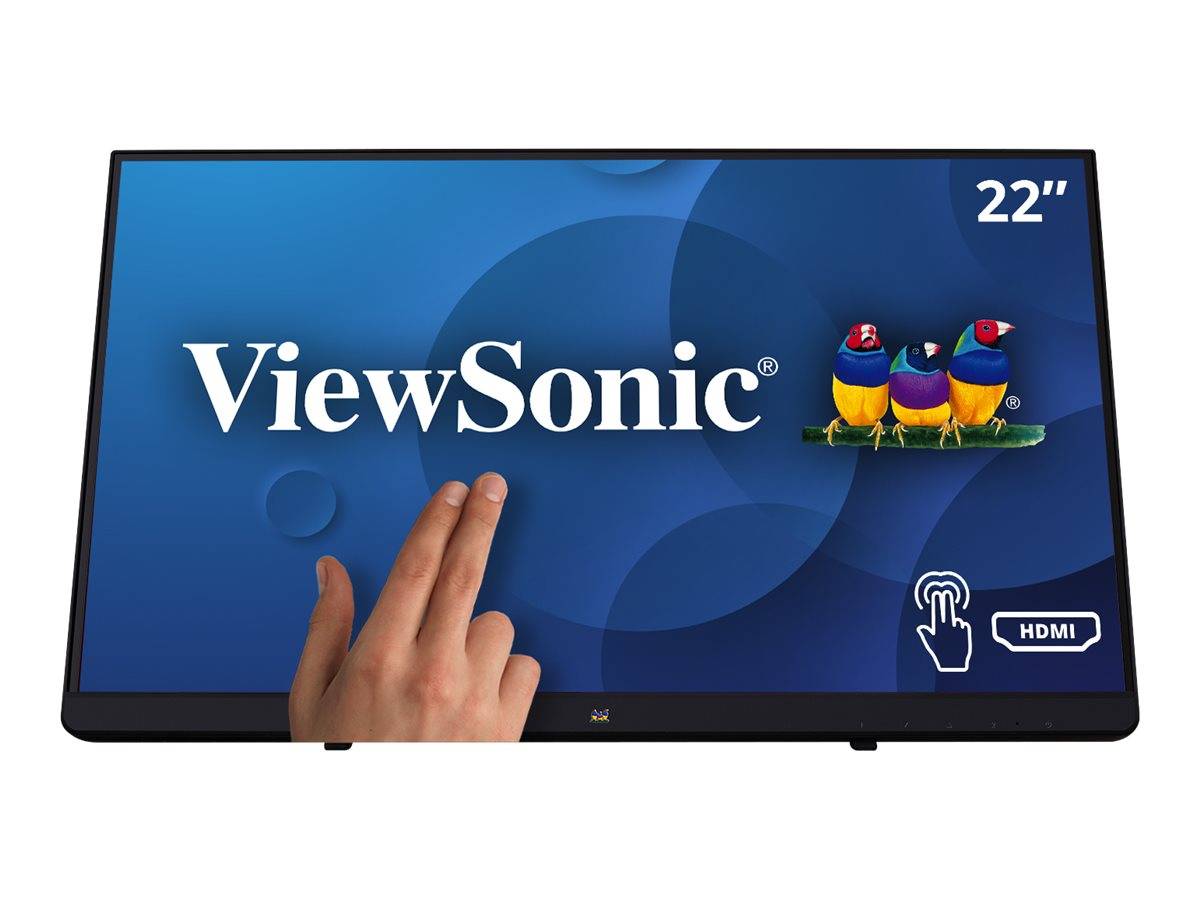

ViewSonic TD2230 / LED monitor / 22" (21.5" viewable) / touchscreen / 1920 x 1080 Full HD (1080p) / IPS / 250 cd/m² / 1000:1 / 14 ms / HDMI, VGA, DisplayPort / speakers | TD2230
Product Features

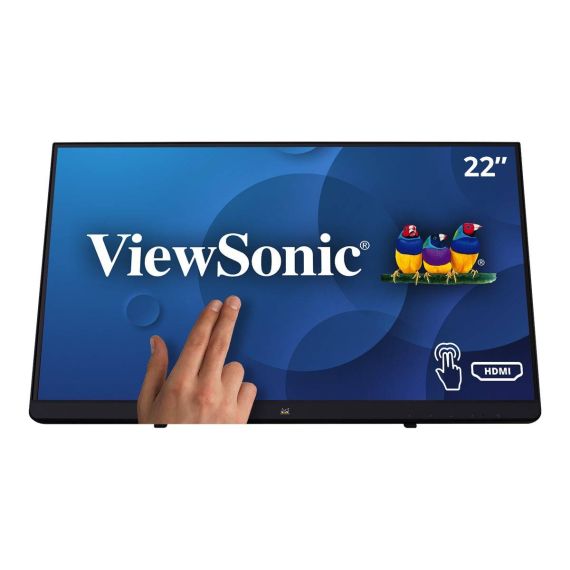

- 10-point projected capacitive touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use. - SuperClear IPS panel technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side. - Frameless design

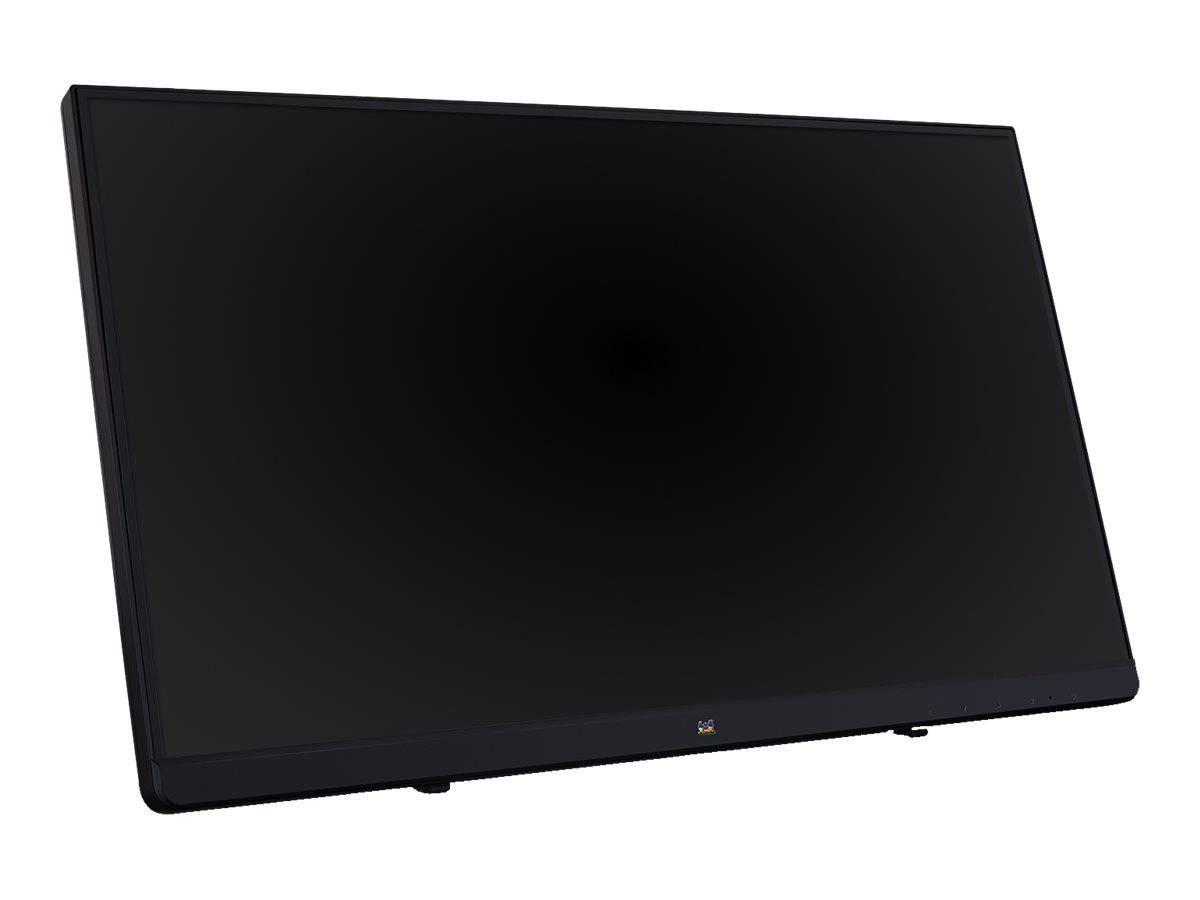

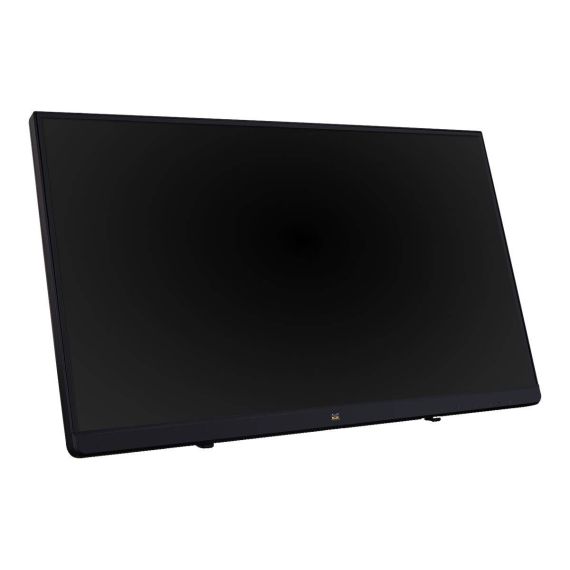

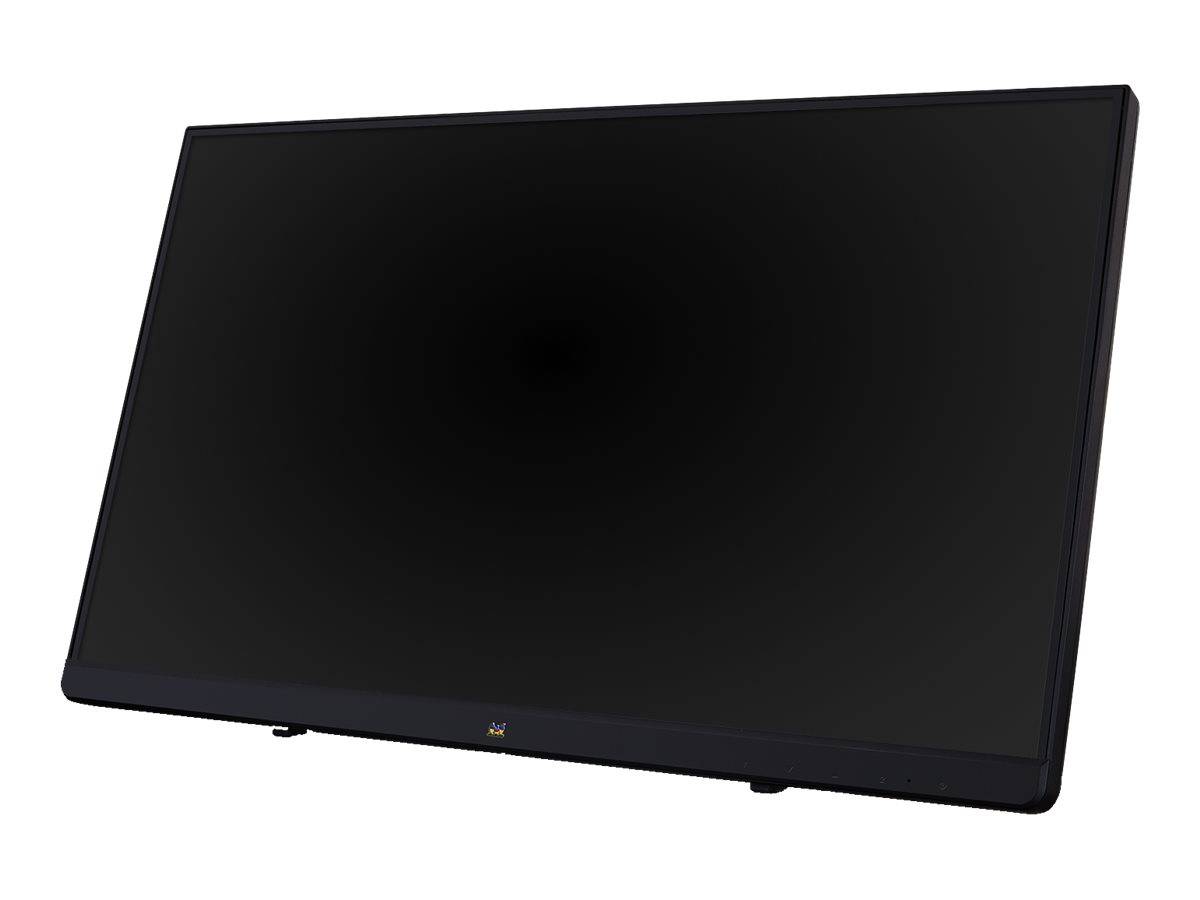

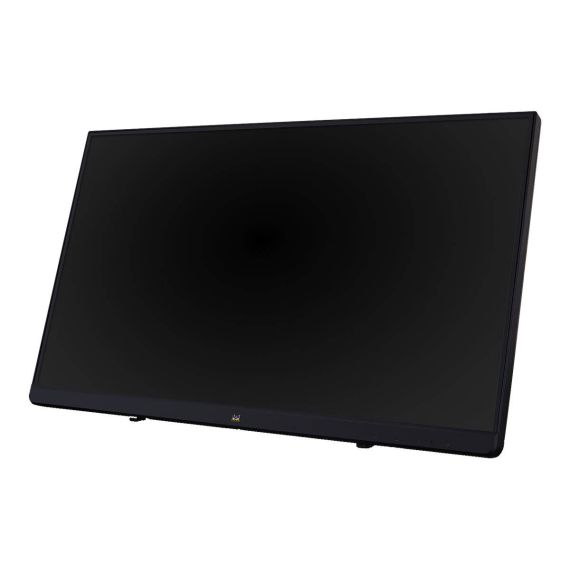

Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs. - Versatile connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices. - Durable, scratch-resistant screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
Special Features
- 10-point projected capacitive touch
- SuperClear IPS panel technology
- Frameless design
- Versatile connectivity
- Durable, scratch-resistant screen
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Class | Class F |
Diagonal Size | 22" |
Viewable Size | 21.5" |
Built-in Devices | USB 3.0 hub |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | Full HD (1080p) 1920 x 1080 |
Brightness | 250 cd/m² |
Contrast Ratio | 1000:1 / 50000000:1 (dynamic) |
Colour Support | 16.7 million colours |
Response Time | 14 ms (grey-to-grey) |
Vertical Refresh Rate | 50 - 76 Hz |
Horizontal Refresh Rate | 24 - 82 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Screen Coating | Anti-glare, 7H Hard Coating |
Backlight Technology | LED backlight |
Features | Sync on Green, SuperClear, Eco-Mode, frameless, scratch-resistant, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, ViewMode |
Dimensions (WxDxH) | 49.03 cm x 12.97 cm x 29.88 cm - with stand |
Weight | 3.6 kg |
Audio | Audio |
Type | Speakers - stereo |
Output Power / Channel | 3 Watt |
Input | Input |
Type | Touch-screen - touchscreen |
Movement Detection Technology | Projected capacitive |
Connectivity | Connectivity |

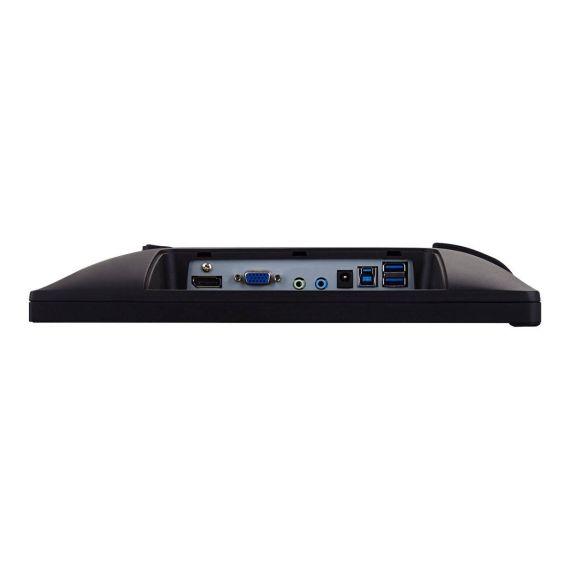

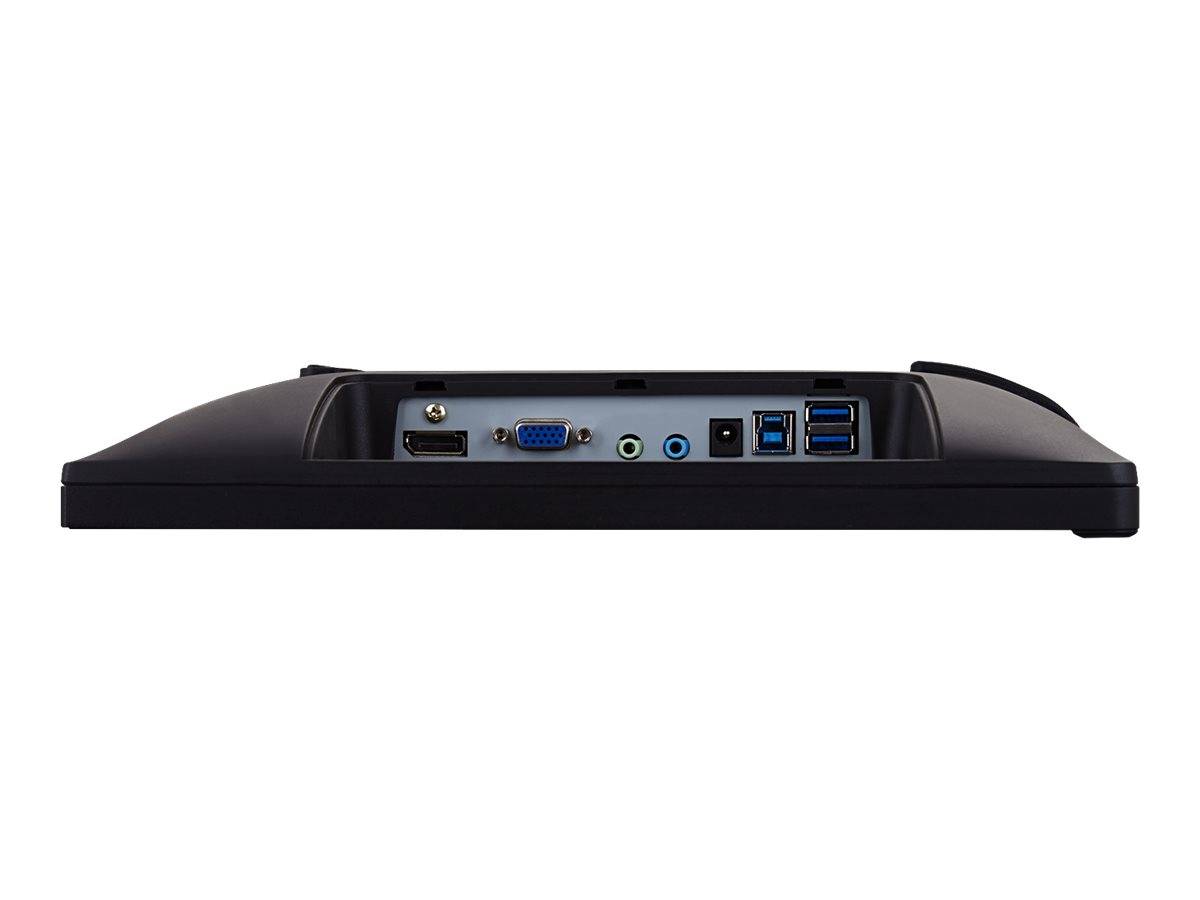

Interfaces | HDMI VGA DisplayPort USB 3.0 upstream (Type B) 2 x USB 3.0 downstream (Type A) Audio line-in Headphones |
Mechanical | Mechanical |
Display Position Adjustments | Tilt |
Tilt Angle | -20/+70 |

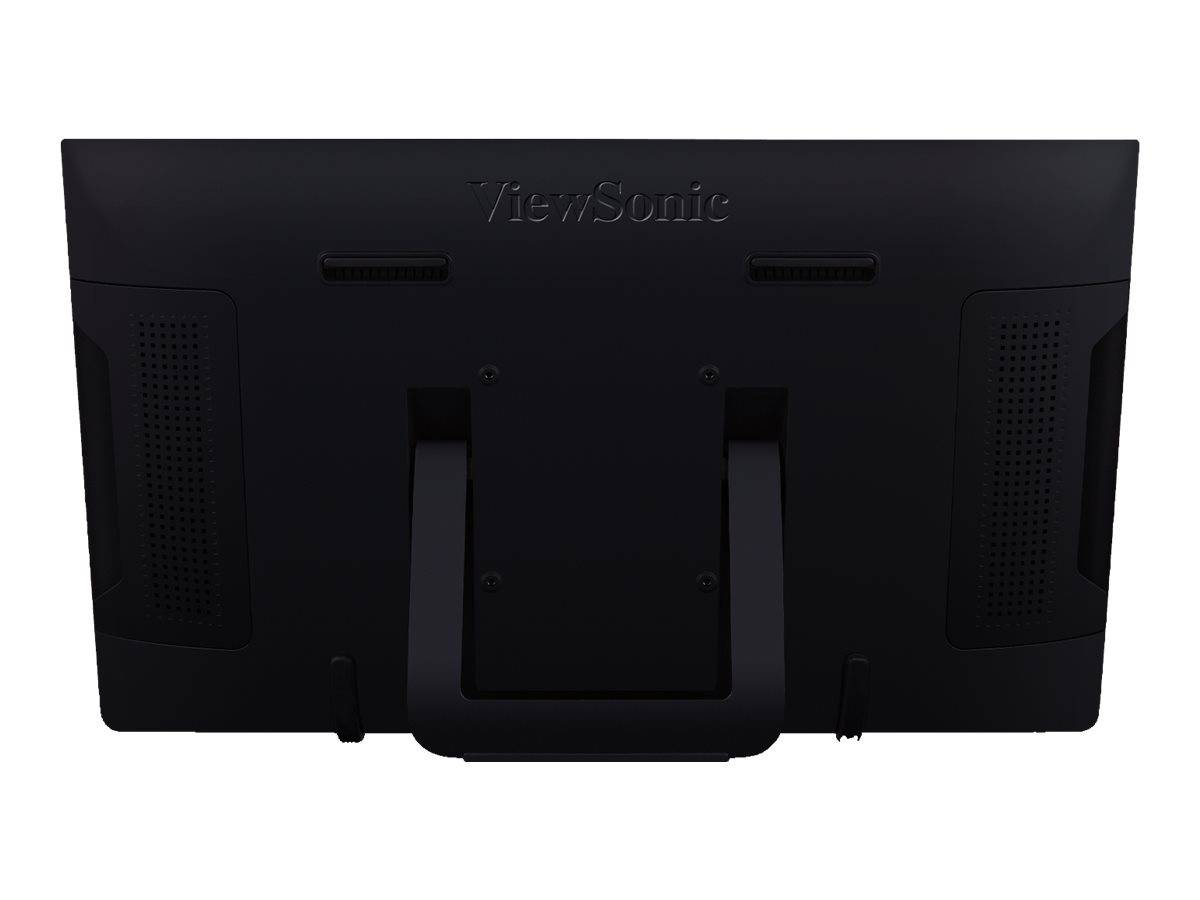

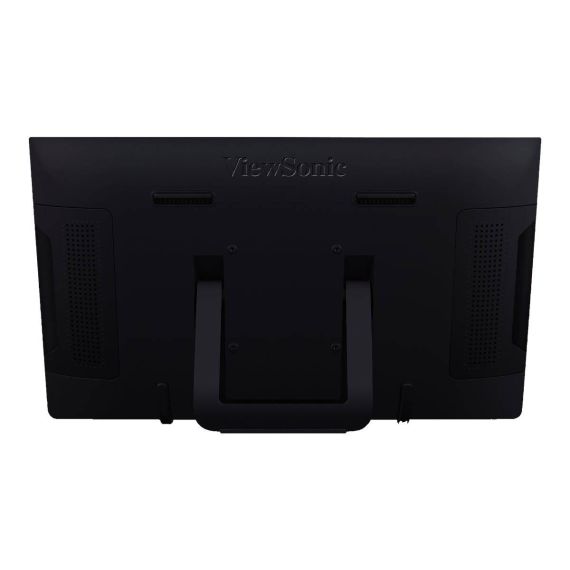

VESA Mounting Interface | 100 x 100 mm |
Miscellaneous | Miscellaneous |
Included Accessories | Stand |
Cables Included | 1 x HDMI cable 1 x SuperSpeed USB cable 1 x audio cable |
Backlight Life | 30,000 hours |
Compliant Standards | FCC Class B certified, UL, ICES-003, cULus, DOE, Mexico CoC |
Localisation | United States |
Power | Power |
Input Voltage | AC 120/230 V (50/60 Hz) |
Power Consumption SDR (On mode) | 19 kWh/1000h |
Power Consumption (Typical) | 25 Watt |
Software / System Requirements | Software / System Requirements |
Included Software | ViewSonic Wizard |
Dimensions & Weight | Dimensions & Weight |
Dimensions & Weight Details | With stand - width: 49.03 cm - depth: 12.97 cm - height: 29.88 cm - weight: 3.6 kg Without stand - width: 49.03 cm - depth: 4.73 cm - height: 29.88 cm - weight: 3.6 kg |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 55 cm |
Shipping Depth | 11.4 cm |
Shipping Height | 37.1 cm |
Shipping Weight | 4.7 kg |
Sustainability Information | Sustainability Information |
EPEAT Compliant | EPEAT Bronze |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 7.0 |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - parts and labour - 3 years Limited warranty - backlight - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 90% (non-condensing) |
