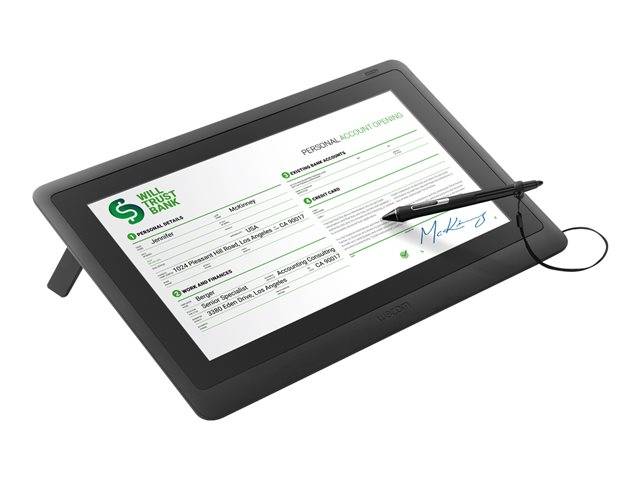

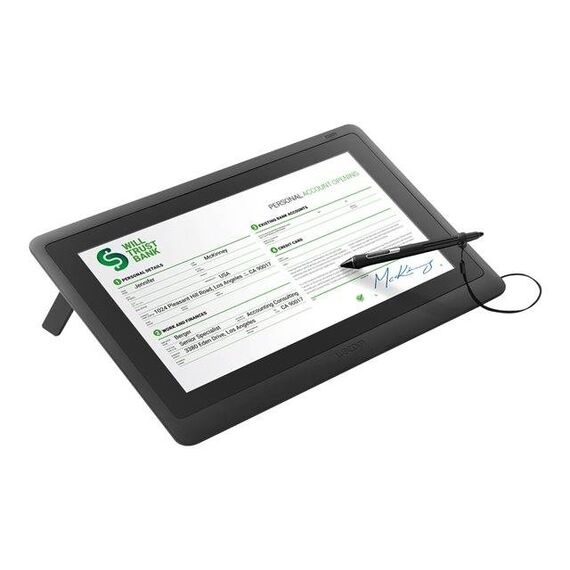

Wacom DTK-1660E / Digitiser w/ LCD display / 34.42 x 19.36 cm / electromagnetic / wired / HDMI, USB 2.0 | DTK1660EK0B
Wacom DTK-1660E / Digitiser w/ LCD display / 34.42 x 19.36 cm / electromagnetic / wired / HDMI, USB 2.0 | DTK1660EK0B
Description
Featuring a 15.6″ Full HD resolution LCD display, the Wacom DTK-1660E is a premium pen display that enables businesses to create an optimal paperless workflow for in-person customer interactions. With state-of-the-art encryption and 8,192 levels of digital pen pressure sensitivity that enable biometrically accurate electronic signature capture, organizations can provide the most familiar and secure electronic signing and writing experience. The DTK-1660E also combines a modern, slim look with exceptionally comfortable usage in portrait or landscape mode for maximum user convenience.These attributes make the Wacom DTK-1660E ideal for a variety of in-person paperless workflows across financial services, education, healthcare, hospitality, telecoms and POS retail environments.
Wacom DTK-1660E / Digitiser w | DTK1660EK0B
Special Features
- Outstanding performance and reliability through proven, premium digital pen display technology
- Superb ease of use with no shrinking/scrolling when viewing and signing full-screen A4 and letter-size documents
- Low maintenance and long life thanks to the highly durable, scratch-resistant writing surface
- Lower document fraud risk through enhanced security and verification with reliable AES 256 / RSA 2048 encryption
- Flexible and comfortable use with the ability to switch between landscape and portrait mode
- Enhanced customer satisfaction through the premium quality and highly intuitive pen and paper-like user experience
- Clean, clutter-free installation with simplified cable management through the 3-in-1 connector cable
Product Specification
| Device Type | Digitiser |
| Width | 42.2 cm |
| Depth | 2.45 cm |
| Height | 28.5 cm |
| Weight | 1.9 kg |
| Connectivity Technology | Wired |
| Interface | HDMI, USB 2.0 |
| Movement Detection Technology | Electromagnetic |
| Movement Resolution | 5080 lpi |
| Accuracy | ± 0.5 mm |
| Performance | 187 points per second |
| Pressure Levels | 8192 |
| Active Area | 34.42 cm x 19.36 cm |
| Features | Integrated foldable legs, VESA 75 mm |
| Type | LCD display |
| Diagonal Size | 15.6" |
| Image Aspect Ratio | 16:9 |
| Colour Support | 16.7 million colours |
| Native Resolution | 1920 x 1080 |
| Image Brightness | 210 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Horizontal Viewing Angle | 176 |
| Vertical Viewing Angle | 176 |
| Response Time | 25 ms |
| Interfaces | 1 x USB 2.0 ¦ 1 x display / video - HDMI |
| Included Accessories | Nib removal tool, stylus tether, pen holder, Wacom Pro Pen 2, 3 in 1 cable (HDMI/USB 2.0/power) |
| Voltage Required | AC 100 - 240 V |
| Power Consumption | 27 Watt |
| Power Consumption Stand by | 0.5 Watt |
| OS Required | Apple MacOS X 10.11 or later, Microsoft Windows 7 / 8.1 / 10 (32/64 bits) |
| Service & Support | Limited warranty - 3 years |
