Wacom DTU-1141B / Digitiser w/ LCD display / 22.32 x 12.56 cm / electromagnetic / 4 buttons / wired / USB 2.0 / black | DTU1141B-CH2
Wacom DTU-1141B / Digitiser w/ LCD display / 22.32 x 12.56 cm / electromagnetic / 4 buttons / wired / USB 2.0 / black | DTU1141B-CH2
Description

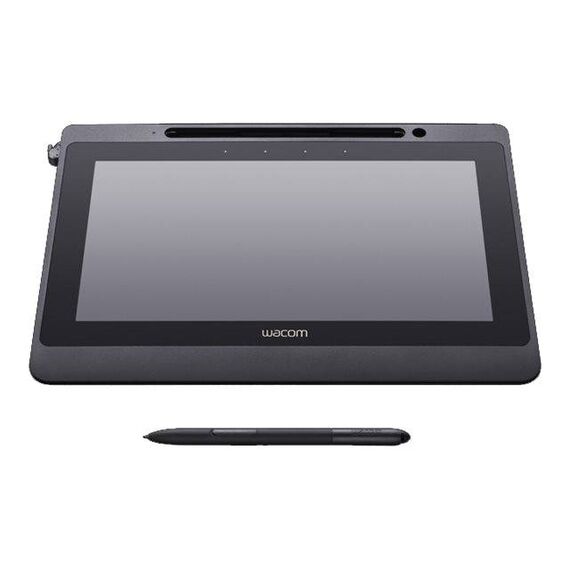

The DTU-1141B has all the features necessary for a great eDocuments solution. The vivid 10.1" LCD supports multiple resolutions up to Full HD to provide a great experience with any business software application. For security, the DTU-1141B includes state-of-the-art encryption, plus unique hardware ID to identify the individual unit that was used for signing. Four touch-activated ExpressKeys allow easy access to commonly used shortcuts.The DTU-1141B is extremely durable and can be easily integrated into any existing environment. The pen is cordless and battery-free, making it light and strong. The unit can be used while flat, supported at a comfortable angle with the integrated stand, or attached to a third-party arm or stand with the VESA mount.
Wacom DTU-1141B / Digitiser w | DTU1141B-CH2
Special Features
- 10.1" color LCD panel with Full HD (1920 x 1080) resolution to view and sign documents
- Support for six different resolutions from 800 x 600 to 1920 x 1080
- Patented cordless, battery-free pen with 1024 levels of pressure sensitivity for great signing and writing experience
- State-of-the-art RSA/AES encryption to perform secure transactions
- Power is provided from just one USB cable to reduce clutter in any working environment
- Hardened, anti-glare surface provides high durability and easier viewing in different lighting conditions, plus a superb paper-like feel
- VESA mounting holes allow for use of third-party arms and stands
Product Specification
| Device Type | Digitiser |
| Width | 28.3 cm |
| Depth | 1.1 cm |
| Height | 21 cm |
| Weight | 800 g |
| Colour | Black |
| Connectivity Technology | Wired |
| Interface | USB 2.0 |
| Movement Detection Technology | Electromagnetic |
| Buttons Qty | 4 |
| Movement Resolution | 2540 lpi |
| Accuracy | ± 0.5 mm |
| Performance | 200 points per second |
| Pressure Levels | 1024 |
| Active Area | 22.32 cm x 12.56 cm |
| Features | Pressure sensitivity, antiglare surface, 4 ExpressKeys, USB bus powered, pen slot, adjustable stand, VESA 75 mm |
| Type | LCD display |
| Diagonal Size | 10.1" |
| Image Aspect Ratio | 16:9 |
| Colour Support | 16.7 million colours |
| Native Resolution | 1920 x 1080 |
| Image Brightness | 200 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 170 |
| Response Time | 25 ms |
| Interfaces | 1 x USB 2.0 |
| Included Accessories | Nibs (5 pcs.), nib removal tool, stylus tether, 4 VESA mounting screws, pen, USB Y-cable, USB plug attachment |
| Compliant Standards | AES, RSA; USB 2.0 |
| Power Consumption | 5 Watt |
| Power Consumption Stand by | 1 Watt |
| Software Included | Drivers & Utilities, Wacom sign | pro PDF |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Apple MacOS X 10.11 - 10.13 |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
