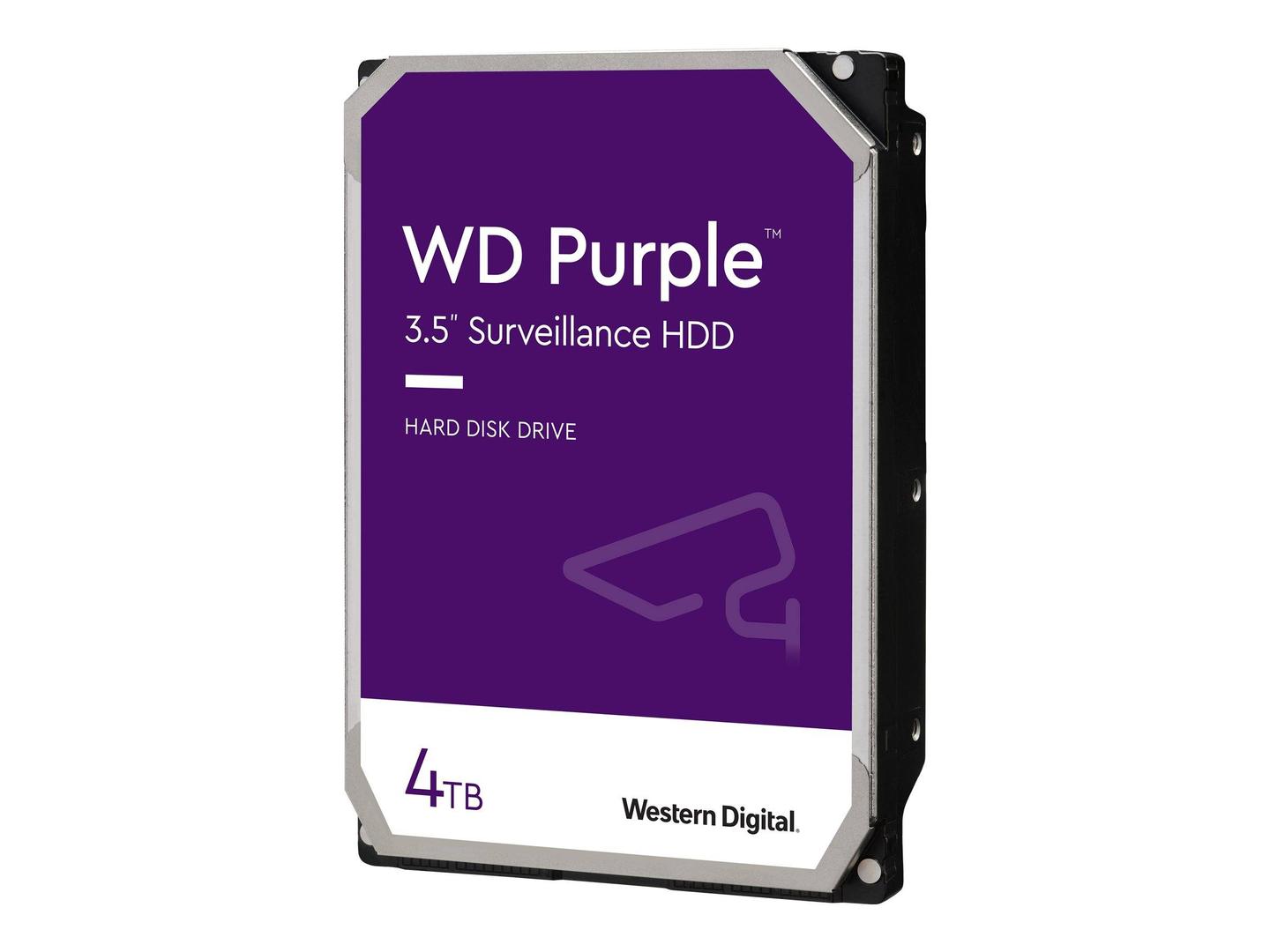

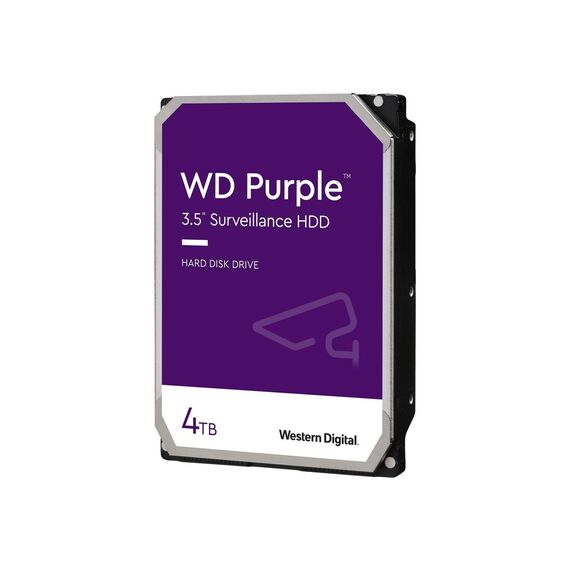

WD Purple WD43PURZ / Hard drive / 4 TB / surveillance / internal / 3.5" / SATA 6Gb/s / 5400 rpm / buffer: 256 MB | WD43PURZ
Product Features
- Big storage and surveillance you can trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it. - Western digital's WD AllFrame technology
All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback. - Enhanced workload ratings
WD Purple drives feature a workload rating - to handle the unique demands of mainstream video surveillance DVR and NVR systems. - Multiple cameras, multiple streams
Modern recorders support multiple video streams per camera. WD Purple drives support 64 single-stream HD cameras. With so many options, you have the flexibility to upgrade or expand your security applications in the future. - Designed for reliable operation
Engineered for reliability with an MTBF of 1 million hours and backed, WD Purple drives feature tarnish-resistant components and support for storage systems with 16 drive bays. WD Purple hard drives are designed with RAID error recovery control to help reduce failures in supported video recorders. - Wide compatibility and seamless integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of high enclosures and chipsets supported, you're sure to find the DVR or NVR configuration that's right for you.
Special Features
- Capacity 4 TB
- Designed for mainstream surveillance systems
- WD AllFrame technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to surveillance applications
- Supports 180 TB/year workload rate
Product Specification
Device Type | Hard drive - internal |
Capacity | 4 TB |
Form Factor | 3.5" |
Interface | SATA 6Gb/s |
Buffer Size | 256 MB |
Features | Advanced Format technology, Conventional magnetic recording (CMR), AllFrame, 24x7 availability |
Width | 101.6 mm |
Depth | 147 mm |
Height | 26.1 mm |
Performance | Performance |
Drive Transfer Rate | 600 MBps (external) |
Spindle Speed | 5400 rpm |
Reliability | Reliability |
MTBF | 1,000,000 hours |
24x7 Operation | Yes |
Non-Recoverable Errors | 1 per 10^14 |
Load / Unload Cycles | 300,000 |
Expansion & Connectivity | Expansion & Connectivity |
Interfaces | 1 x SATA 6 Gb/s |
Compatible Bay | 3.5" |
Software & System Requirements | Software & System Requirements |
Software Included | Western Digital Device Analytics |
Miscellaneous | Miscellaneous |
Compliant Standards | RoHS 2011/65/EU |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 65 °C |
Shock Tolerance (operating) | 30 g @ 2 ms |
Shock Tolerance (non-operating) | 250 g @ 2 ms |
Features - Western Digital - WD43PURZ
- 3.5"
- Internal
- SATA
